10mm | 15W/m RGB | IP20 | COB Dot Free LED Strip Light

10mm | 15W/m RGB | IP20 | COB Dot Free LED Strip Light

$40.00 AUD
$40.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

24VIP20RGB

In stock

Purchasing Options

Pay in 4, interest-freeSplit your order into 4 payments with PayPal — no interest, no fees when paid on time.

Full manufacturer warrantyEvery product is backed by its full warranty as an official Australian distributor.

Free, fast shipping over $150Most in-stock orders dispatch within 1–2 business days from our Sydney warehouse.

Description

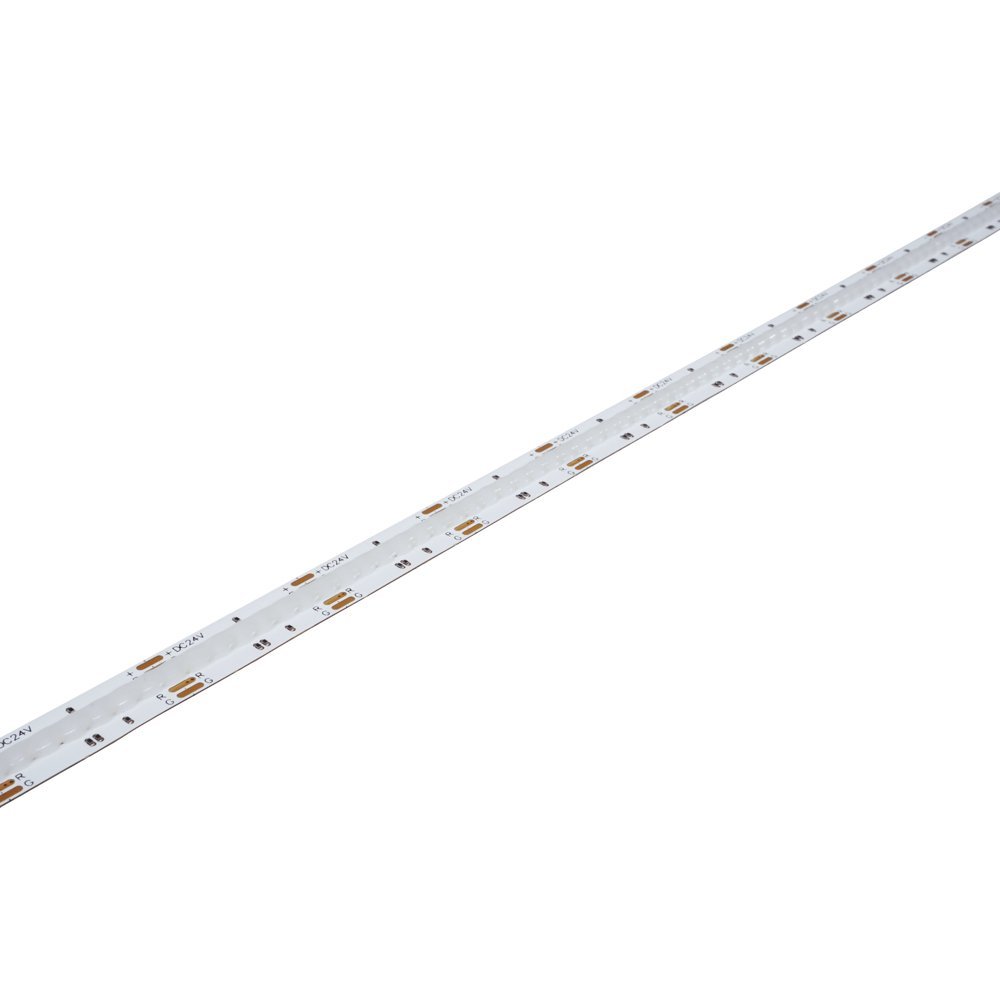

The use of COB technology means the visible dots are almost eliminated.  This gives the added advantage of not requiring a profile and lens to diffuse the unsightly dots.

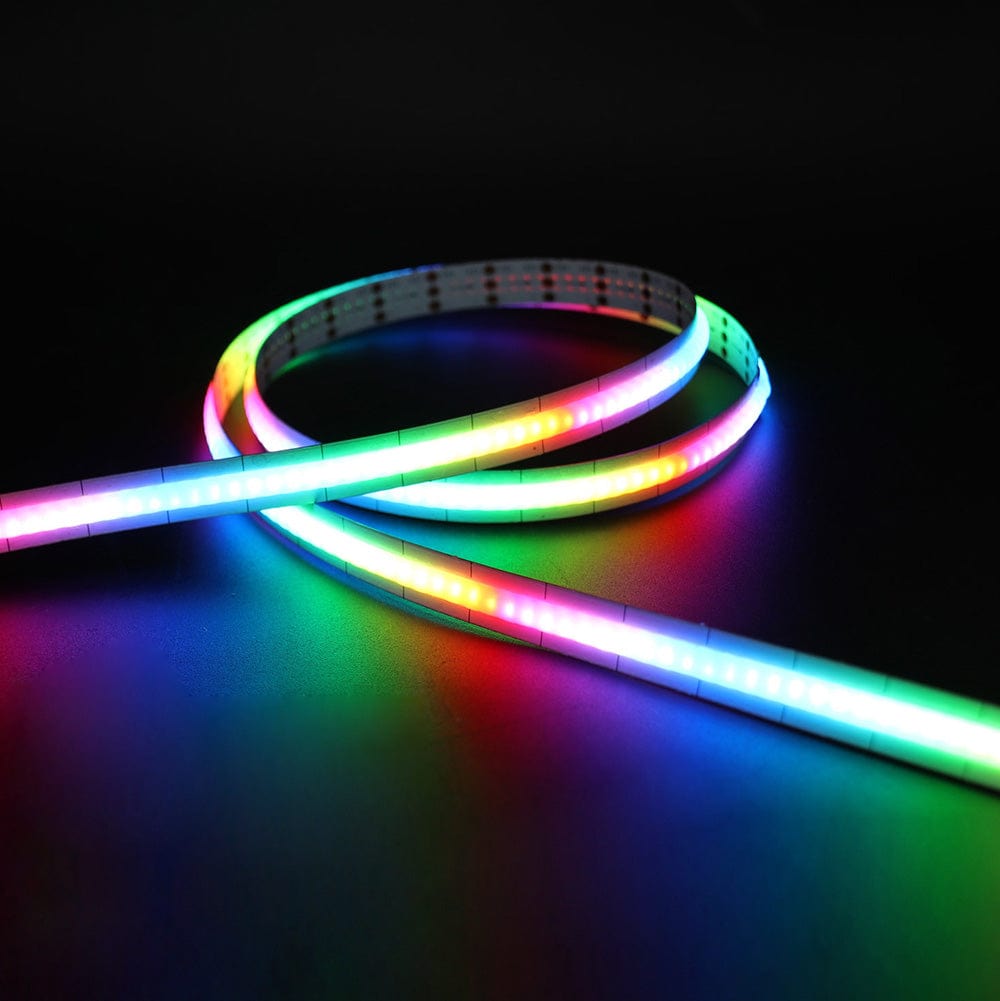

COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light.  Ideal for installations where the LED strip will not be mounted within profile but seen.

This PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.

This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.

  • Requires 24V driver (sold separately)
  • Choose from a range of drivers between 60W and 200W to match the length of flexi-strip required
  • Remote, wall mounted and CONNECT Wi-Fi controllers available as accessories
  • For runs over 5m individual lengths should be connected in parallel
  • Easy clip connector packs available as accessories

Specifications
Electrical DataVoltage
24 VDC
Electrical DataWattage 1m
15 W
Electrical DataCurrent 1m
1.26 A
Electrical DataLED Data
Electrical DataPackage Type
COB
Electrical DataChips LED
N/A
Electrical DataChips 1m
840
Electrical DataPhotometric Data
Electrical DataColour Temperature
RGB (Red, Green, Blue)
Electrical DataColour Rendering Index Ra
N/A
Electrical DataLuminous Flux 1m
N/A
Electrical DataLuminous Efficacey
N/A
Electrical DataBeam Angle
120°
Electrical DataDimmable
1 ∼ 100% (refer data sheet)
Electrical DataConstruction / Protection Data
Electrical DataSubstrate
Double layer FPCB / 3oz
Electrical DataMounting
Double sided tape 3M 9080
Electrical DataIP Rating
IP20
Electrical DataOperating Temperature
-20 ∼ +70 C°
Electrical DataStorage Temperature
-20 ∼ +50 C°
Electrical DataDimensions
Electrical DataCutting increments
50.0mm
Electrical DataLength
5m (Priced per meter)
Electrical DataWidth
10.0mm
Electrical DataHeight
5.0mm
Electrical DataLifetime
Electrical DataWorking Life
70,0000 hrs
