The Domus EMIT-55 TRIO LED Series is a 55mm inground light (Ø43mm cutout without cannister) ideal for lighting up features where minimalistic light effects are required. Featuring a 2.5W RGBW LED output with a range of fascia plates and metalware finishes to suit any landscape or architectural application.
Tri-Colour selectable at the wiring stage — choose 3000K Warm White, 4000K Neutral White or 5500K White at installation. Functional with both 12V and 24V DC constant voltage LED drivers (wire in parallel).
Options
-

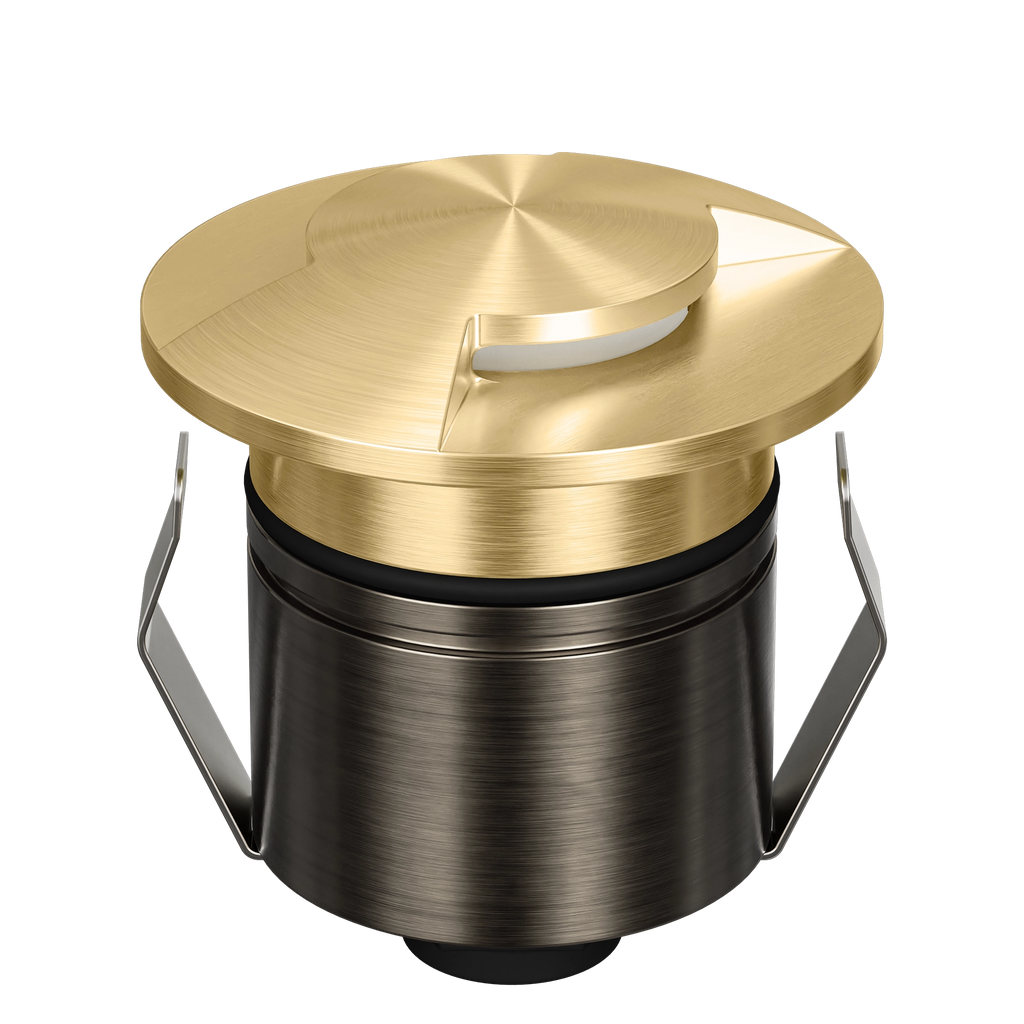

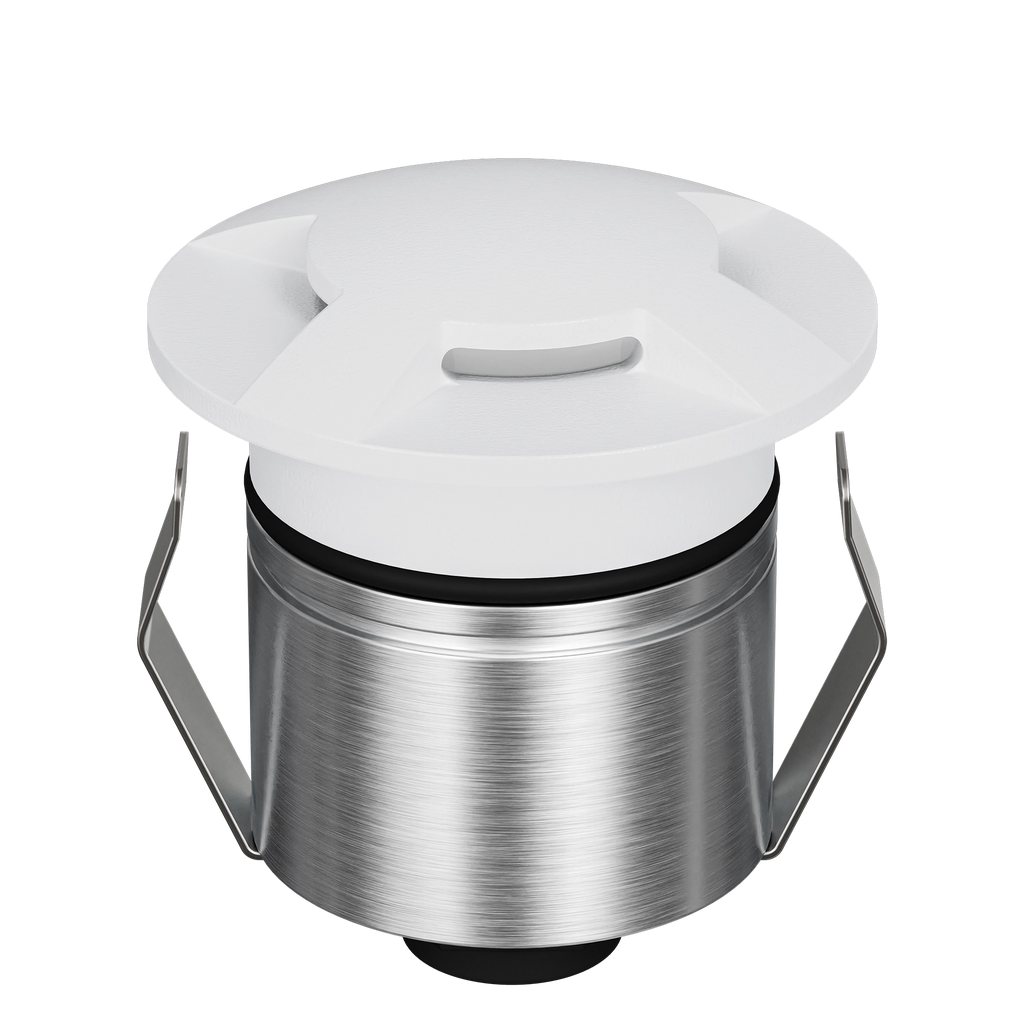

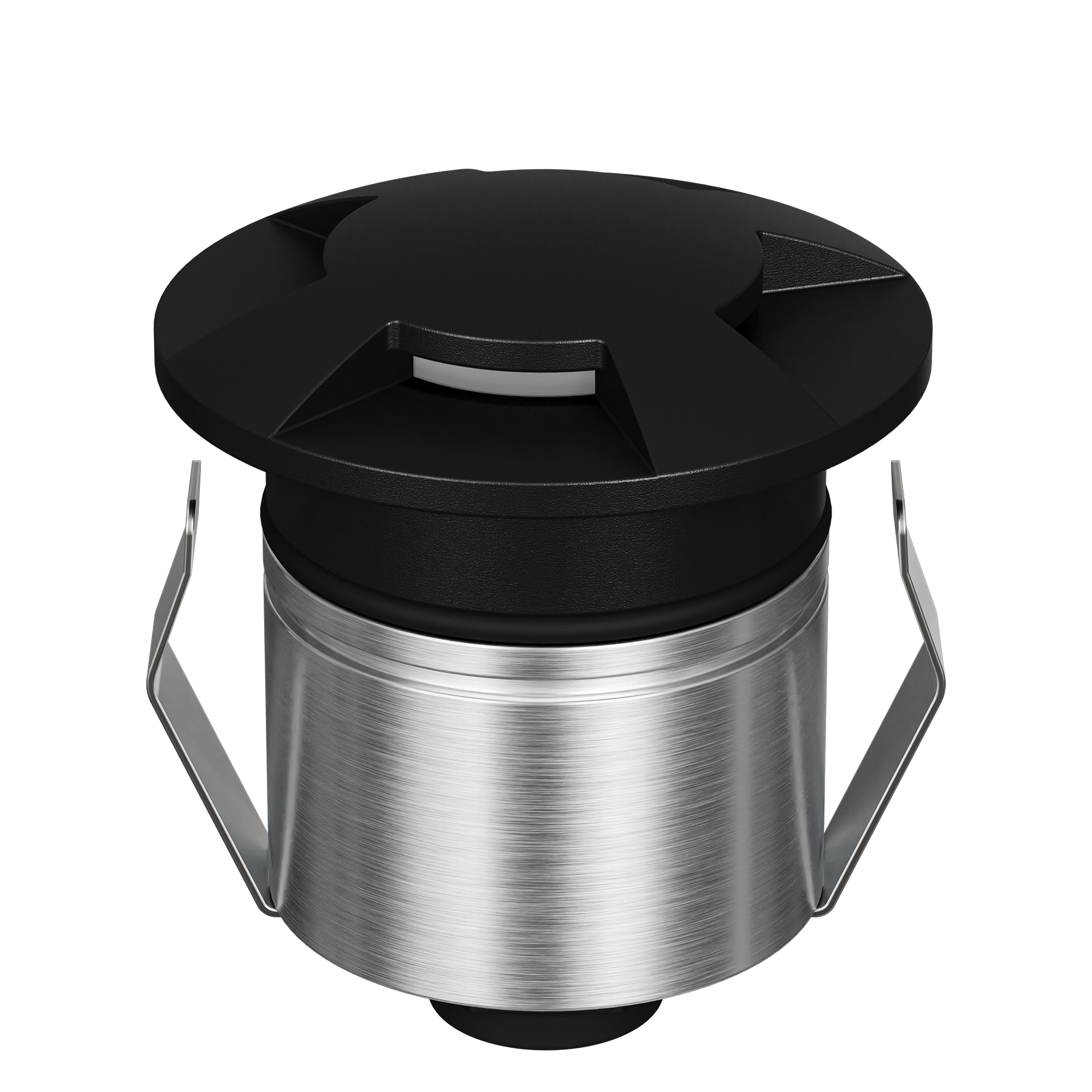

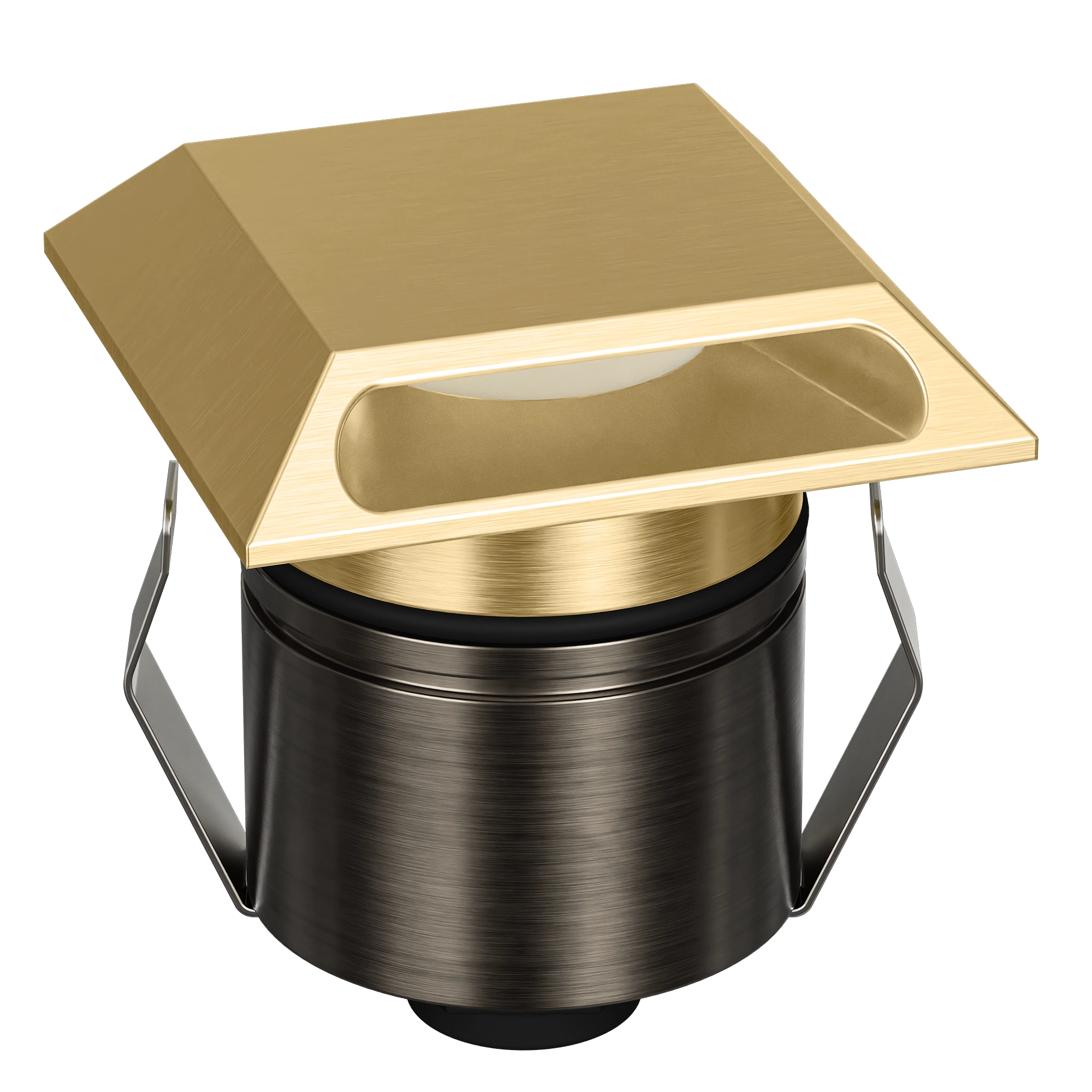

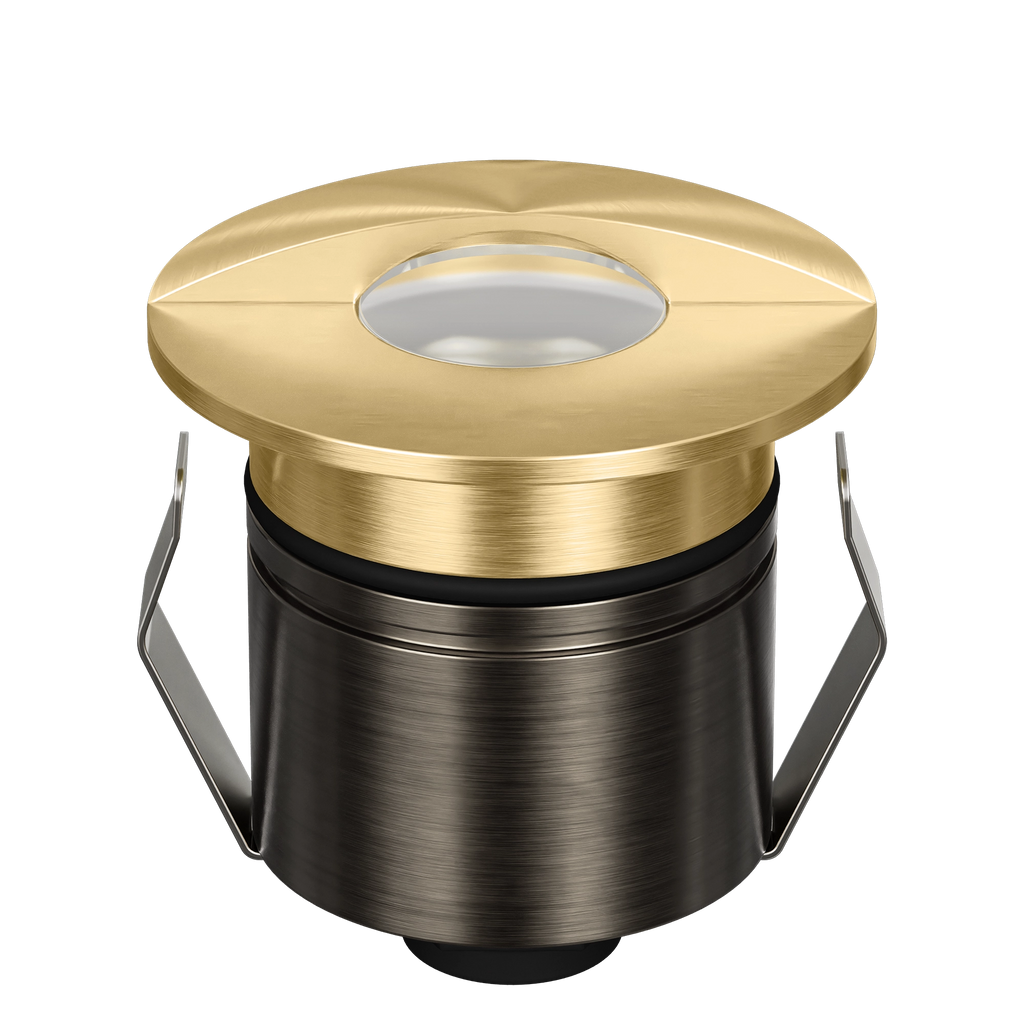

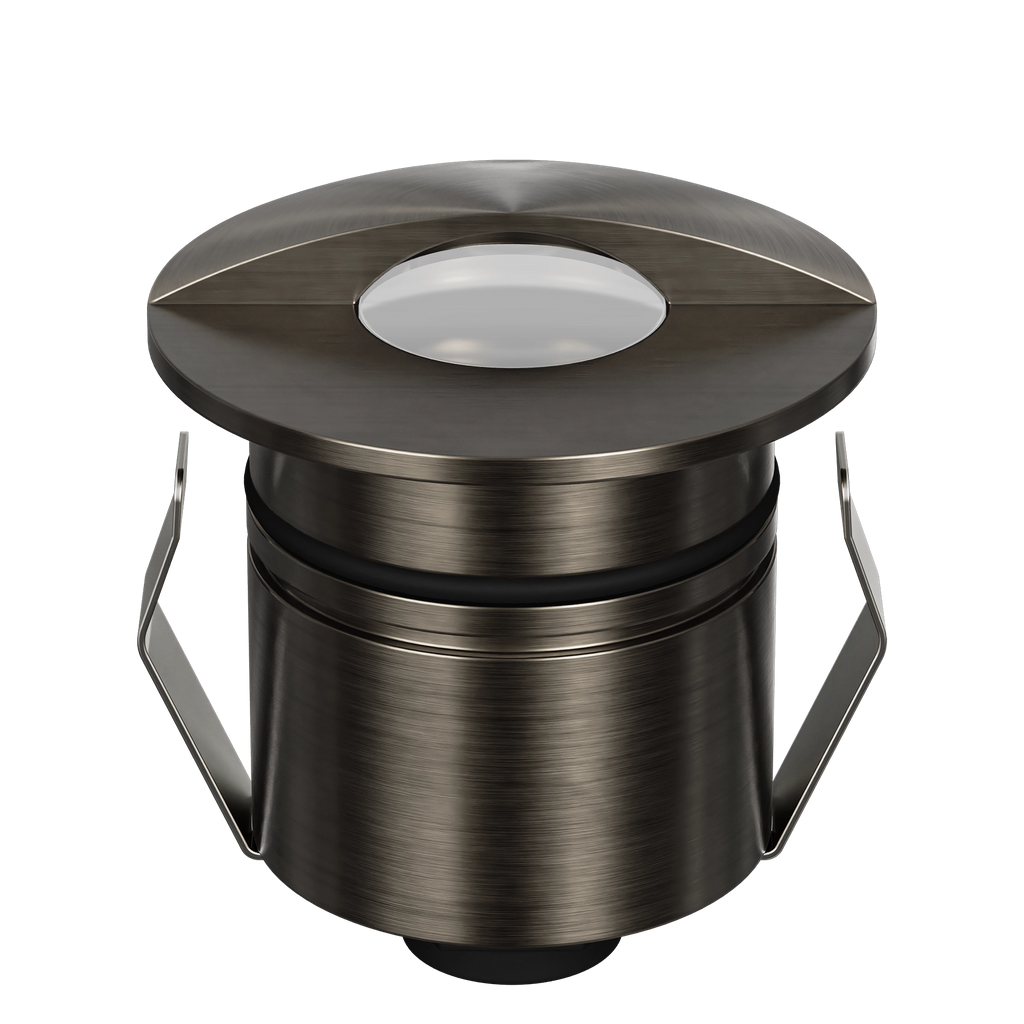

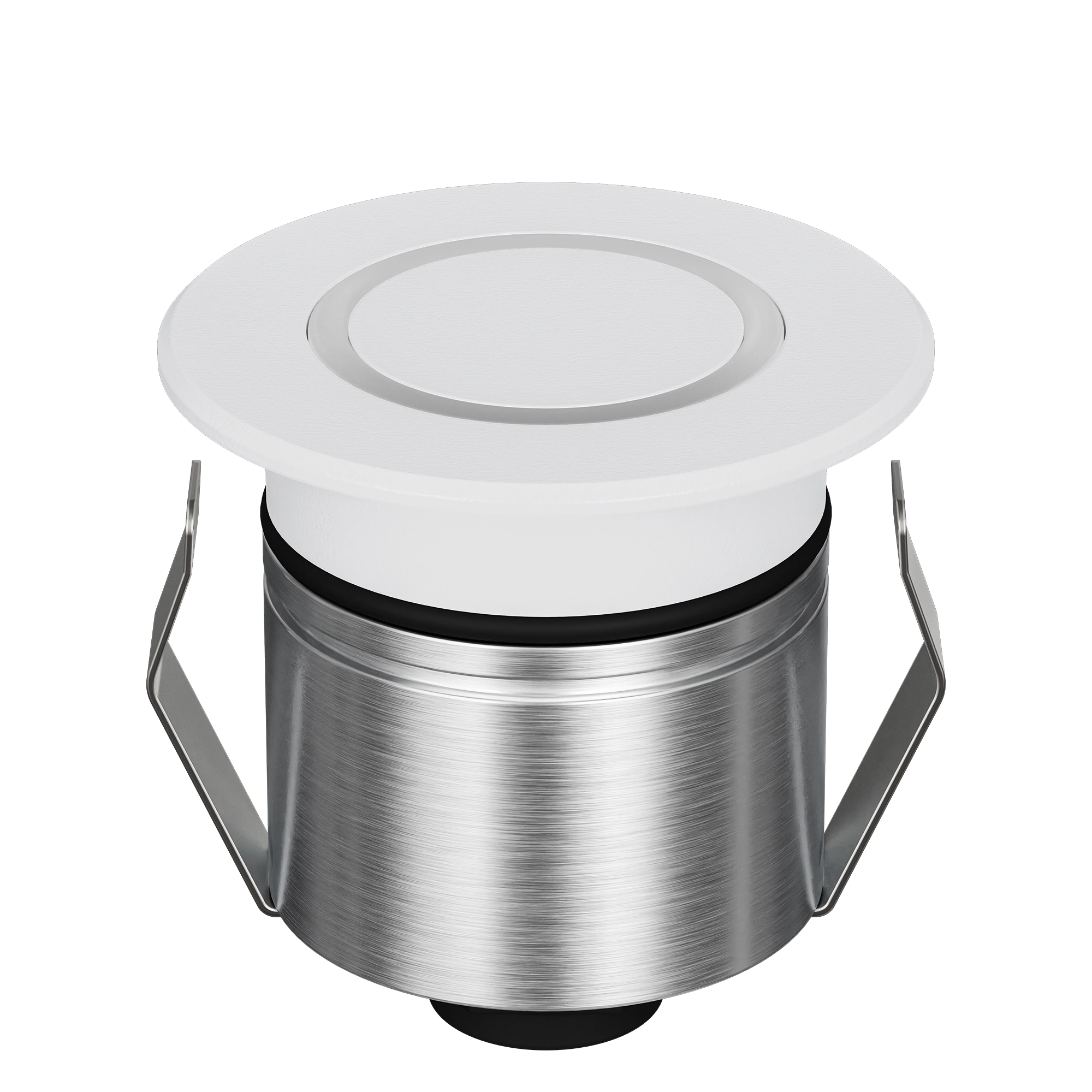

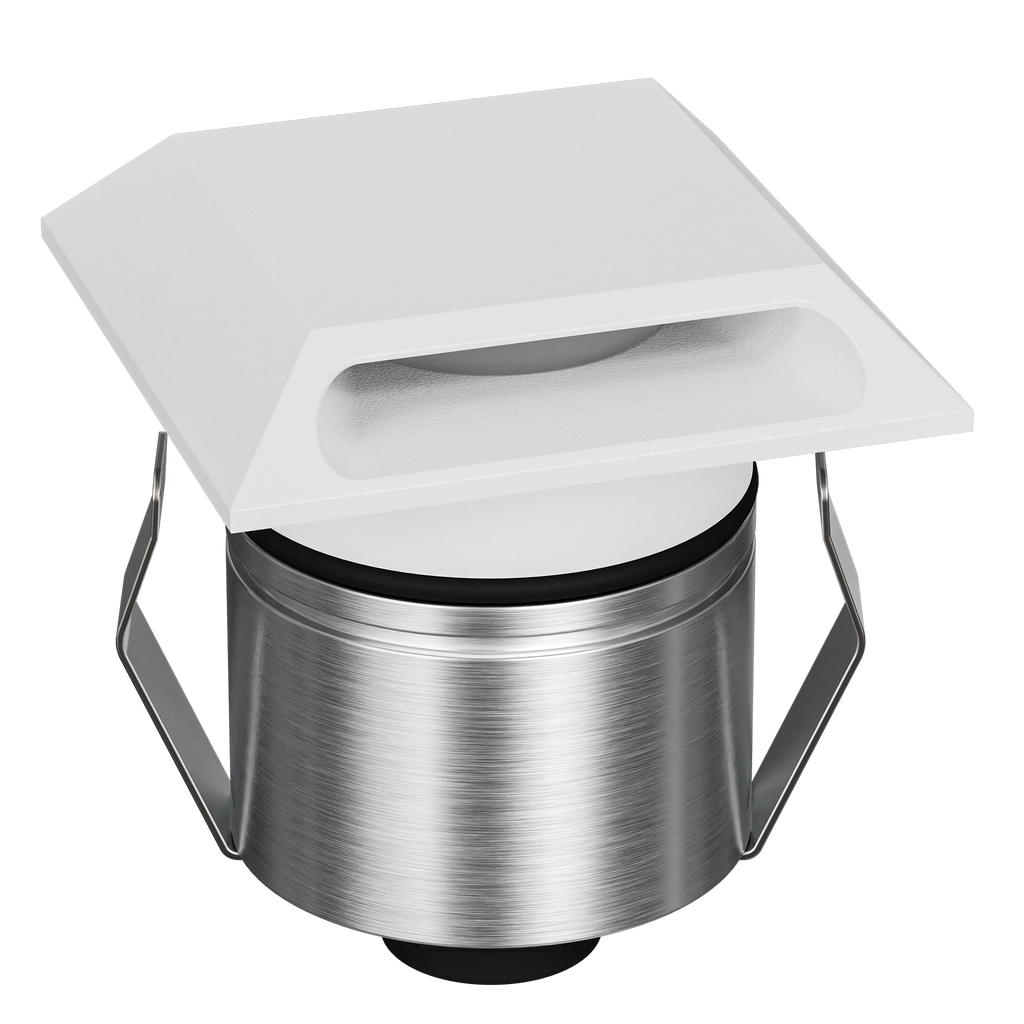

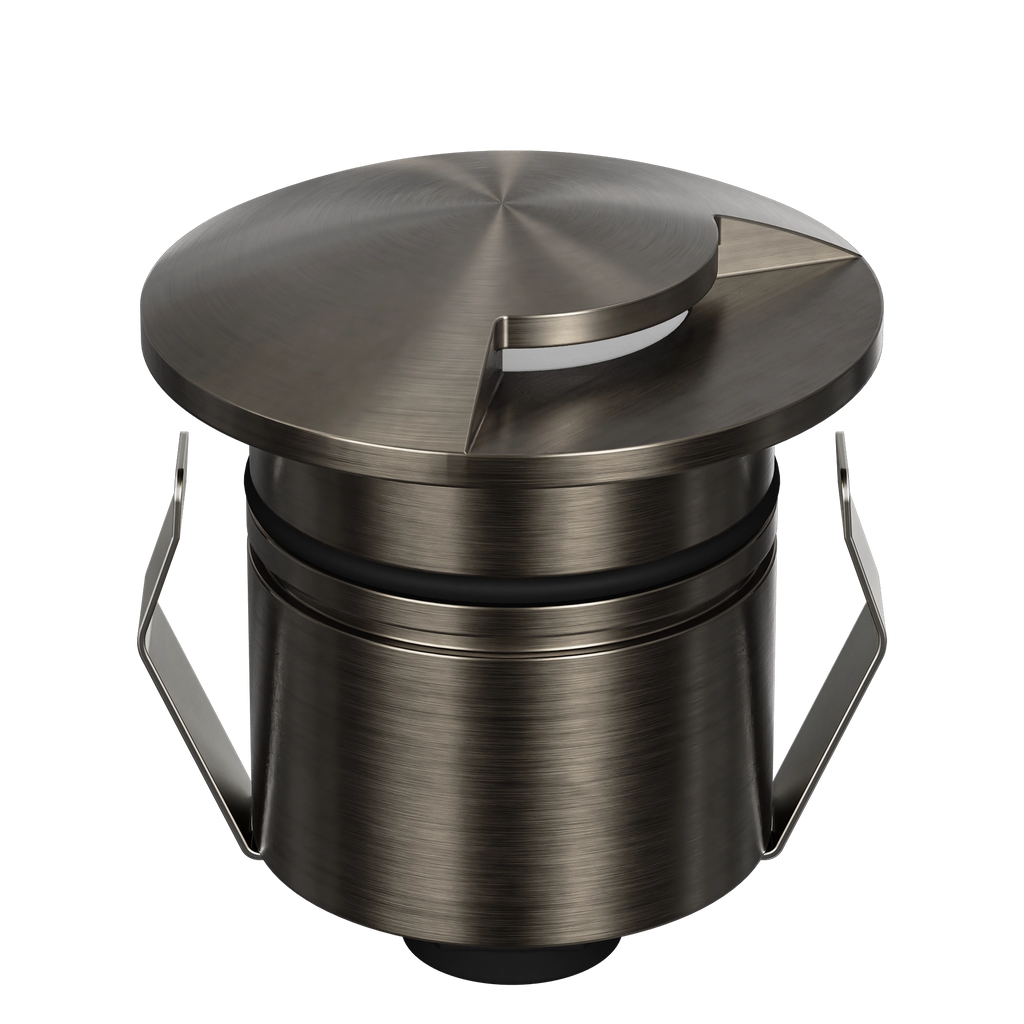

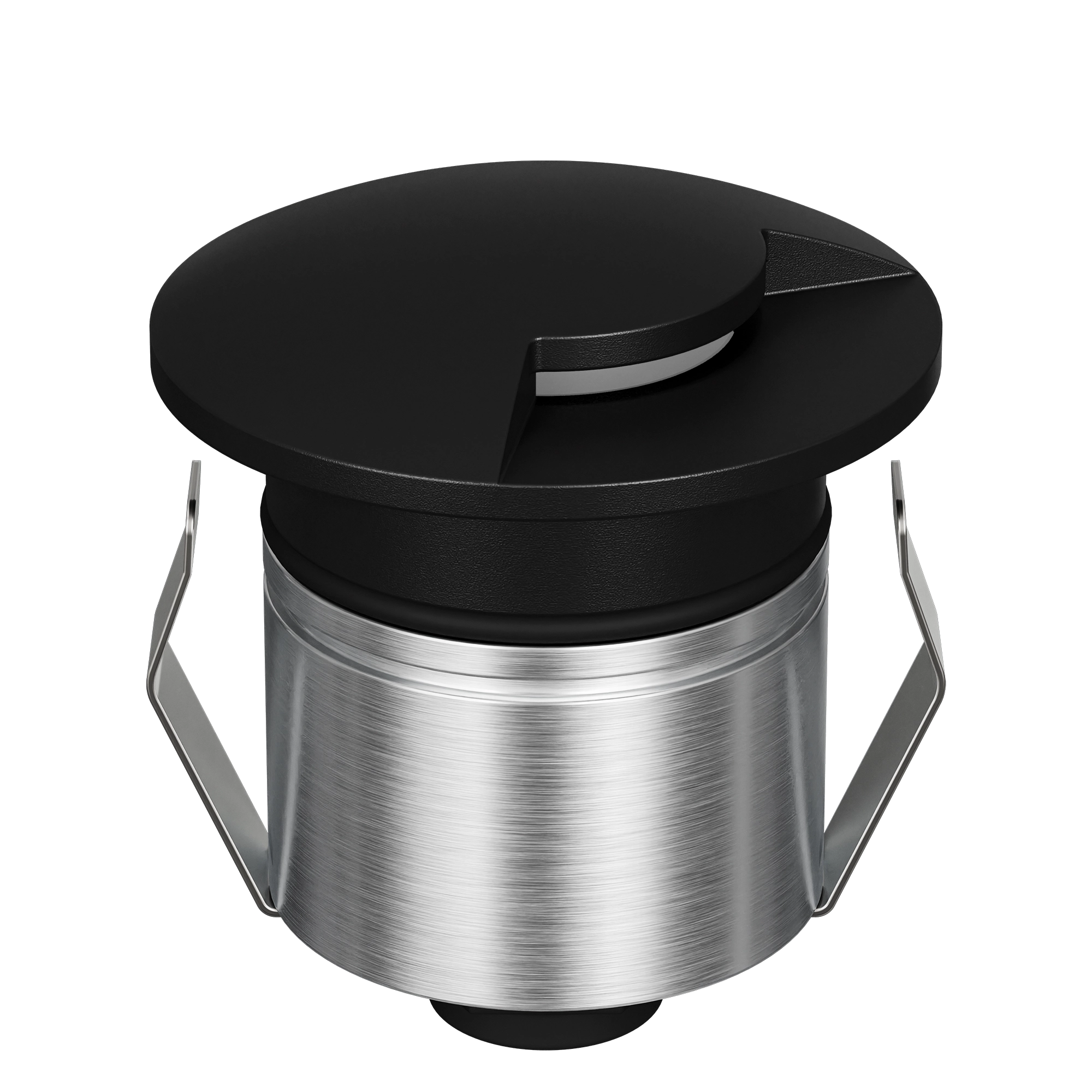

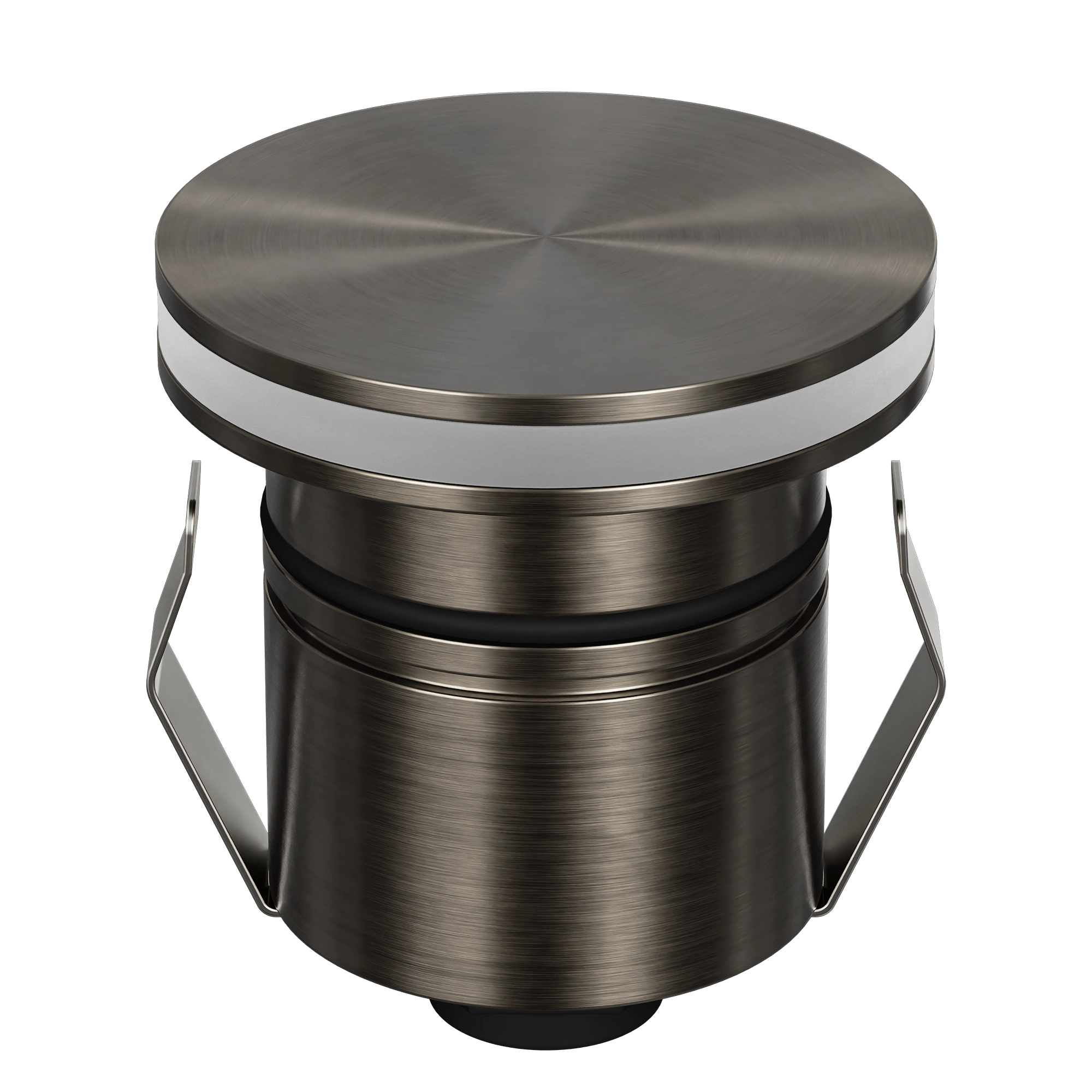

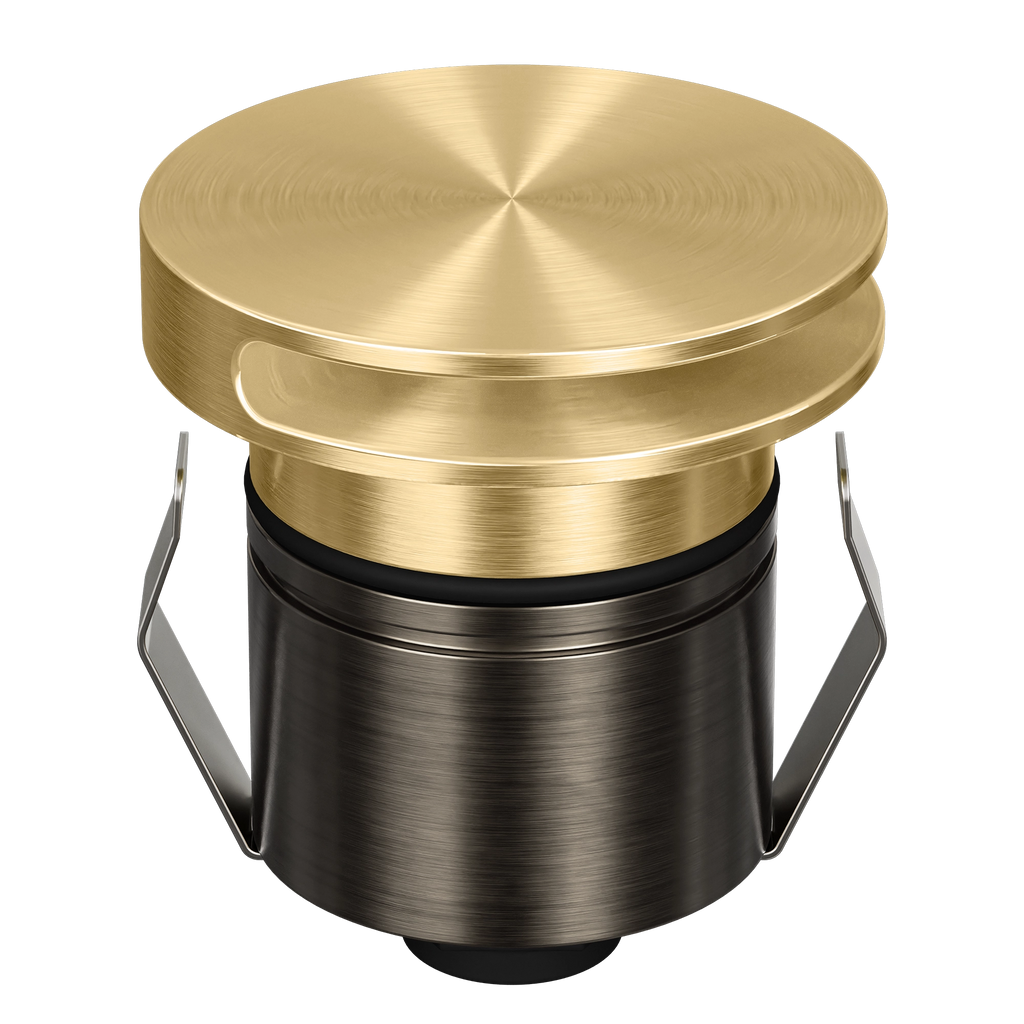

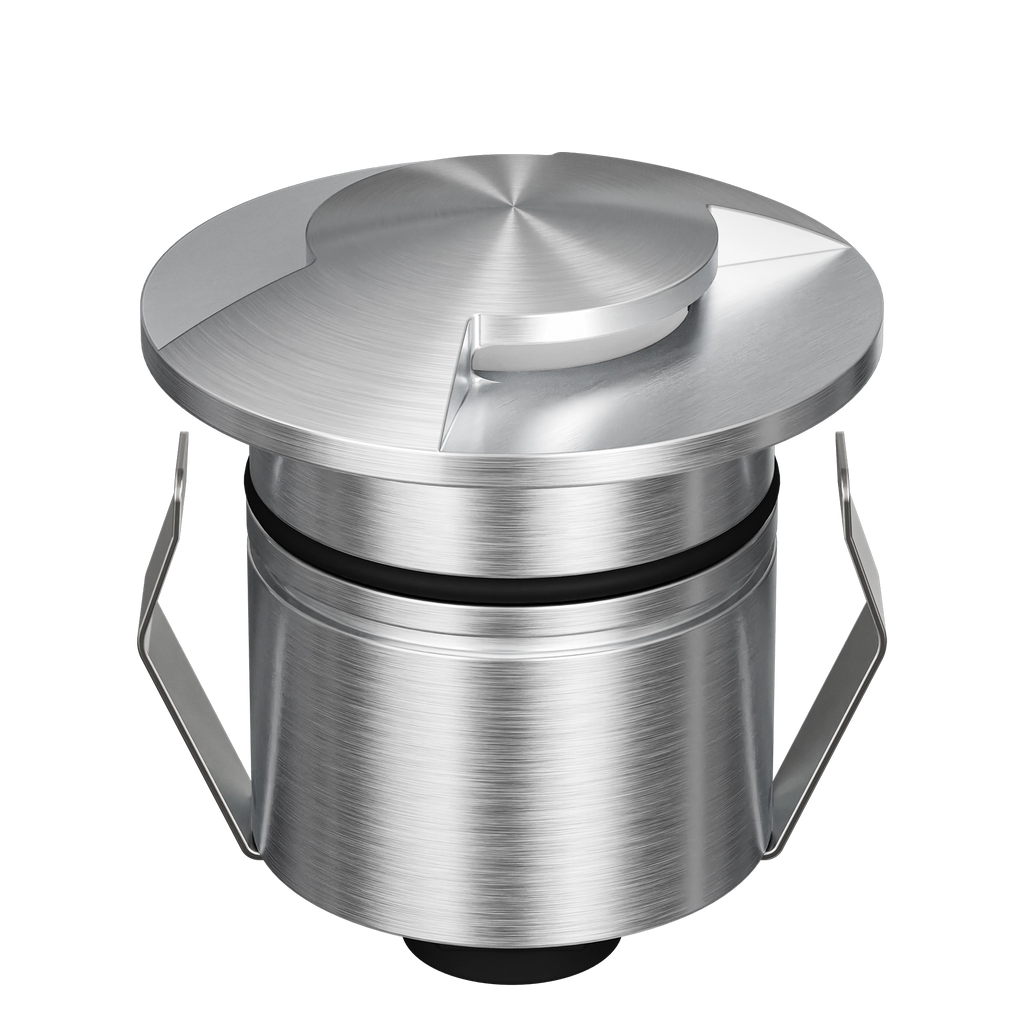

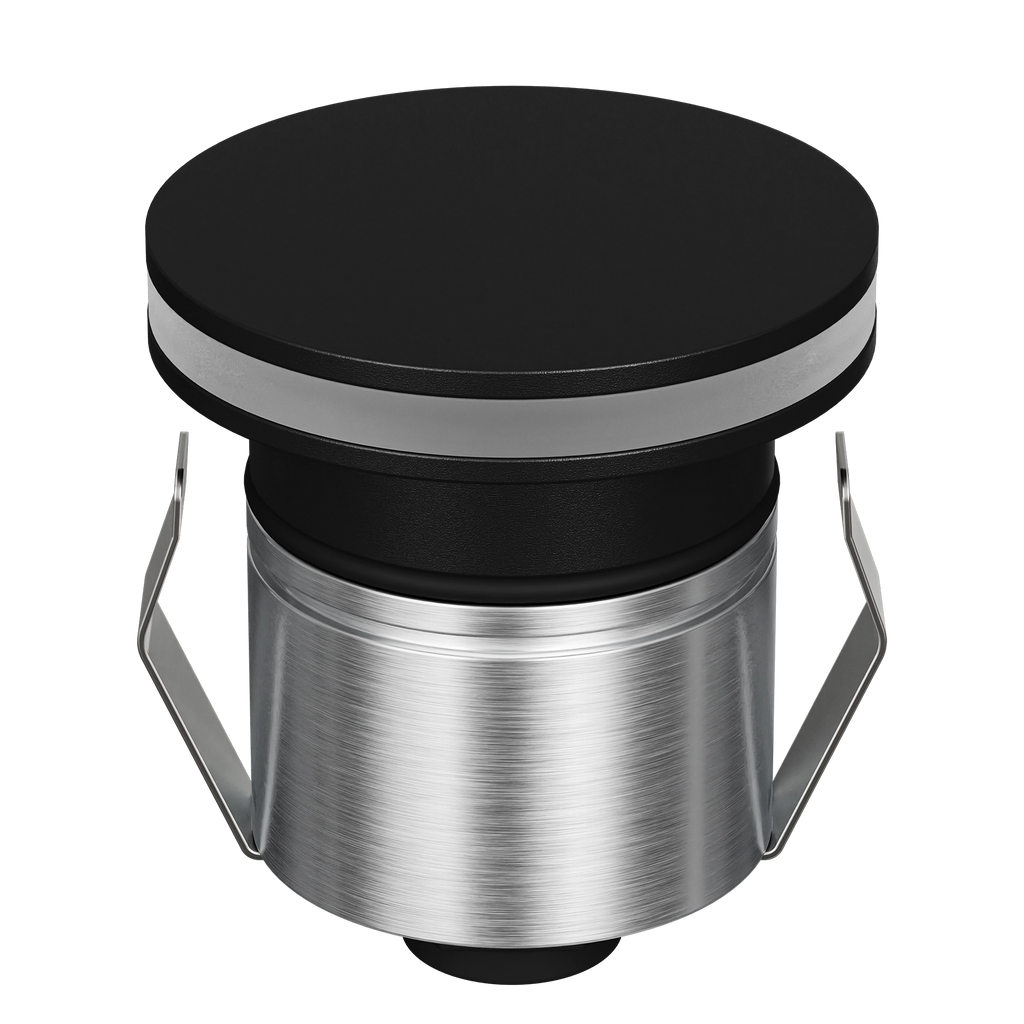

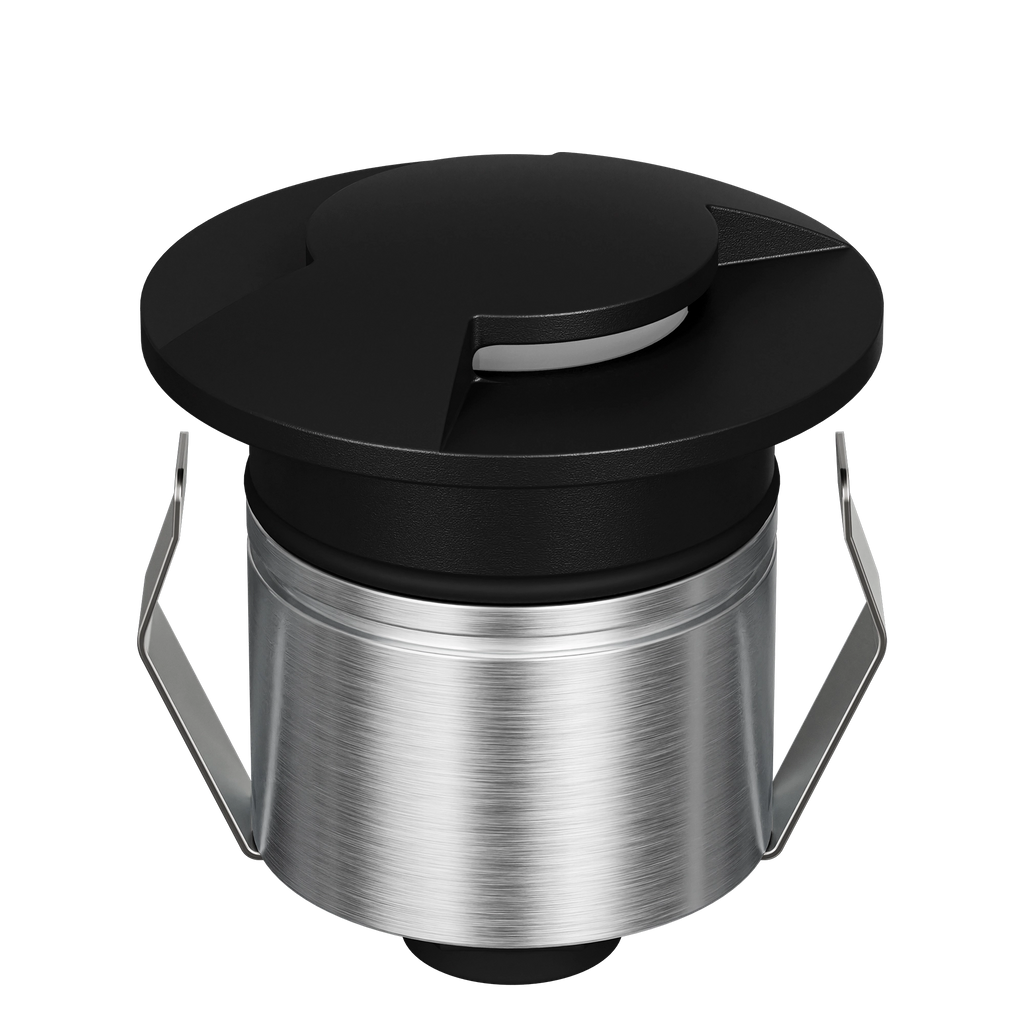

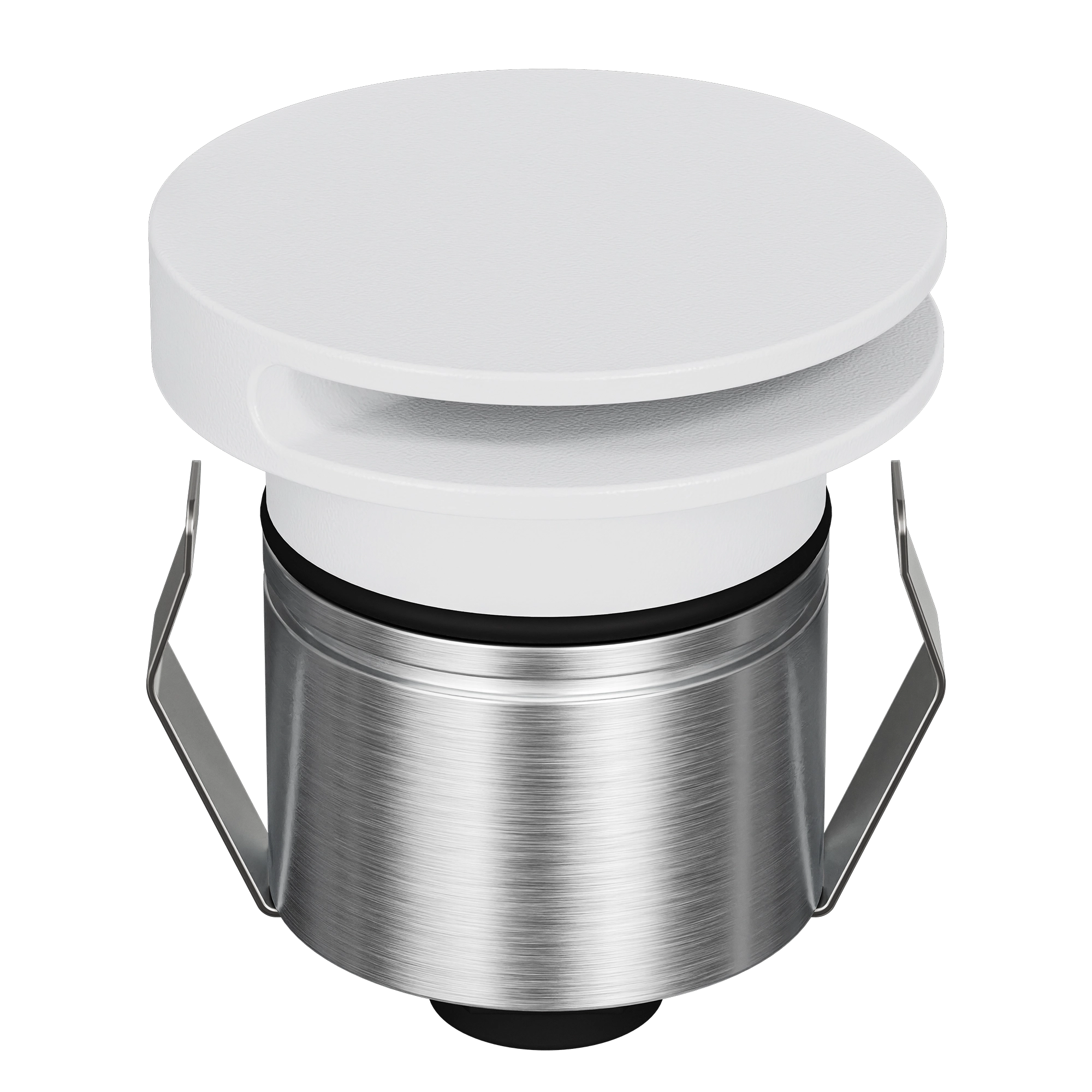

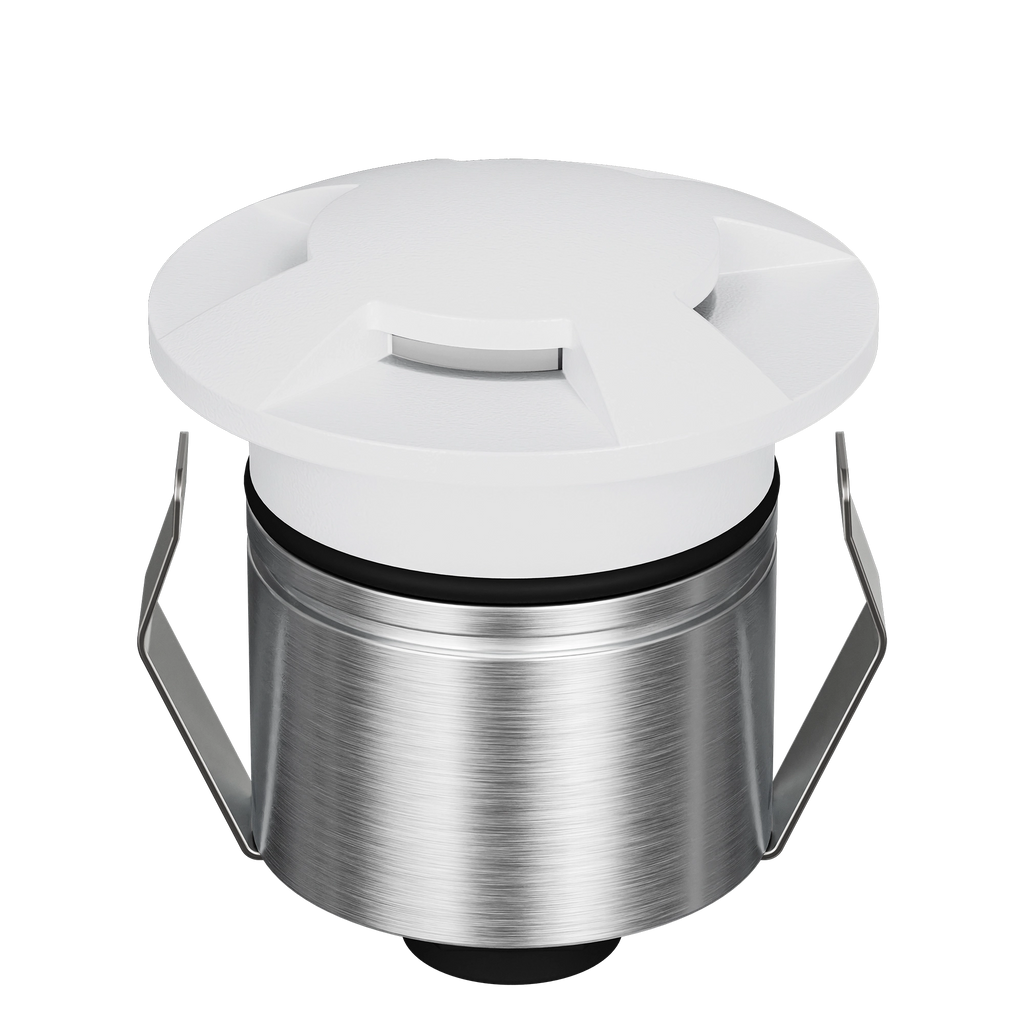

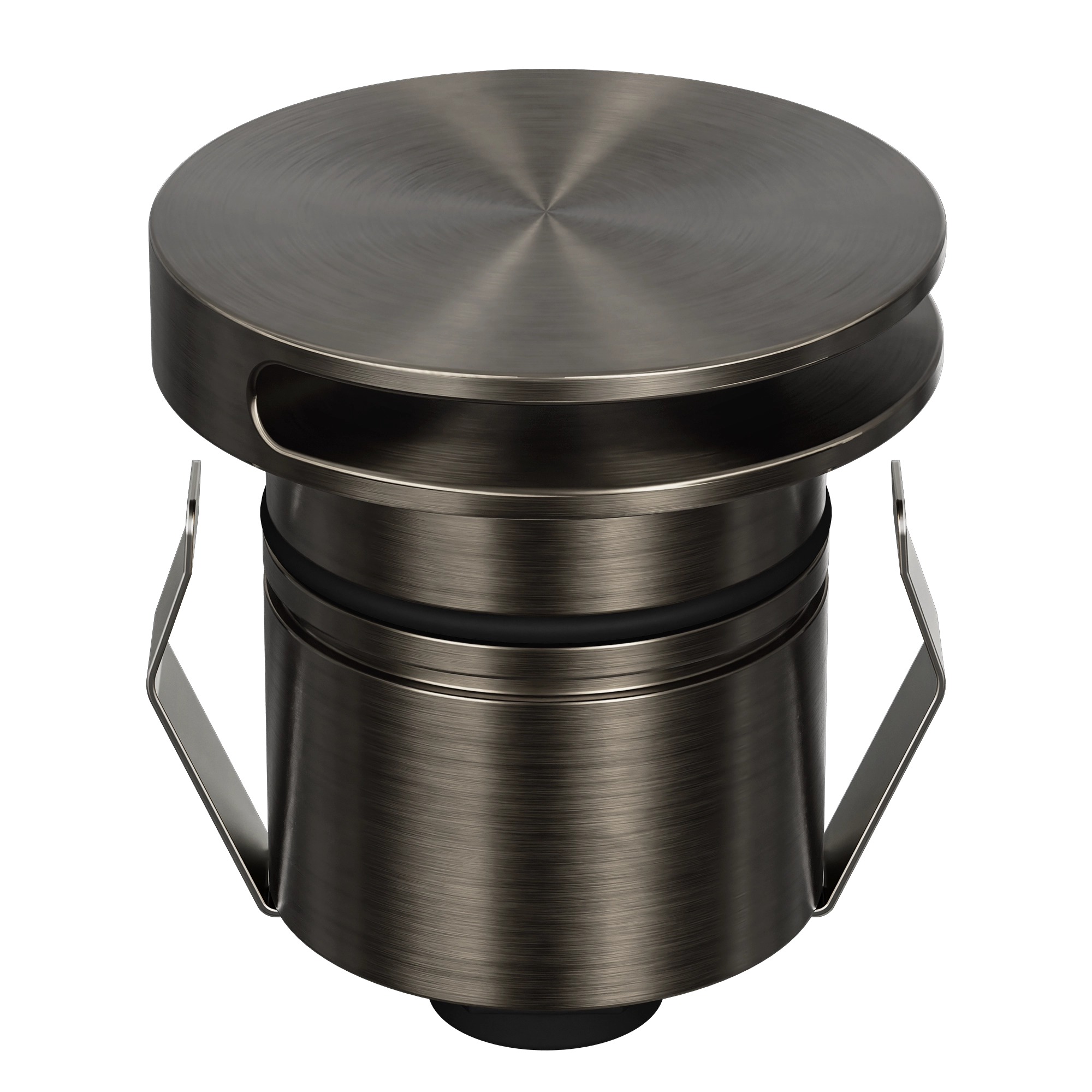

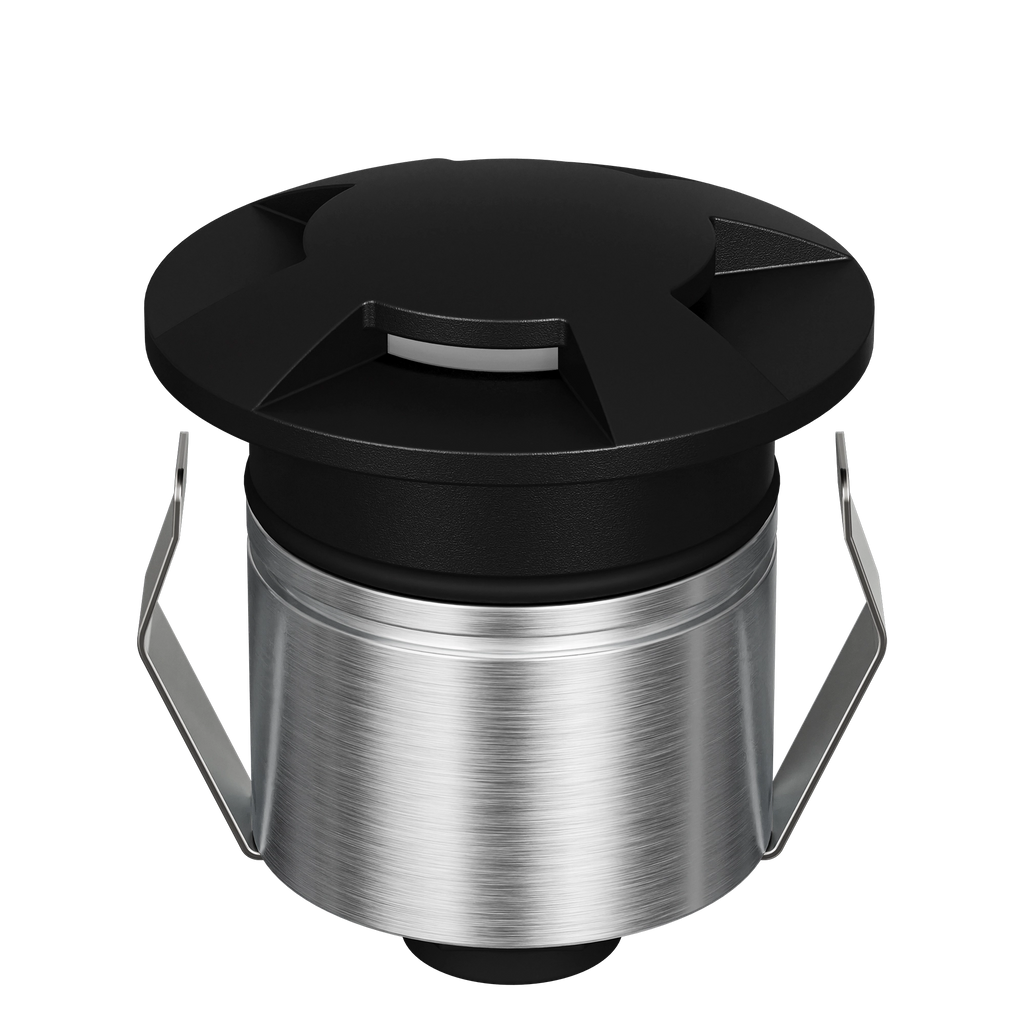

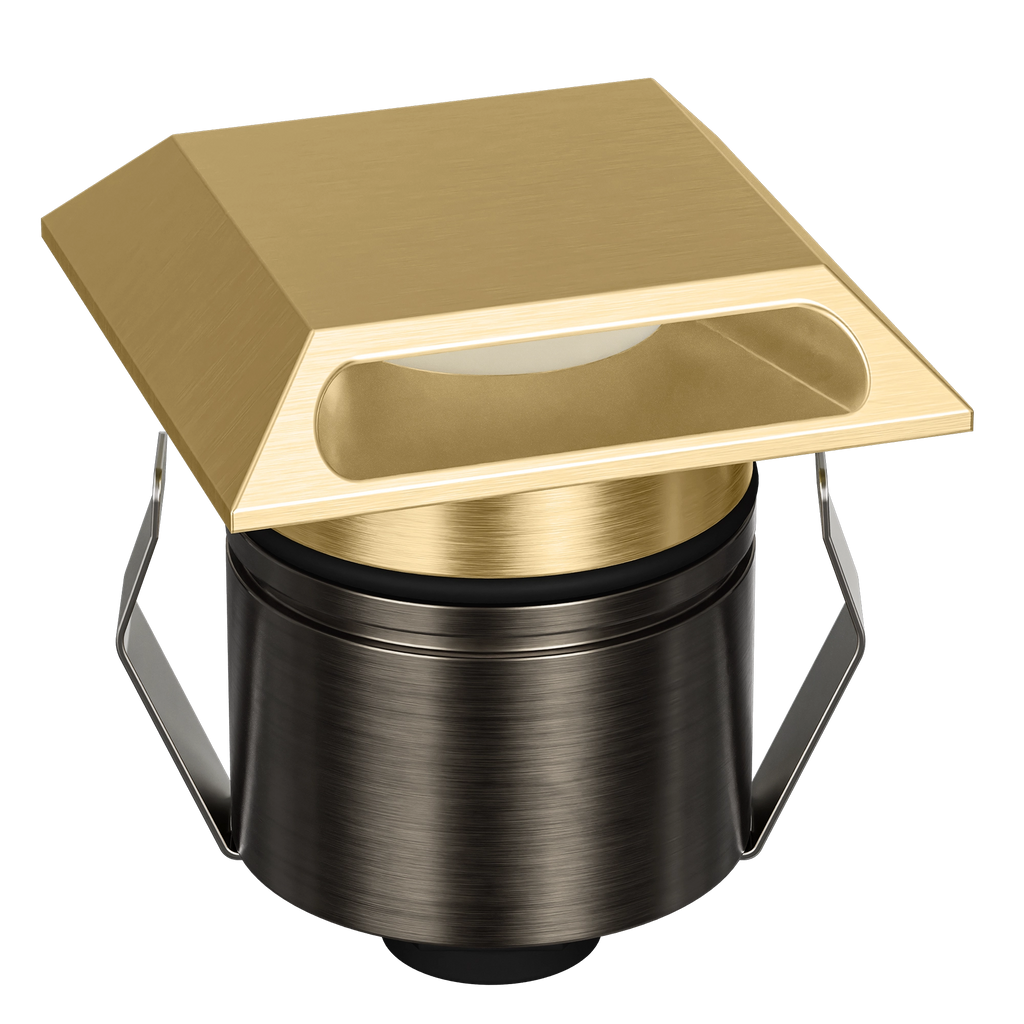

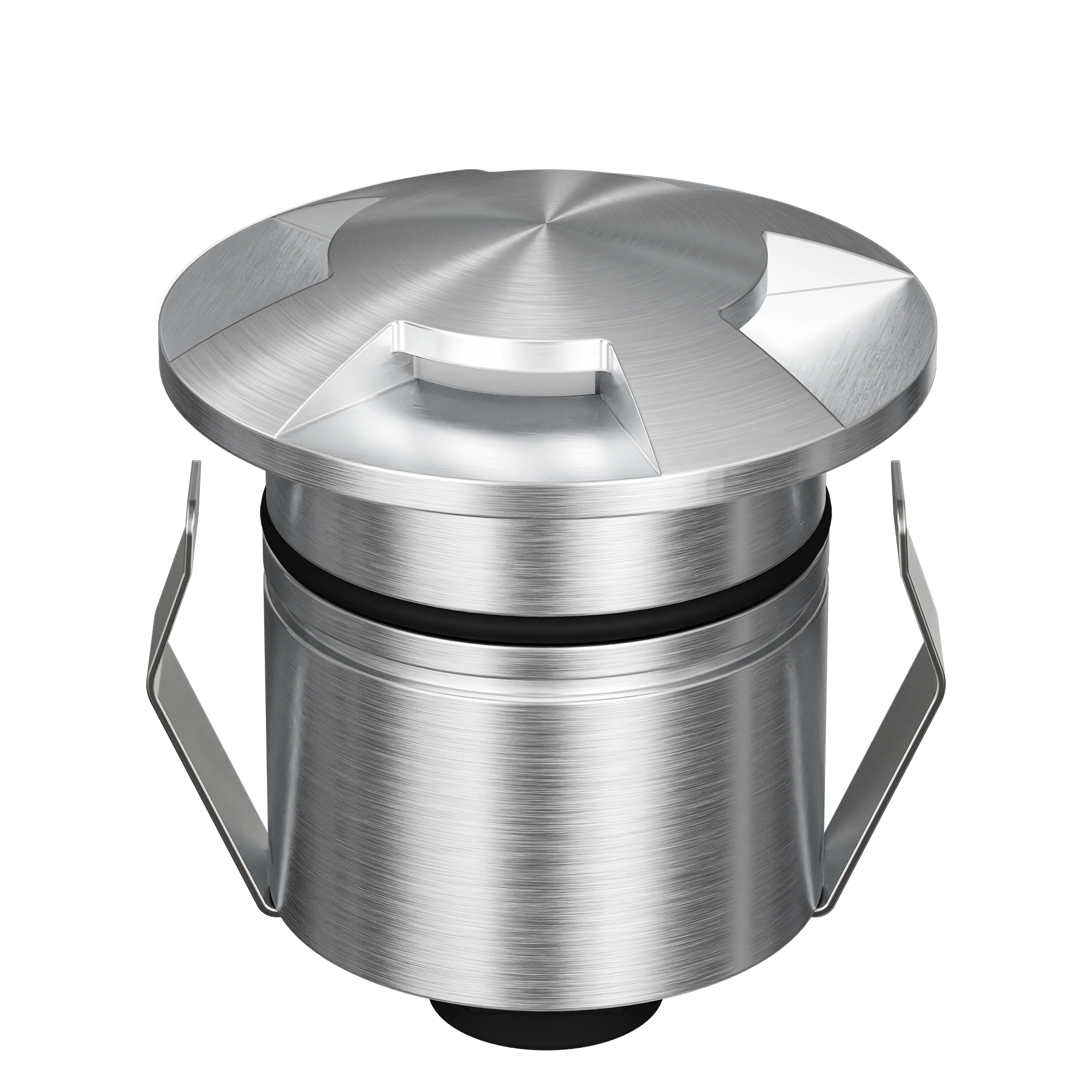

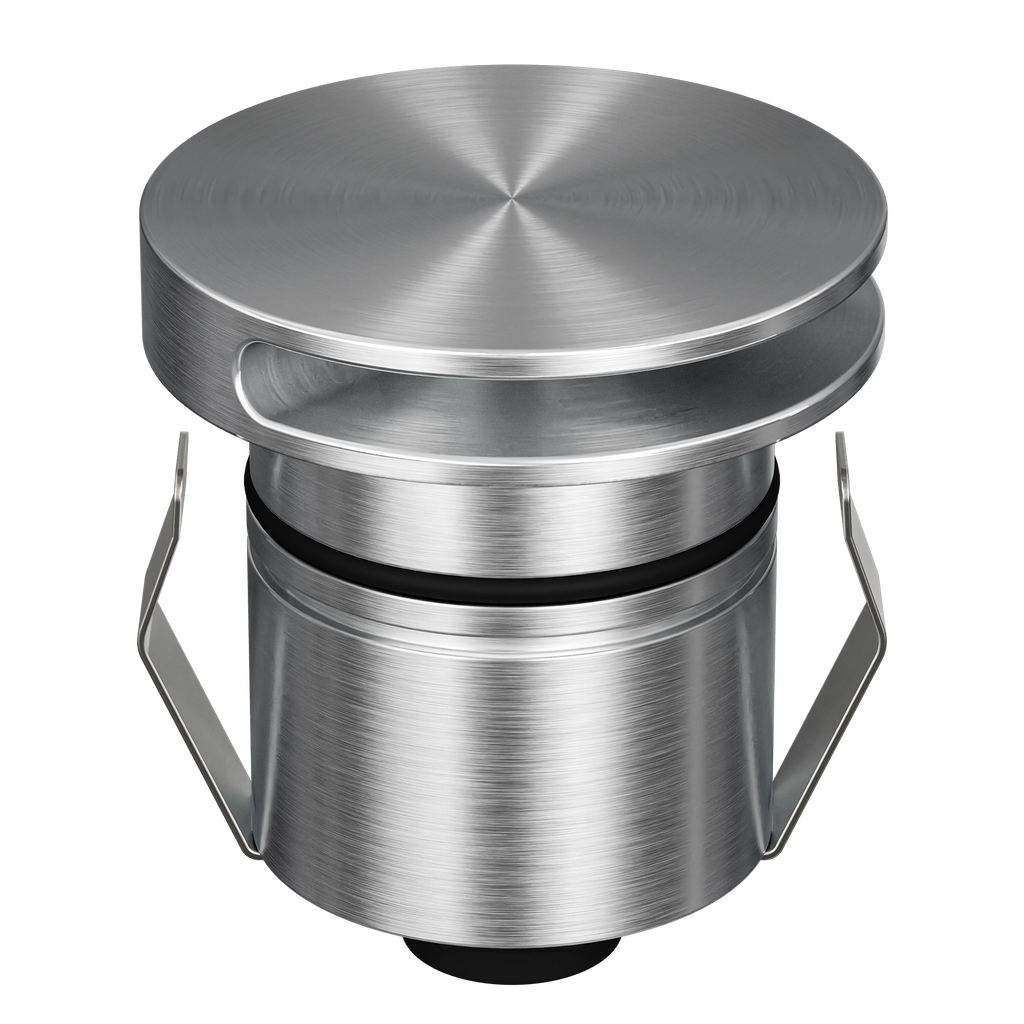

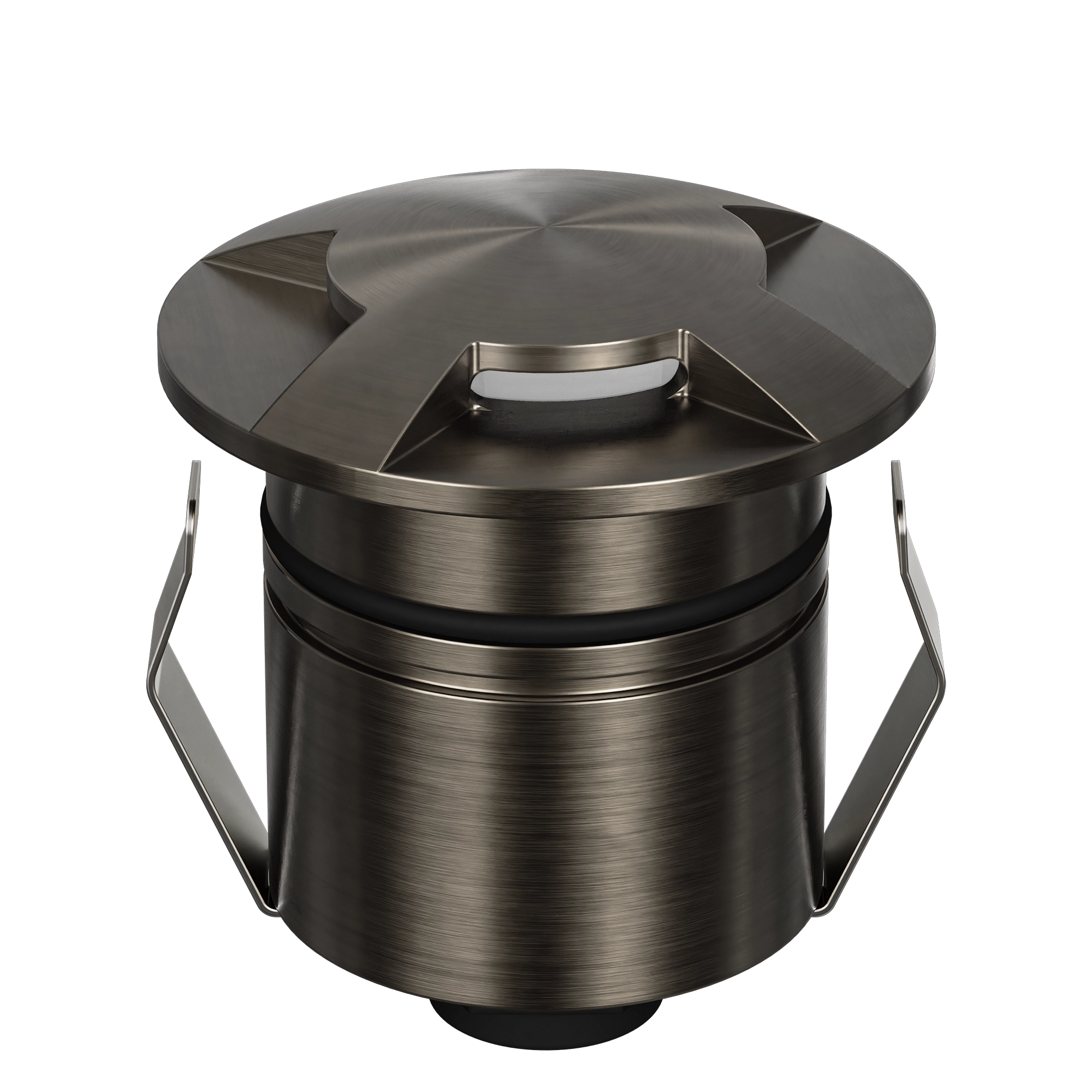

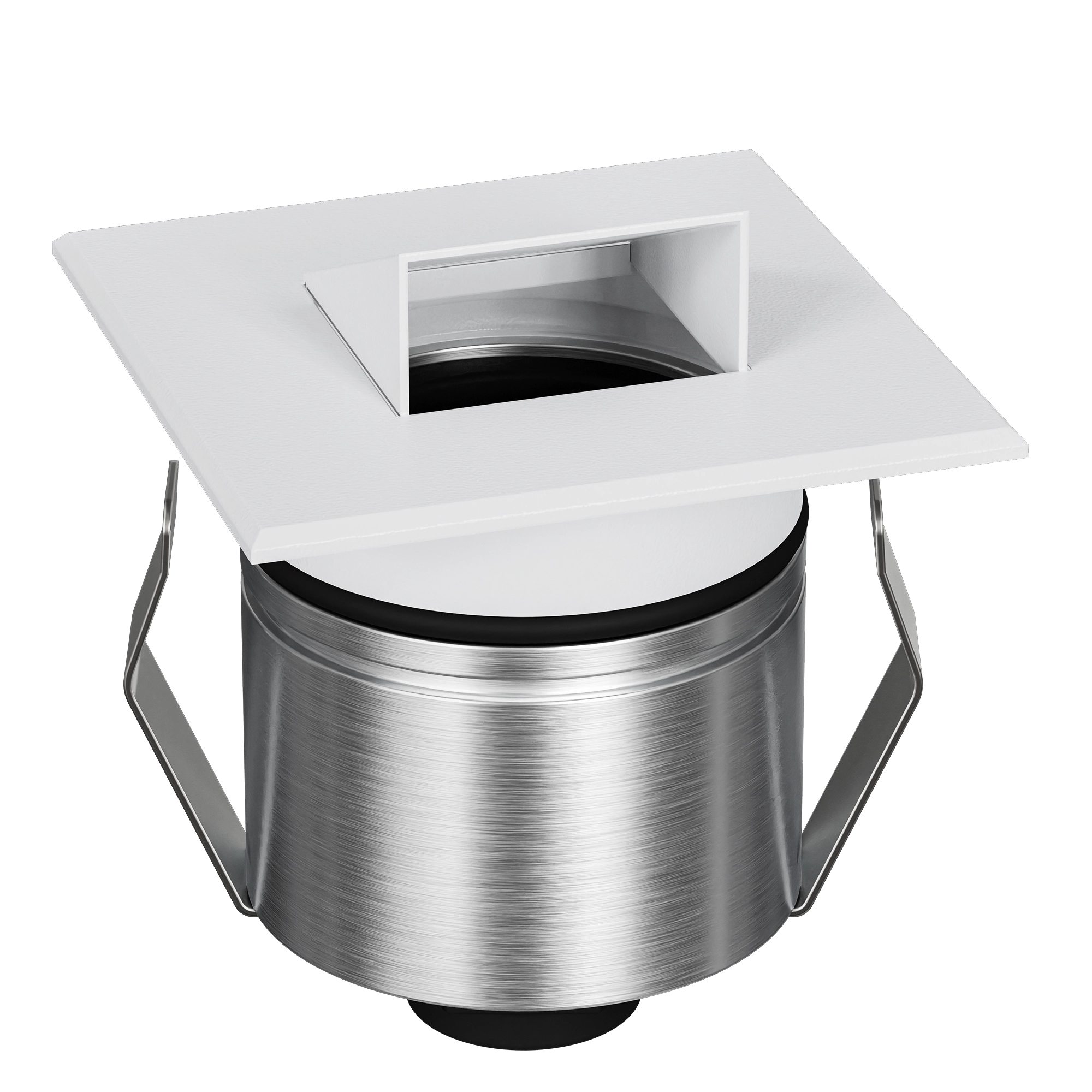

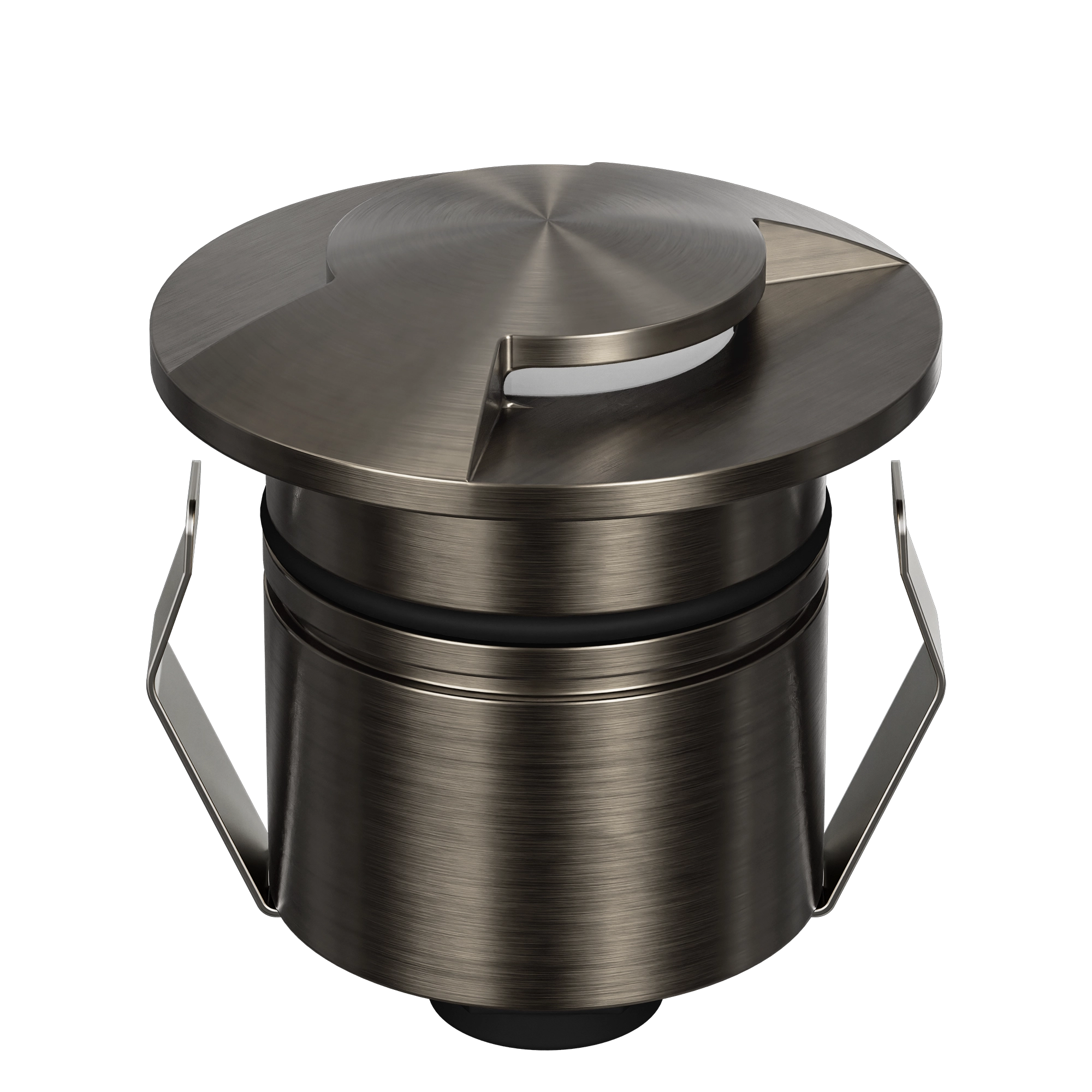

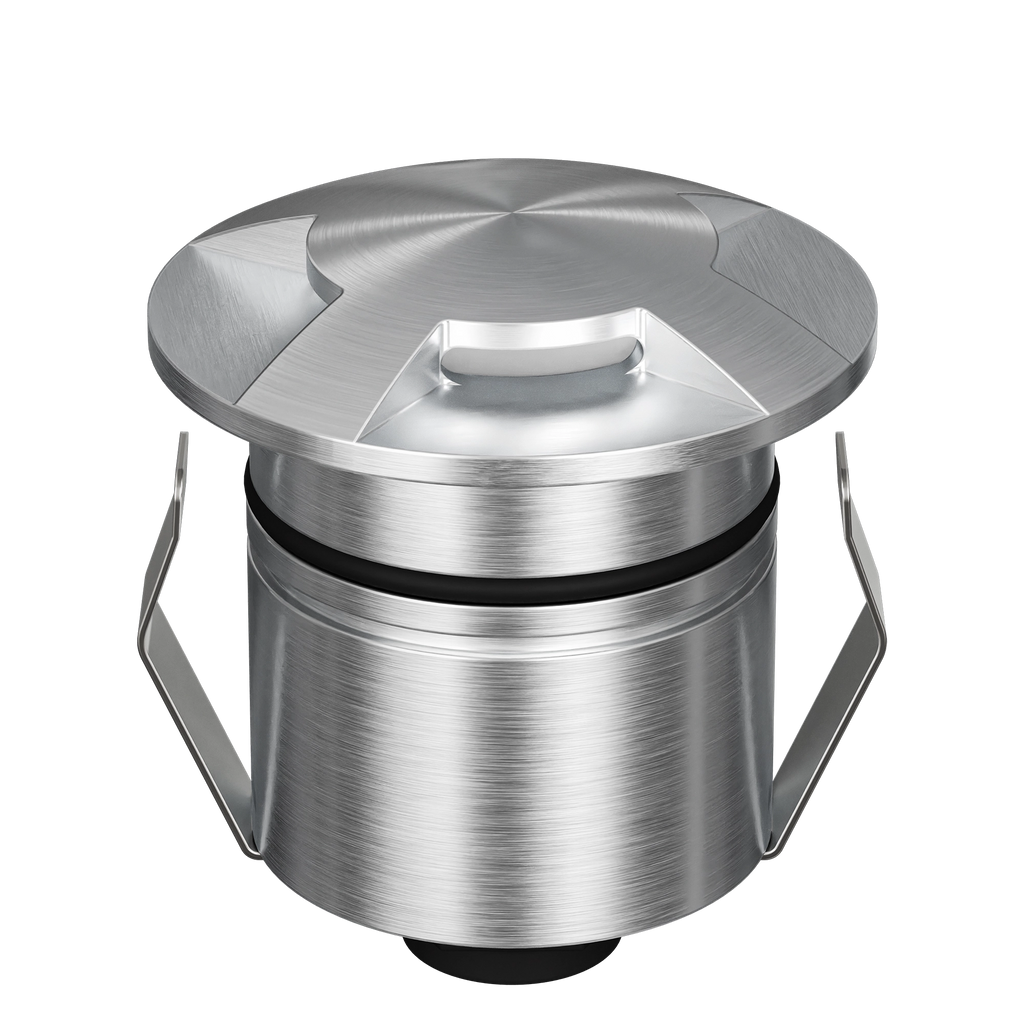

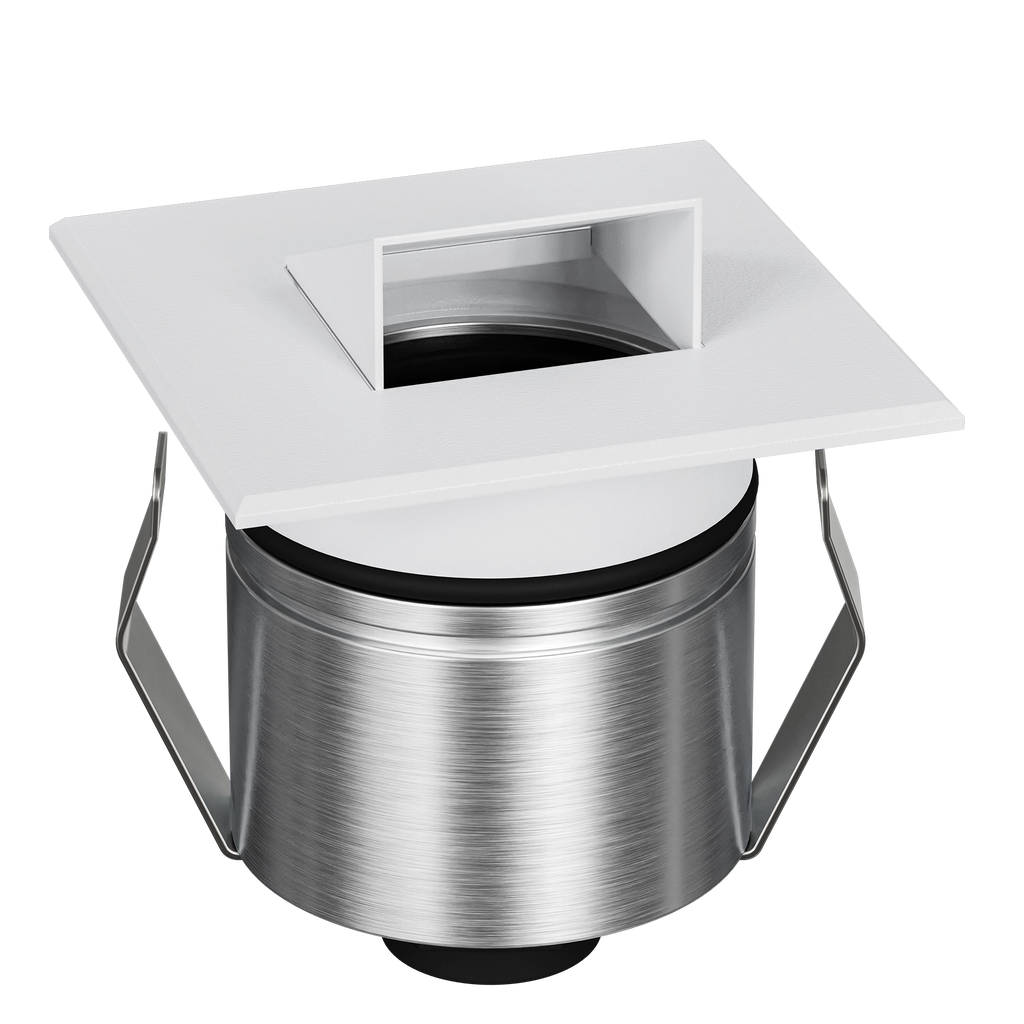

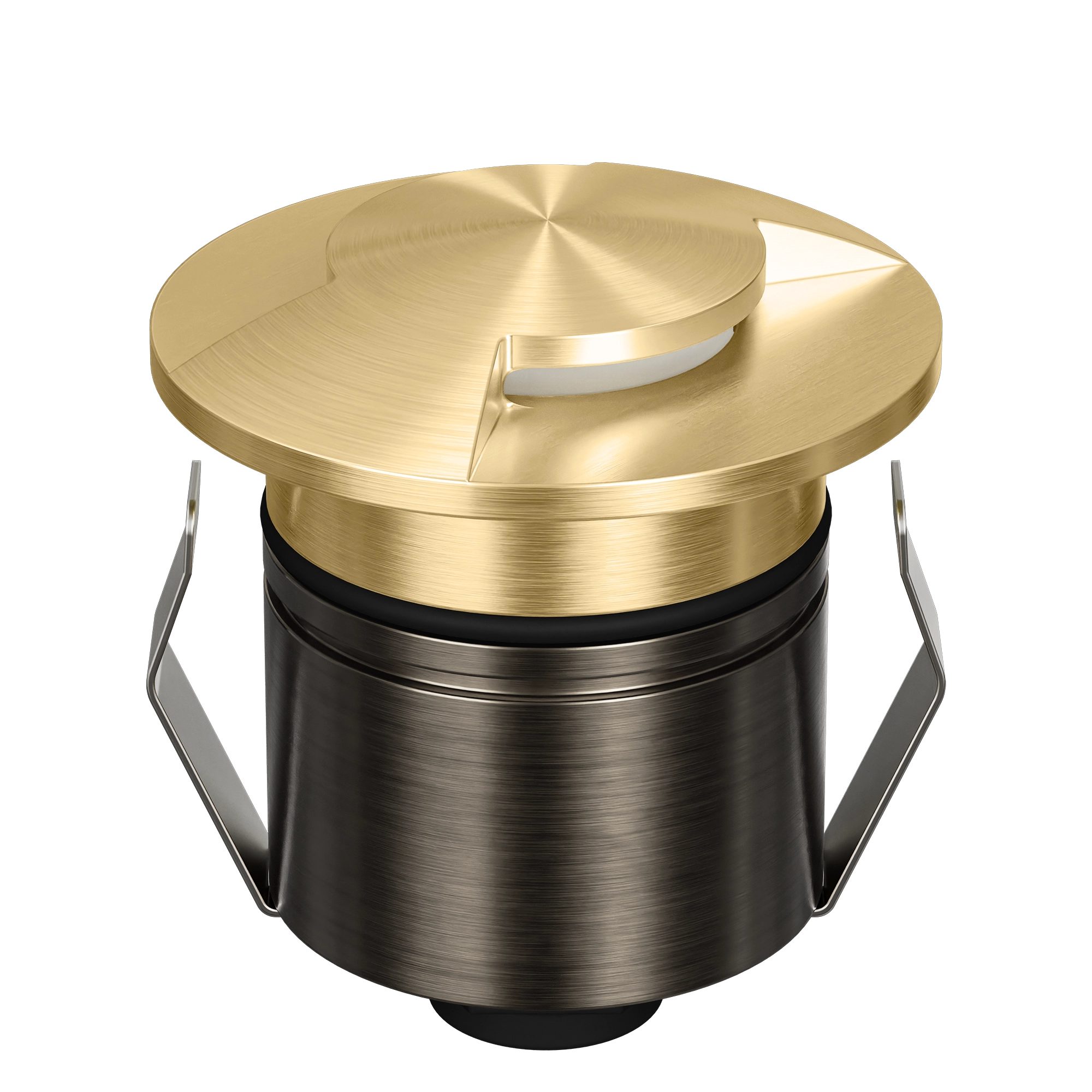

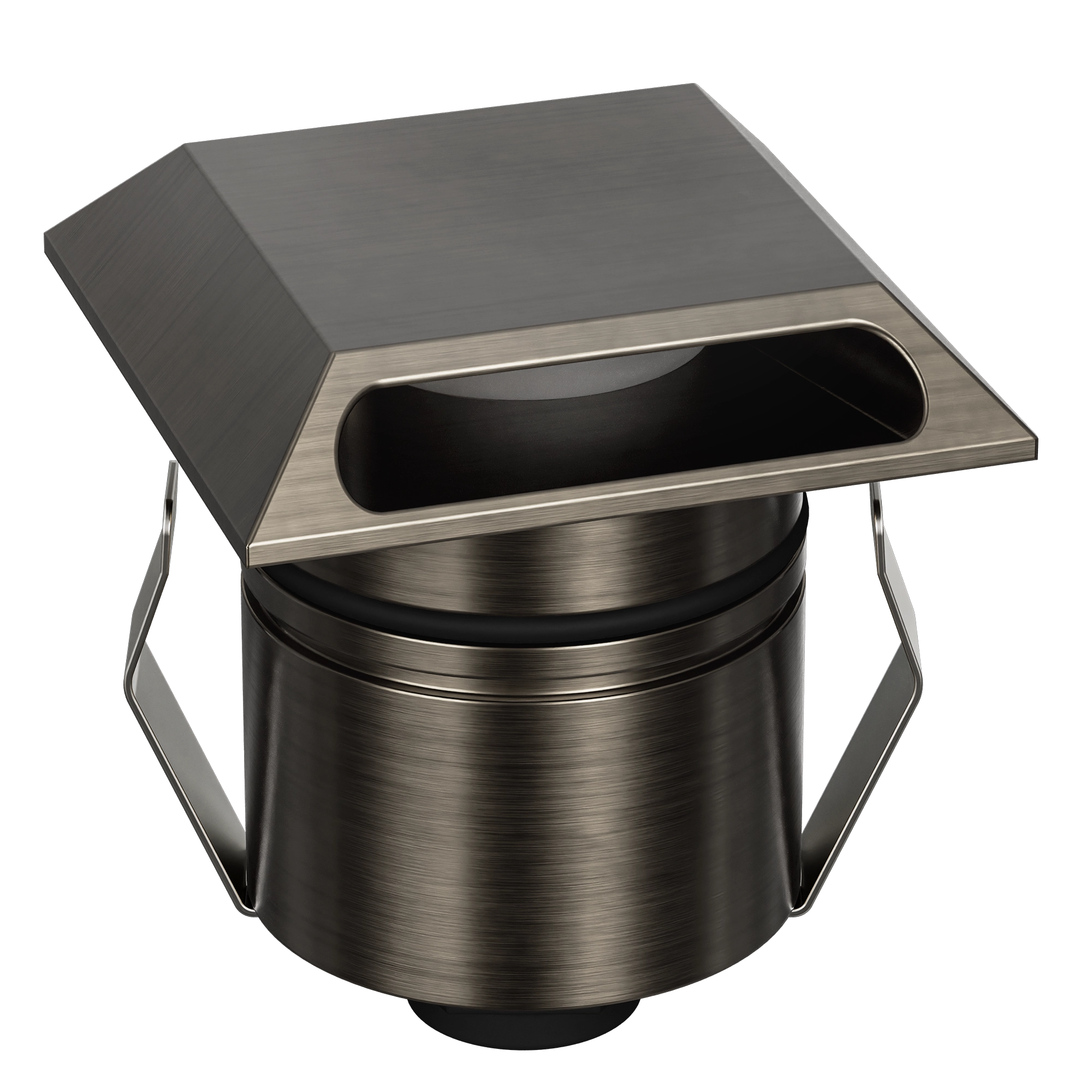

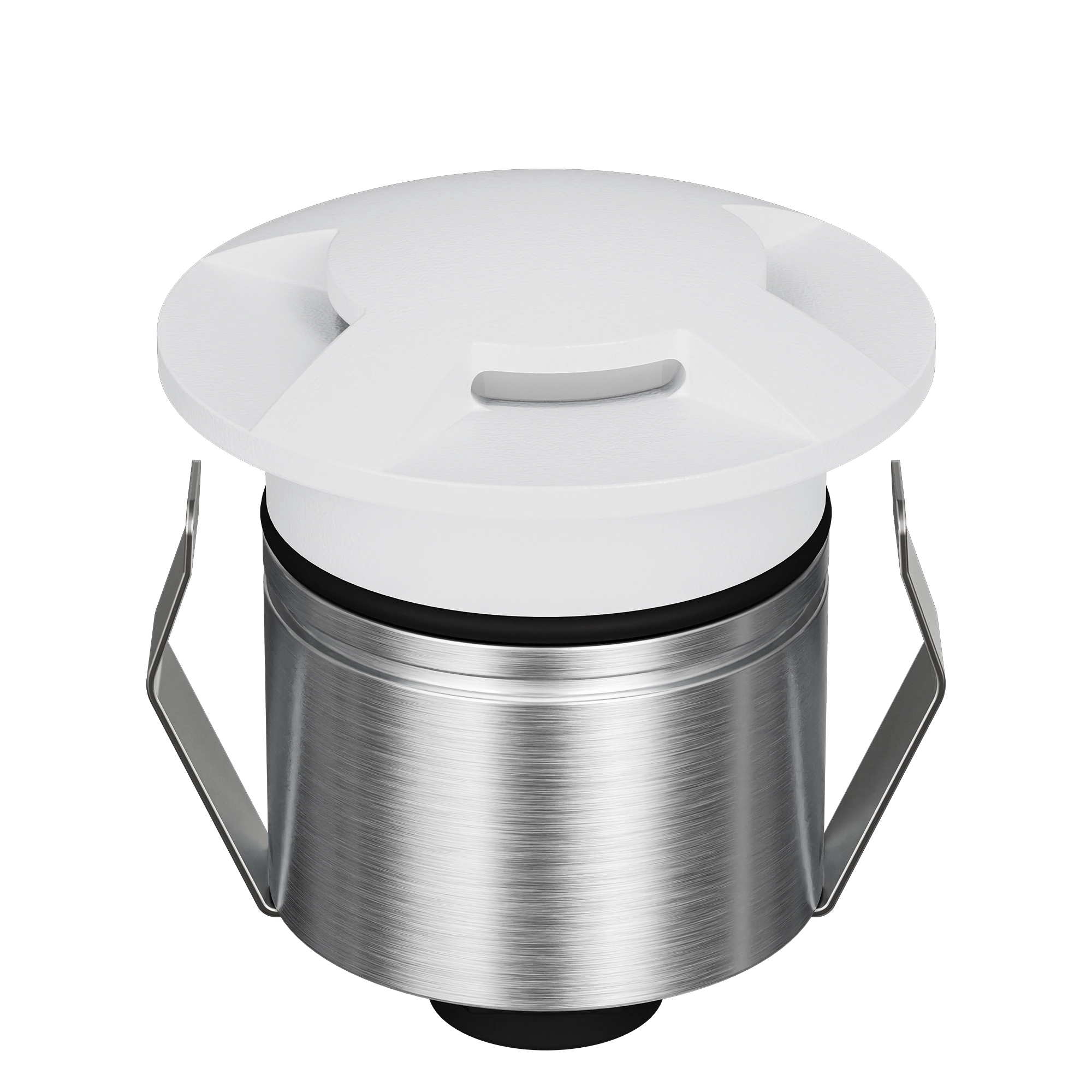

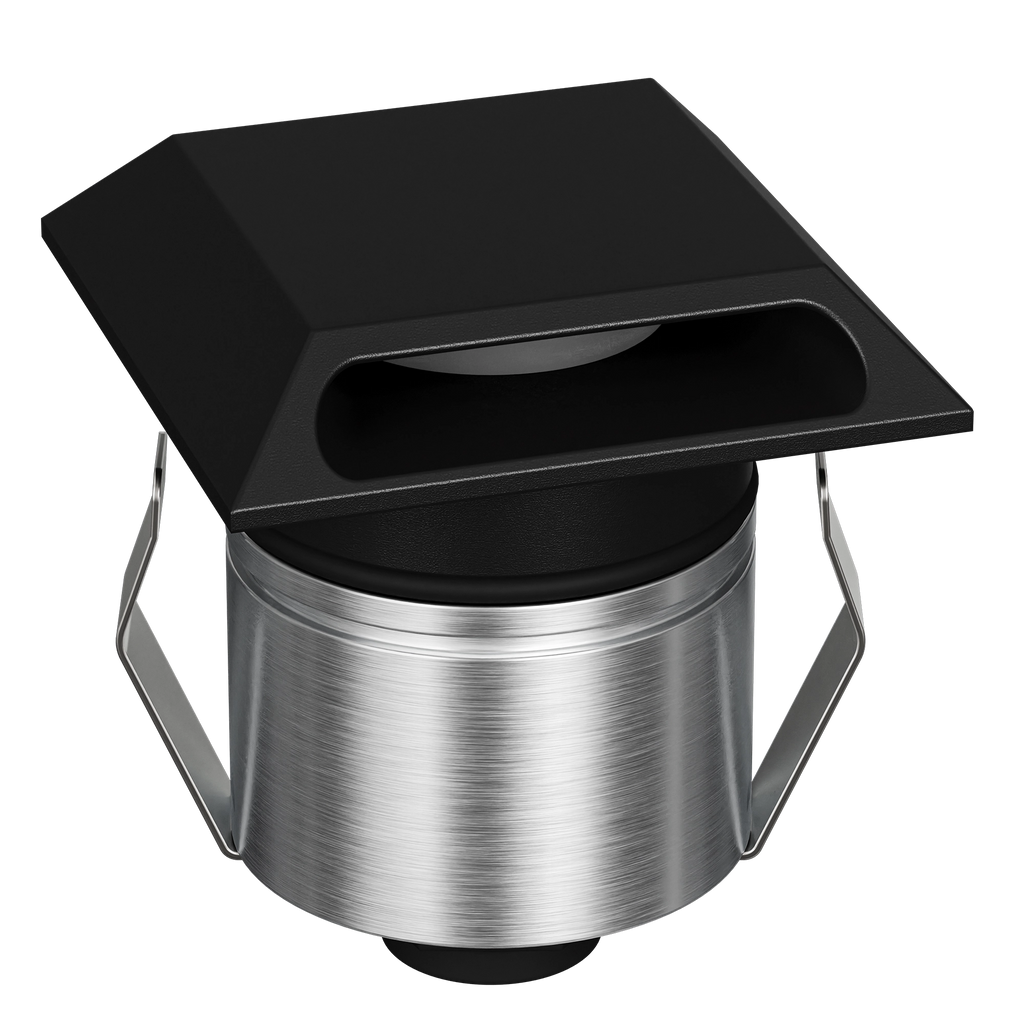

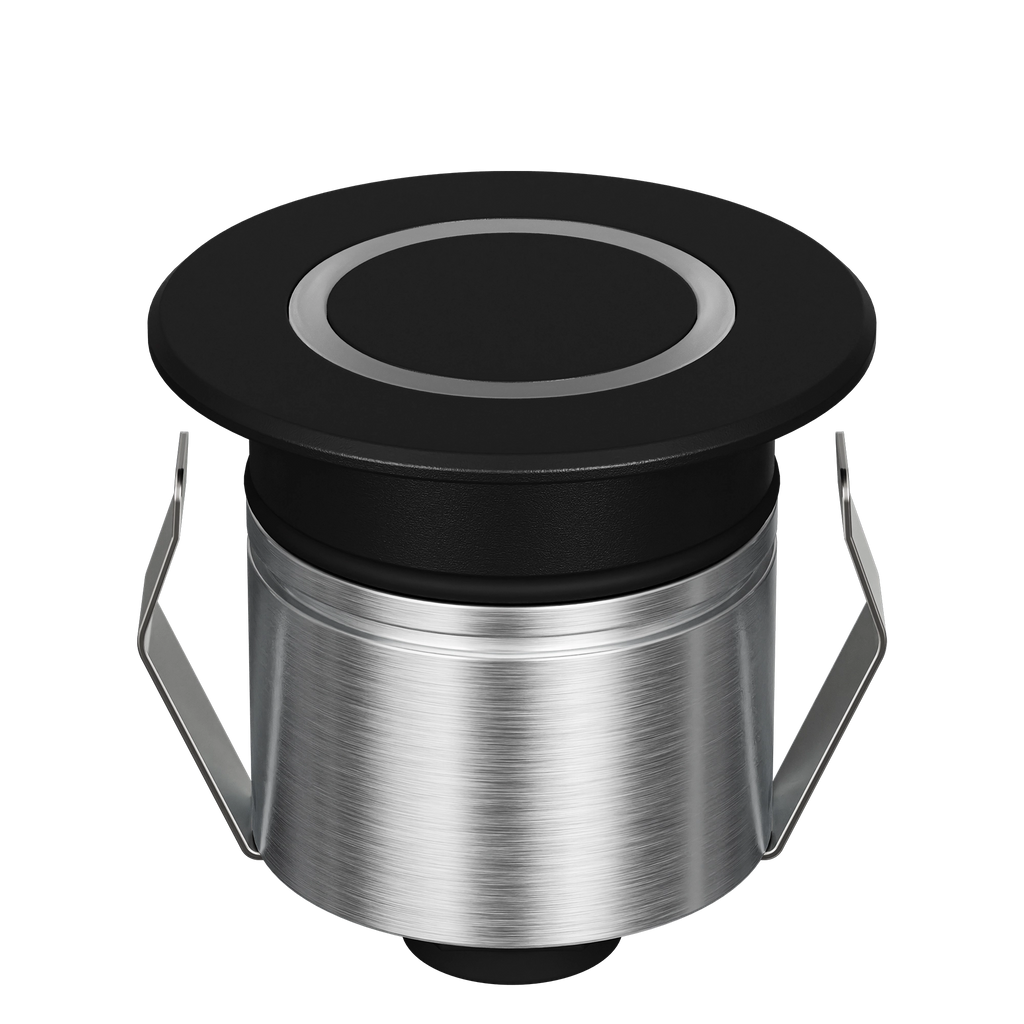

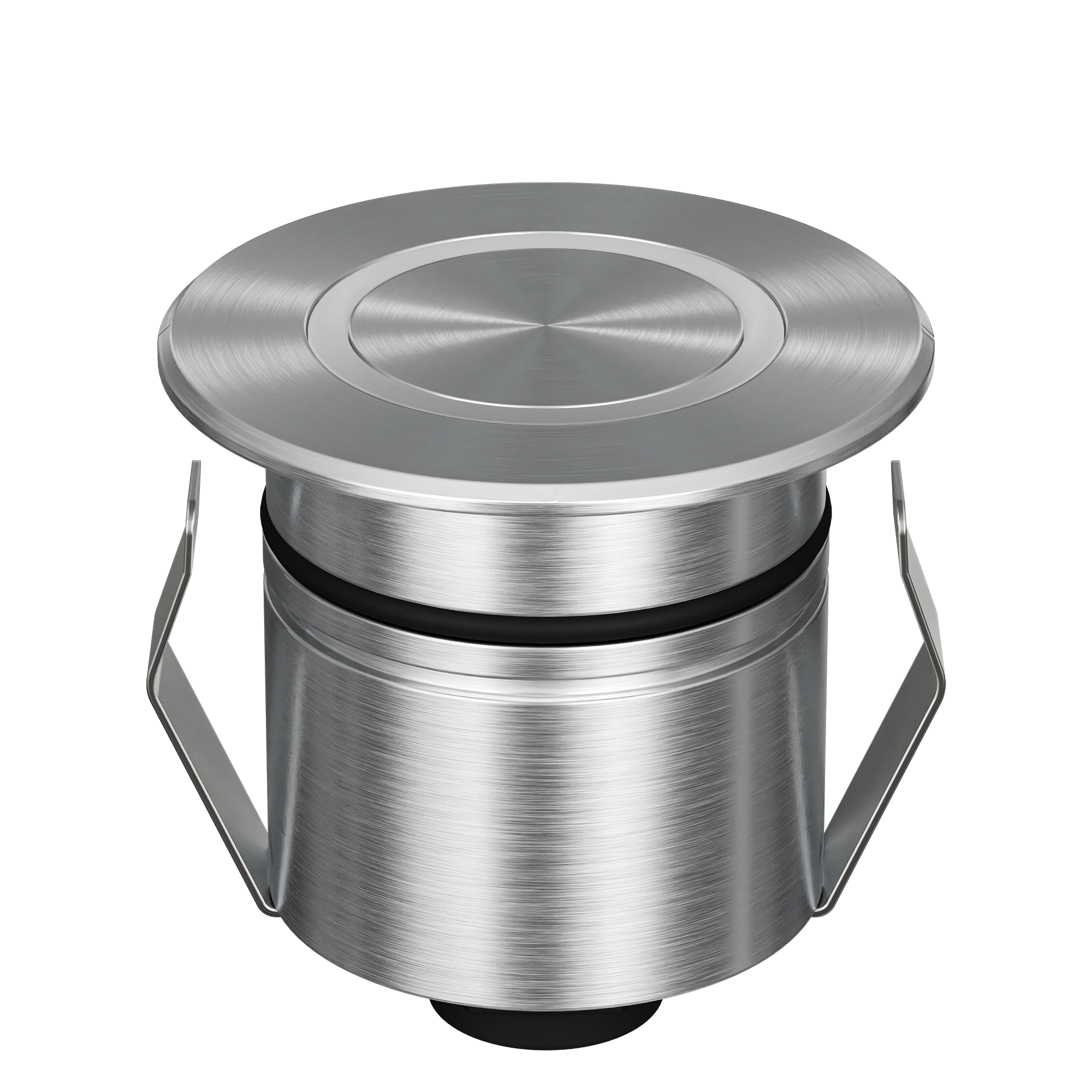

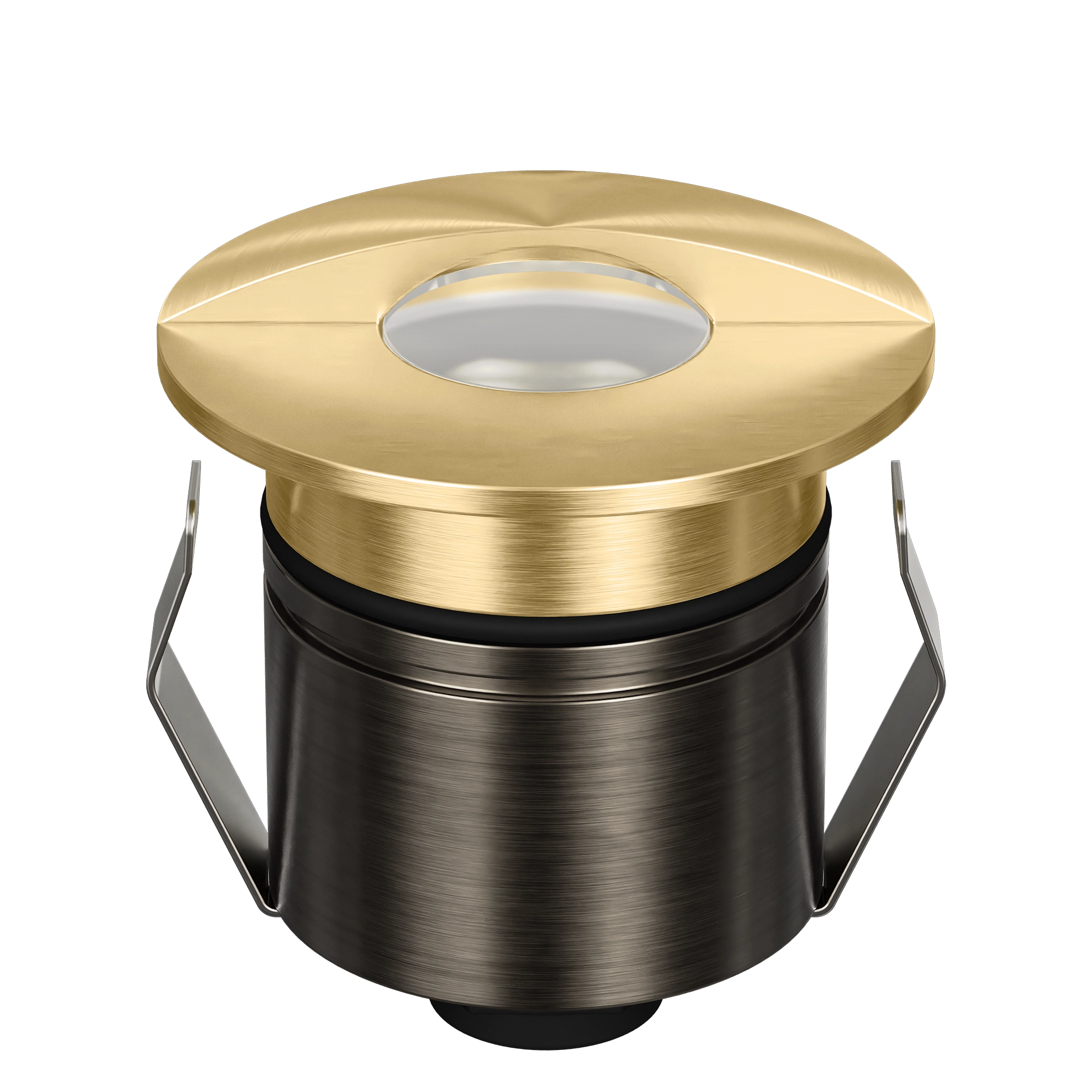

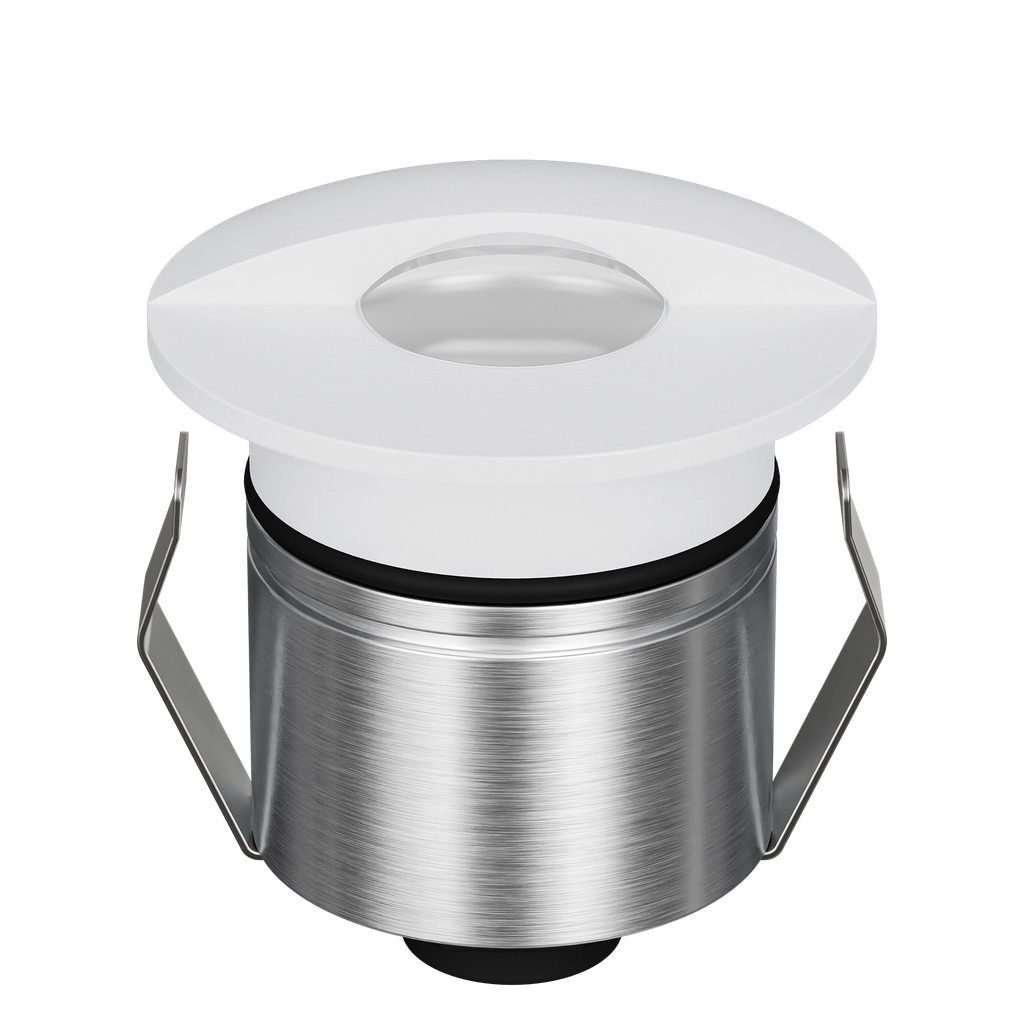

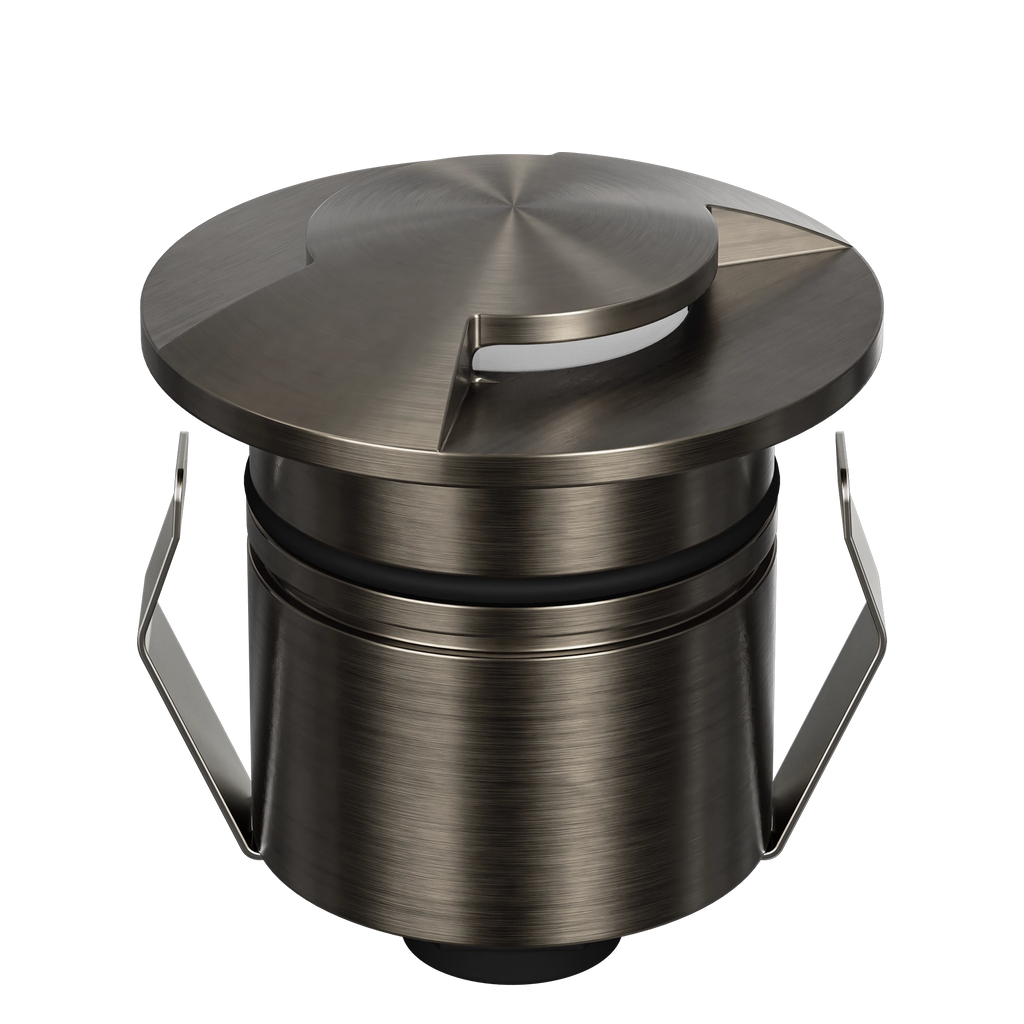

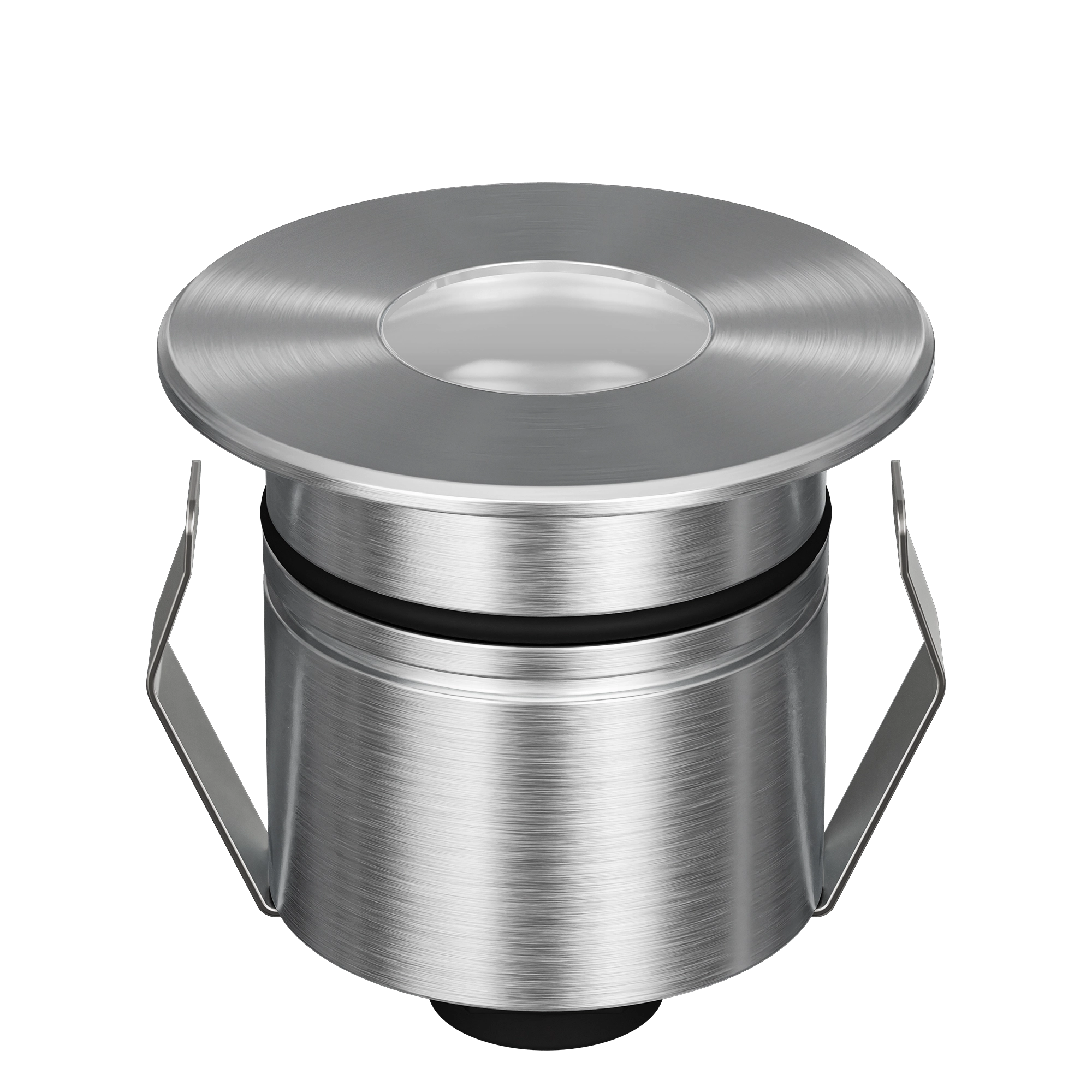

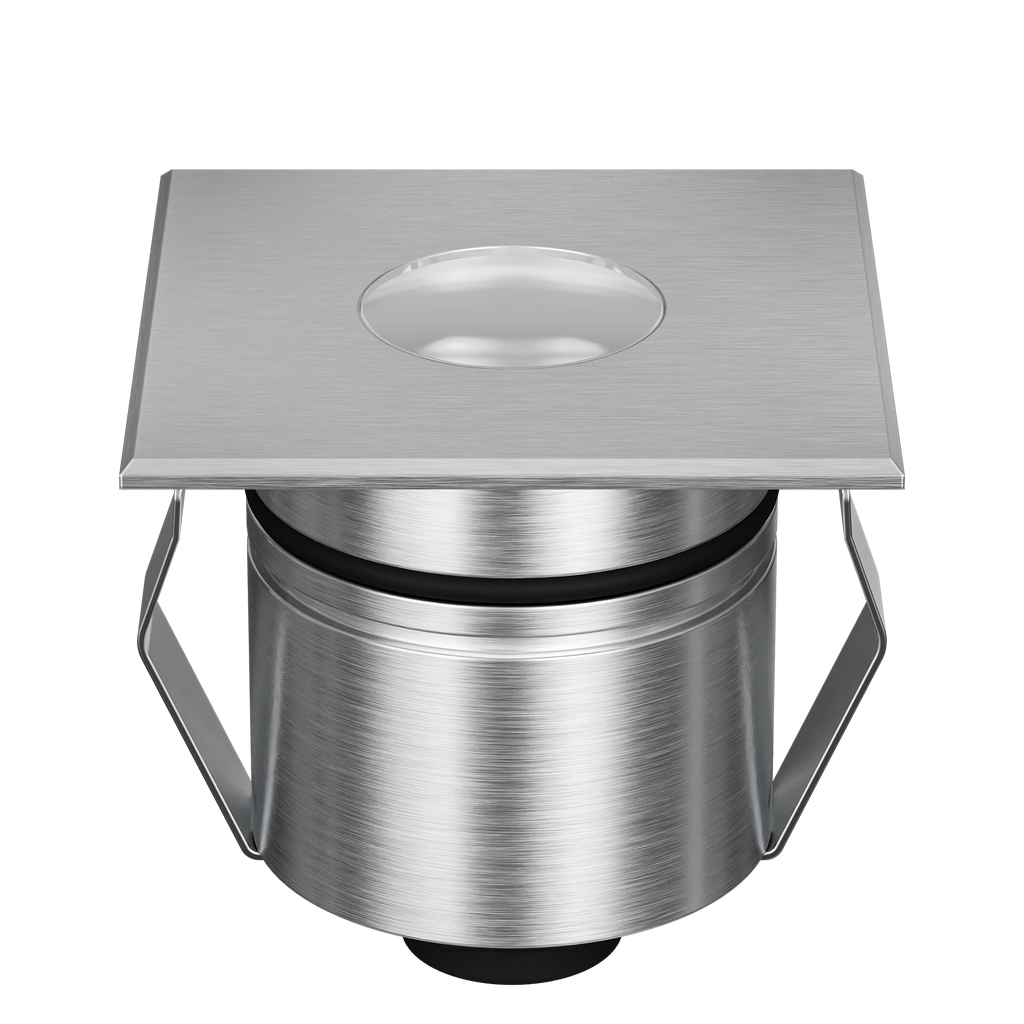

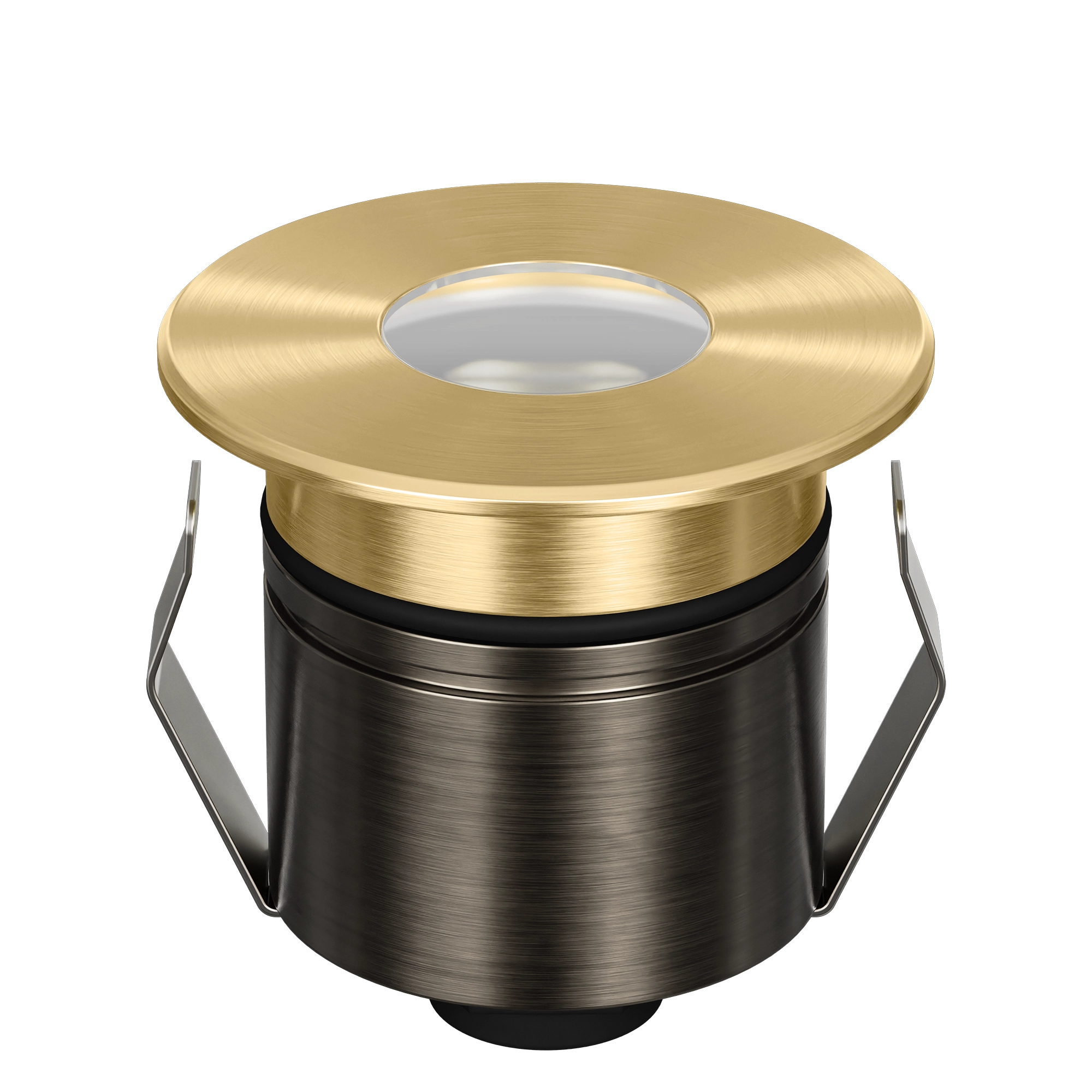

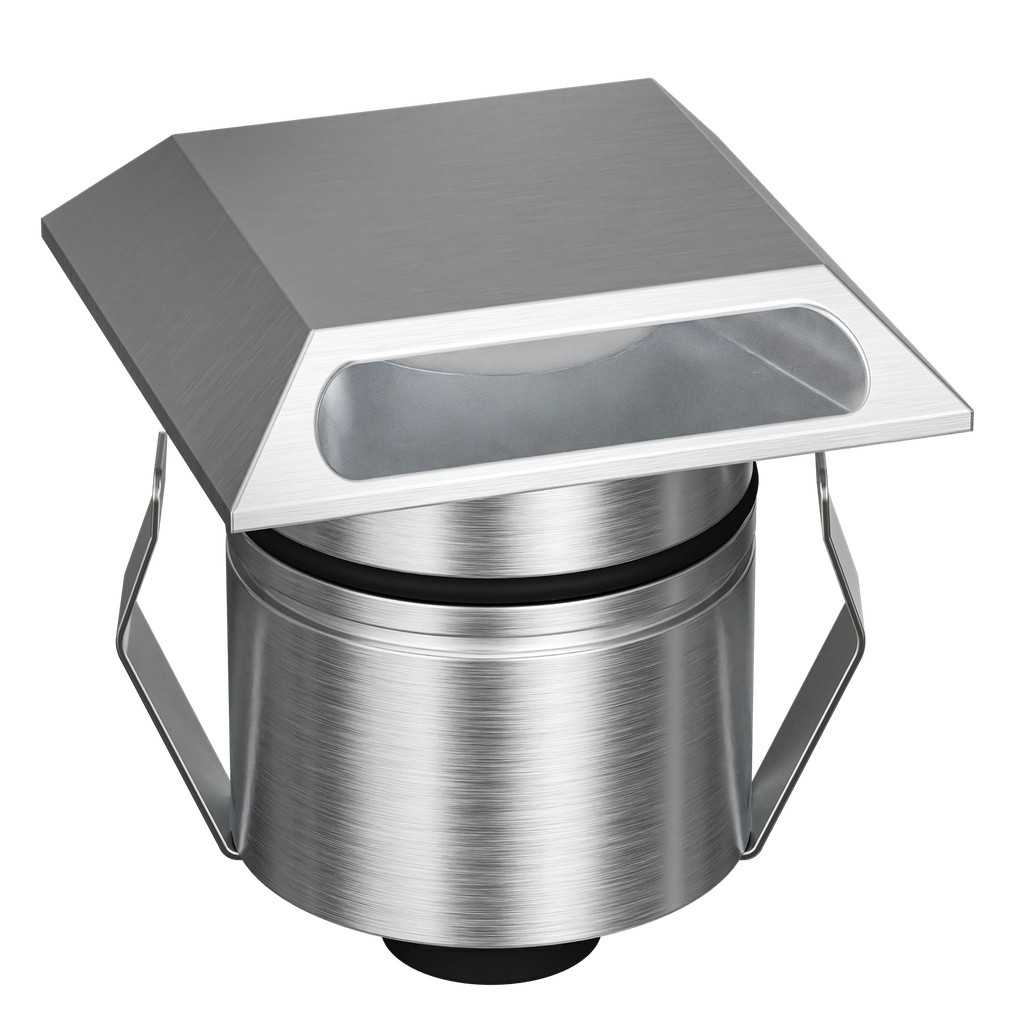

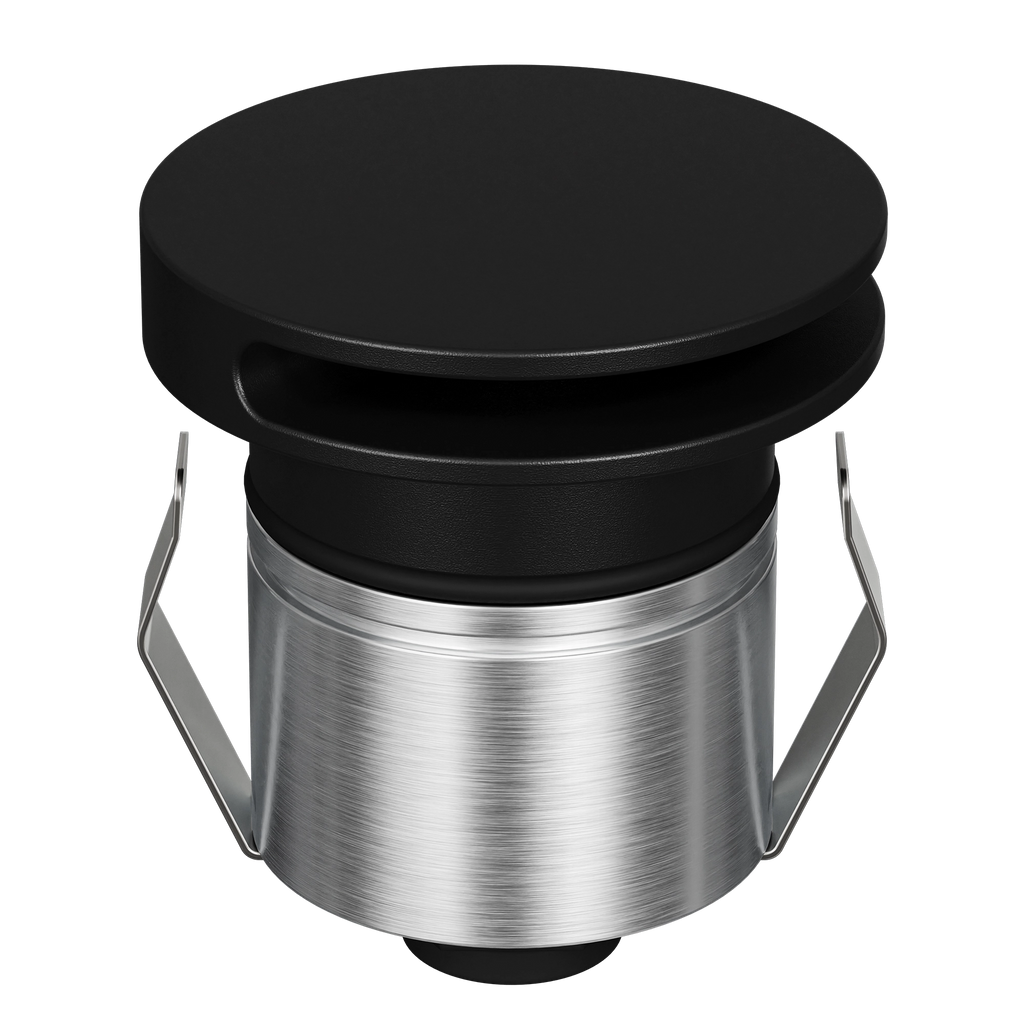

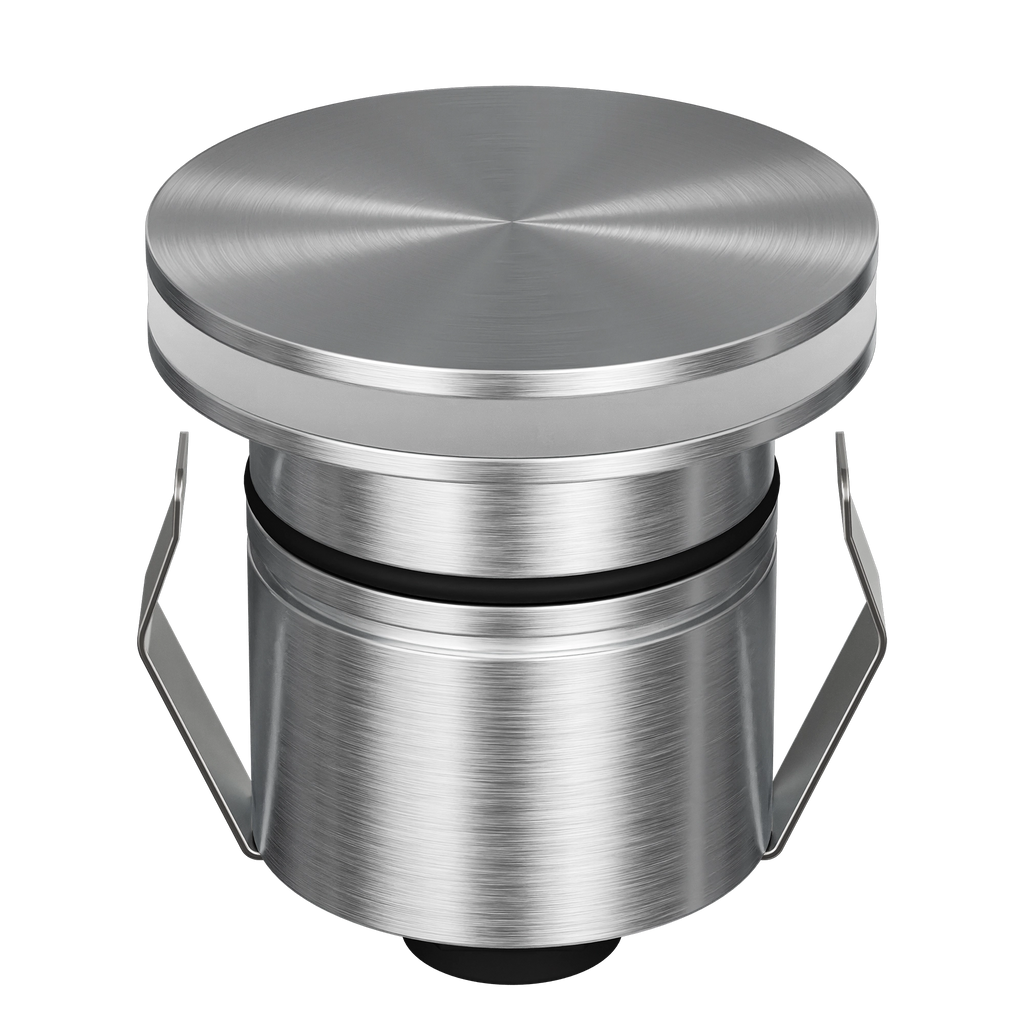

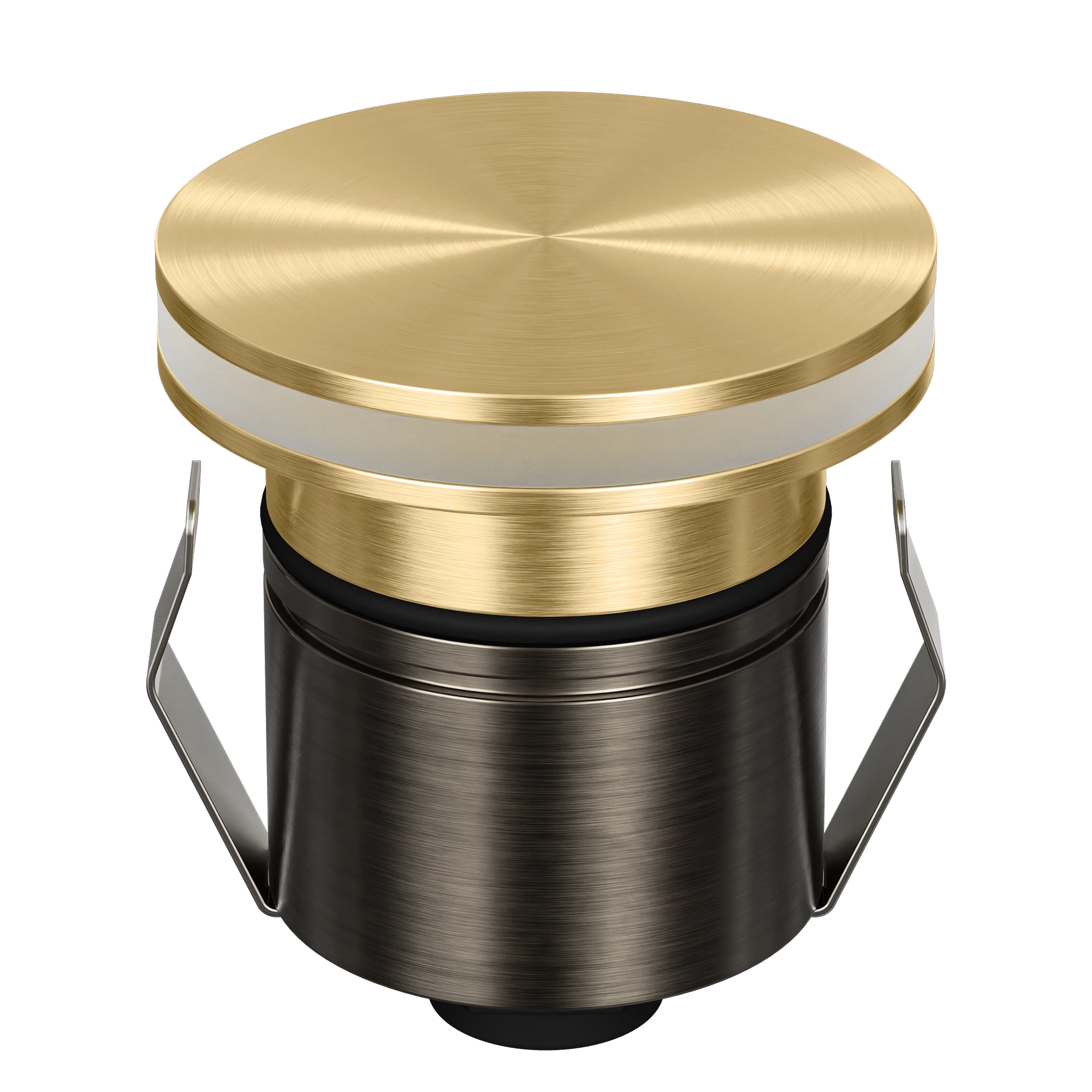

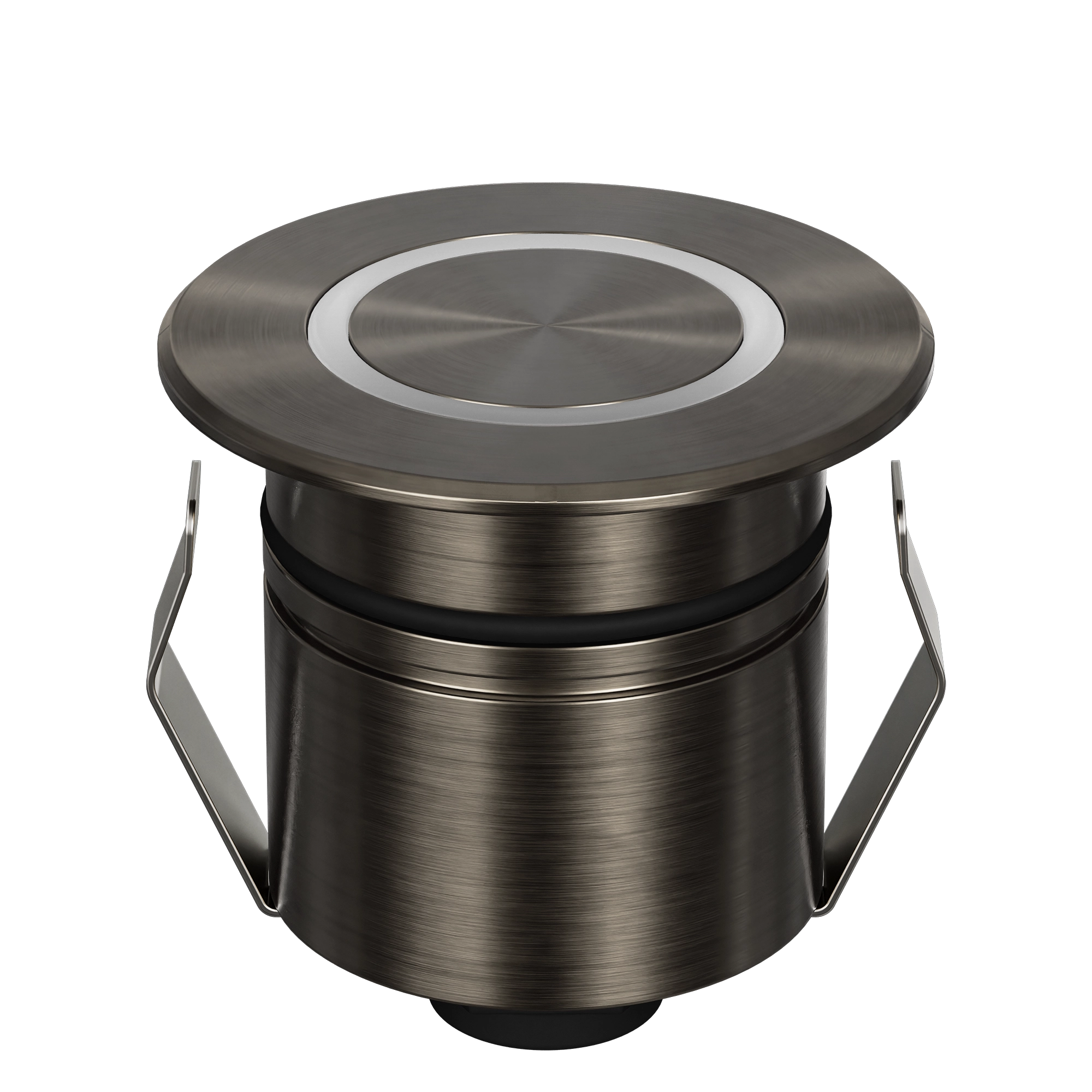

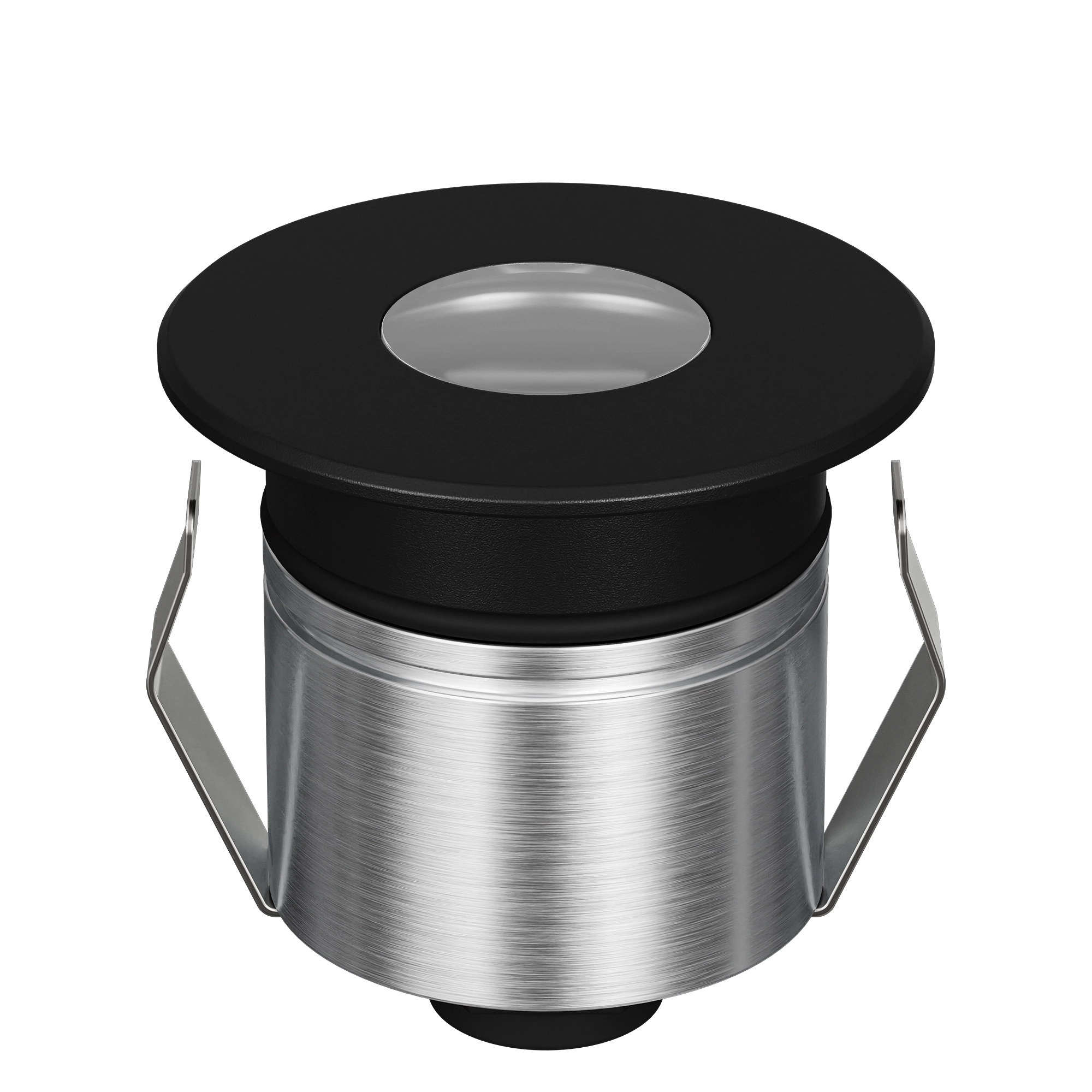

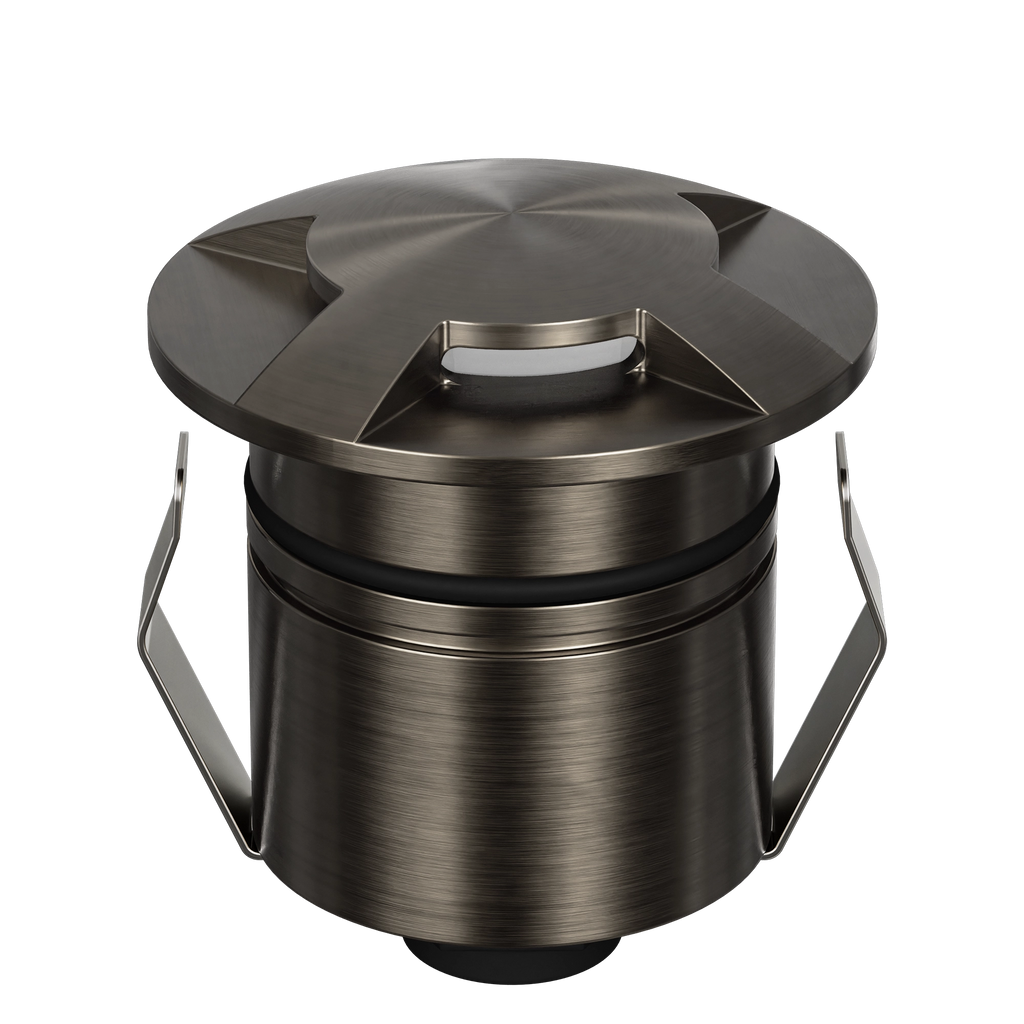

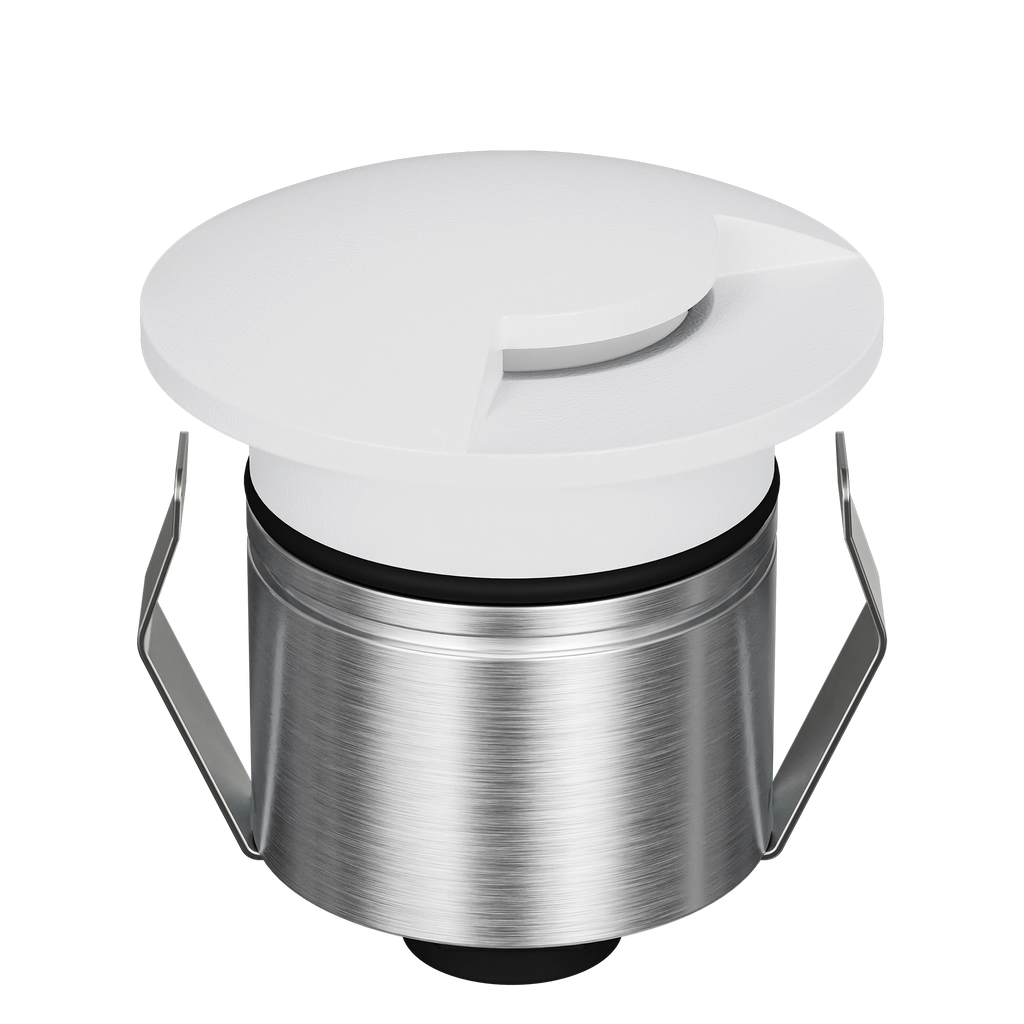

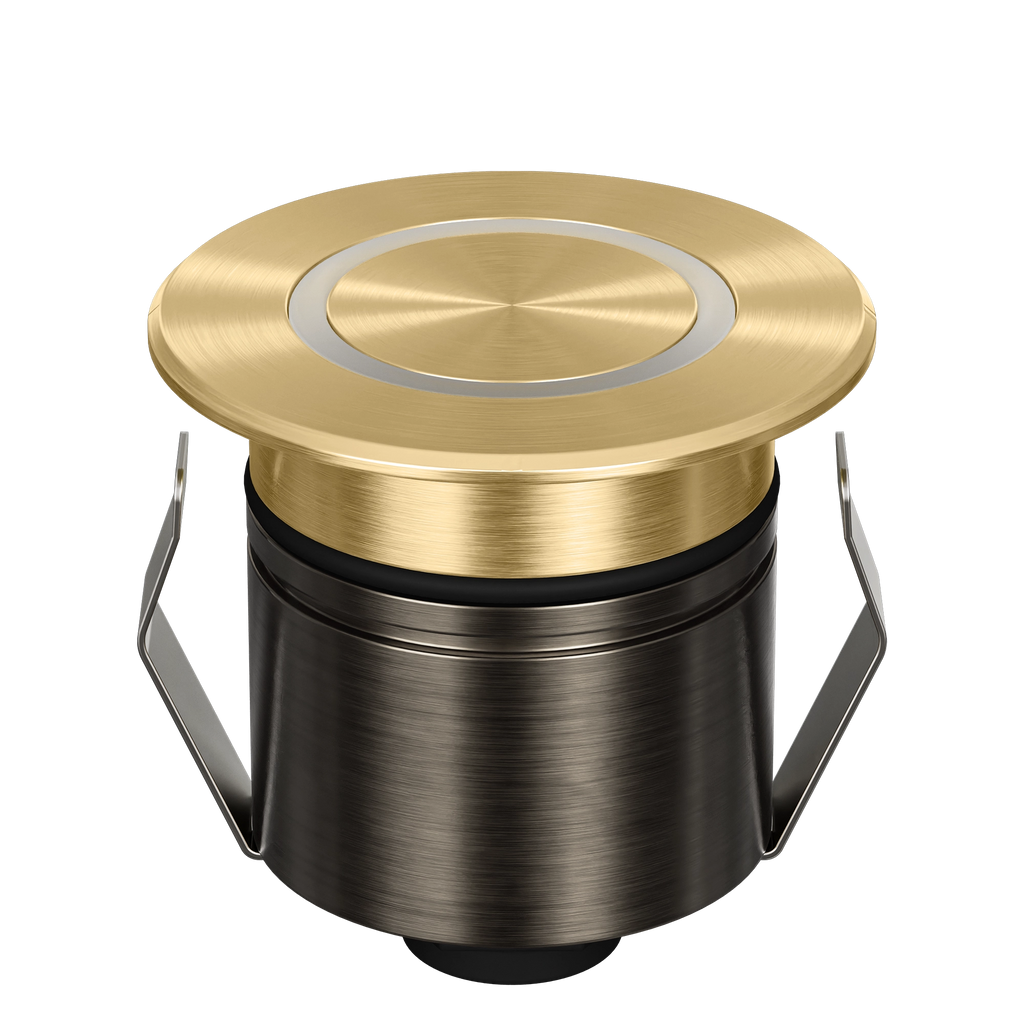

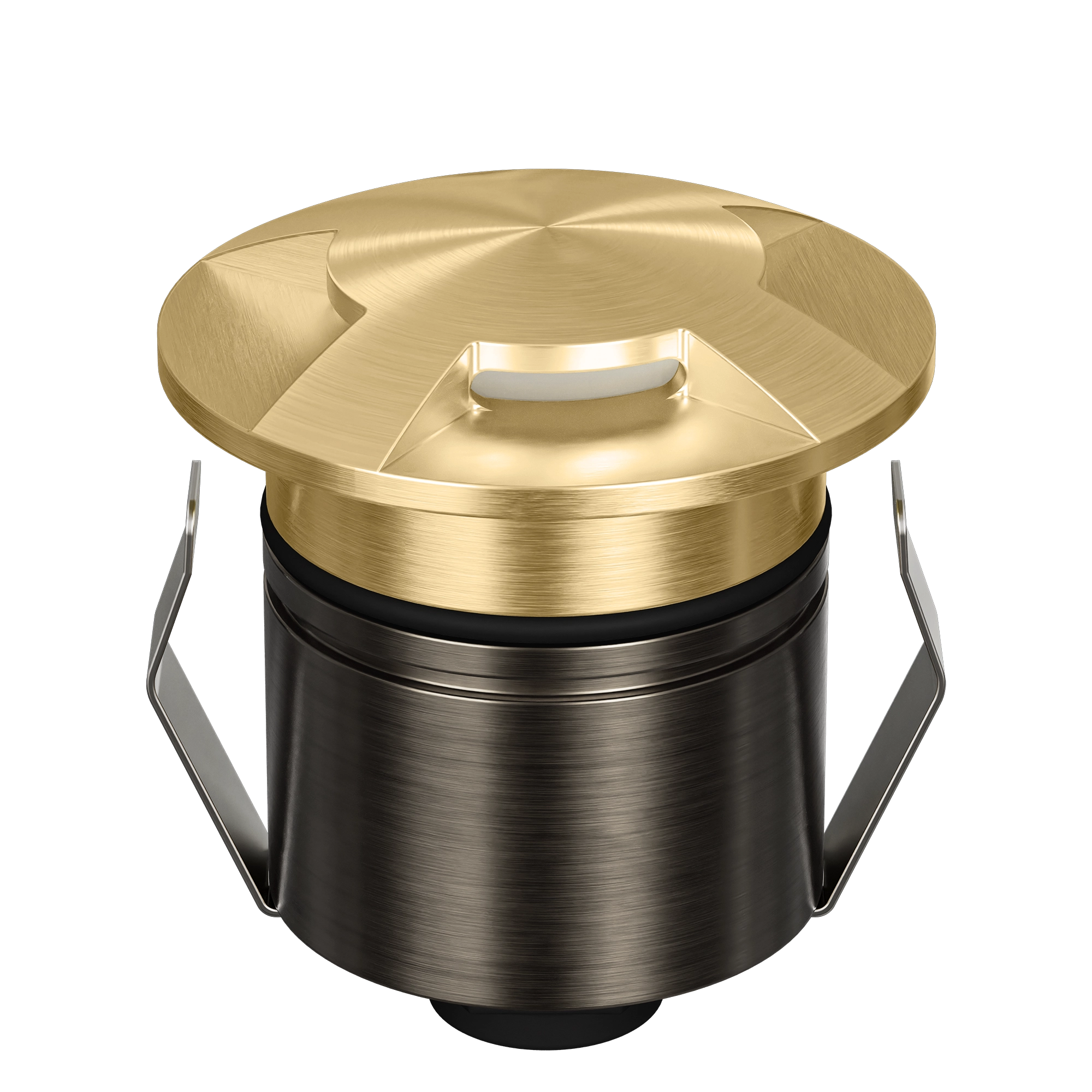

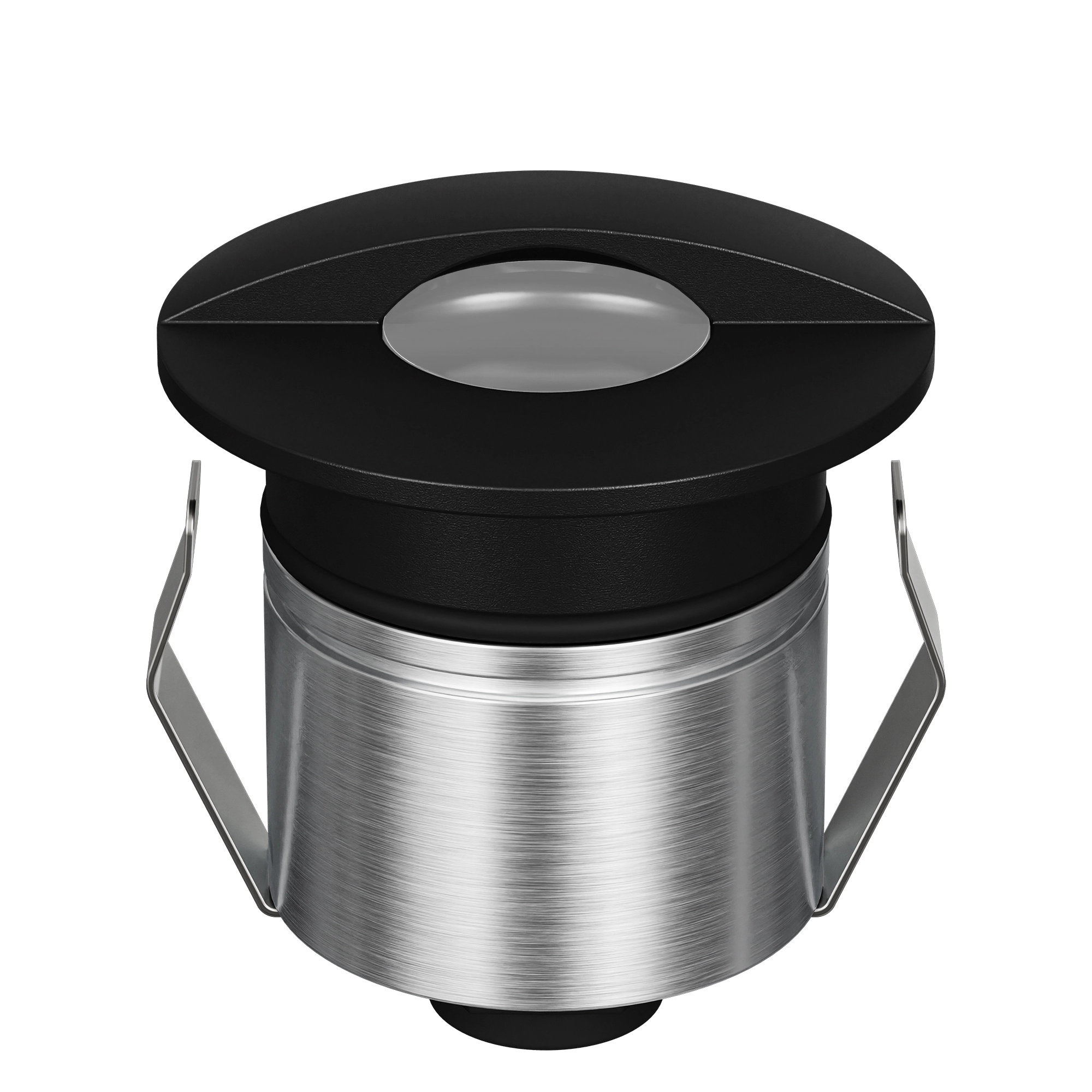

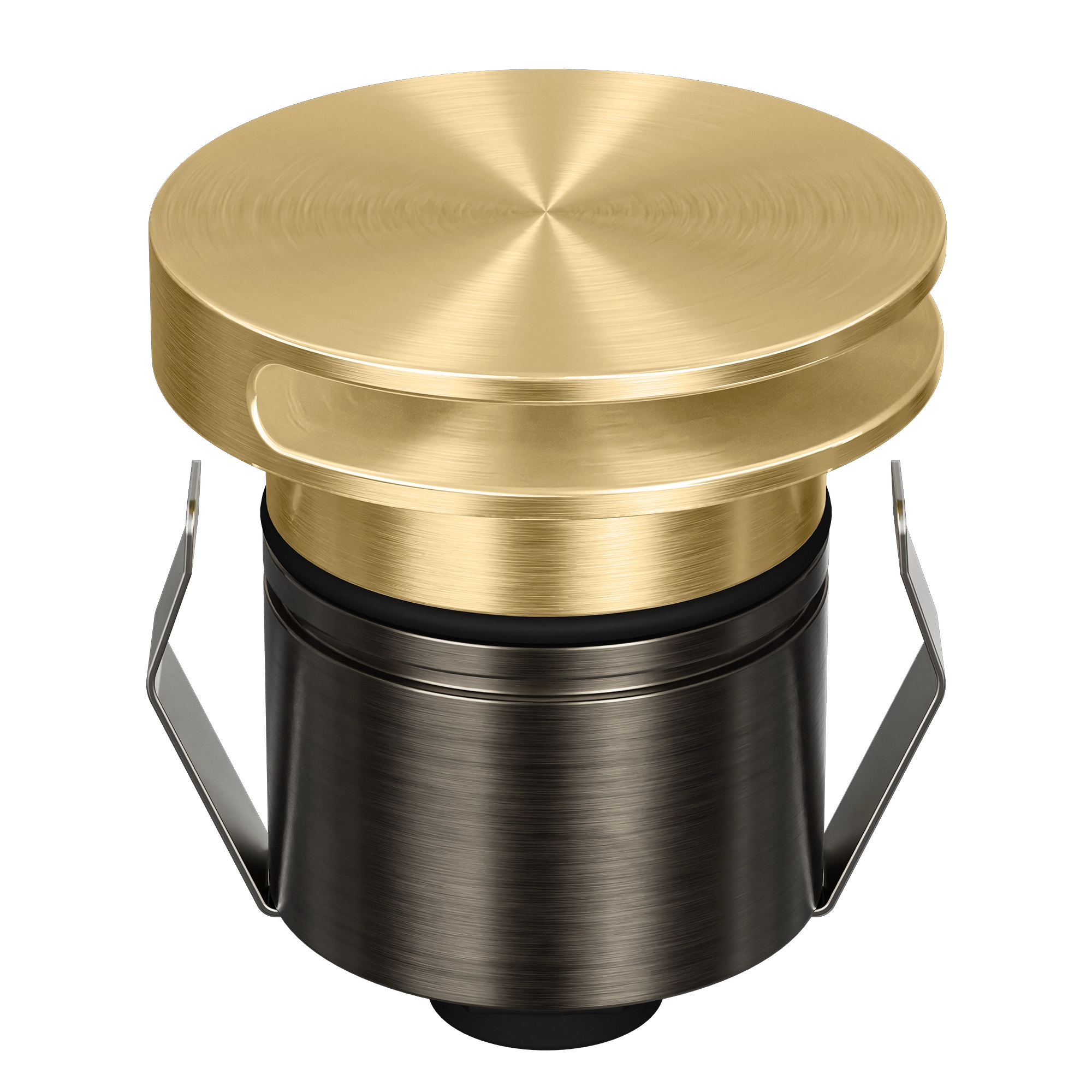

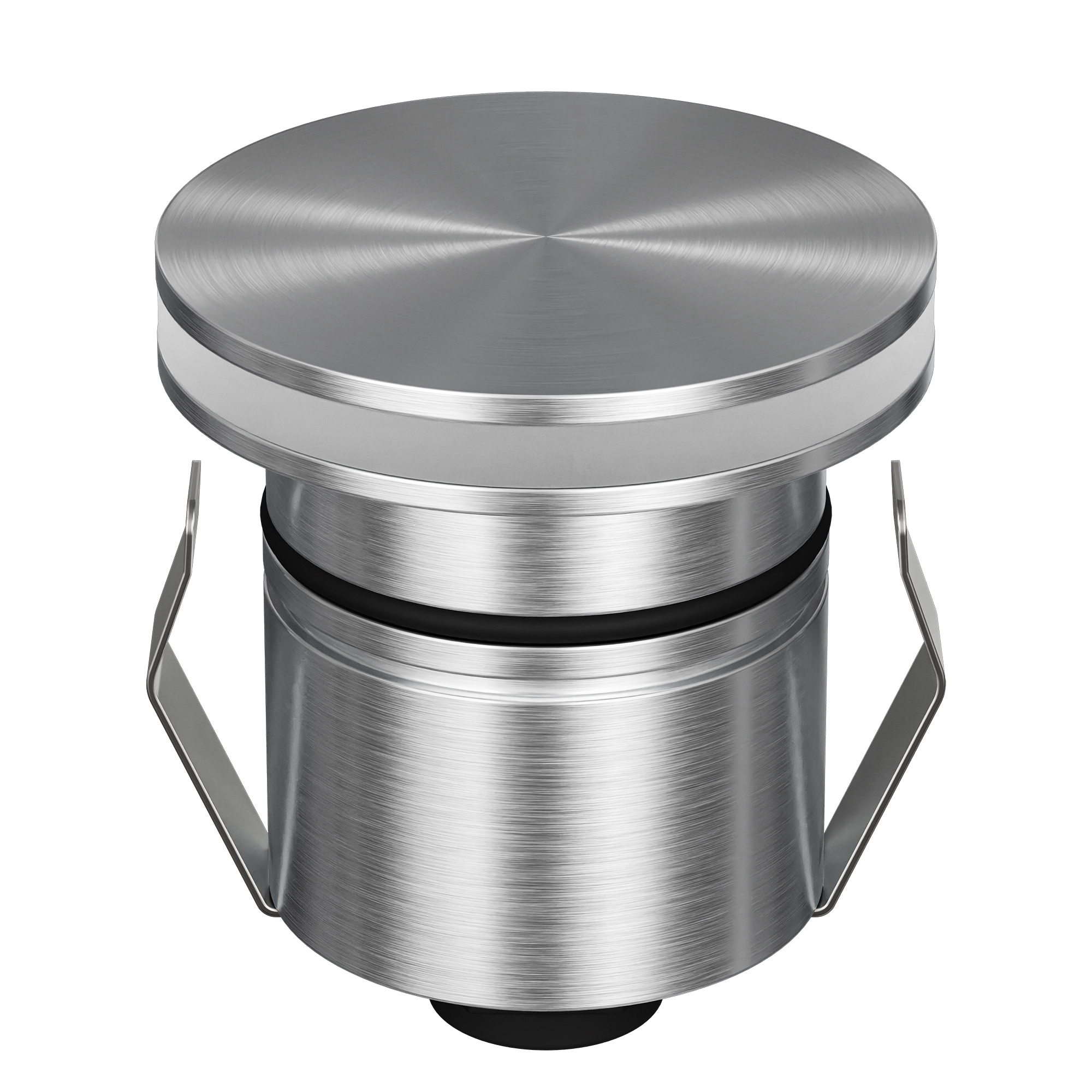

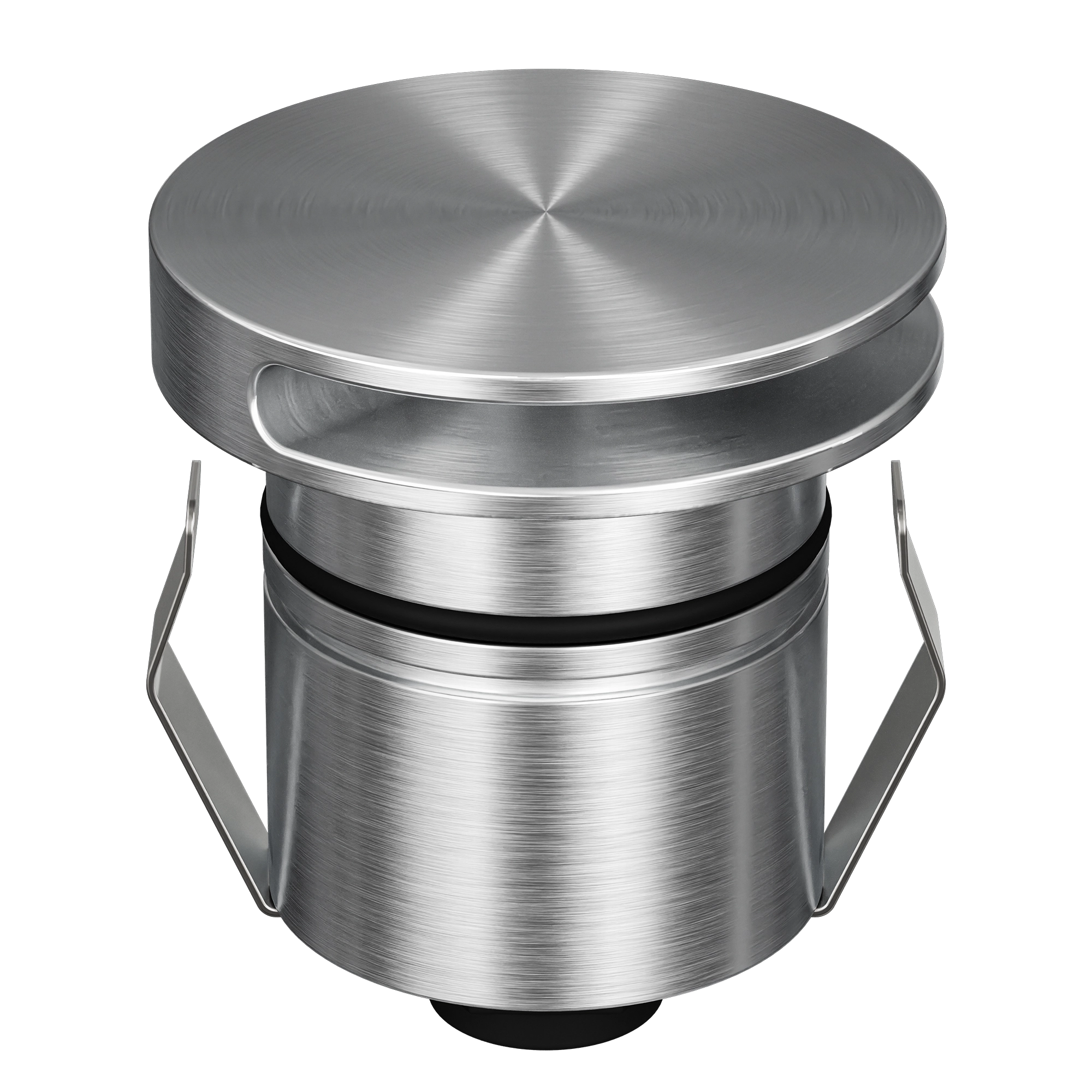

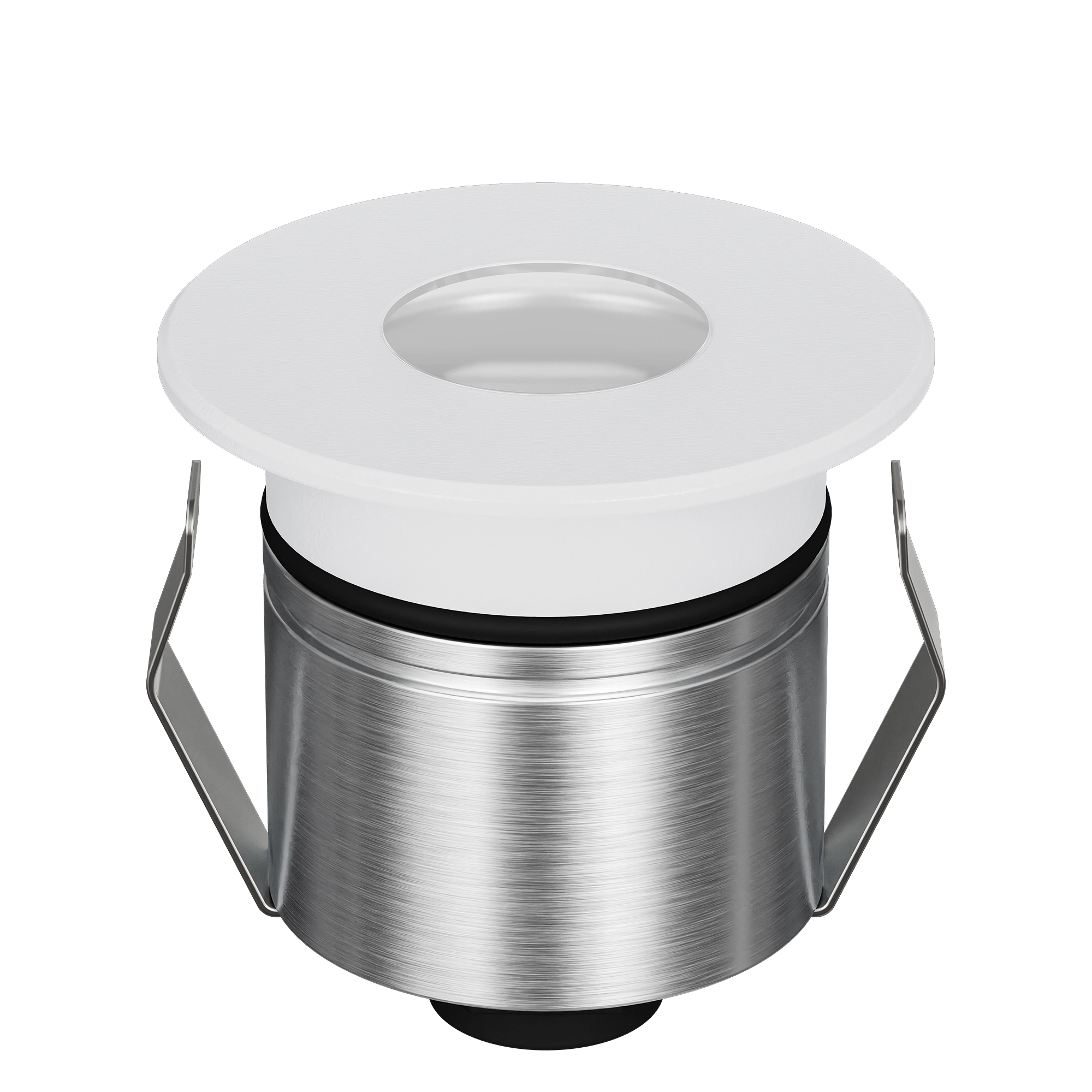

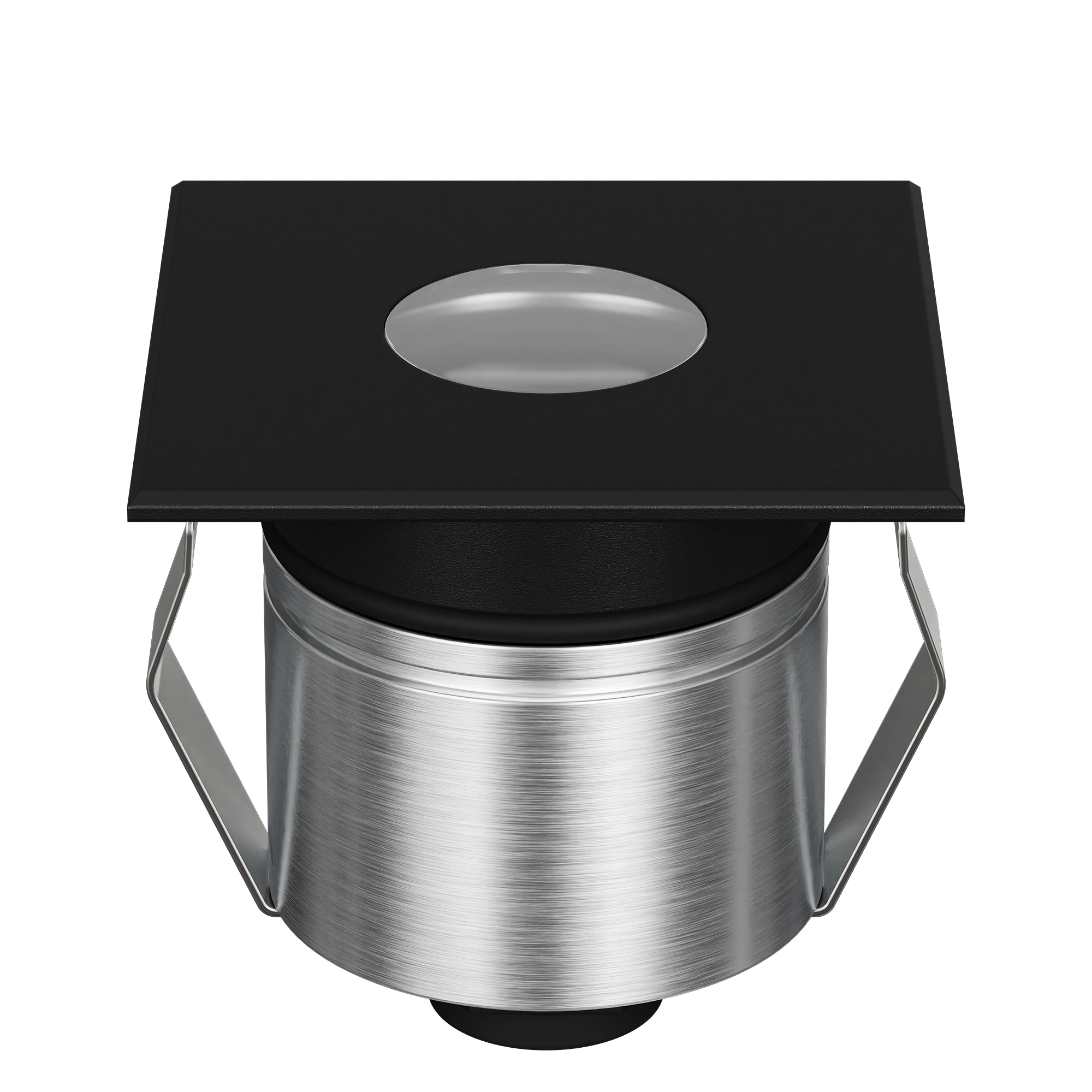

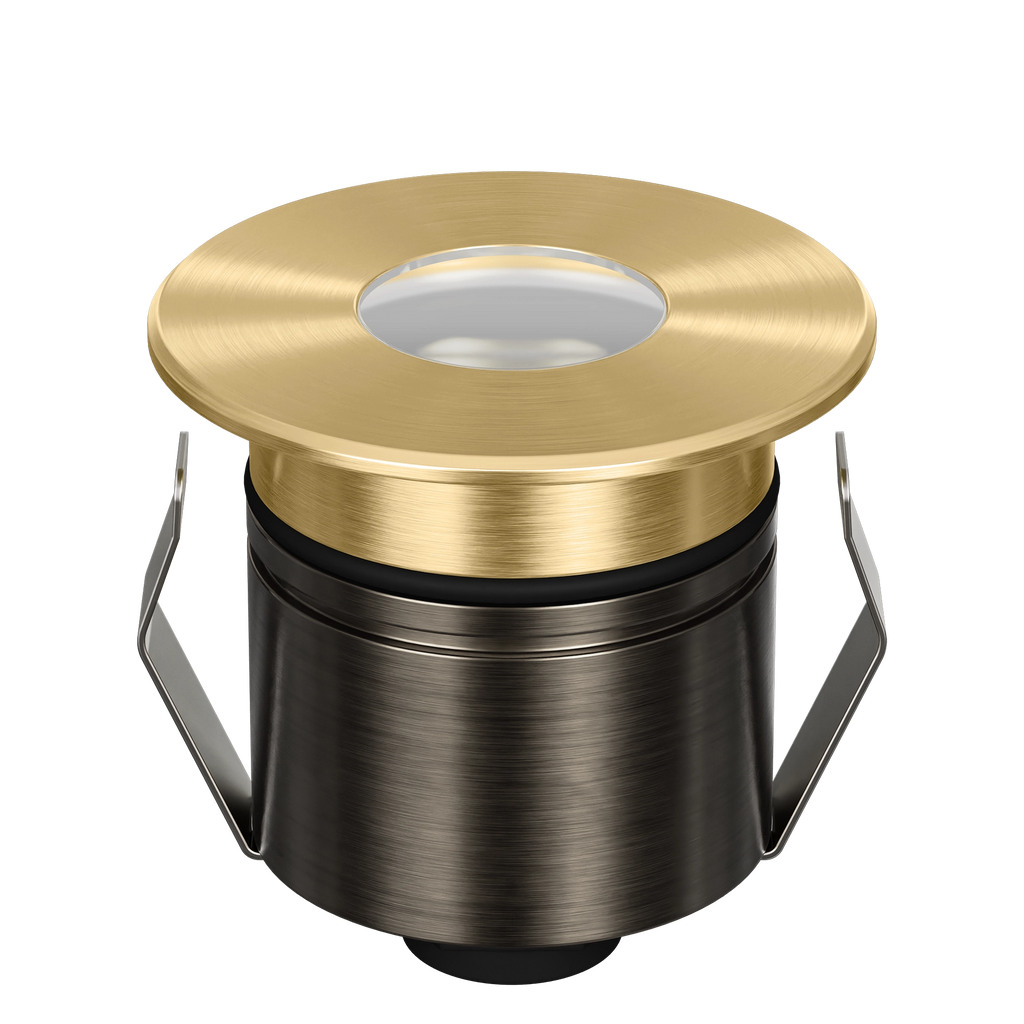

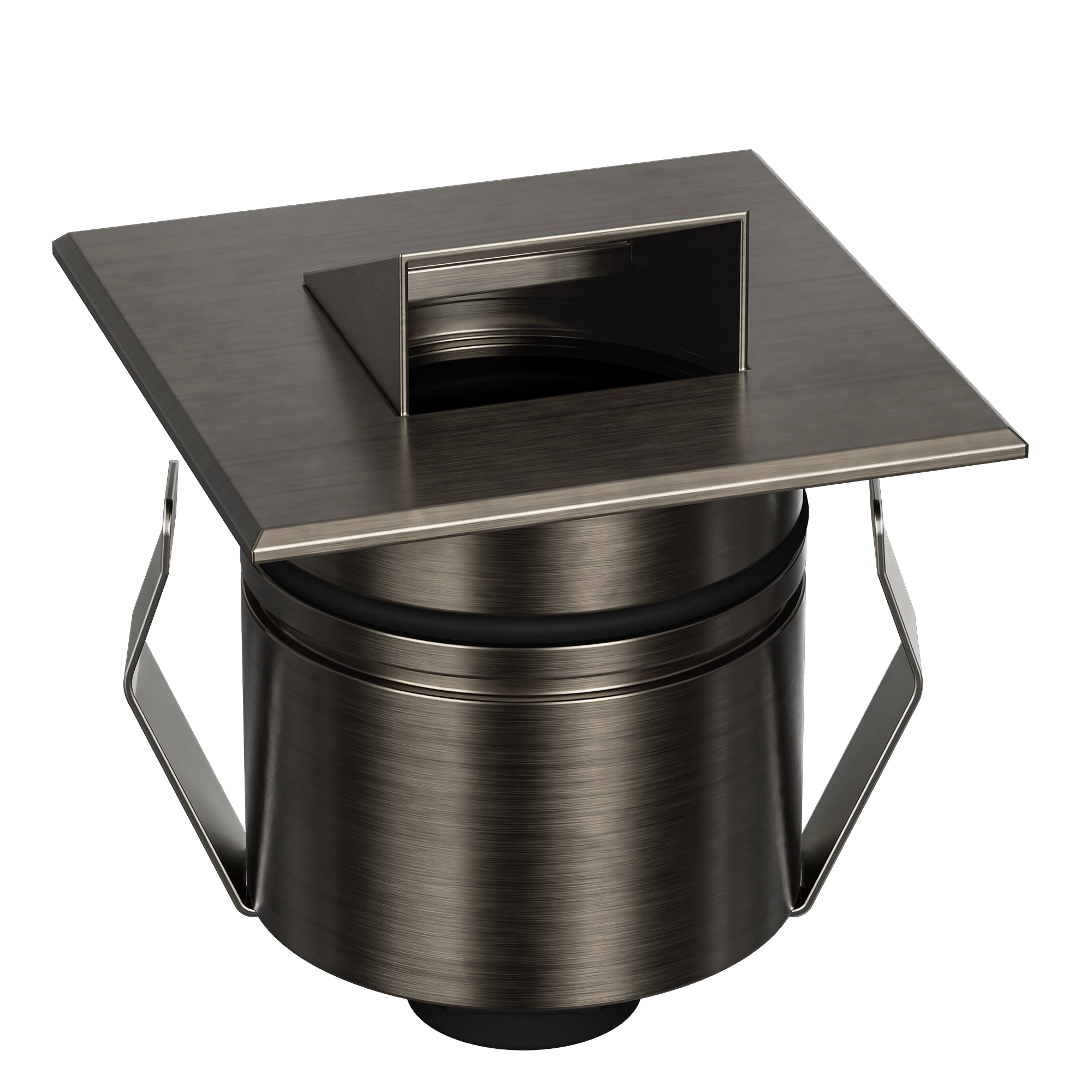

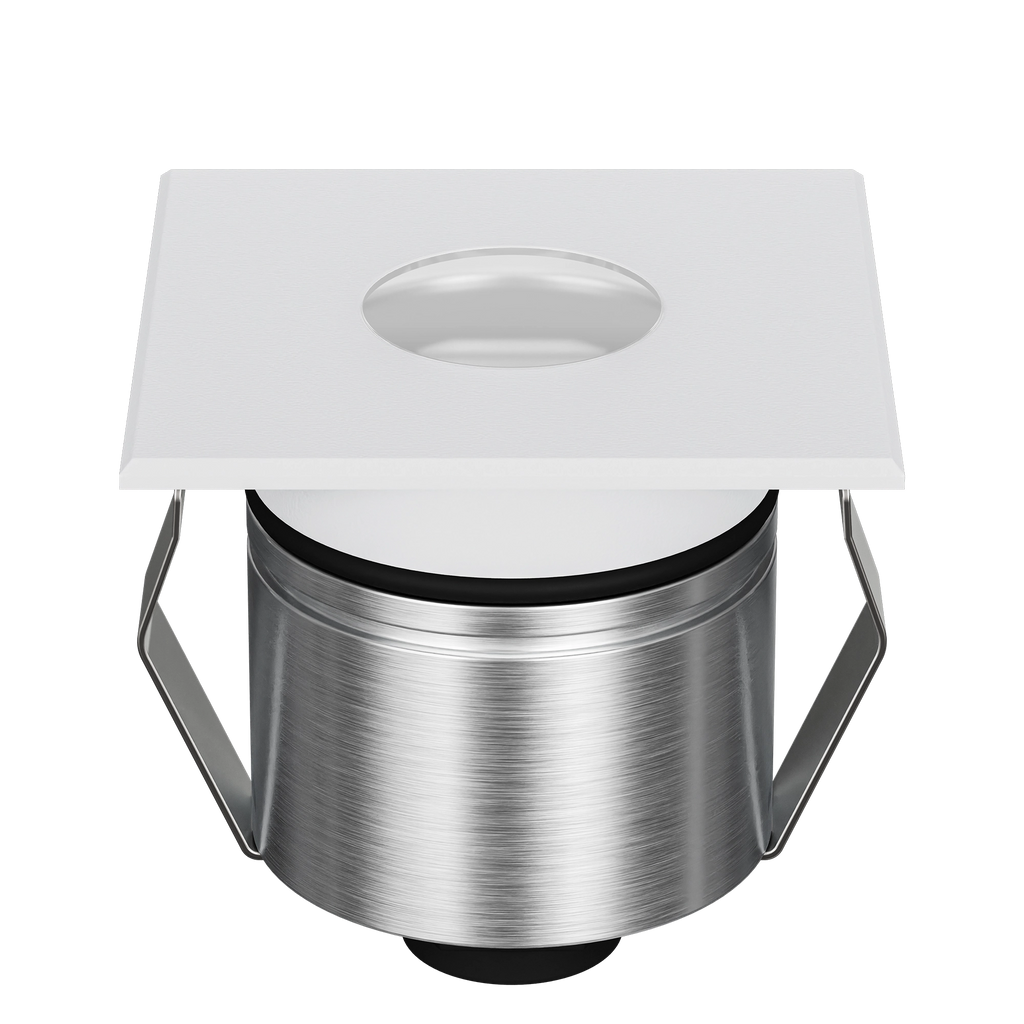

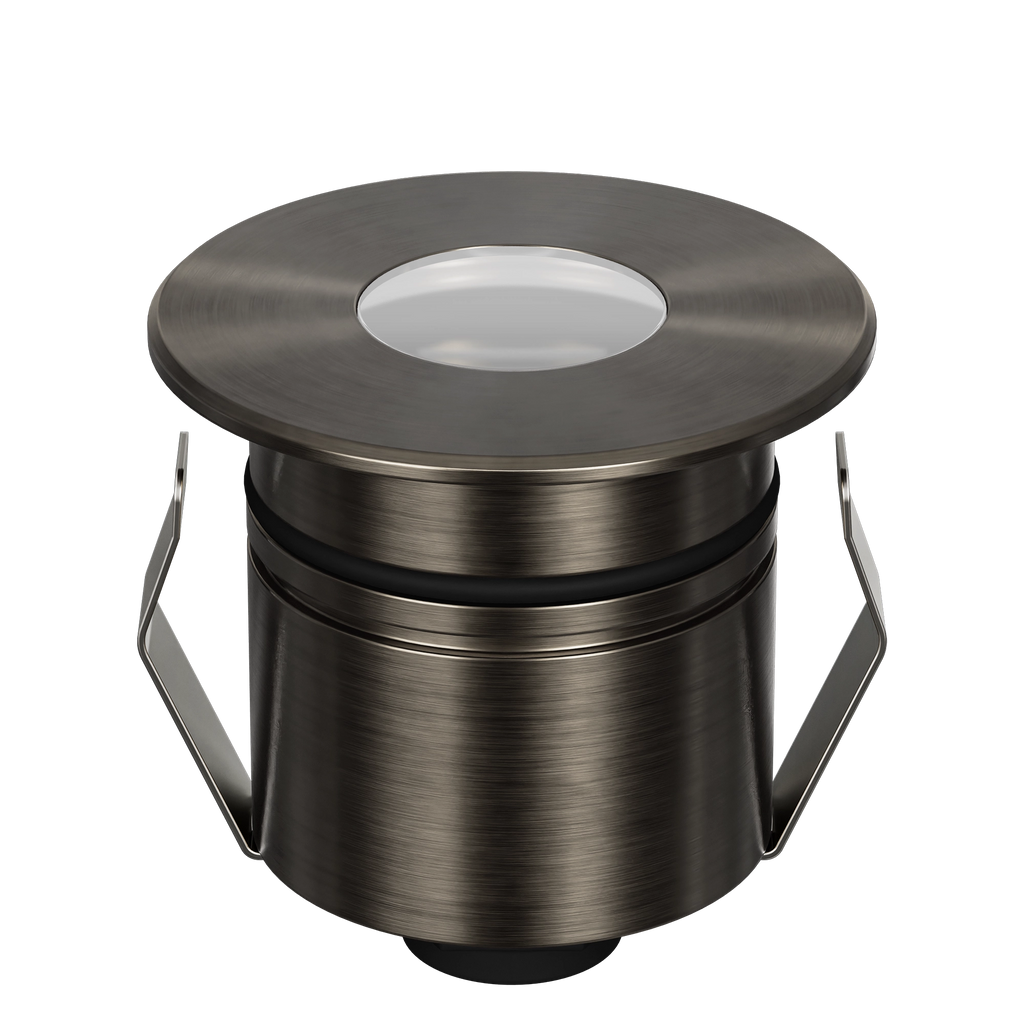

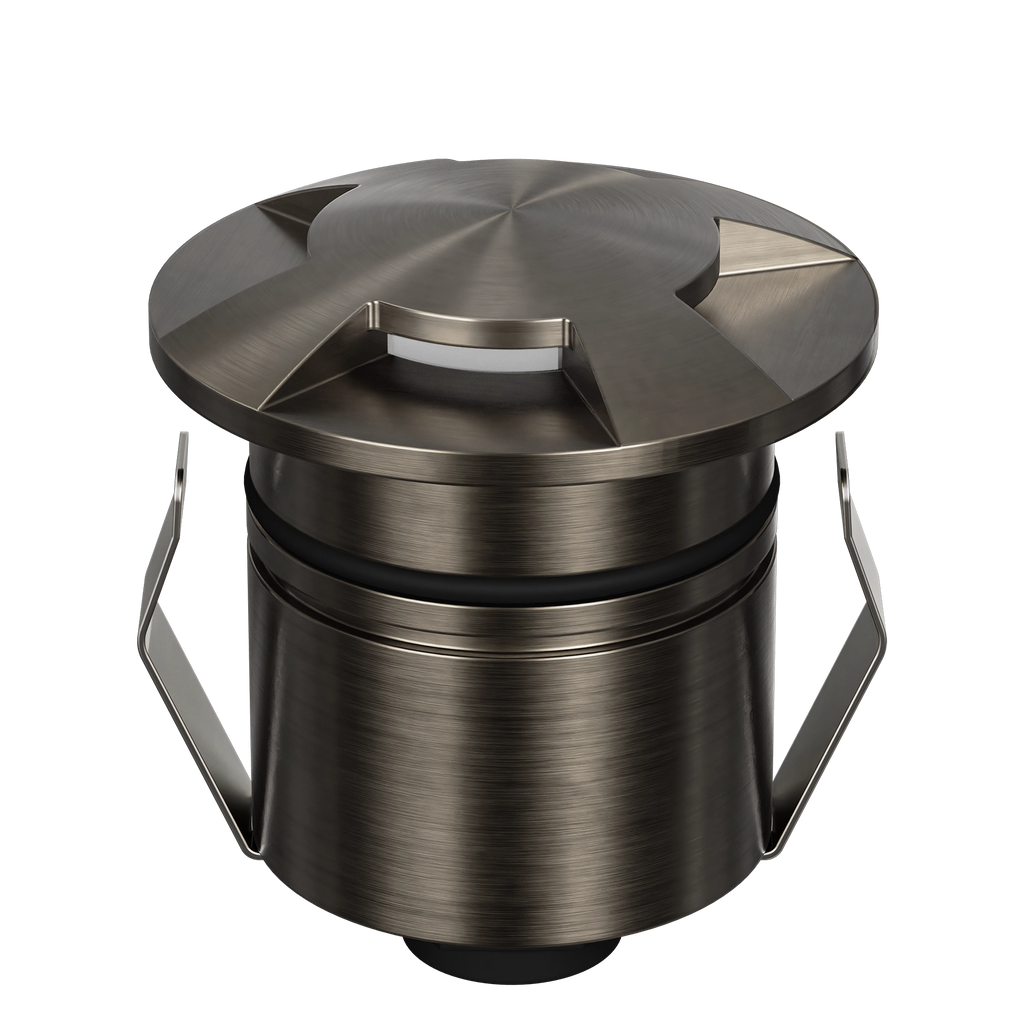

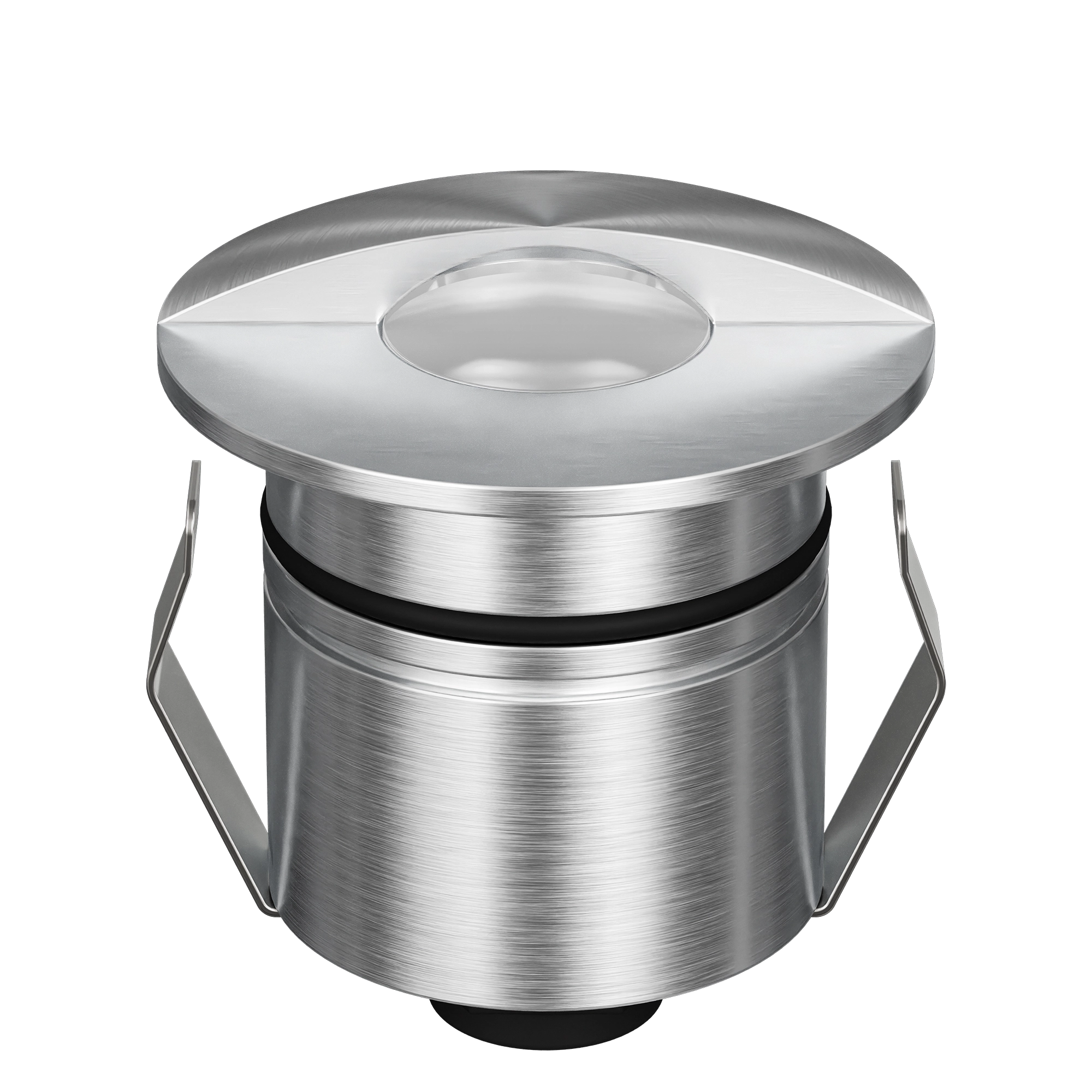

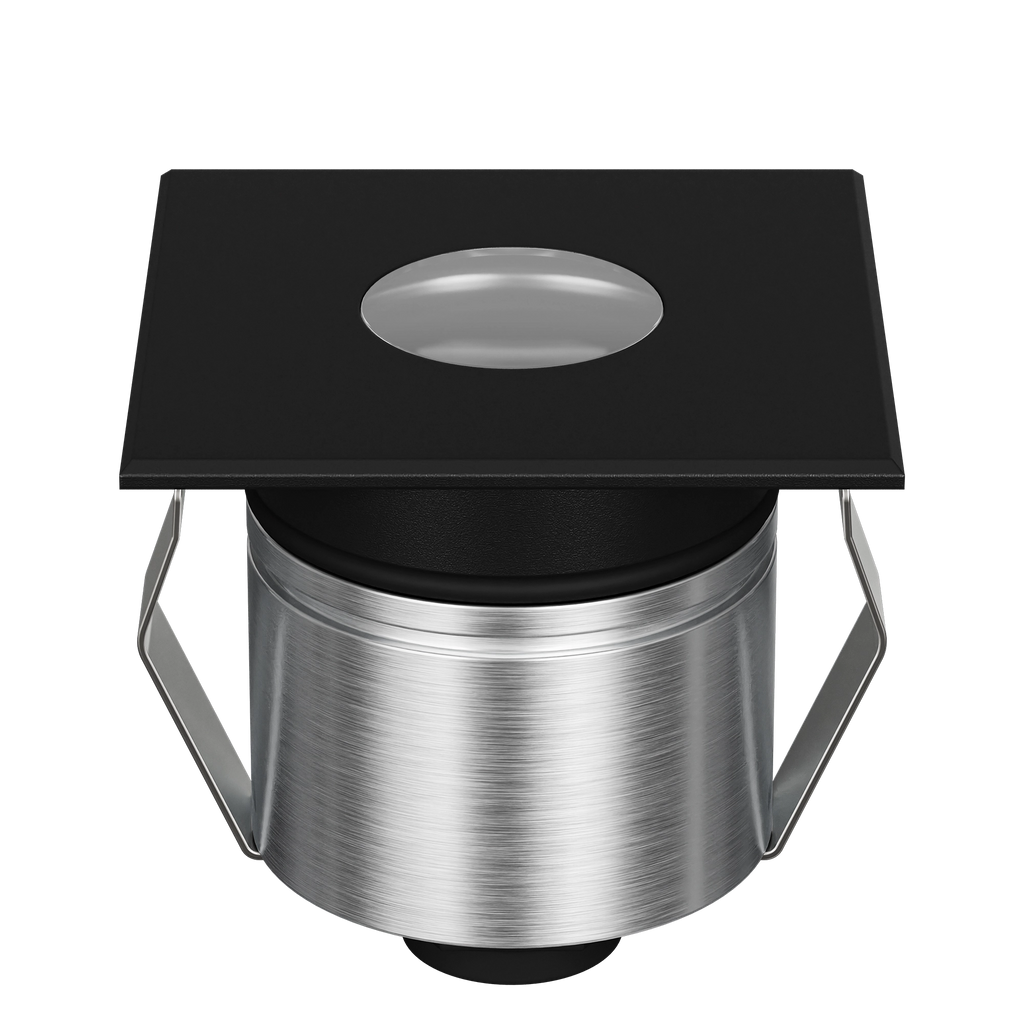

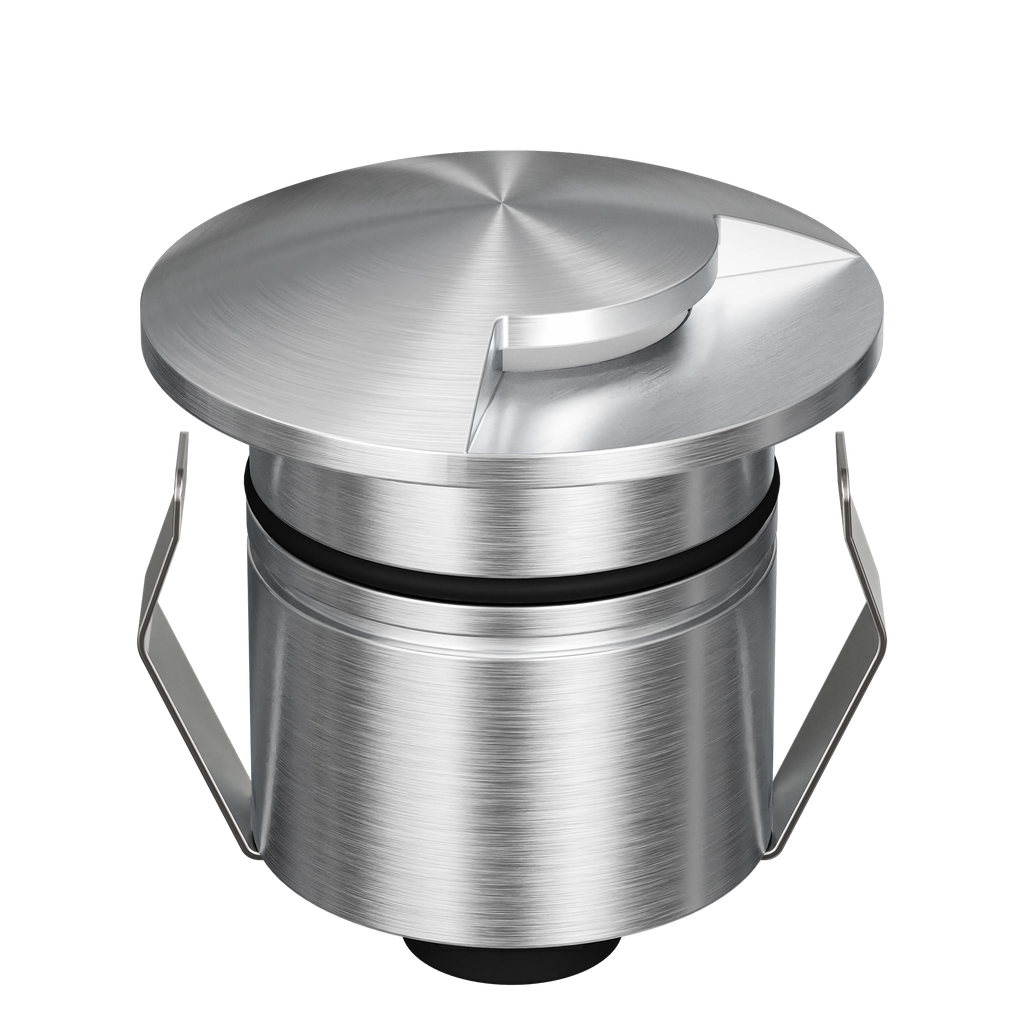

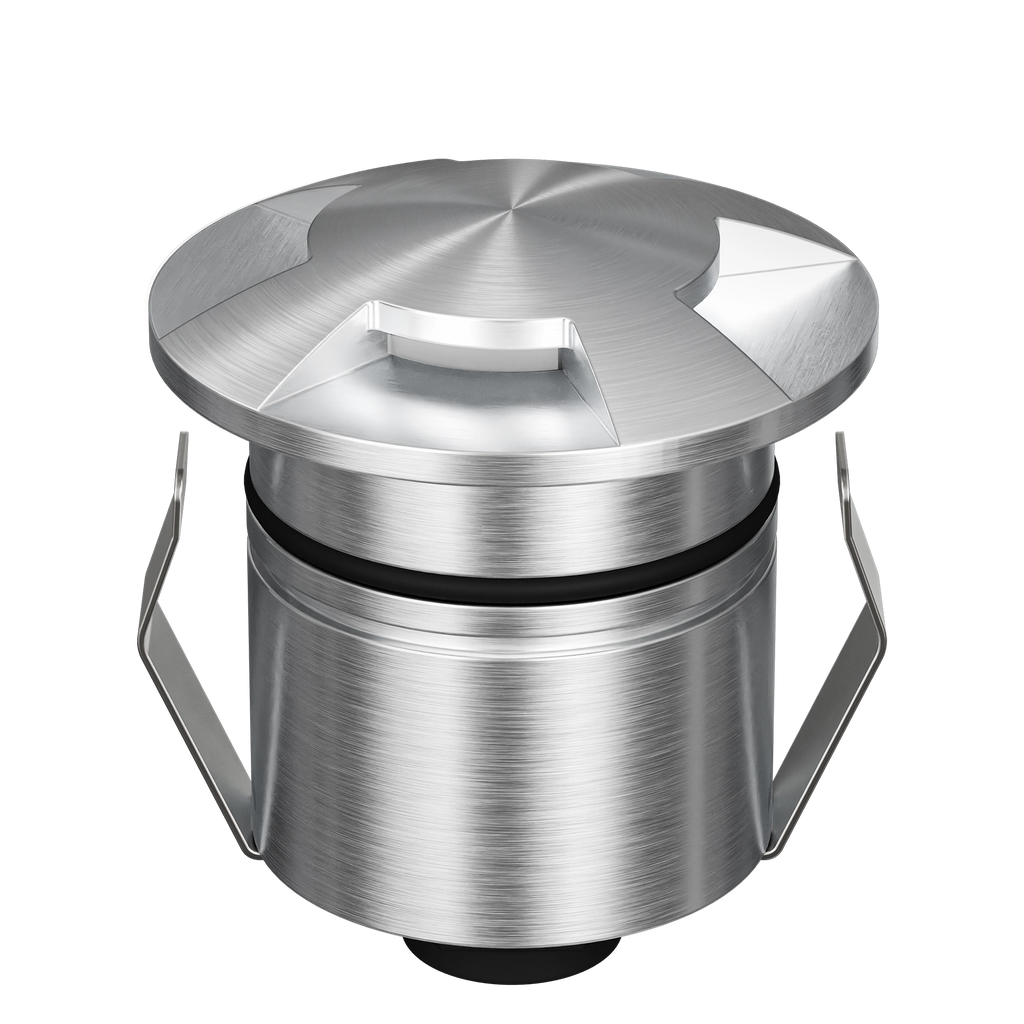

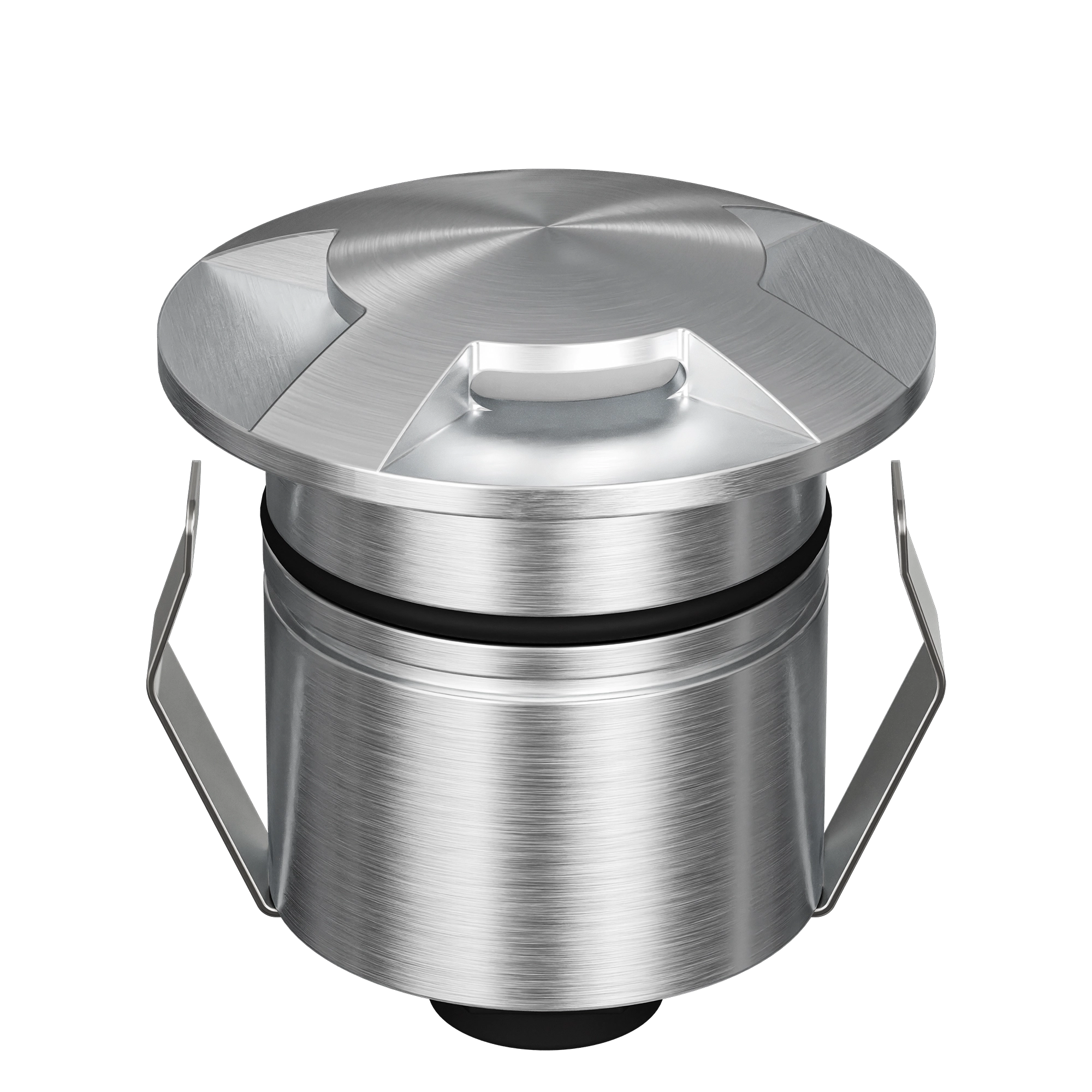

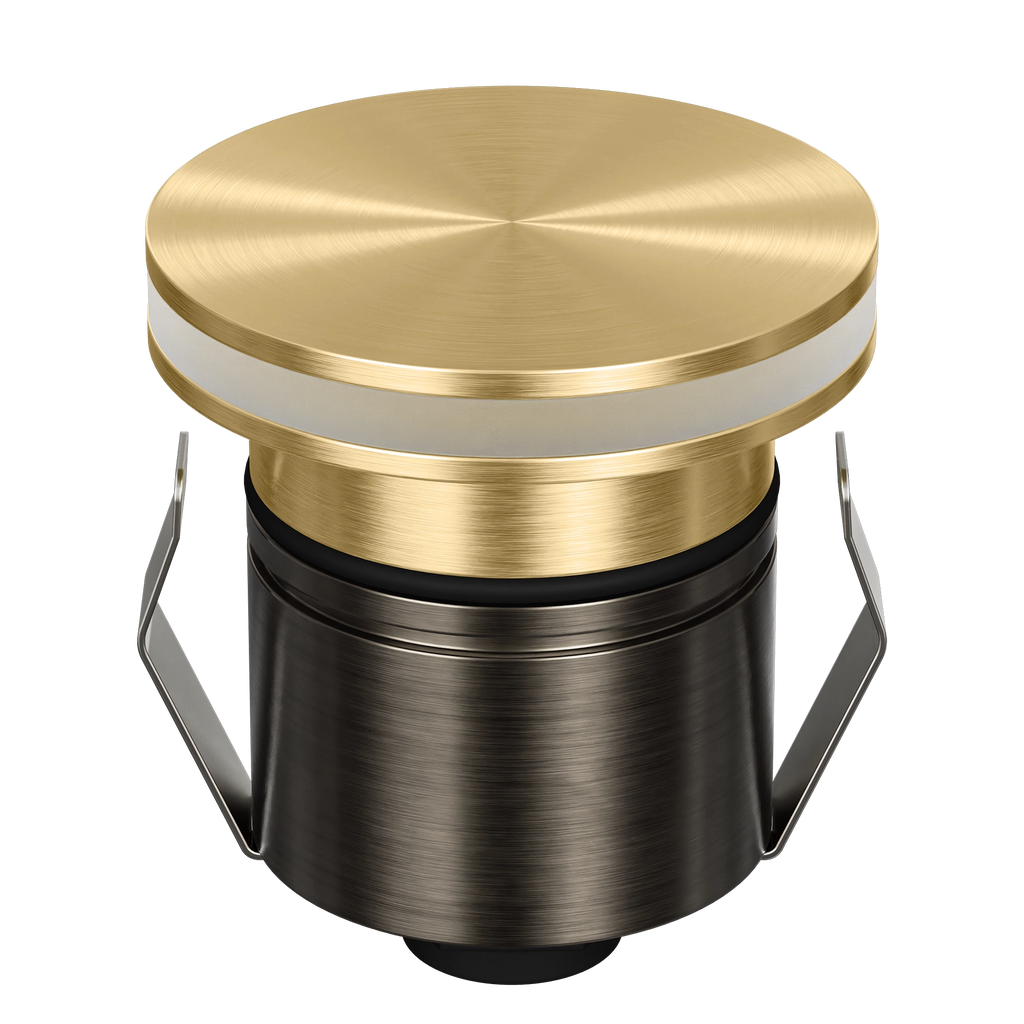

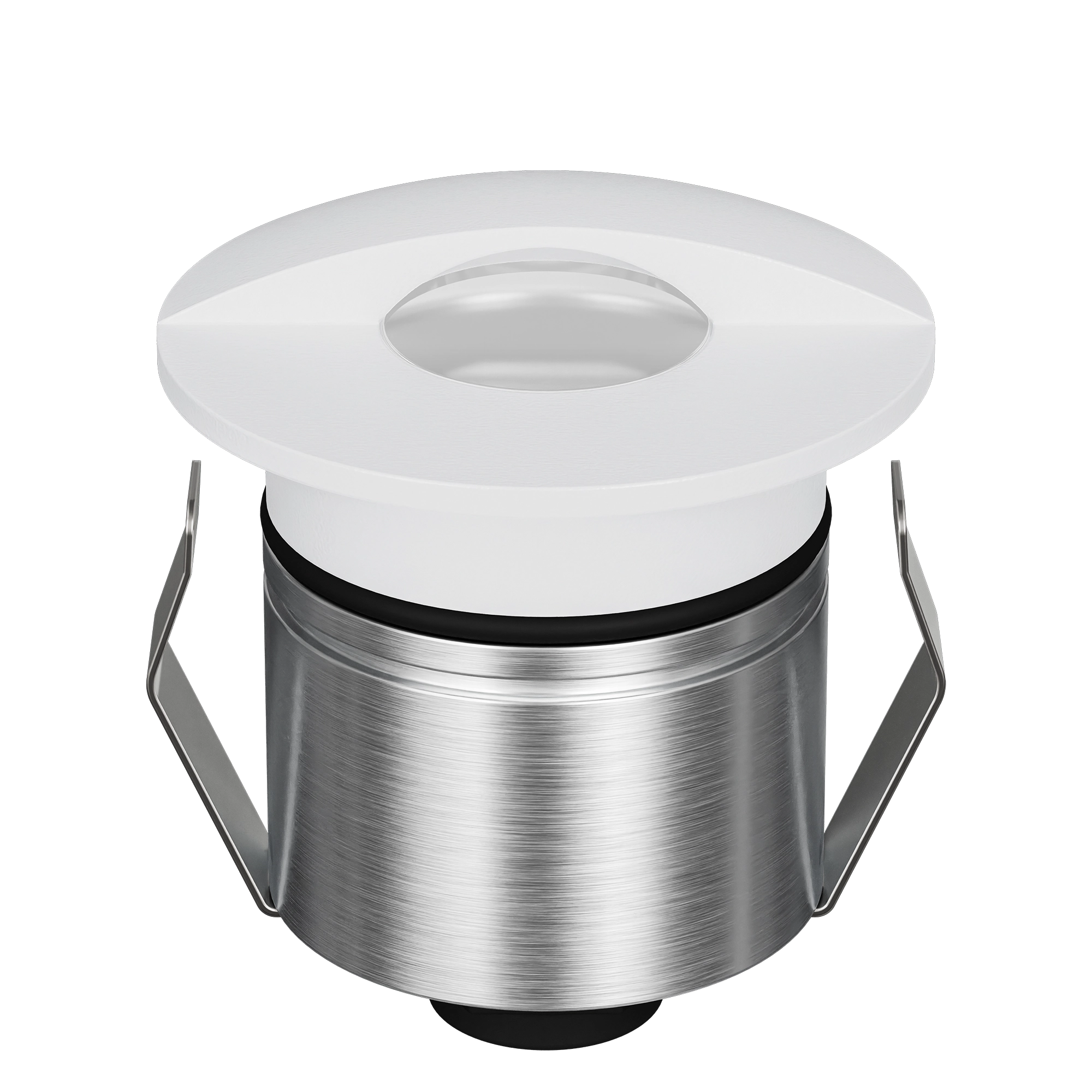

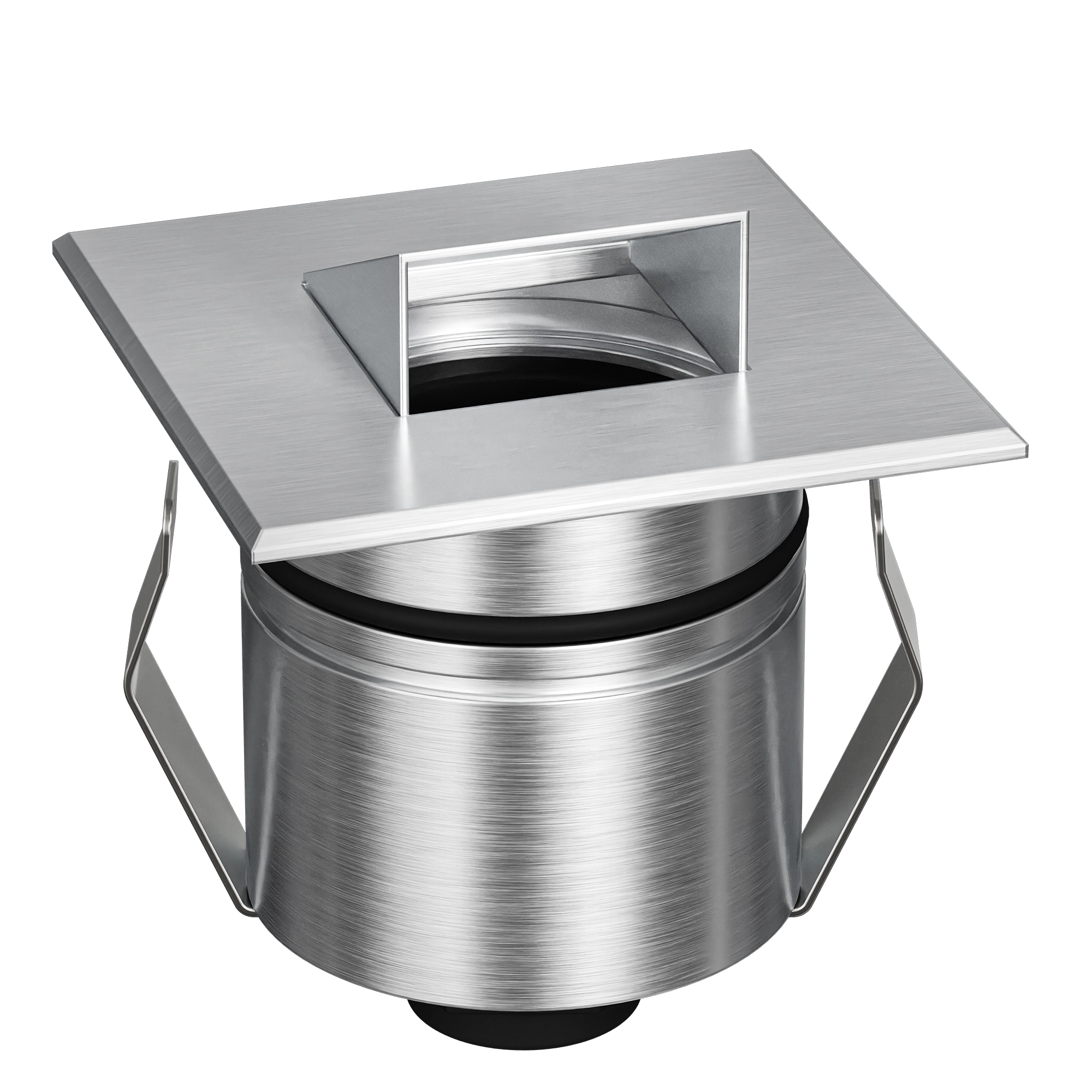

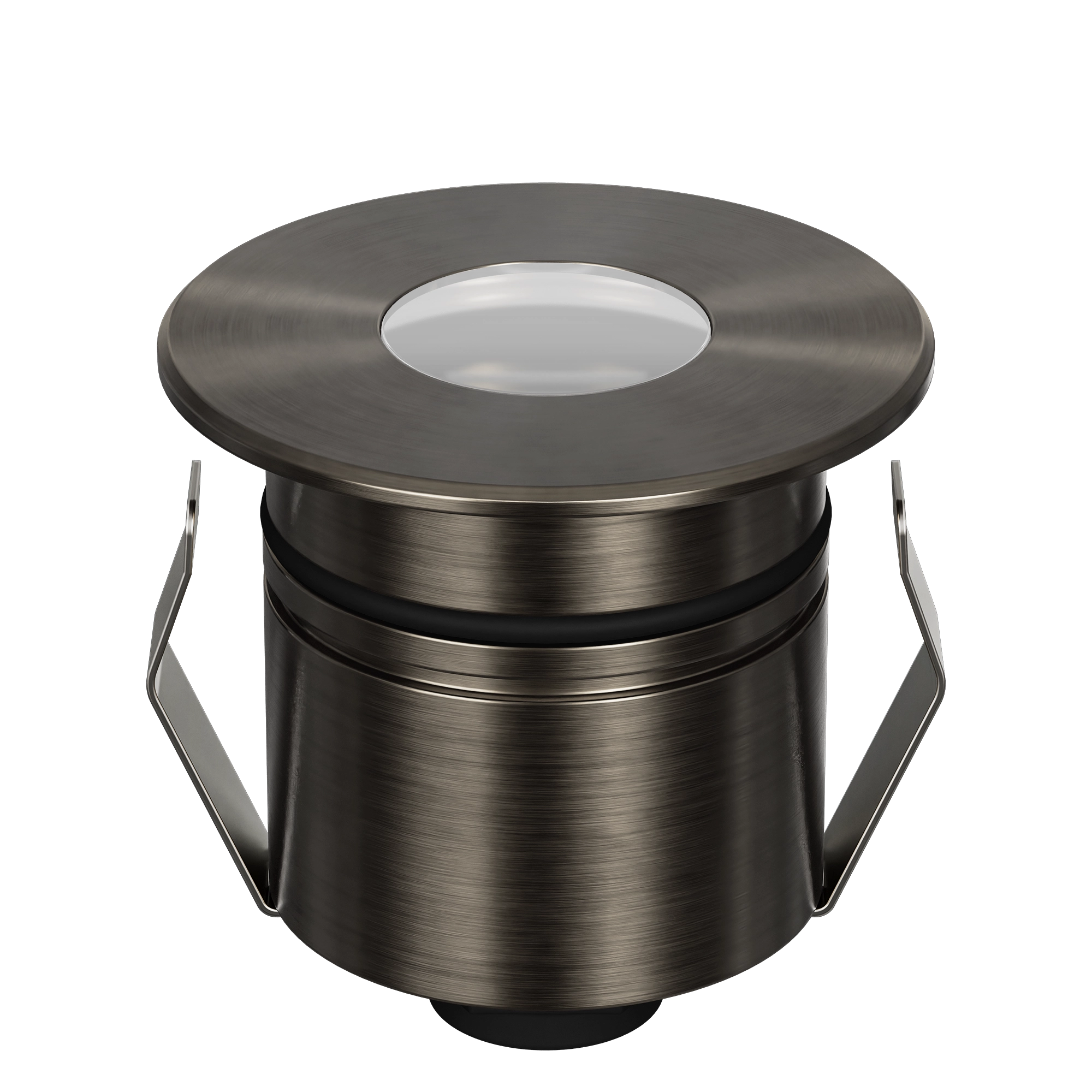

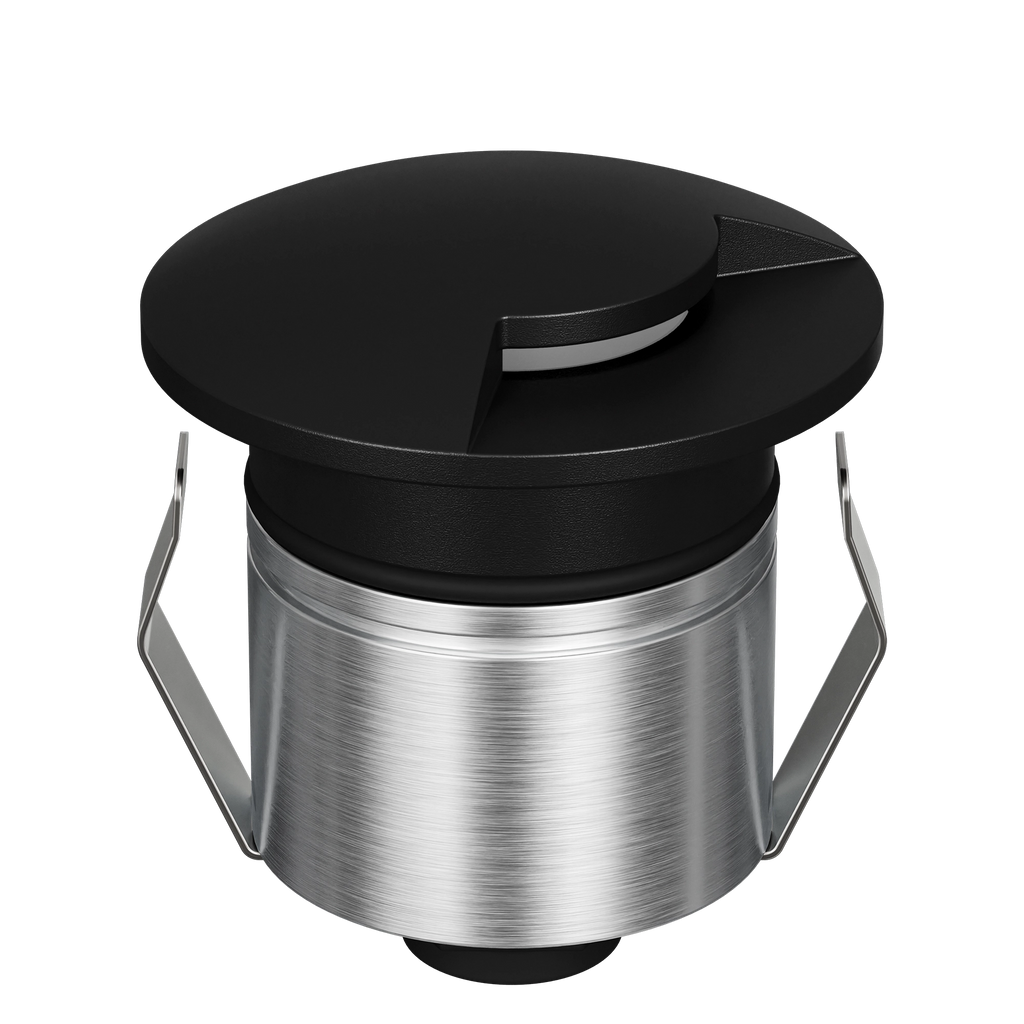

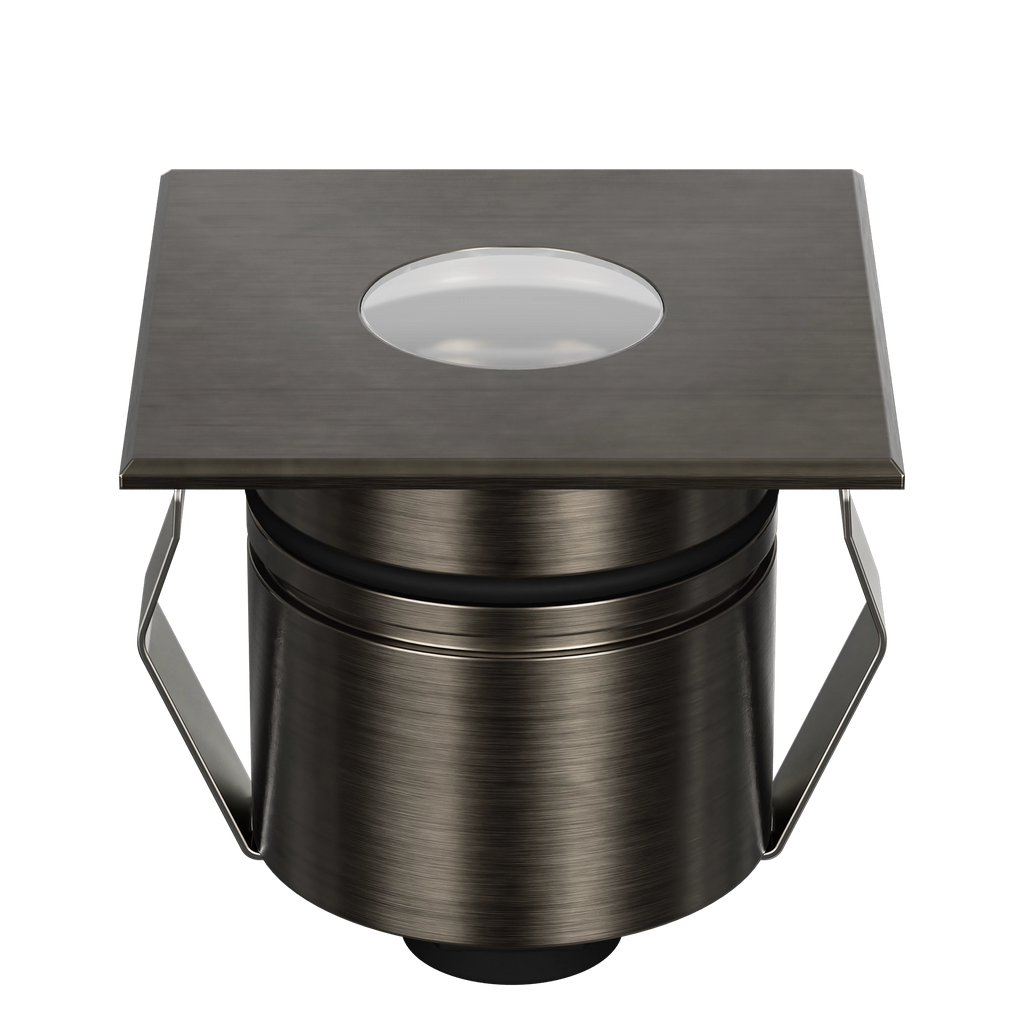

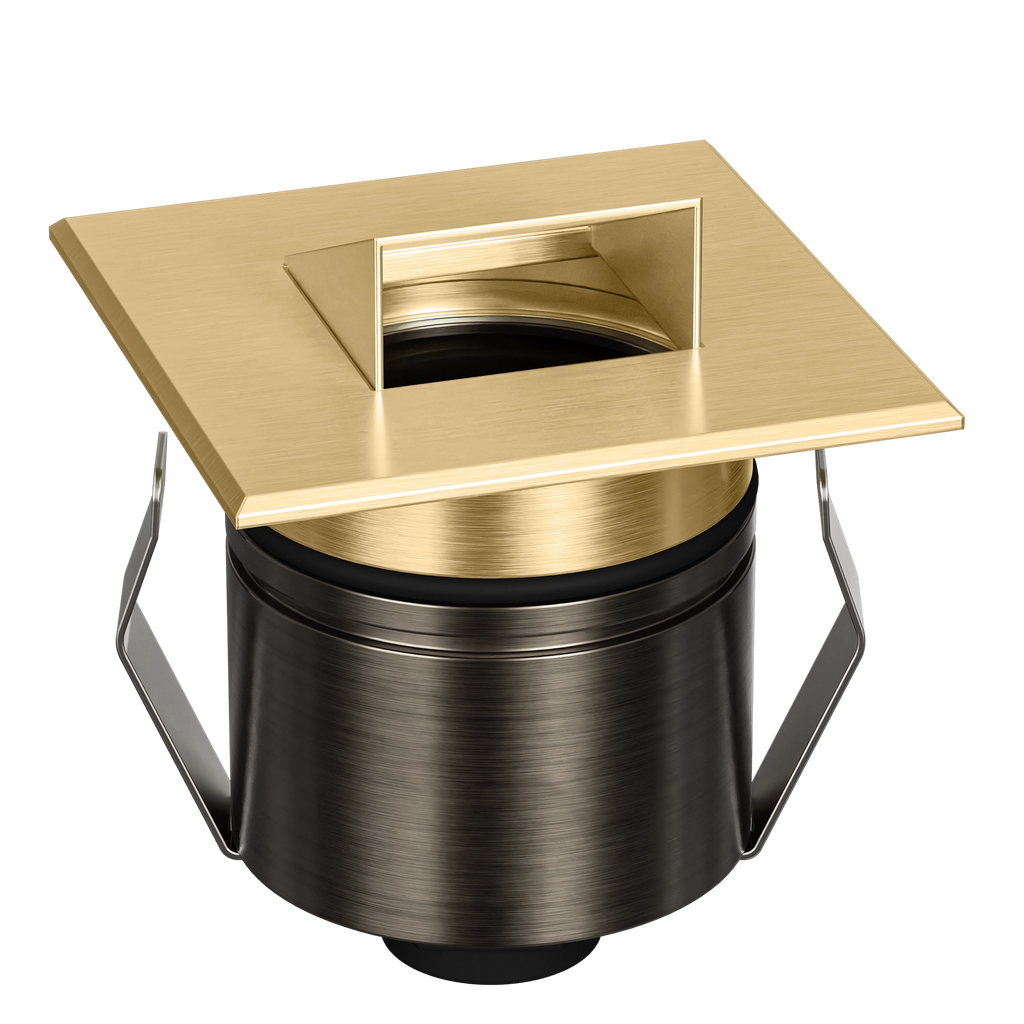

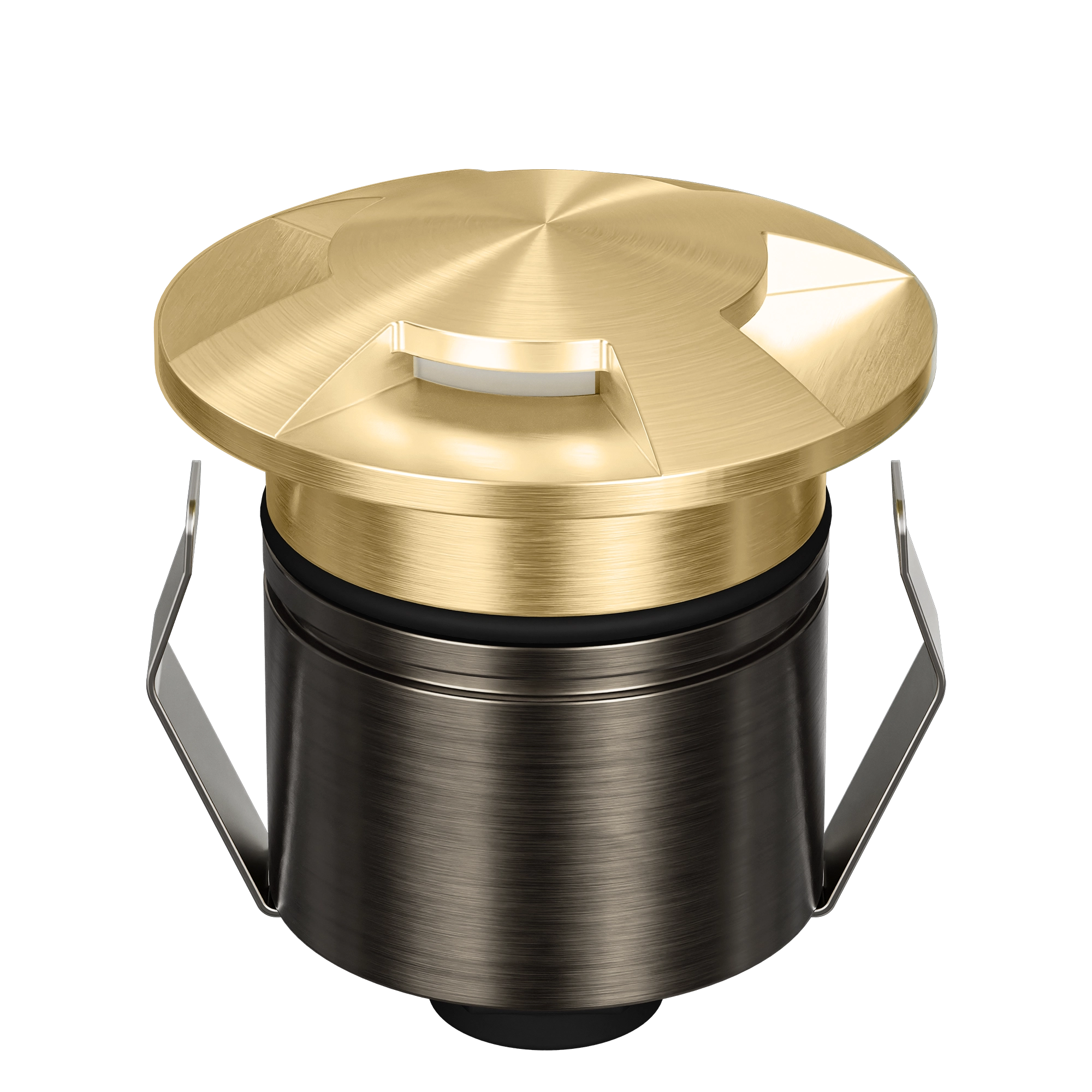

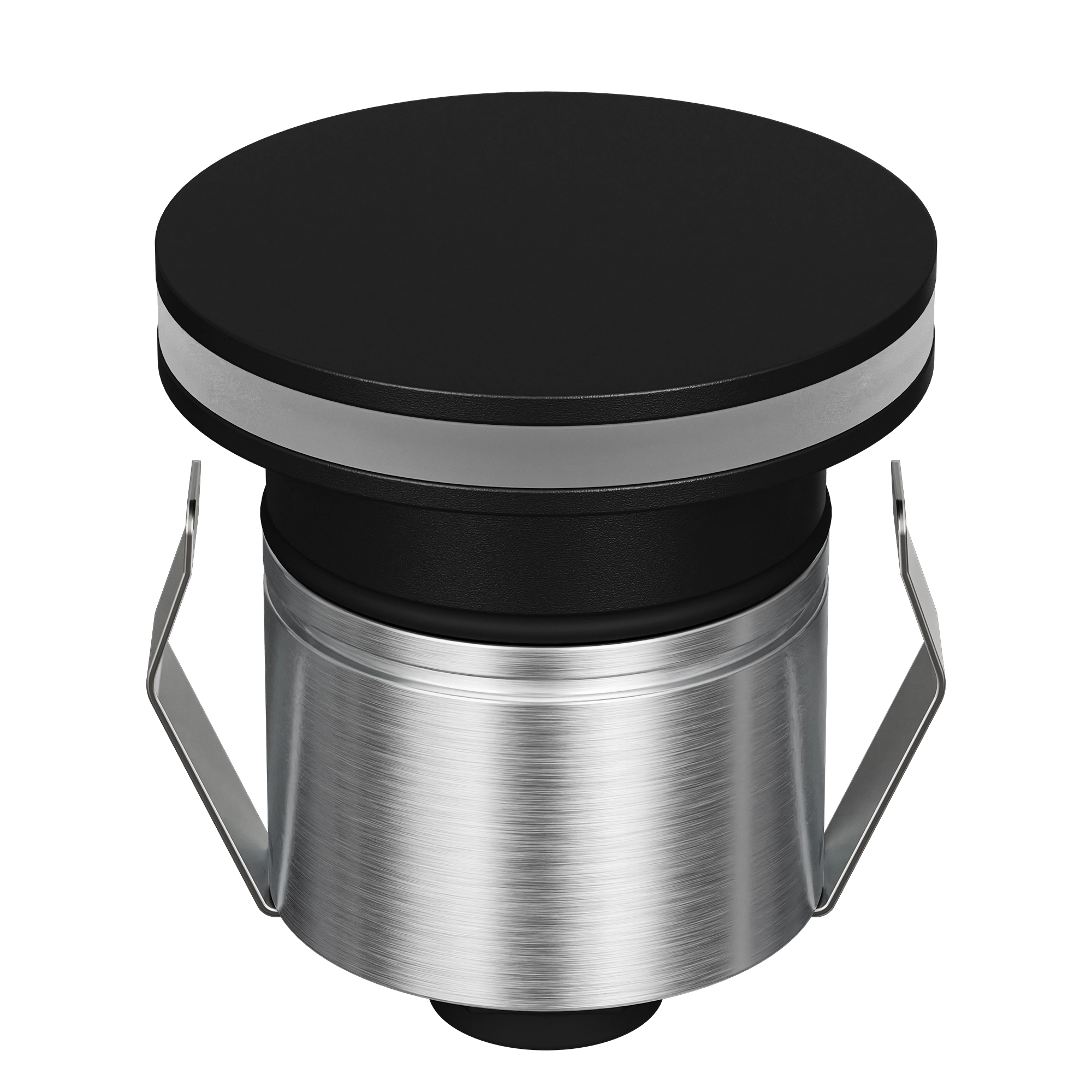

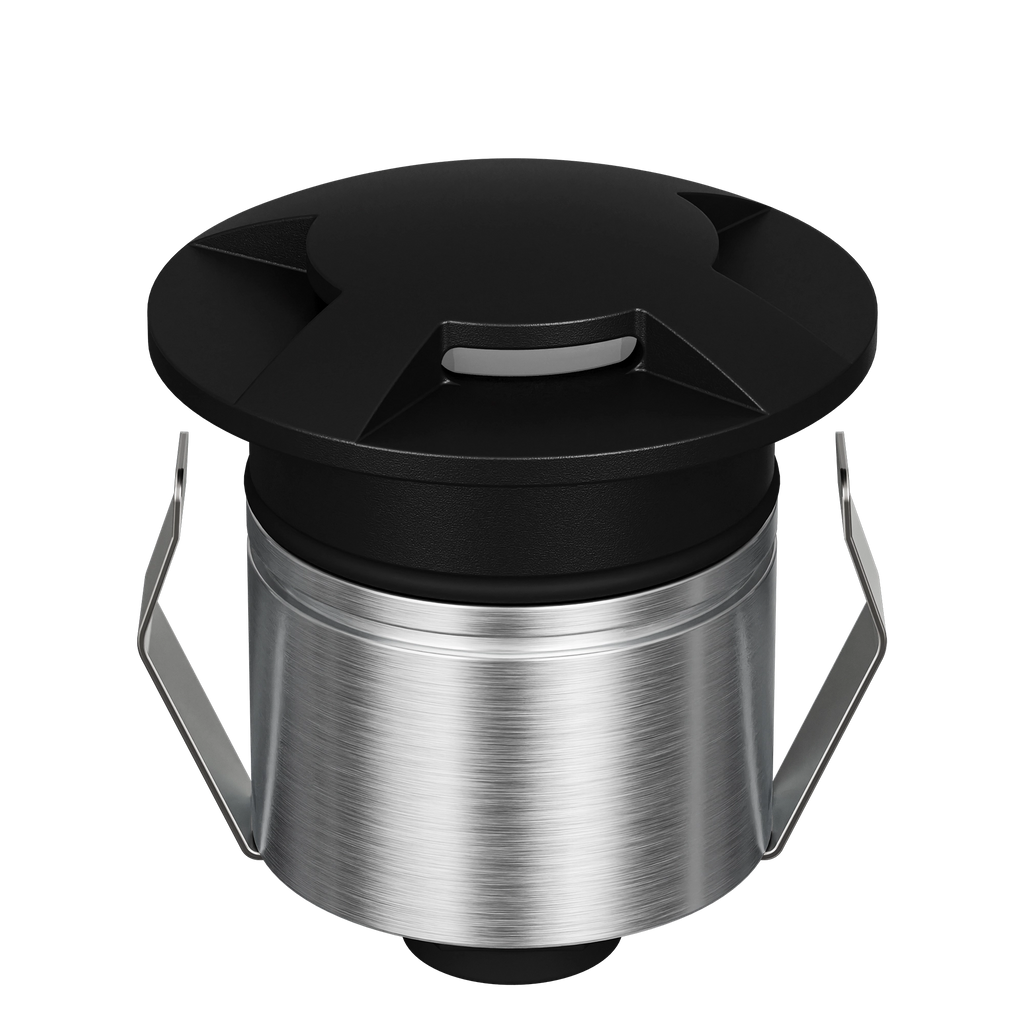

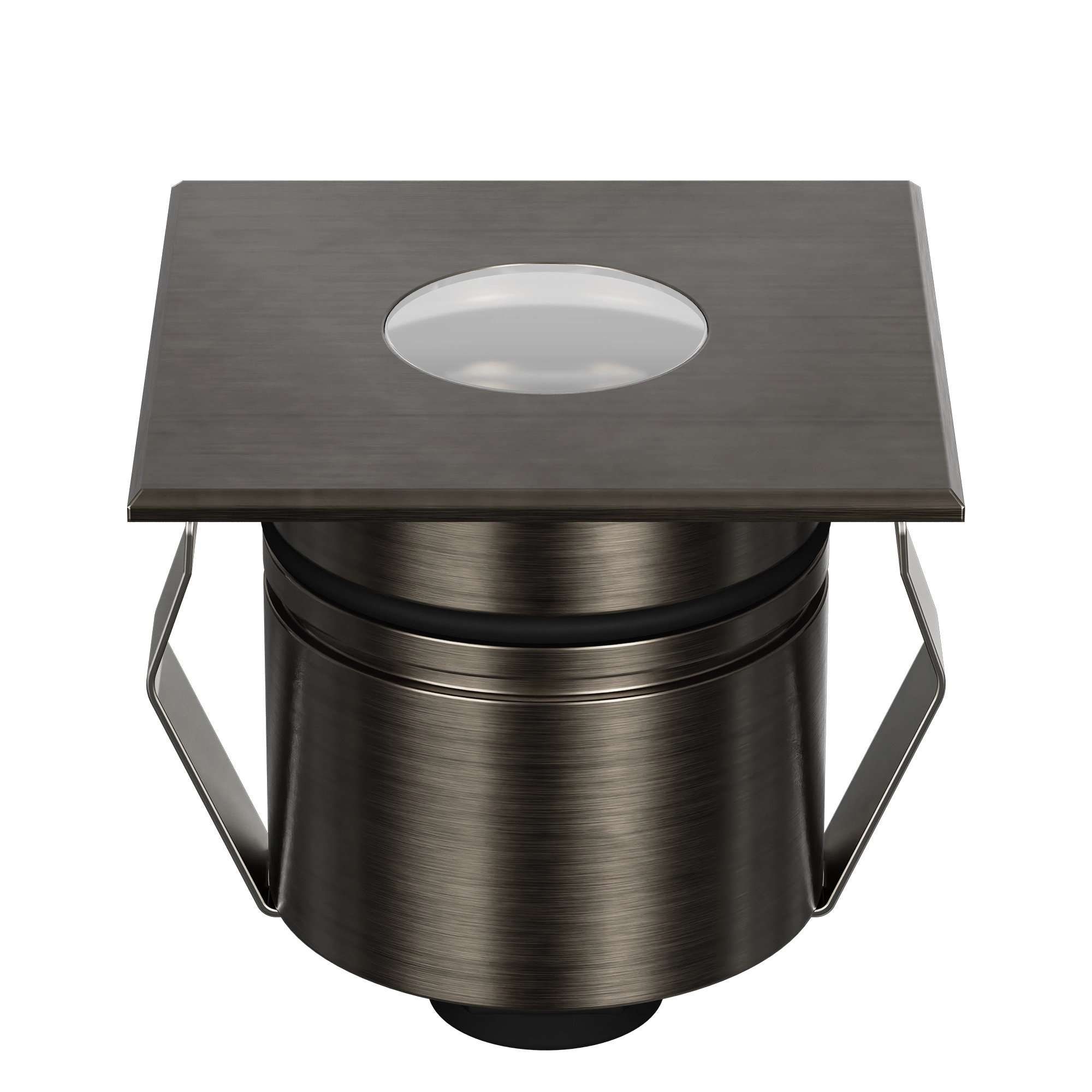

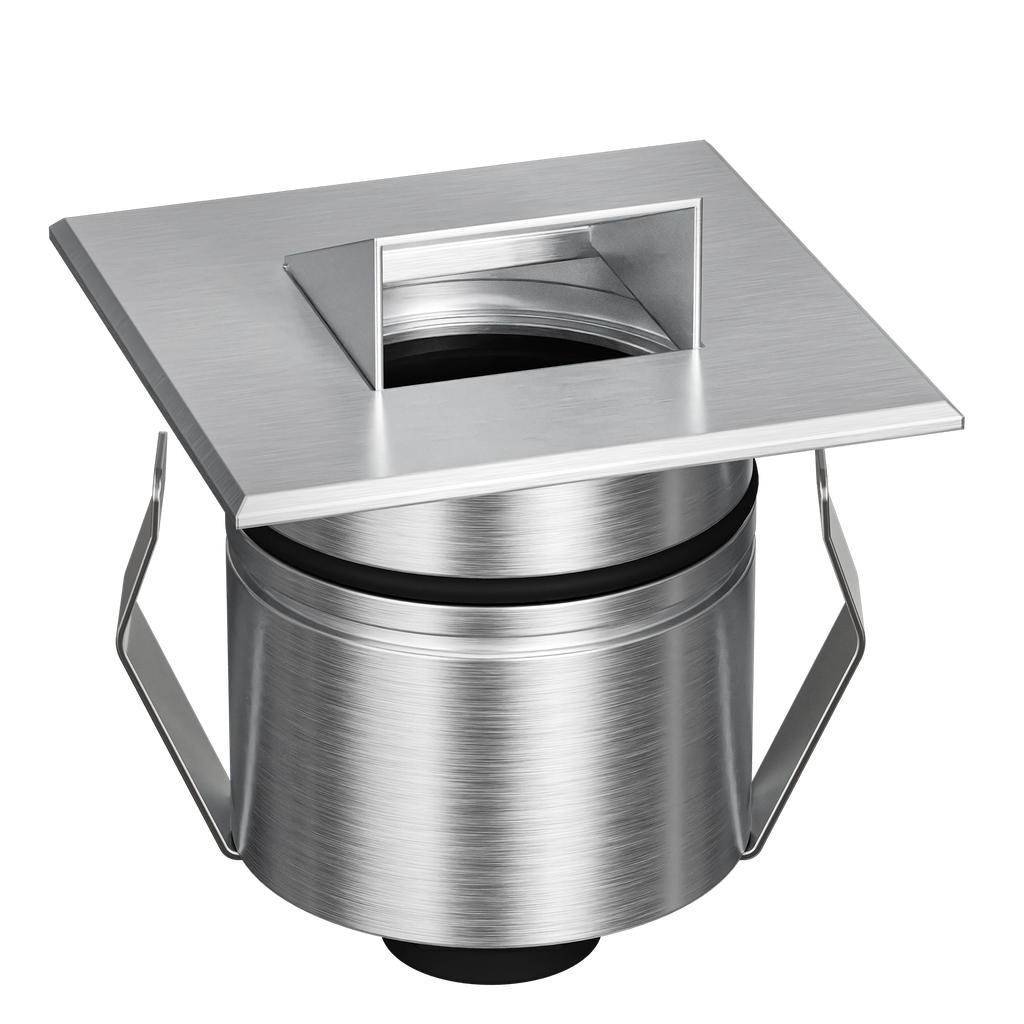

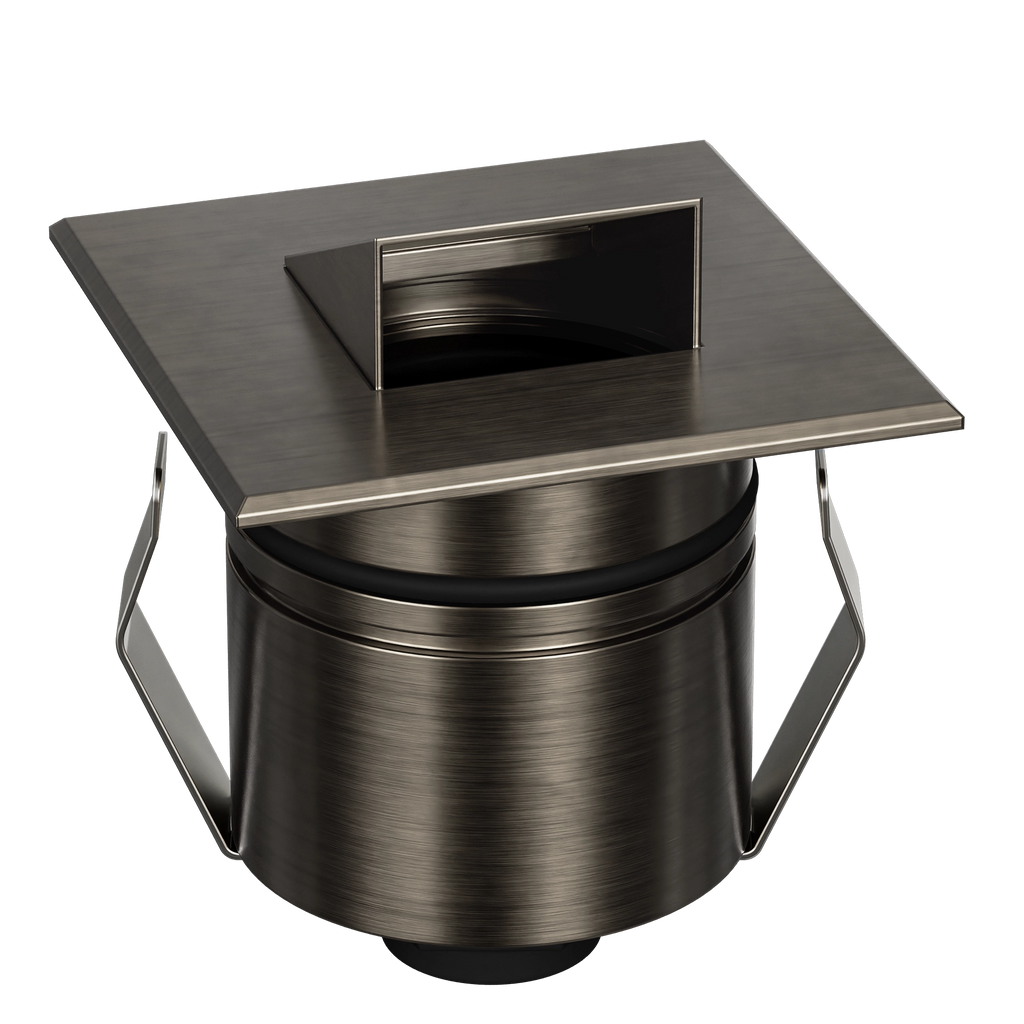

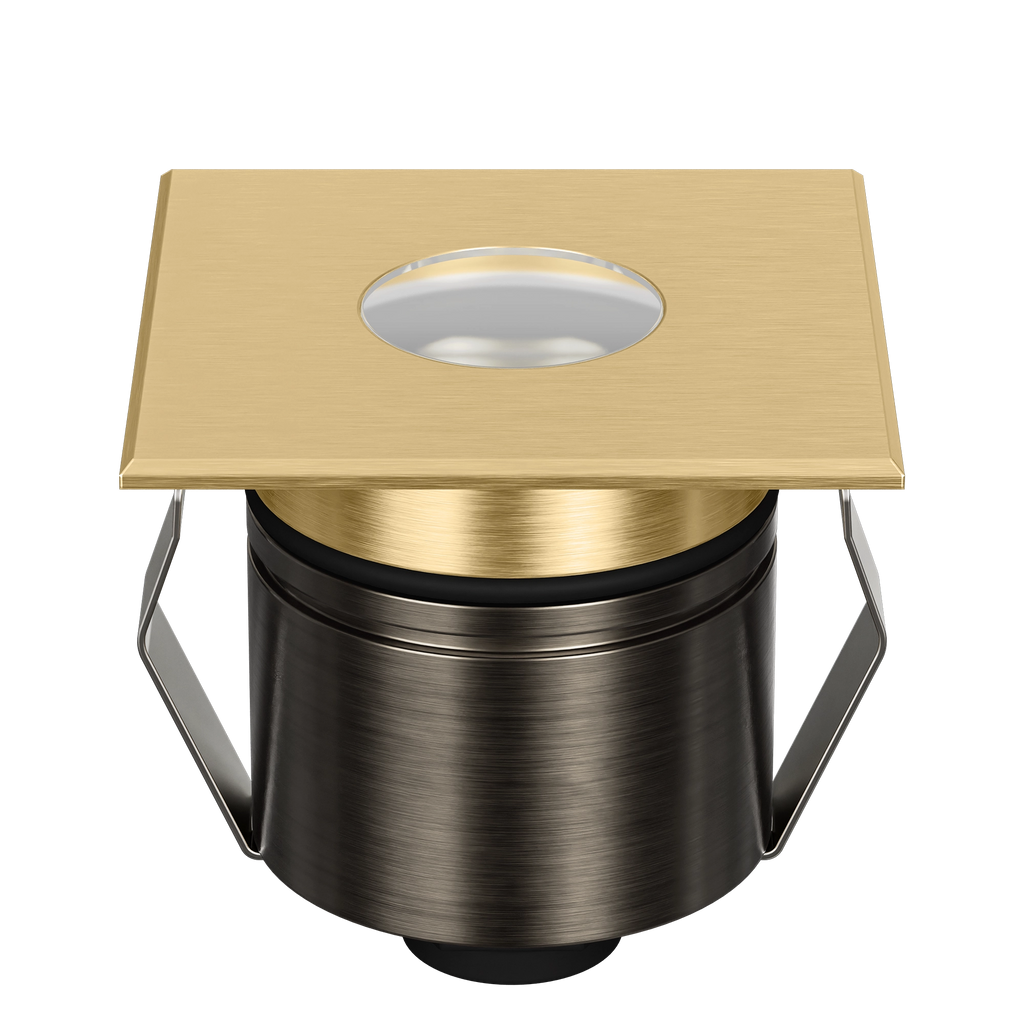

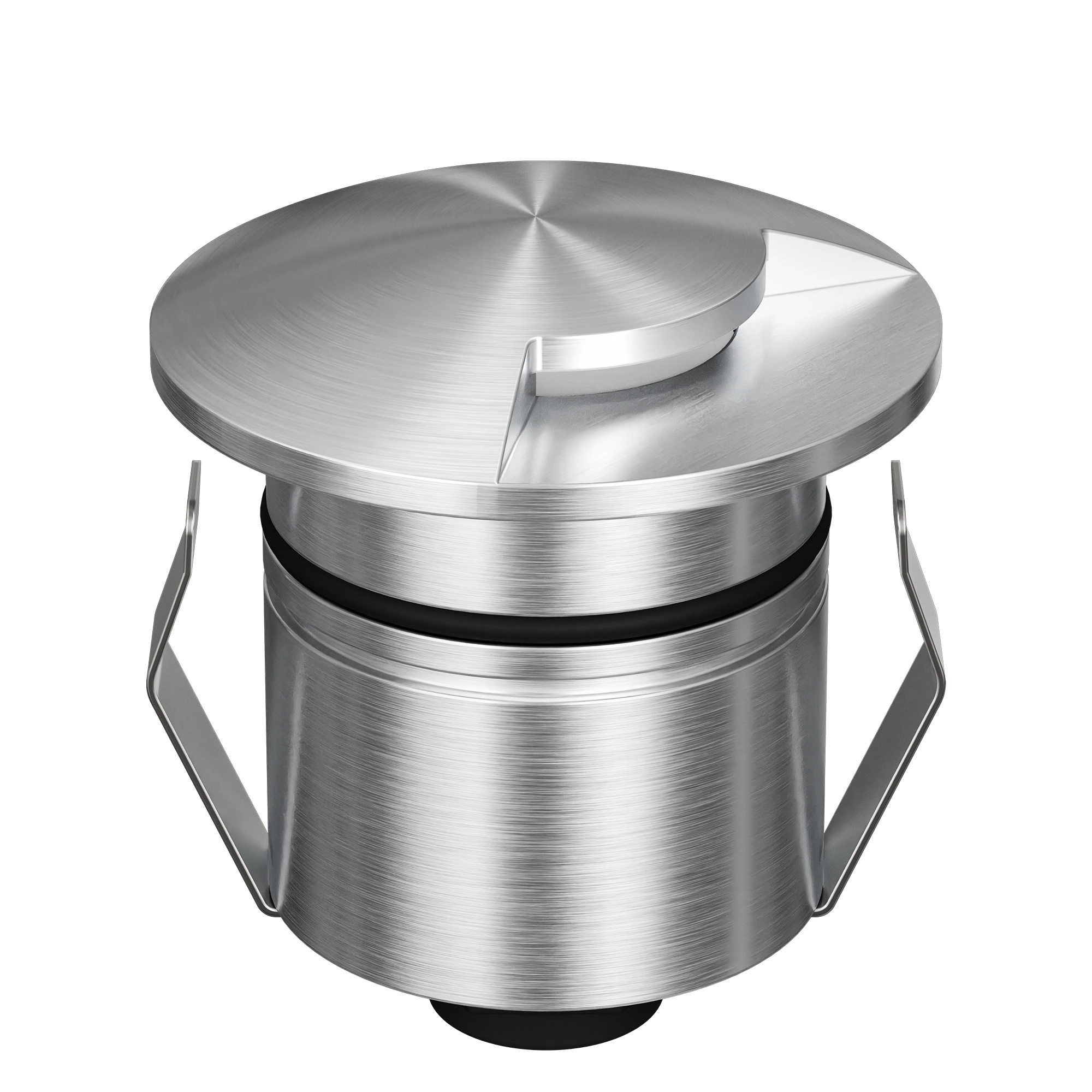

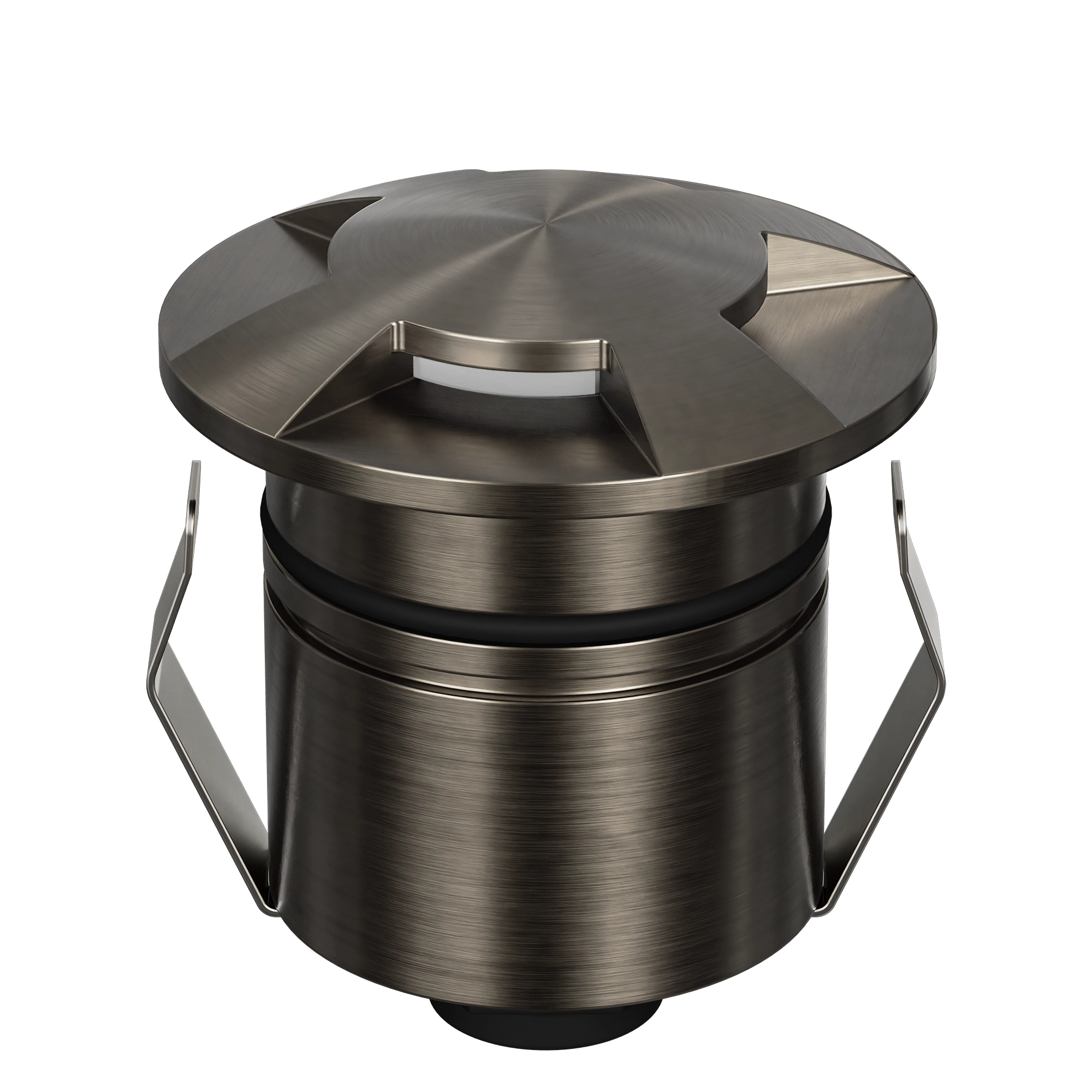

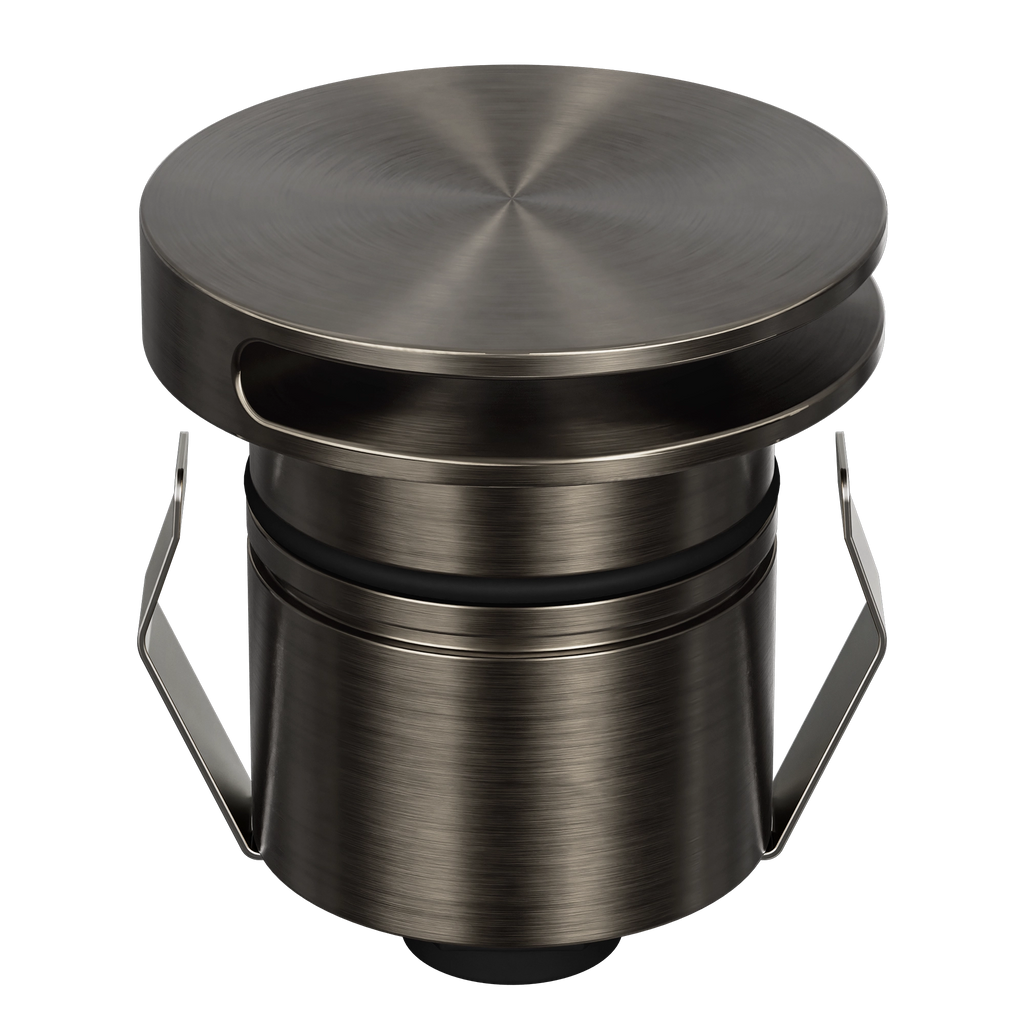

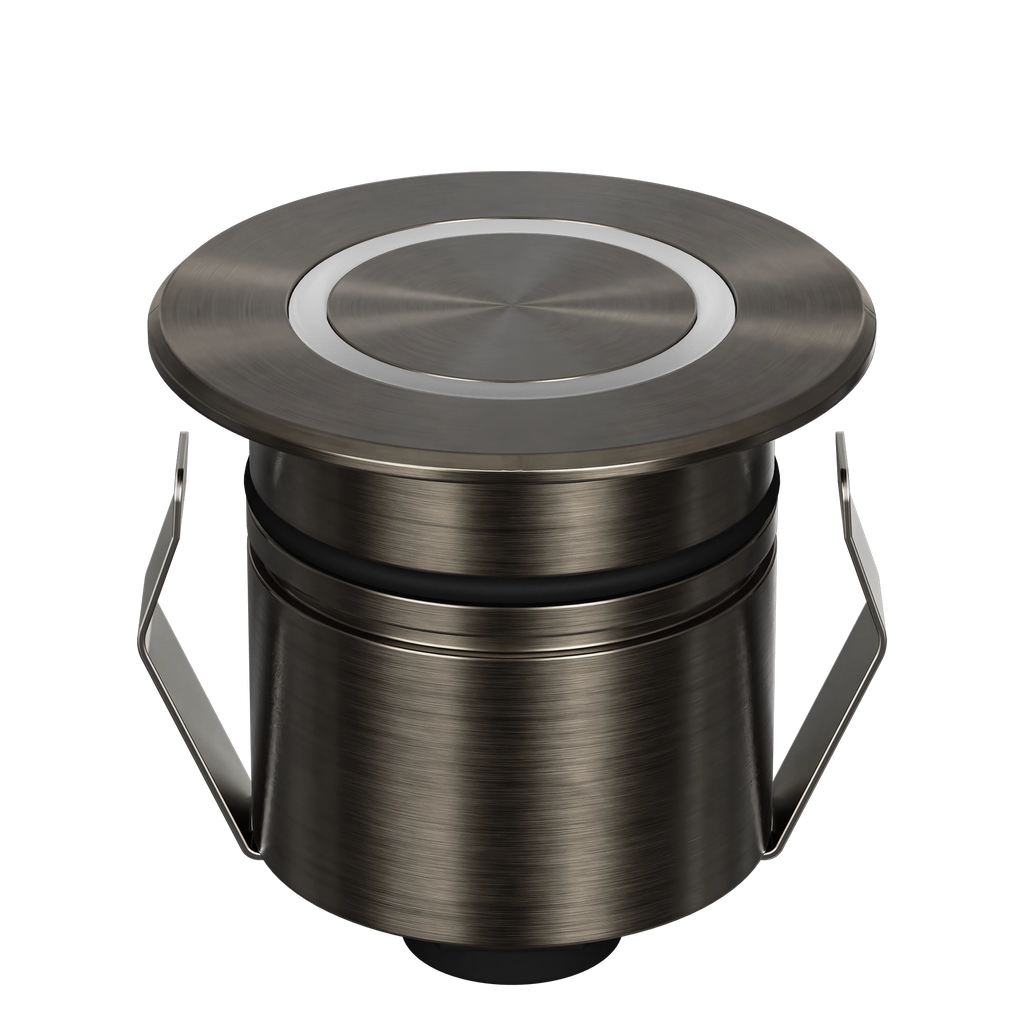

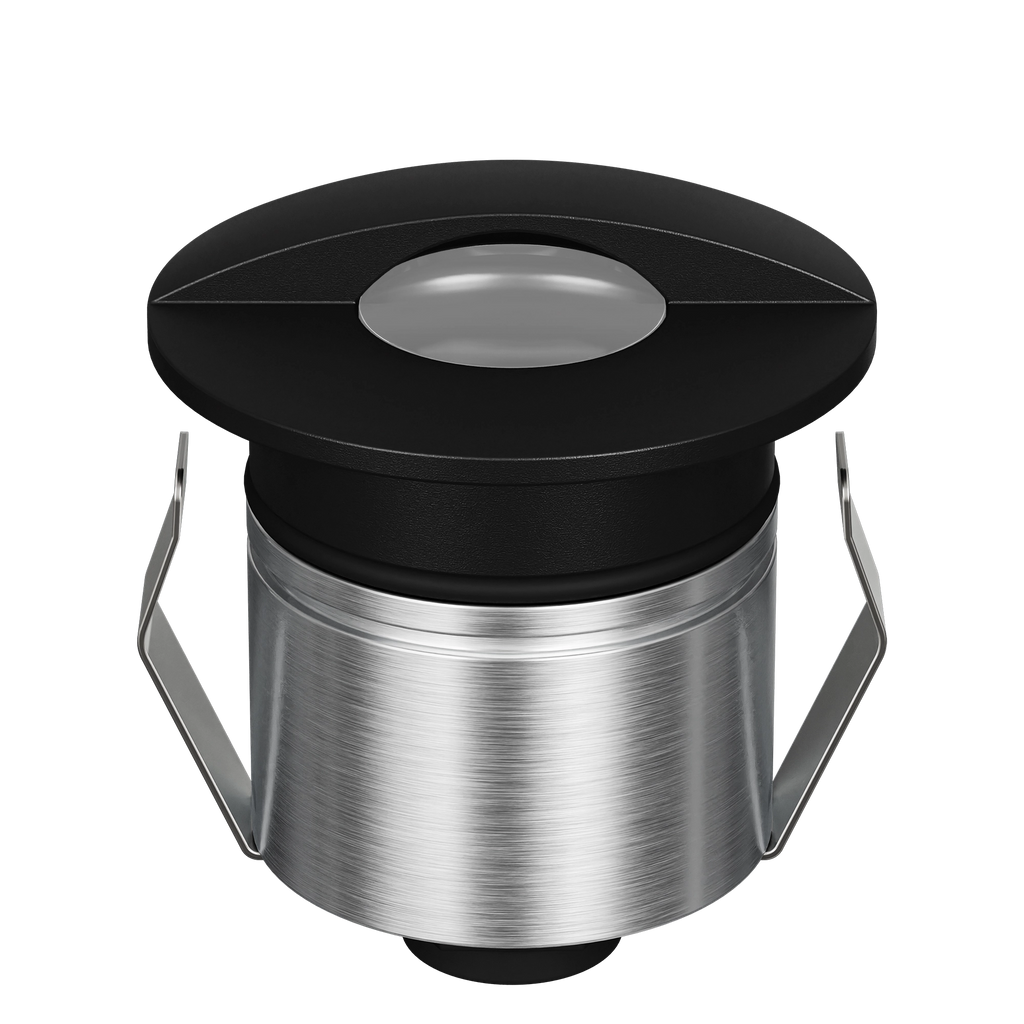

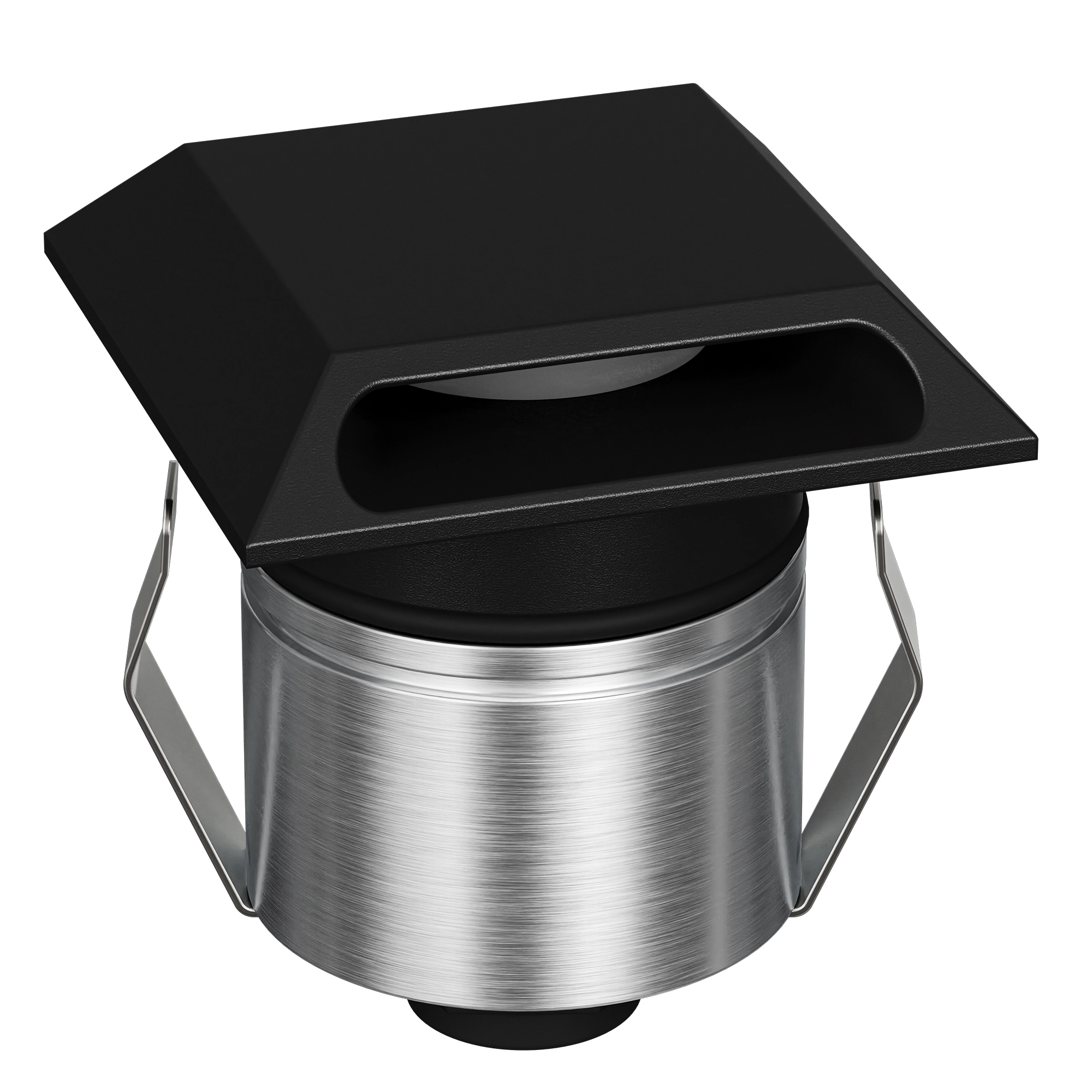

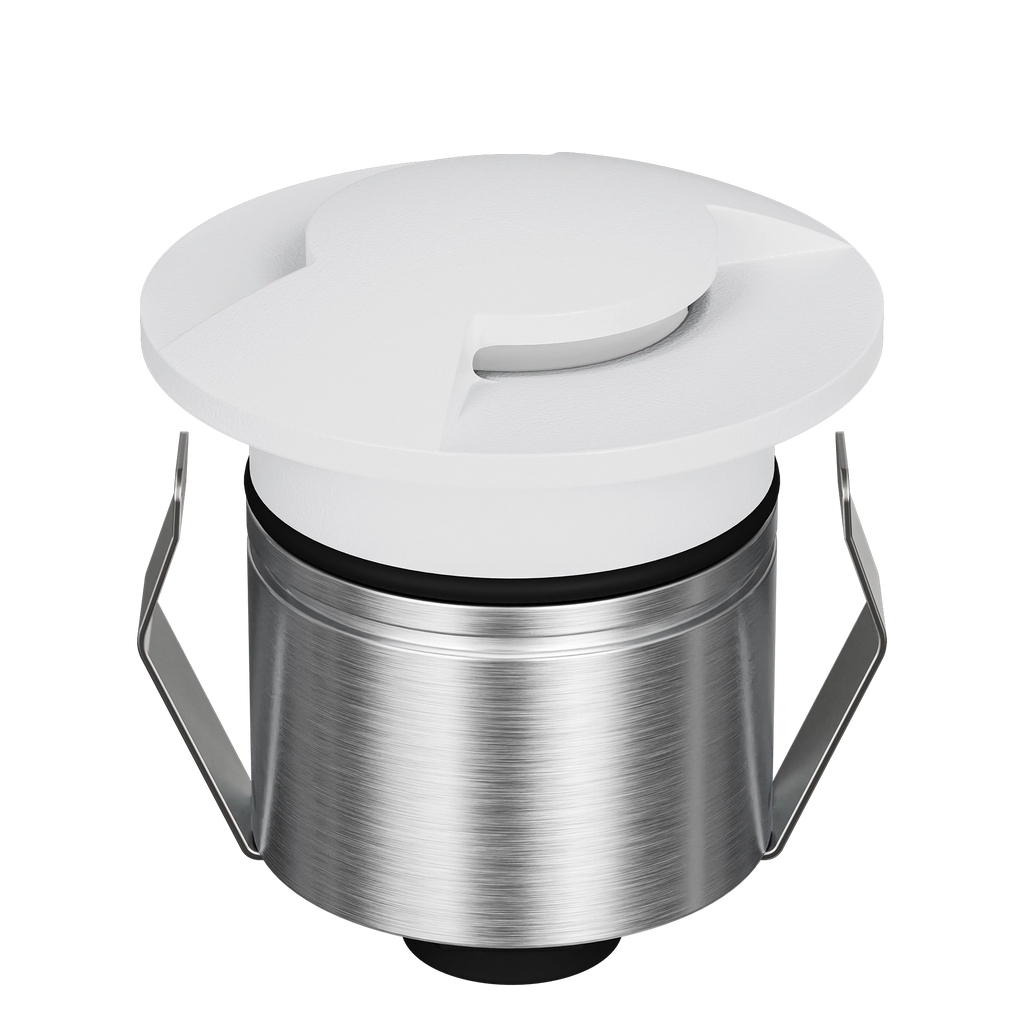

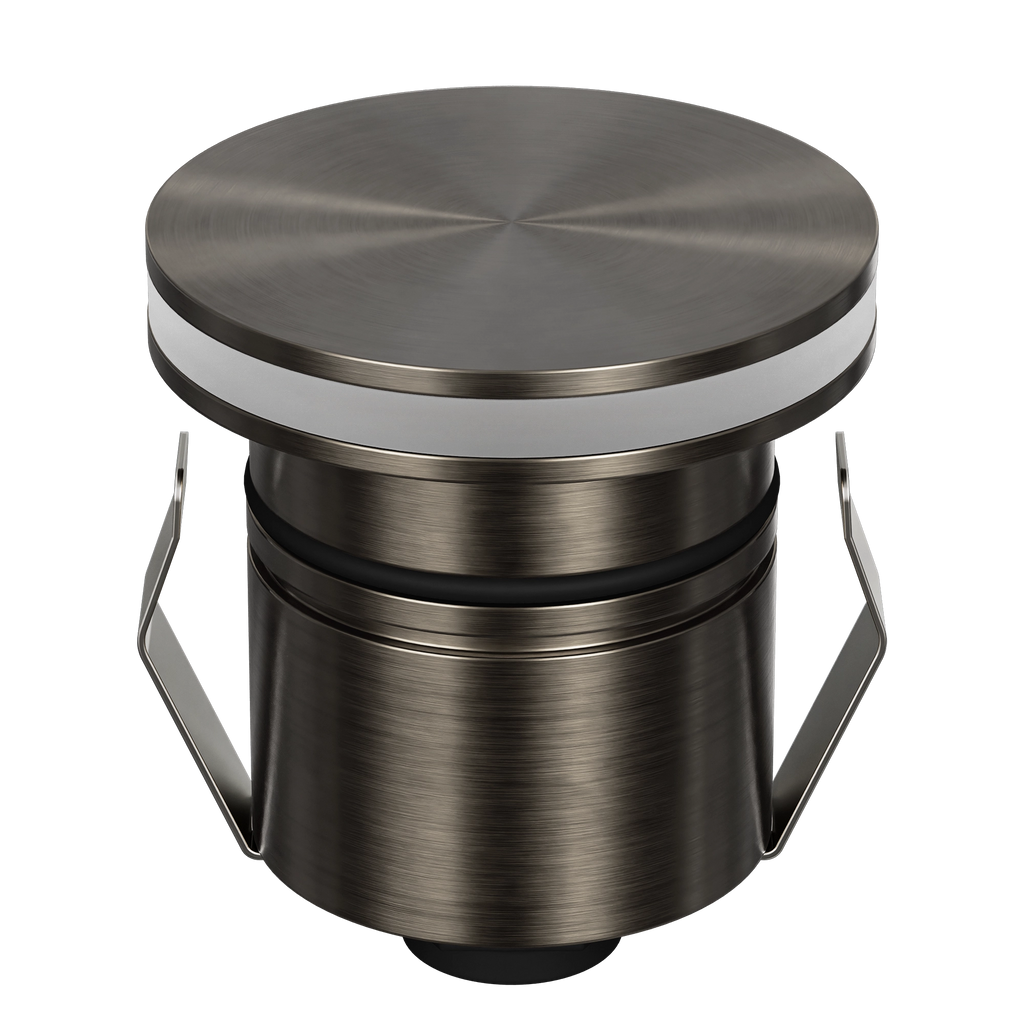

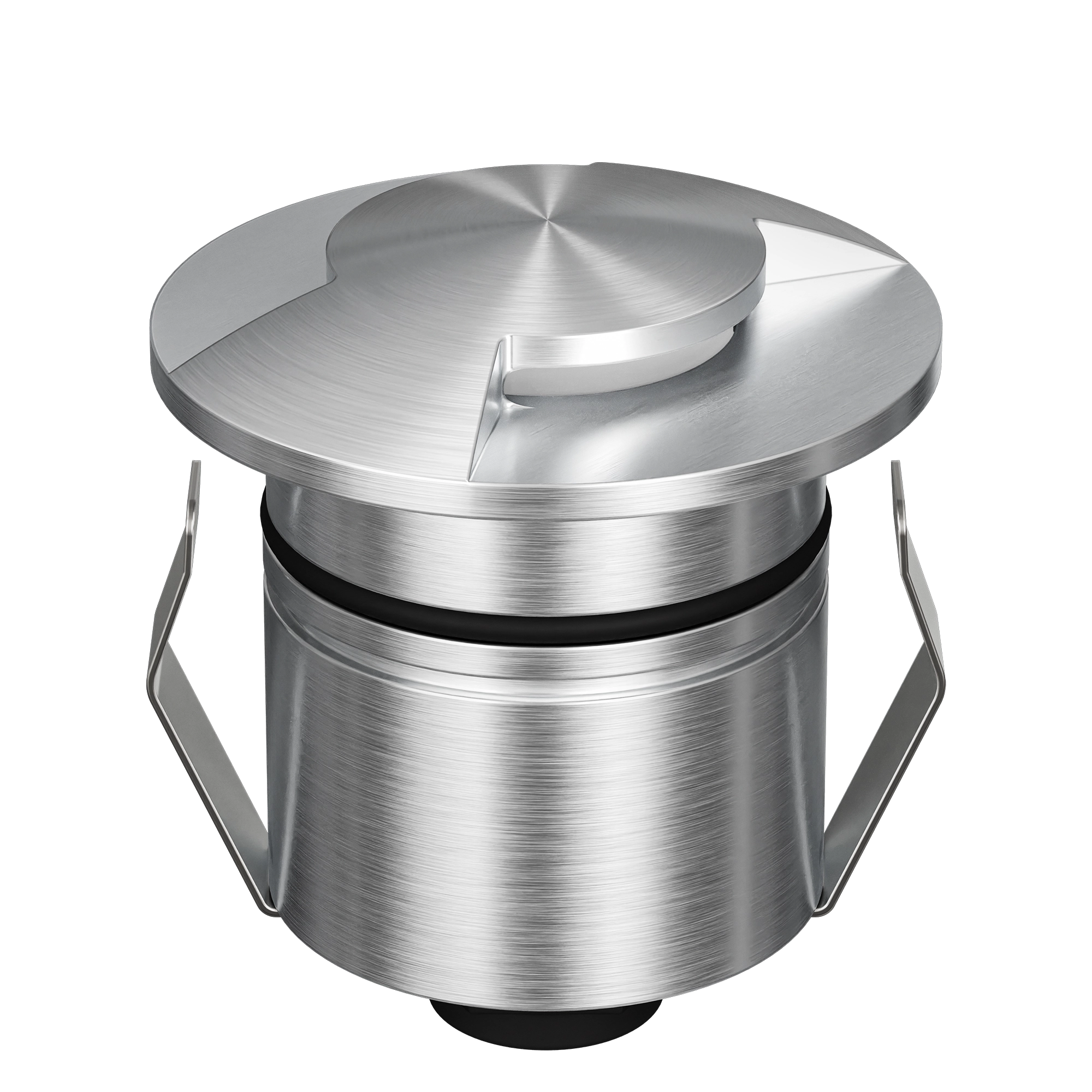

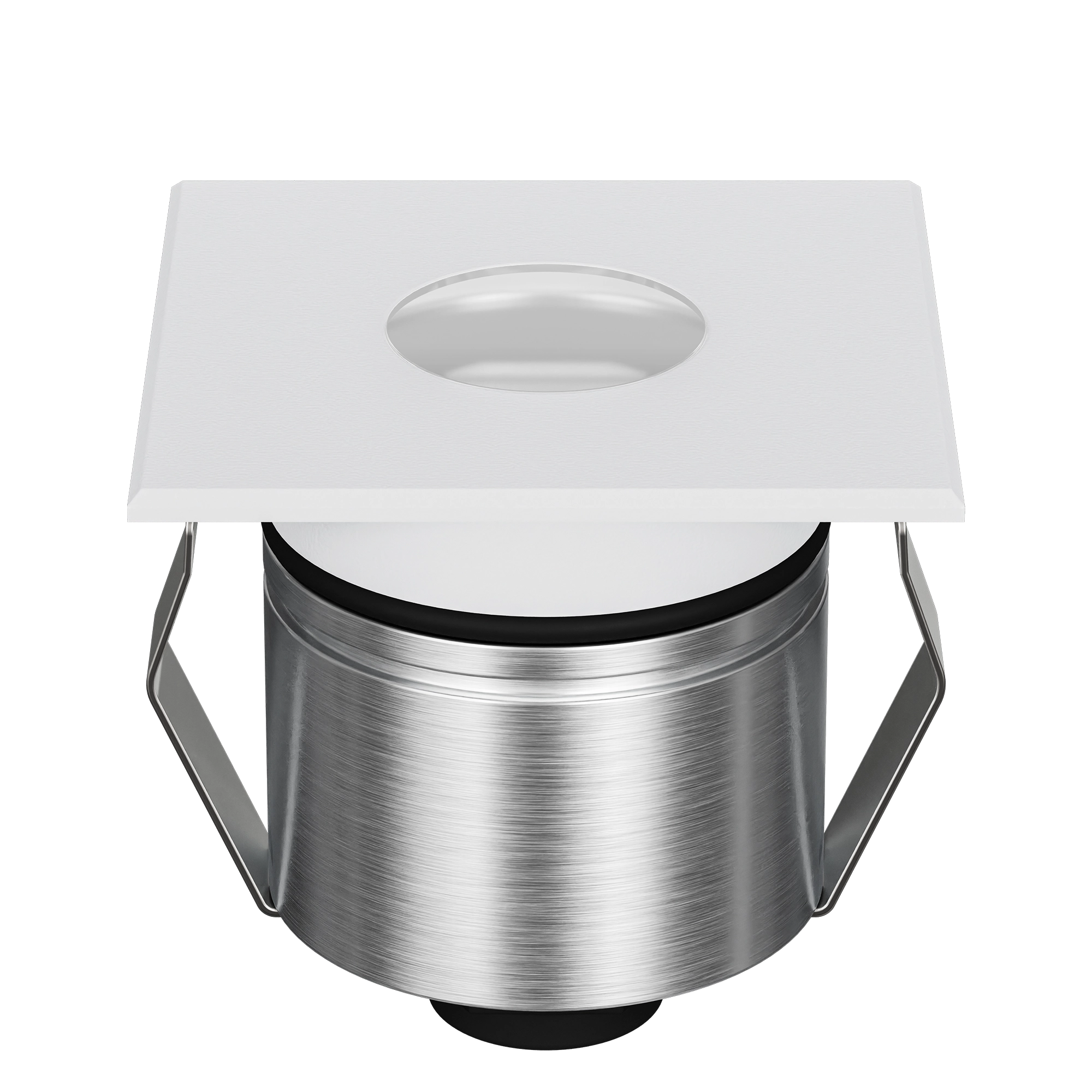

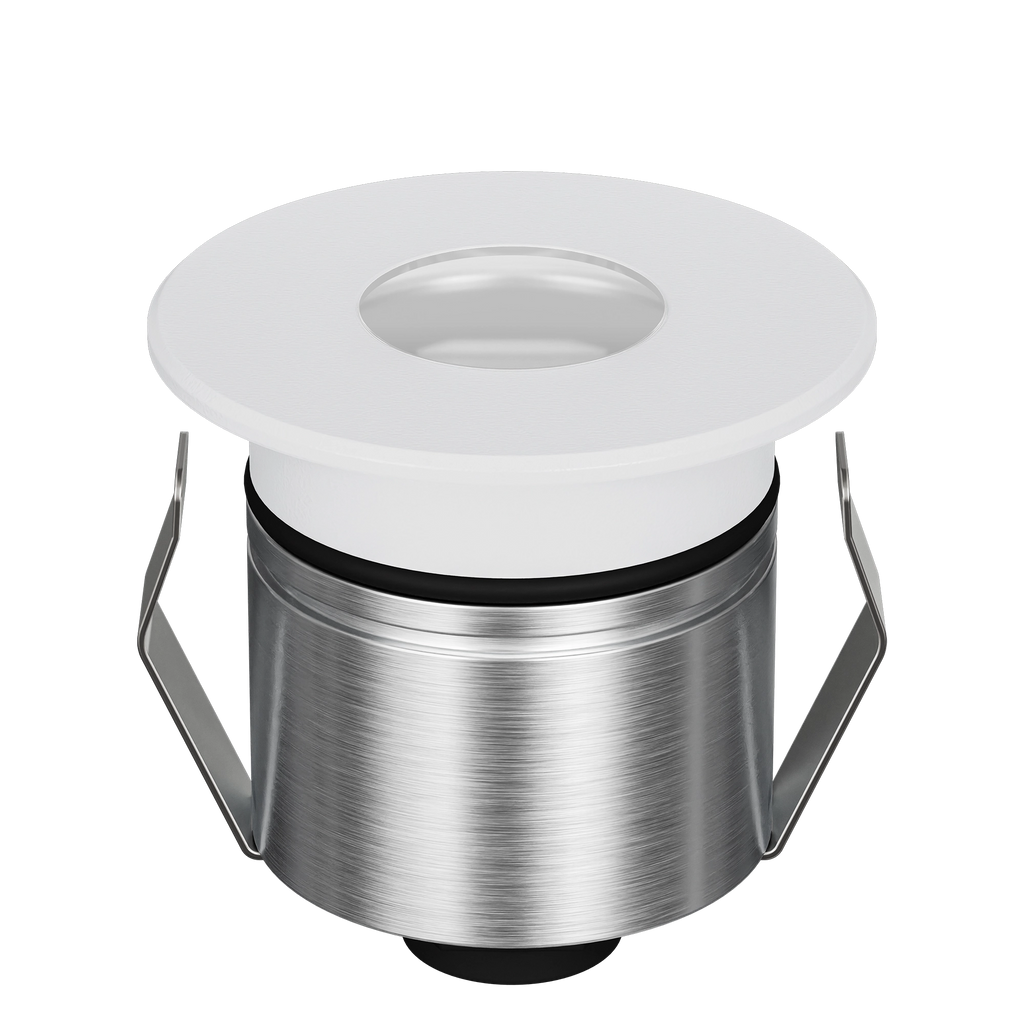

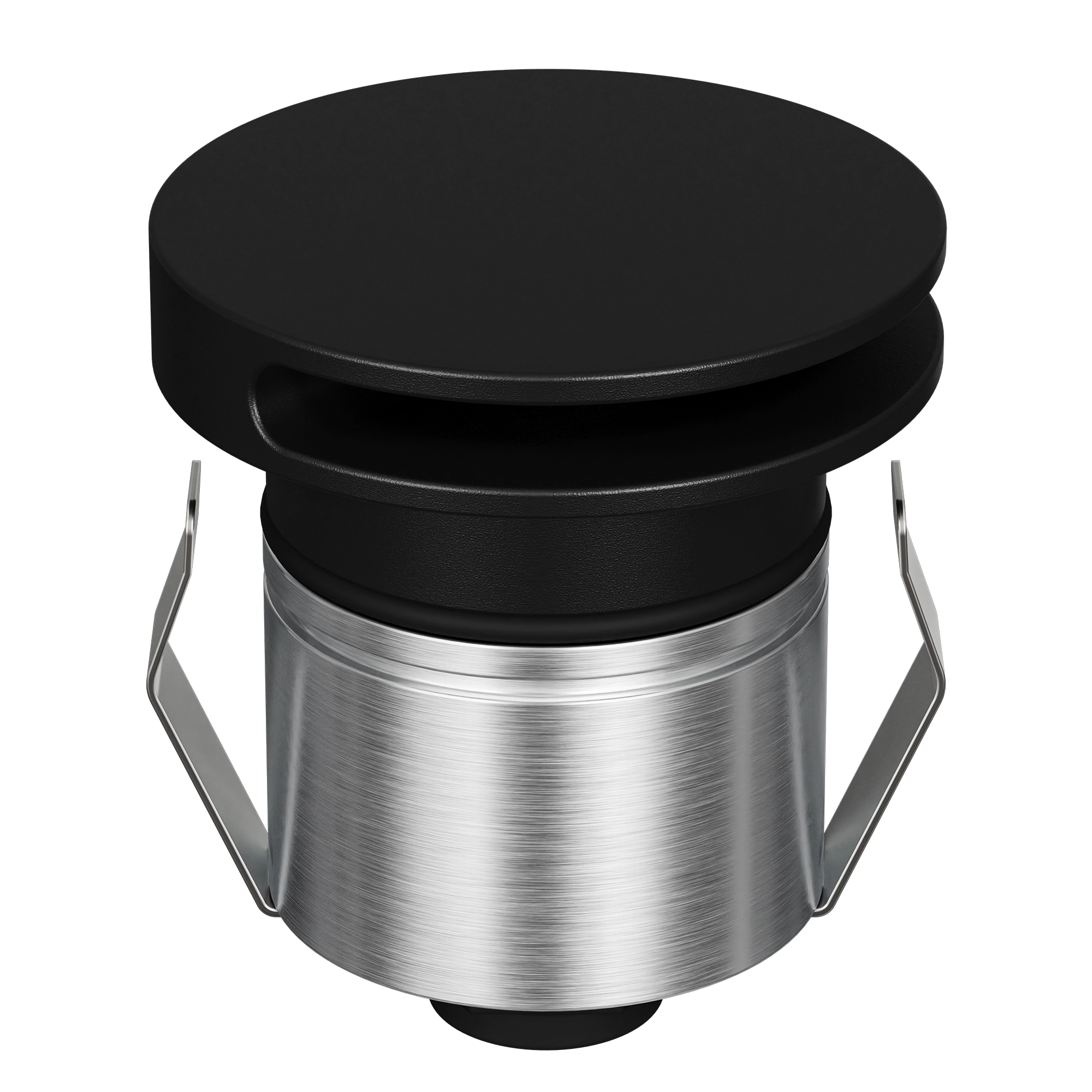

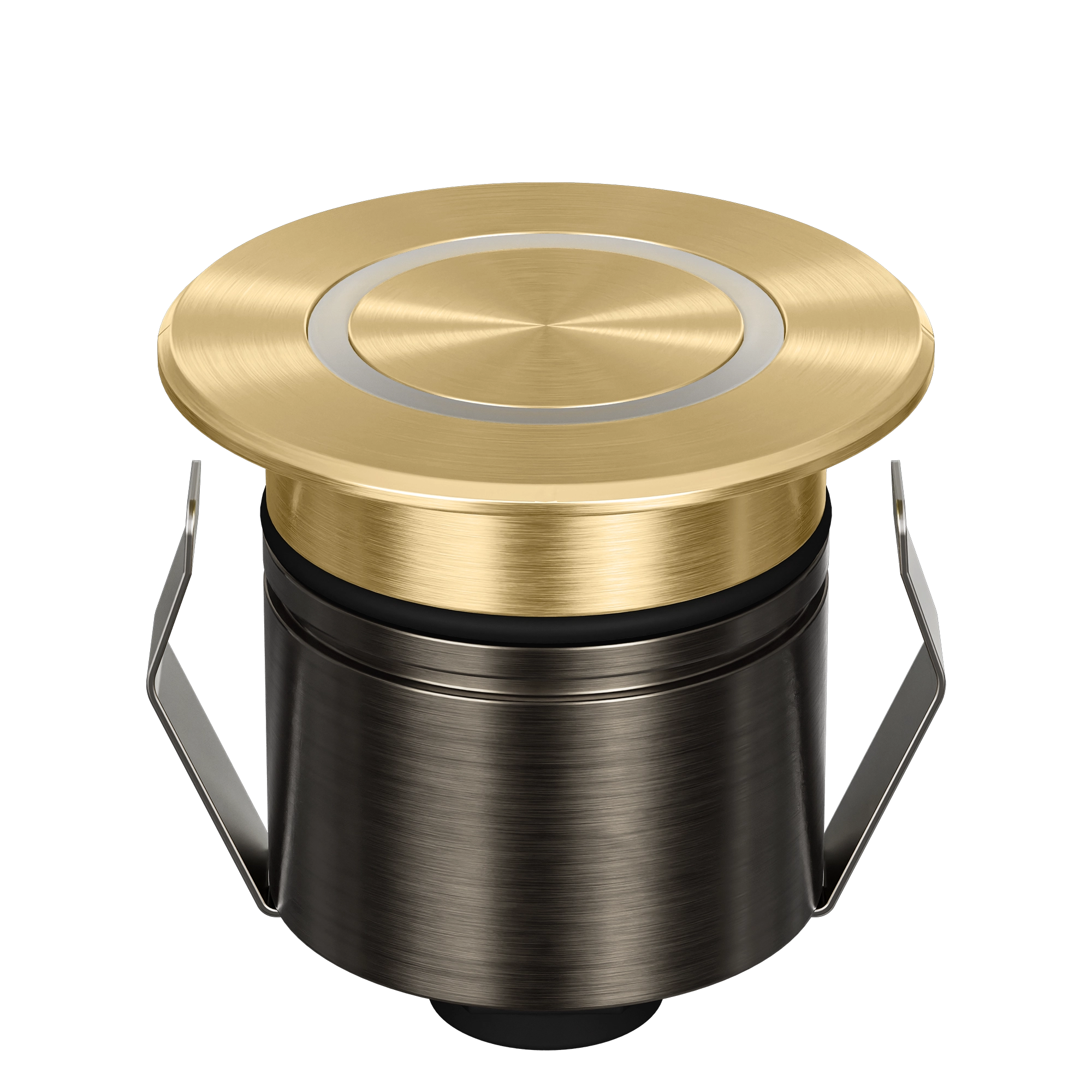

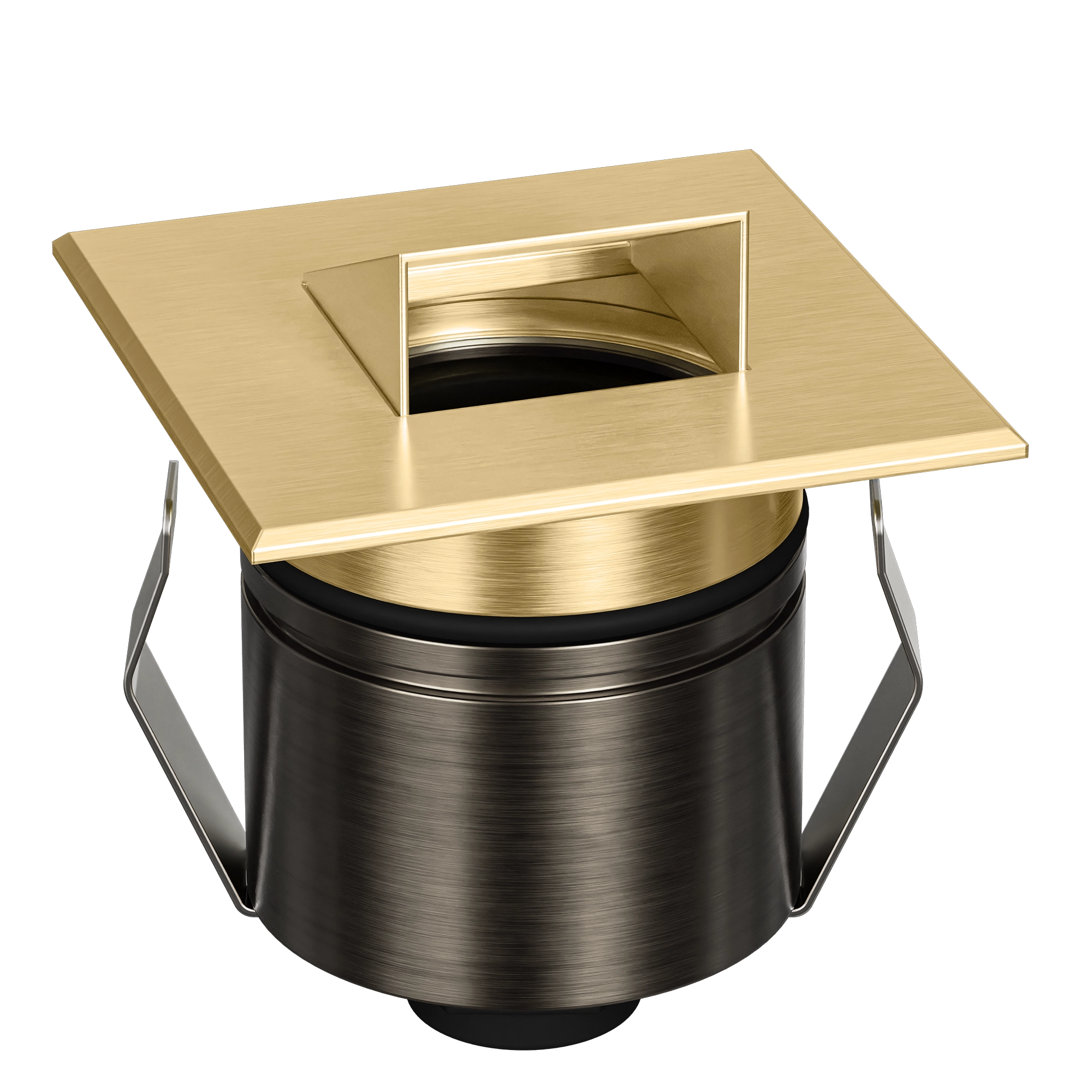

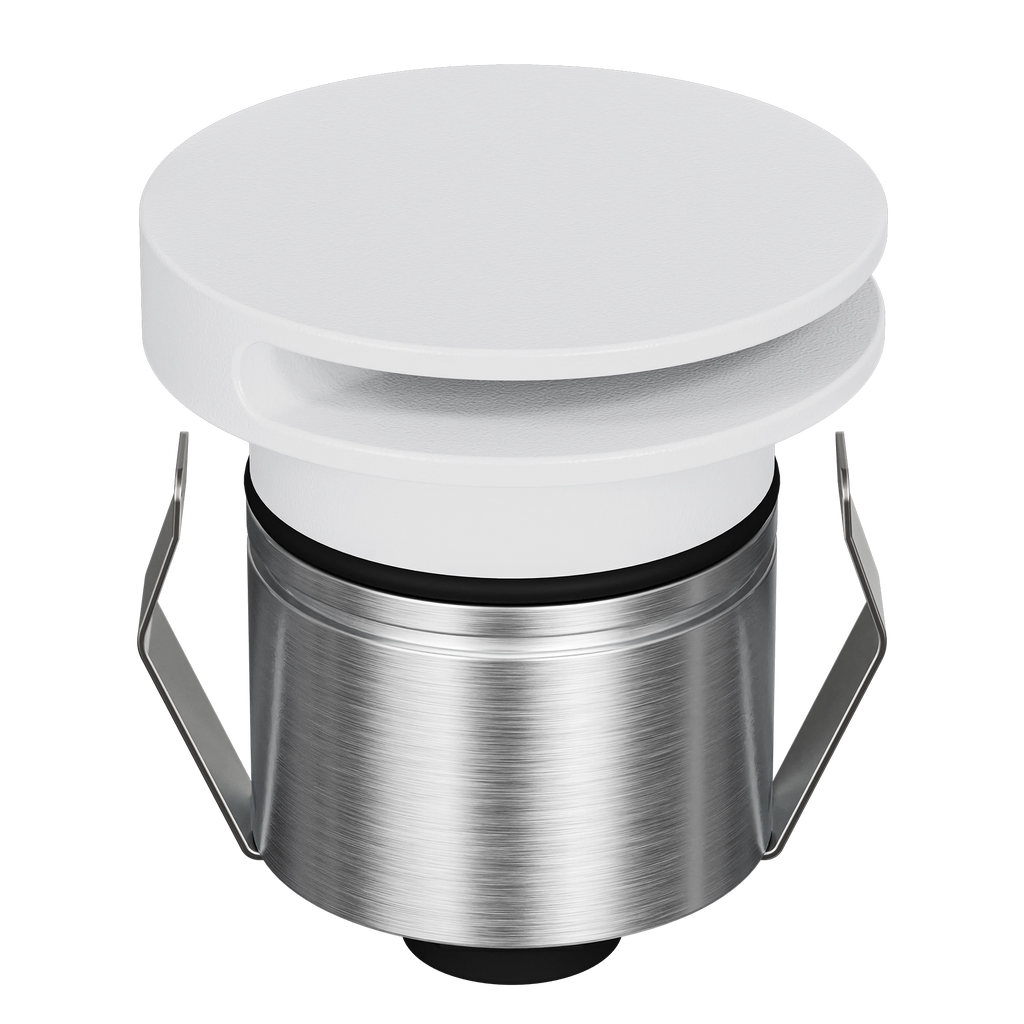

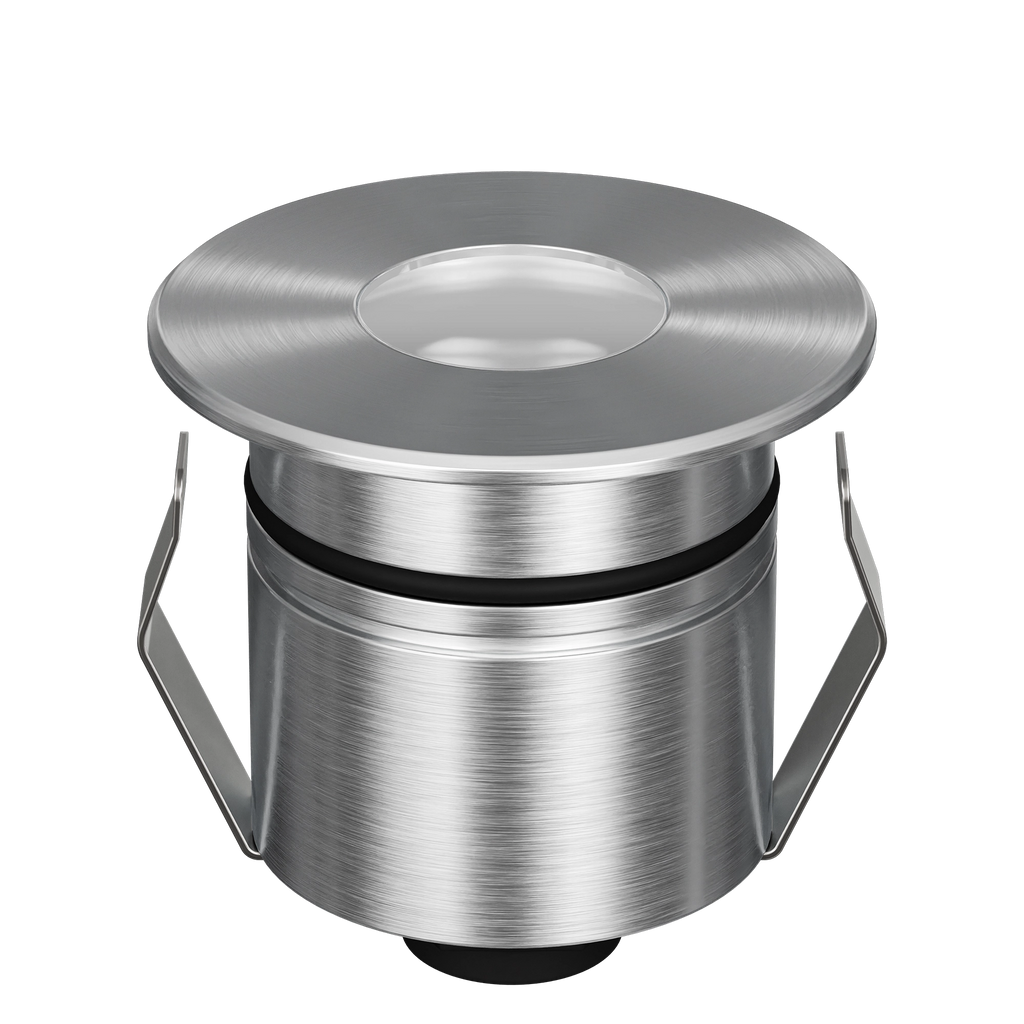

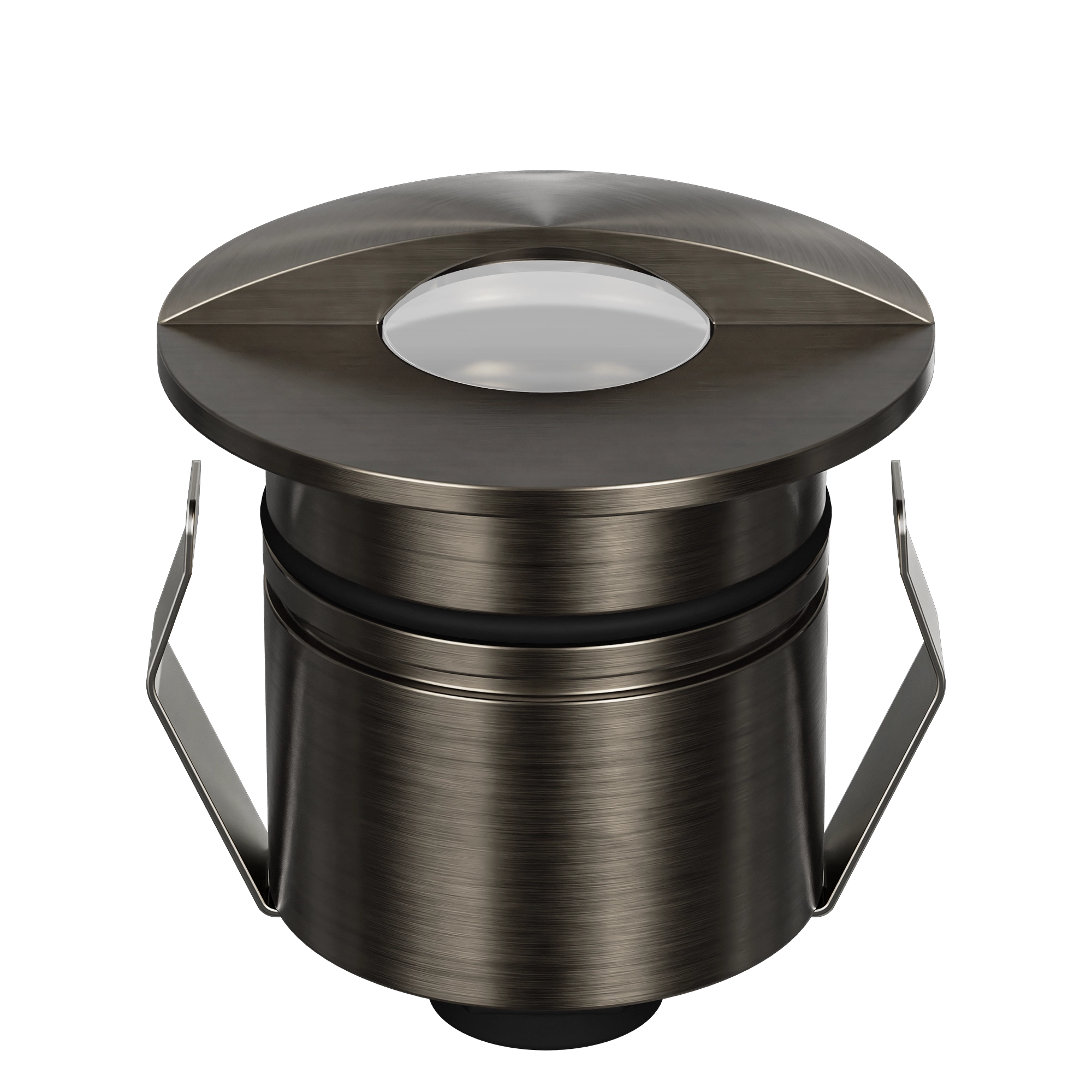

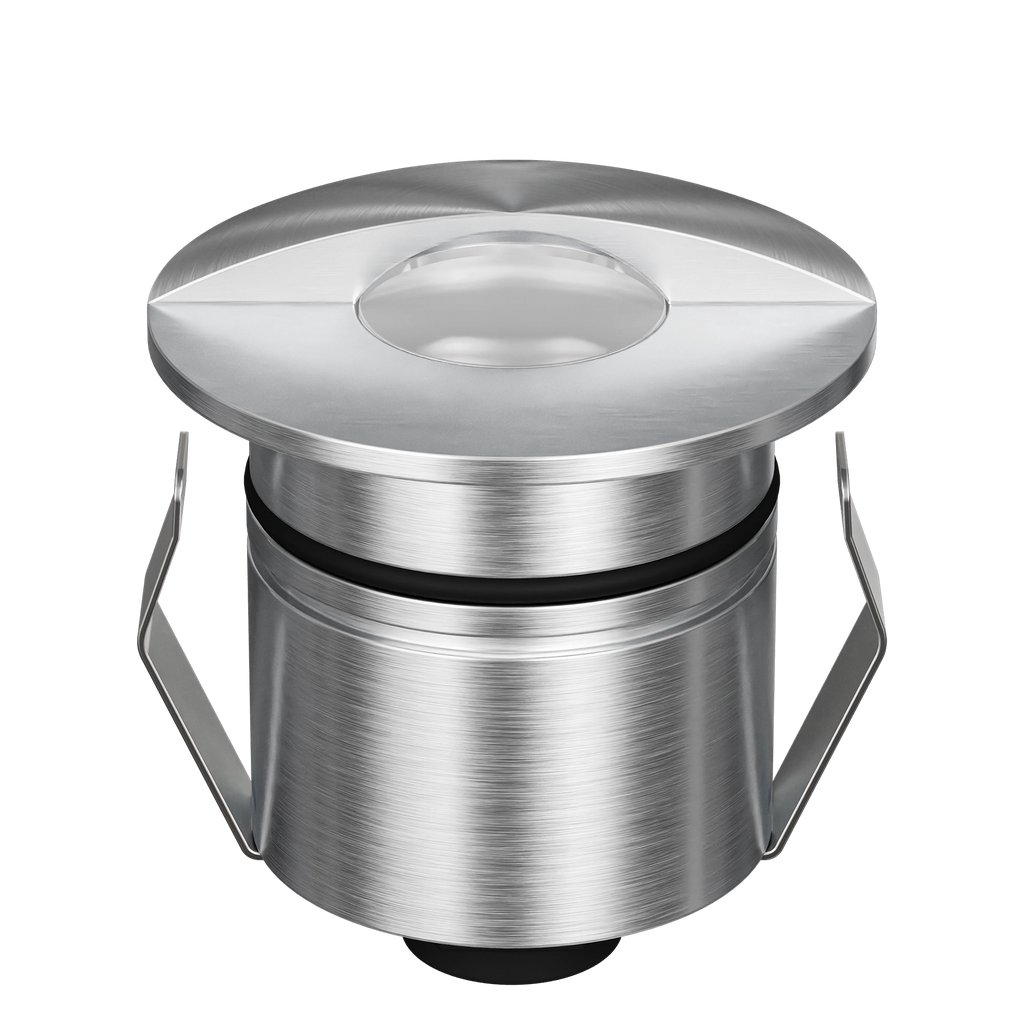

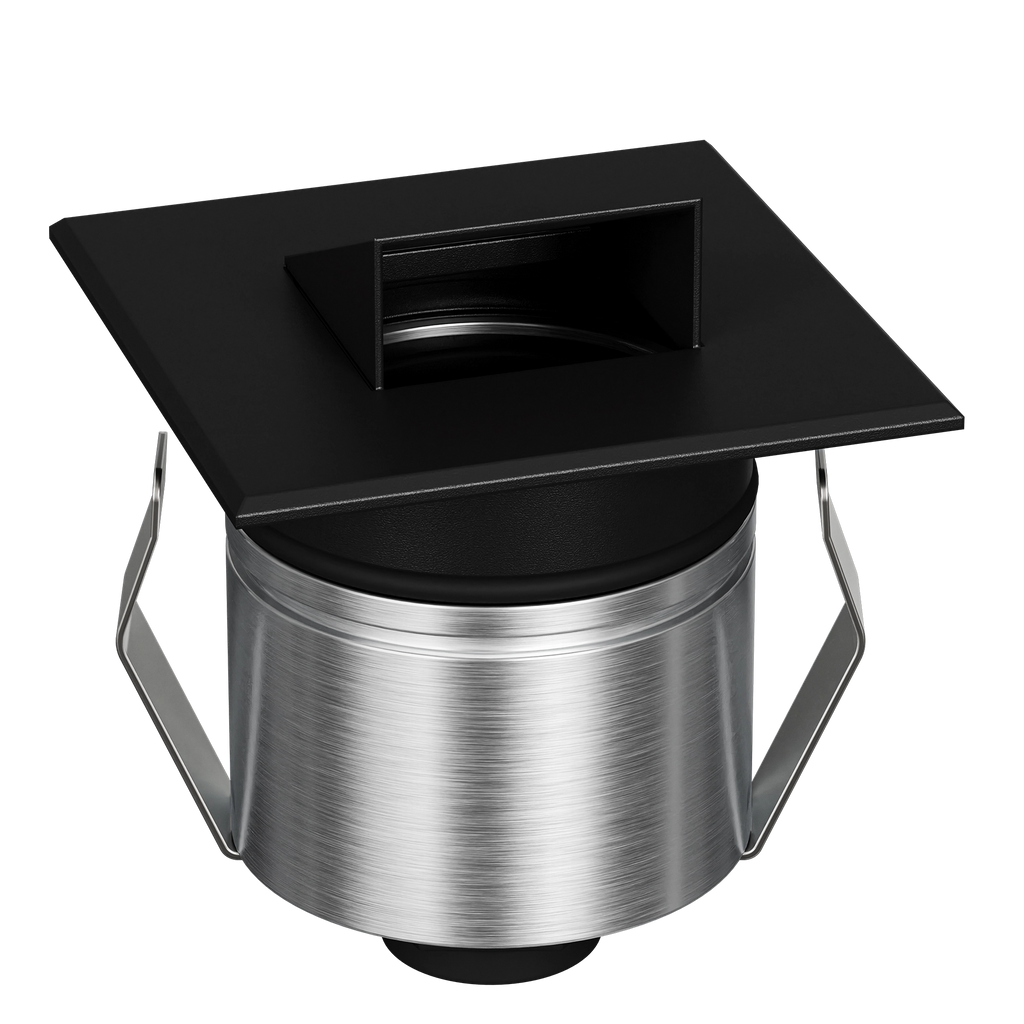

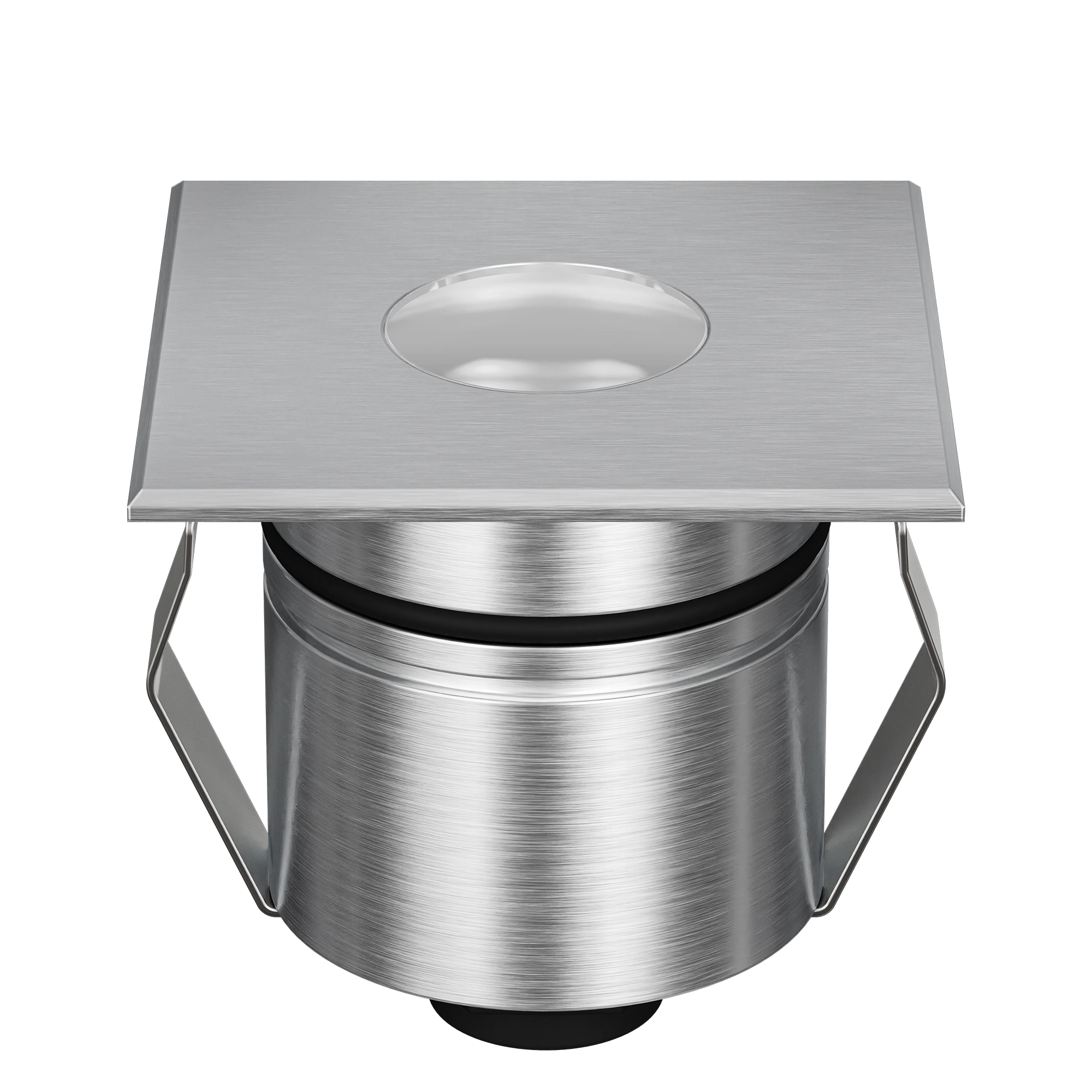

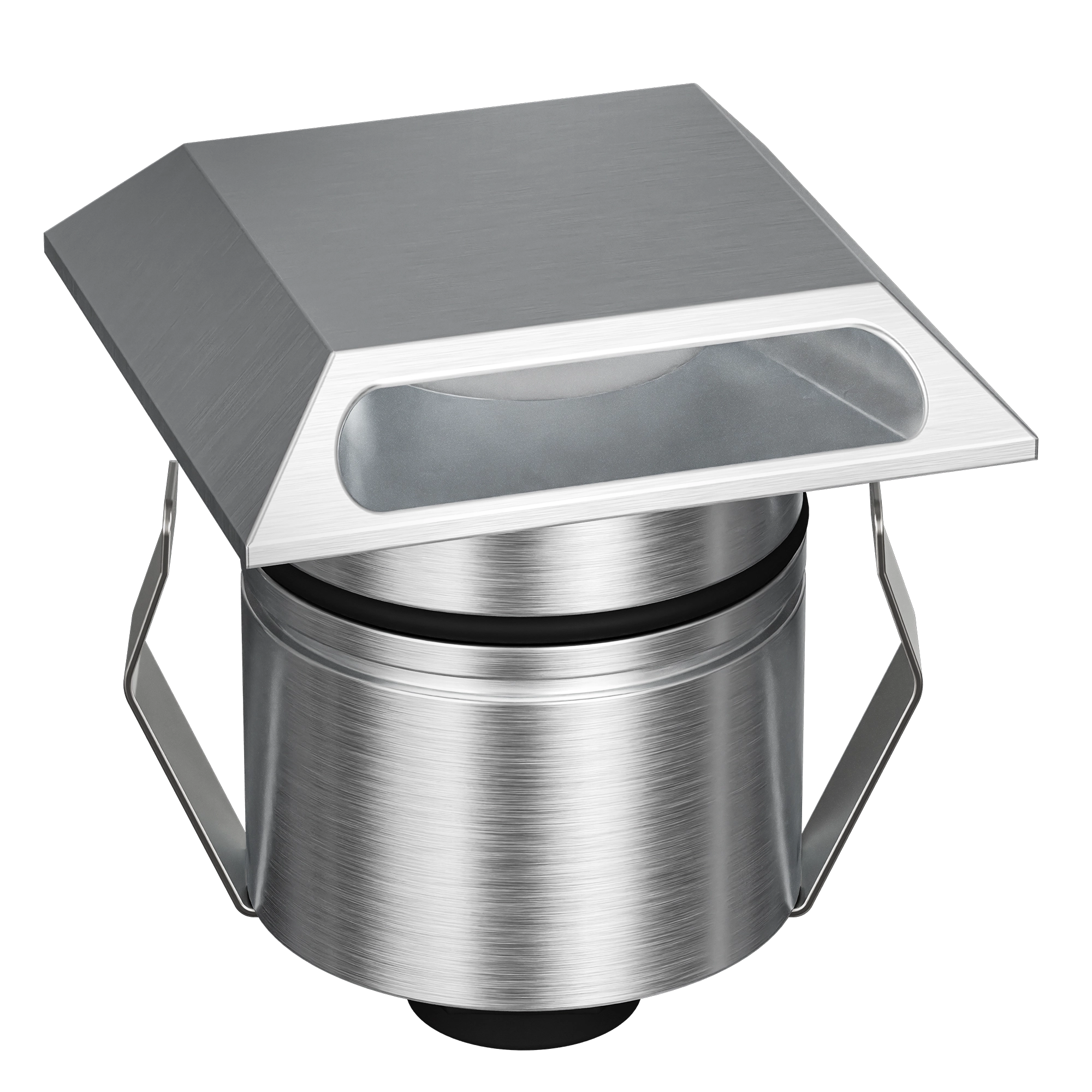

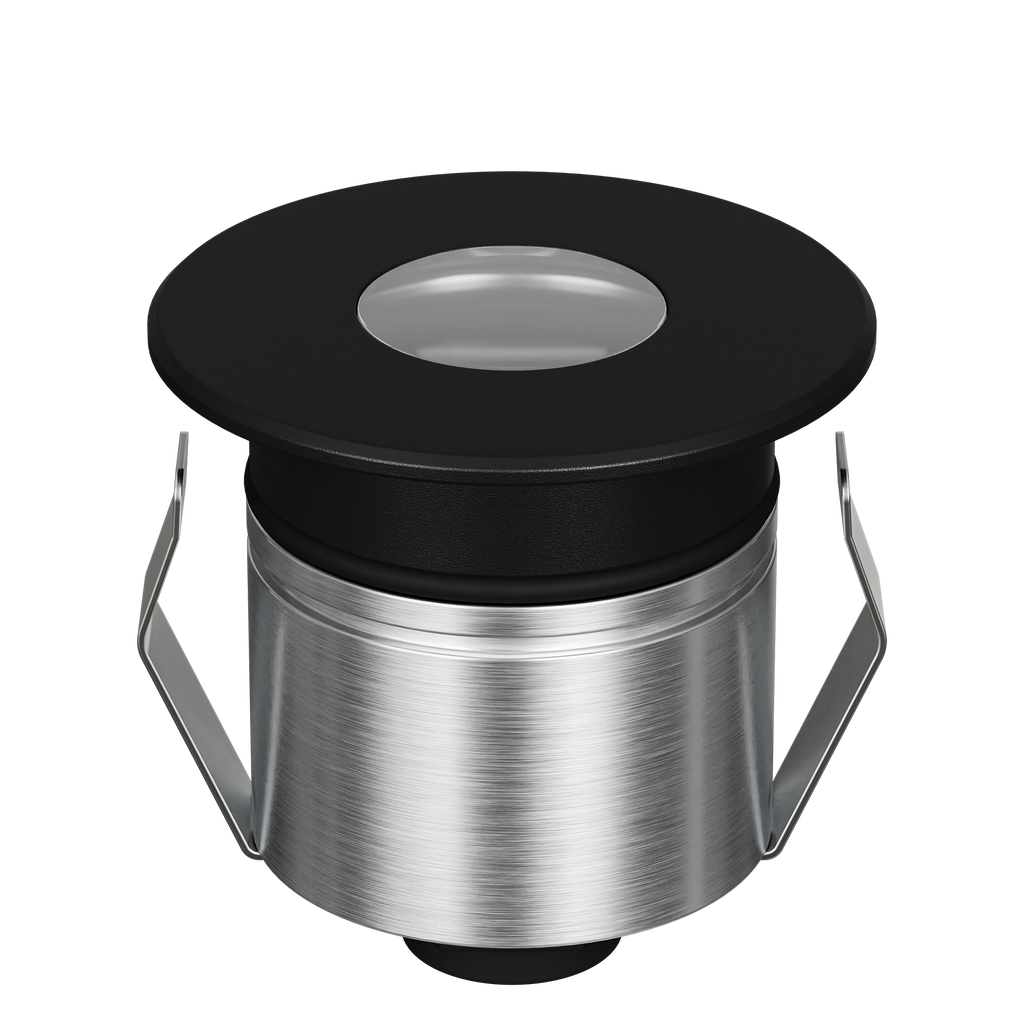

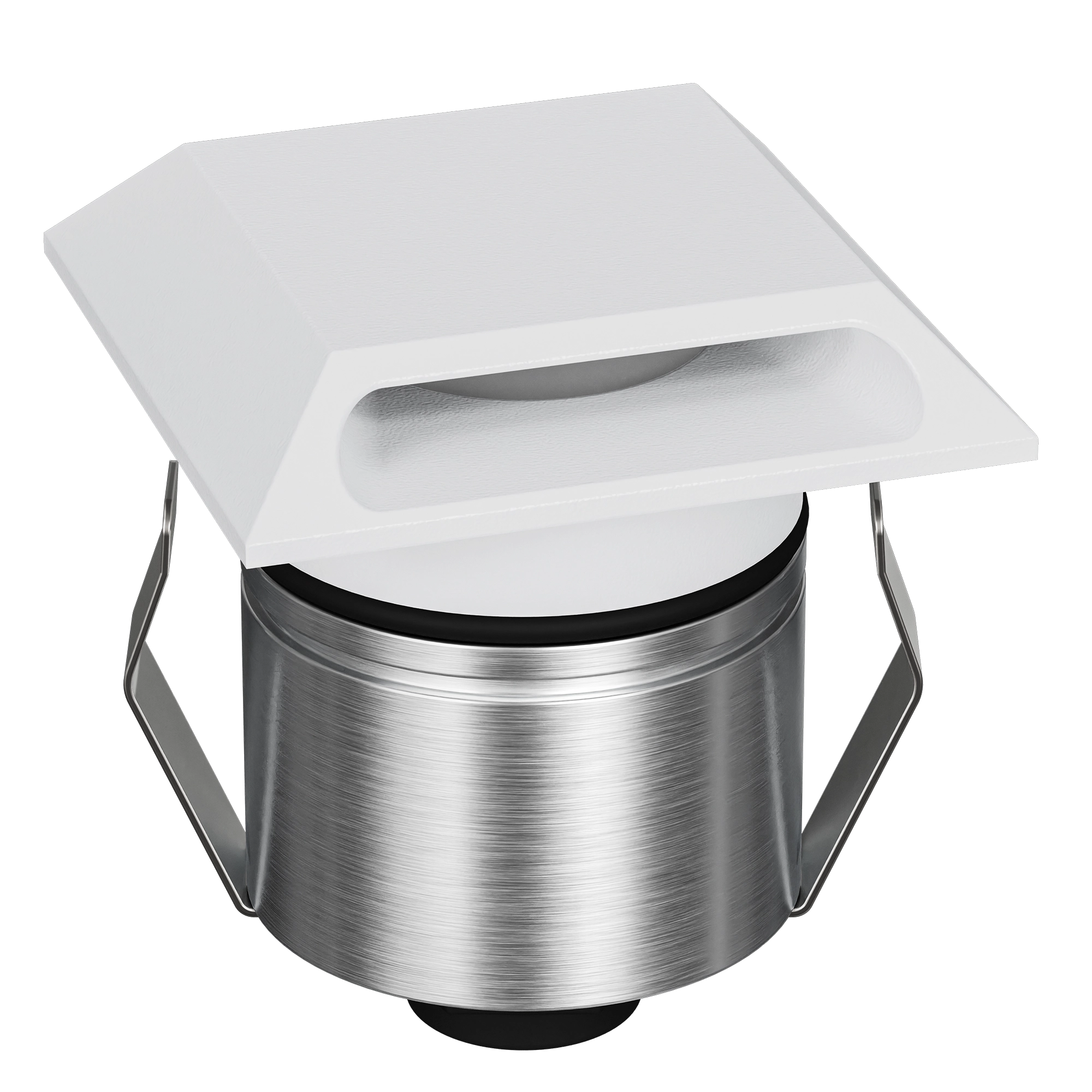

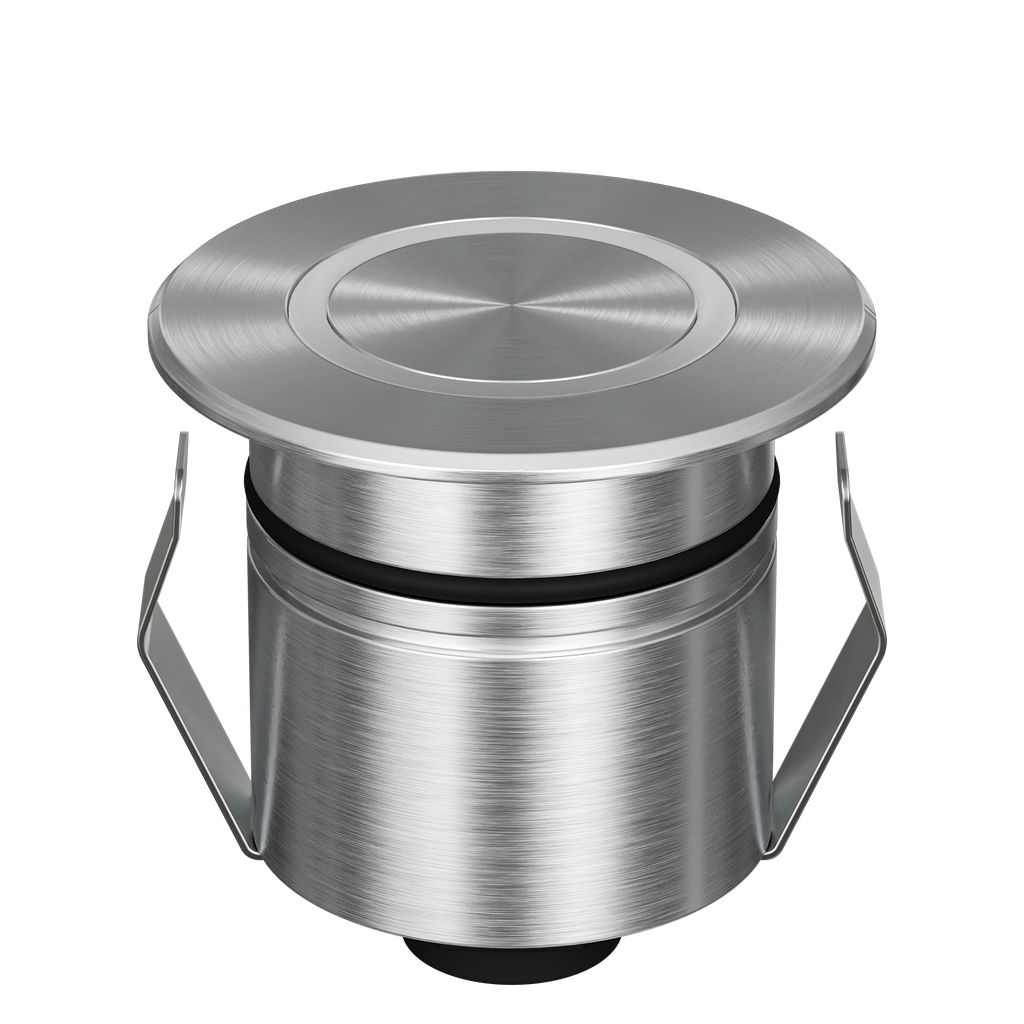

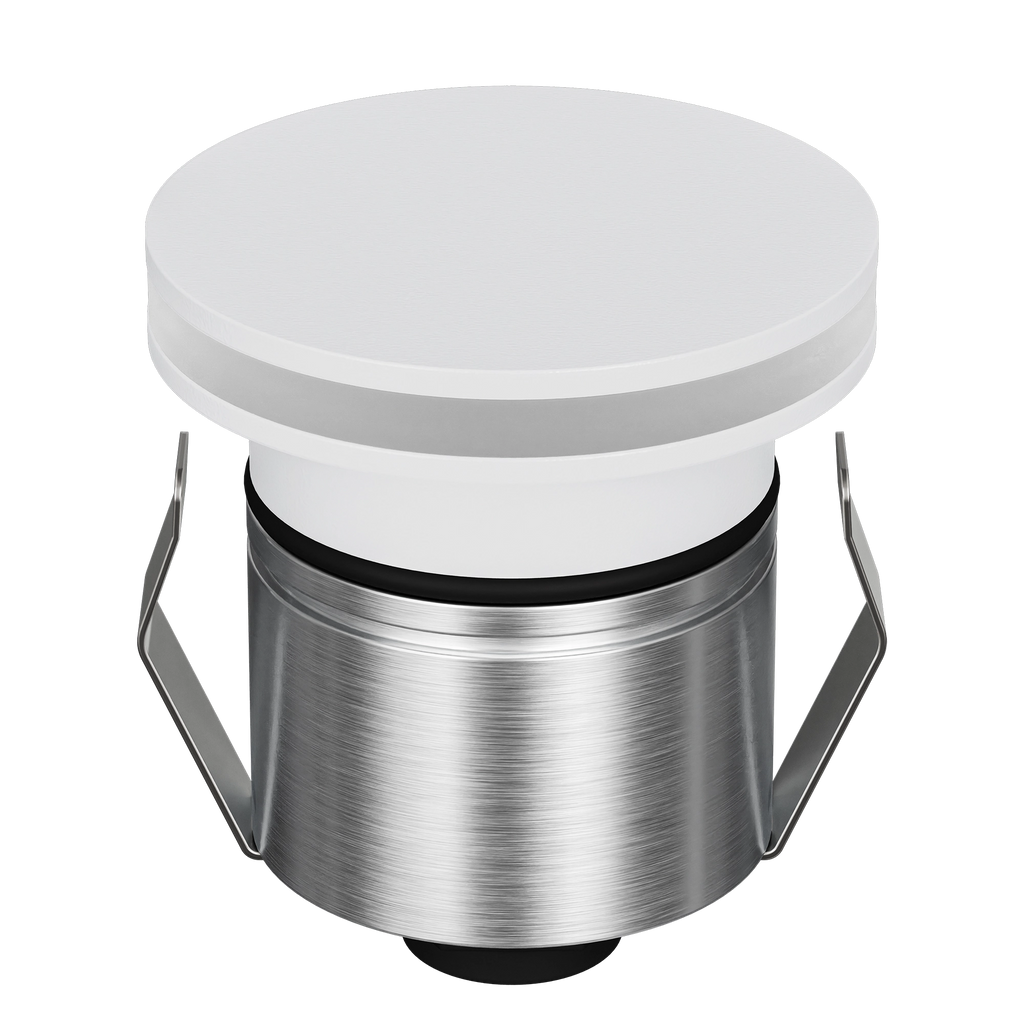

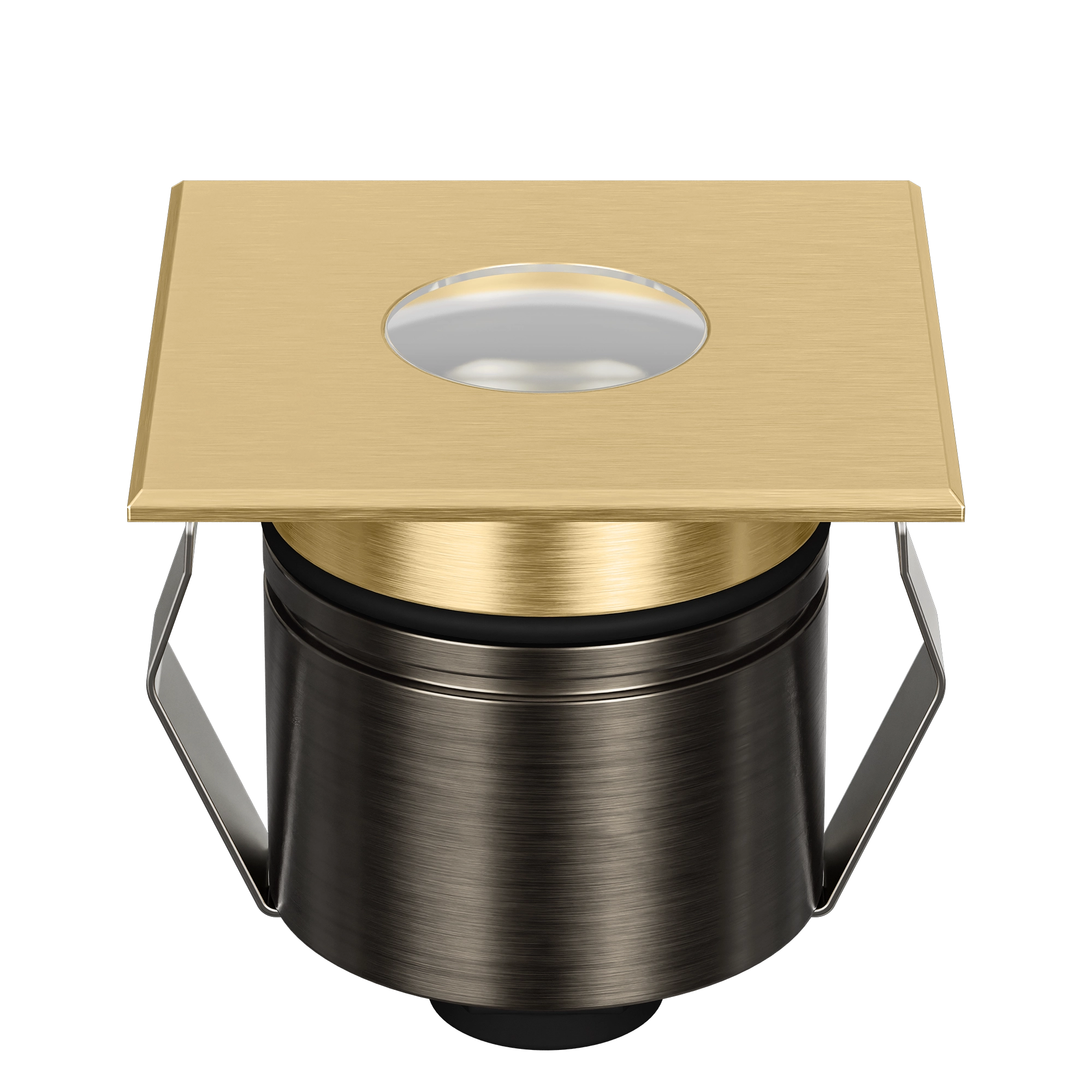

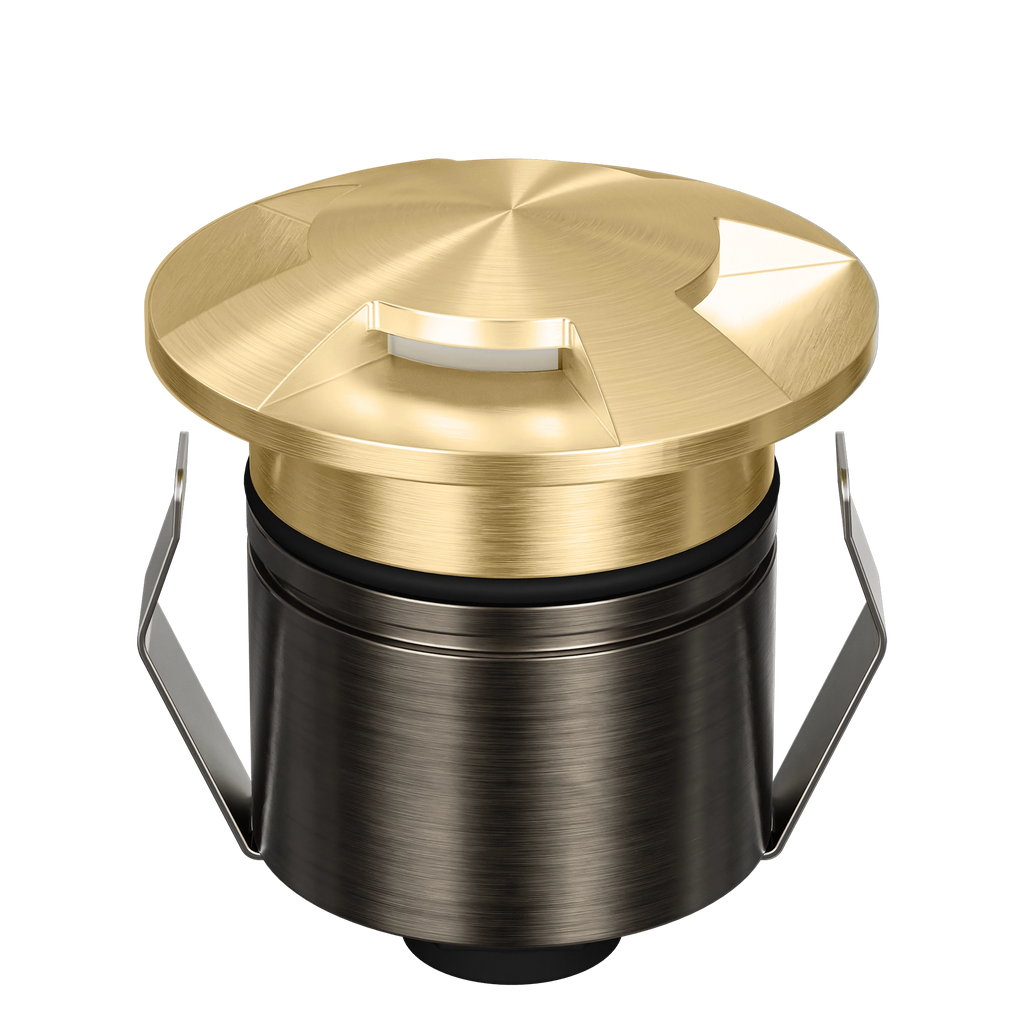

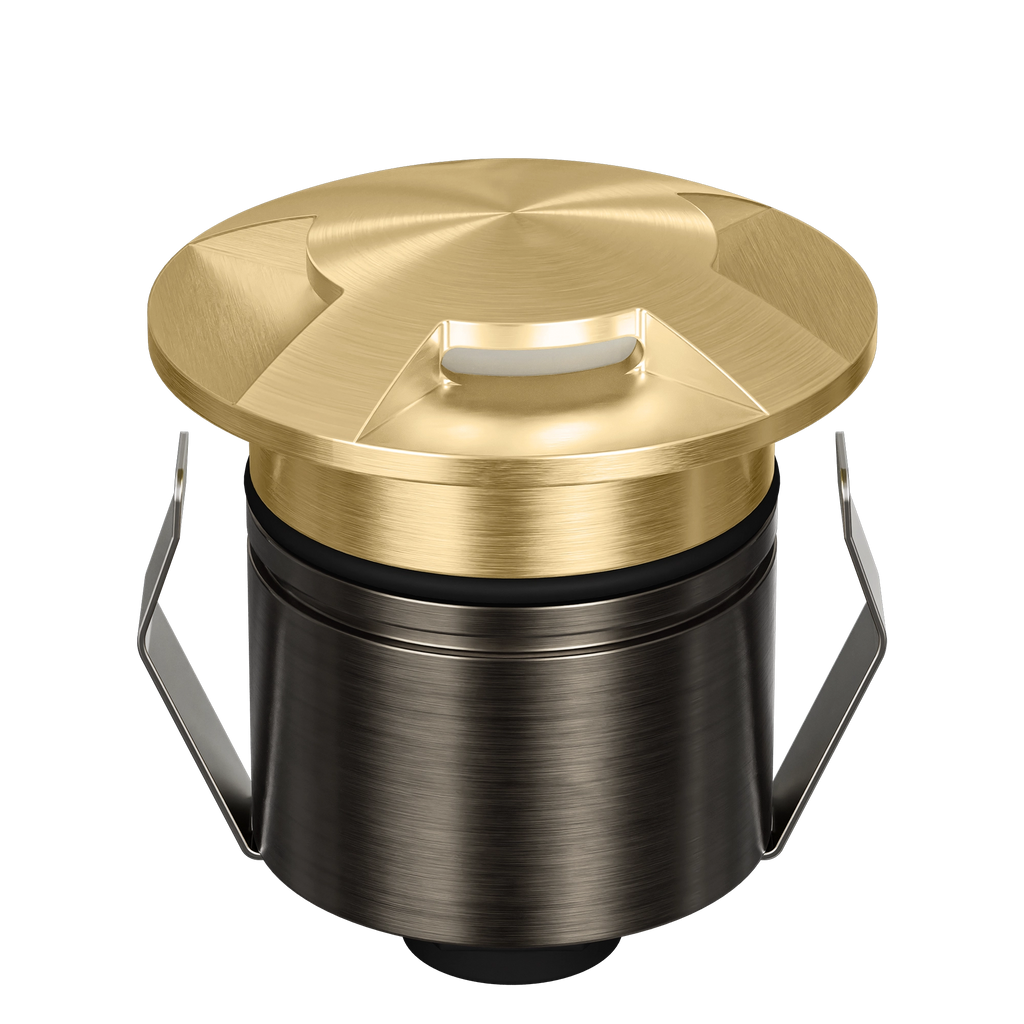

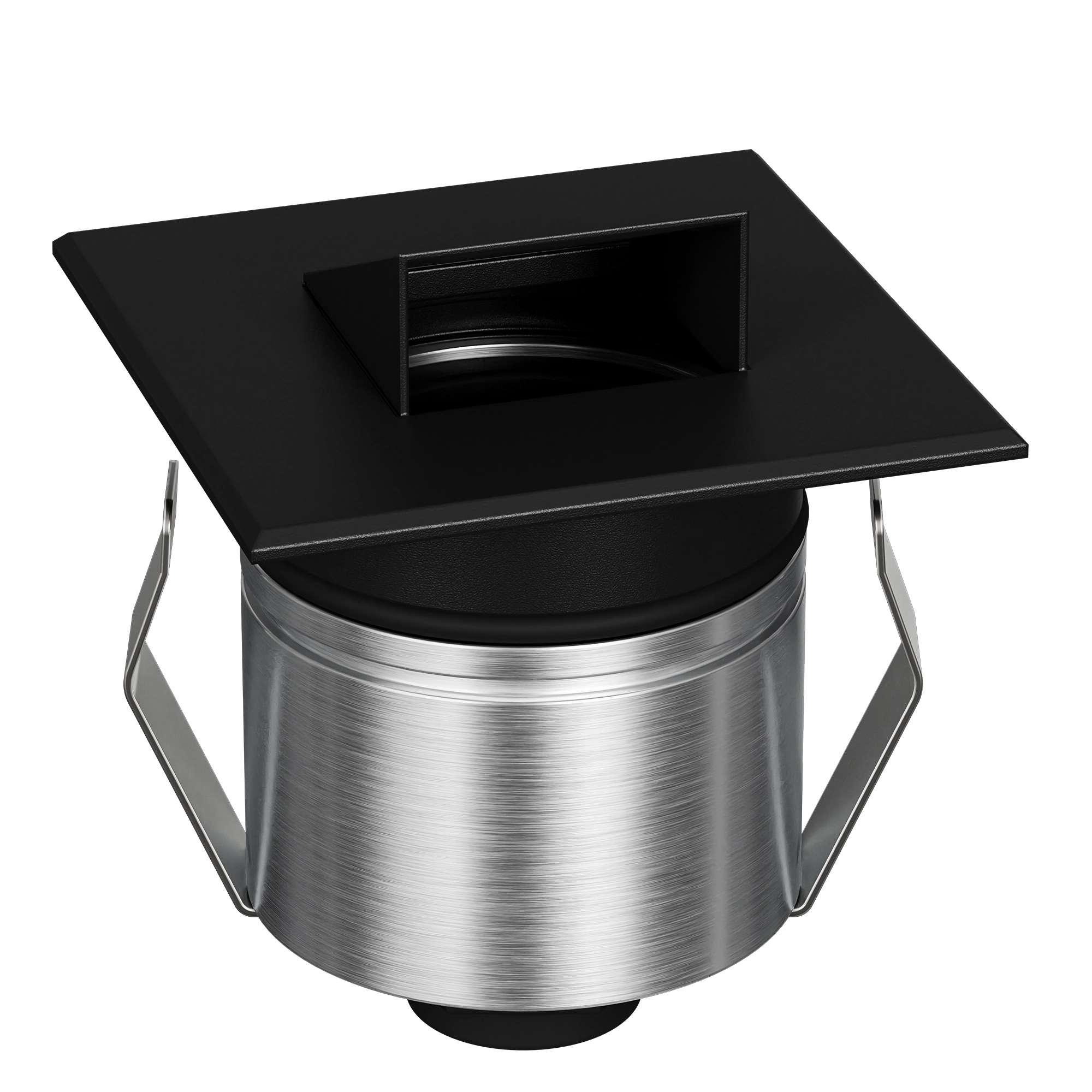

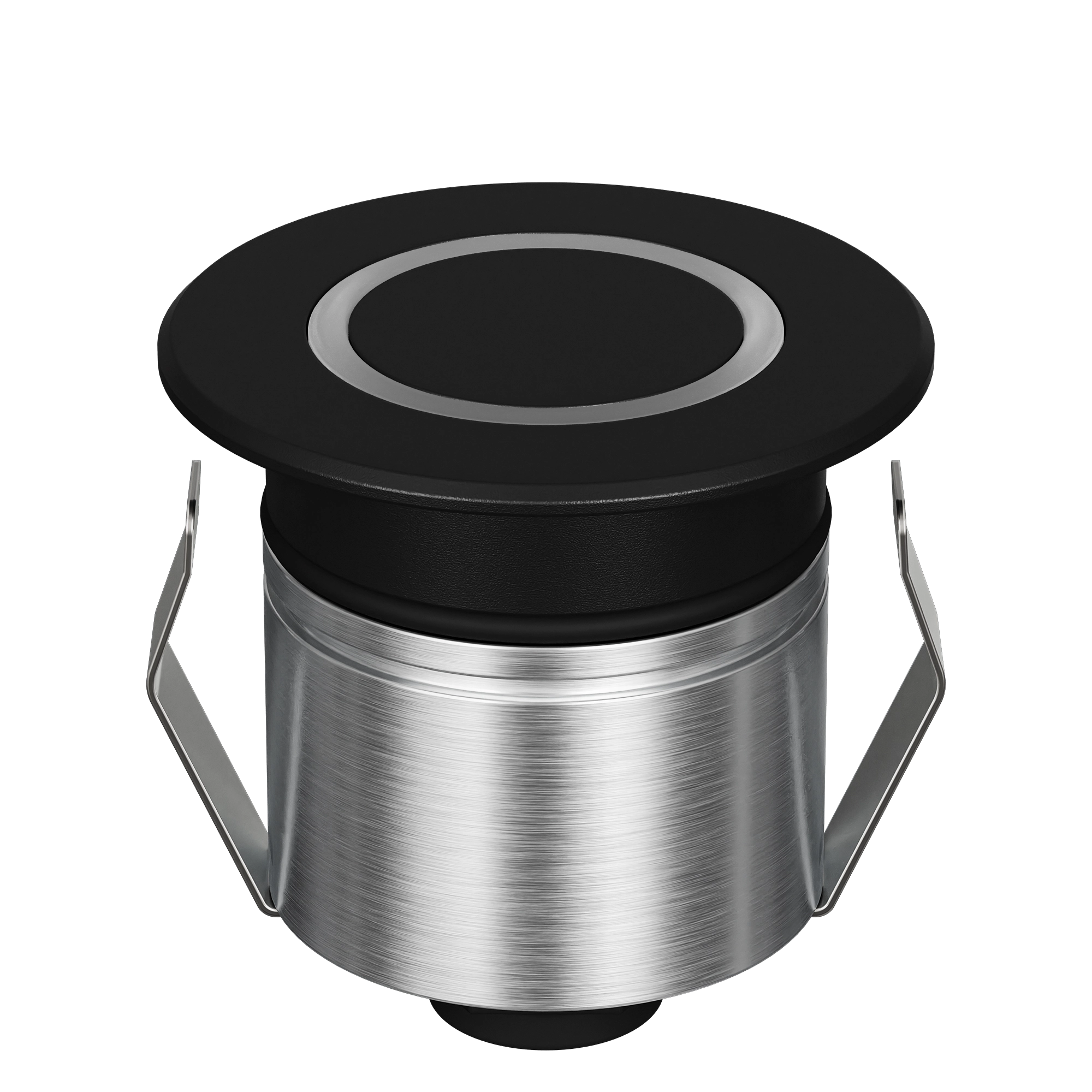

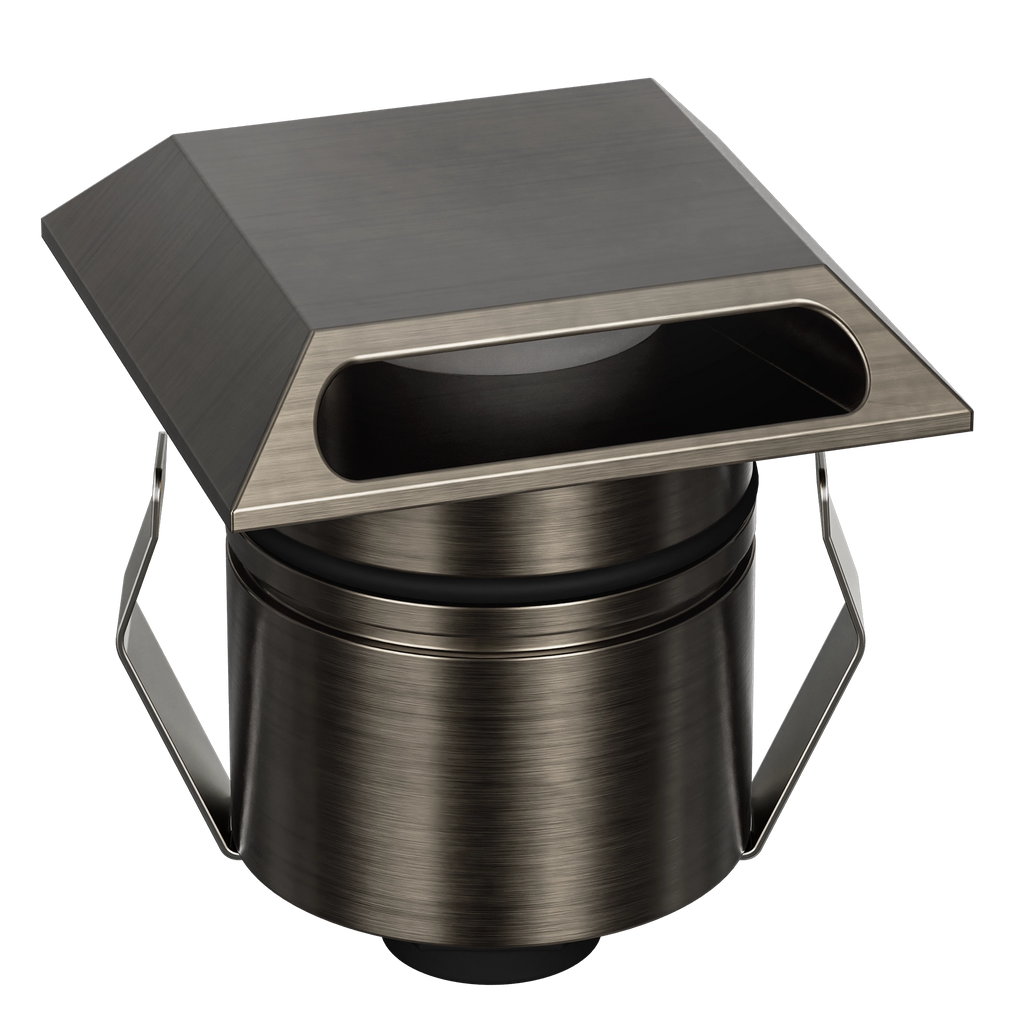

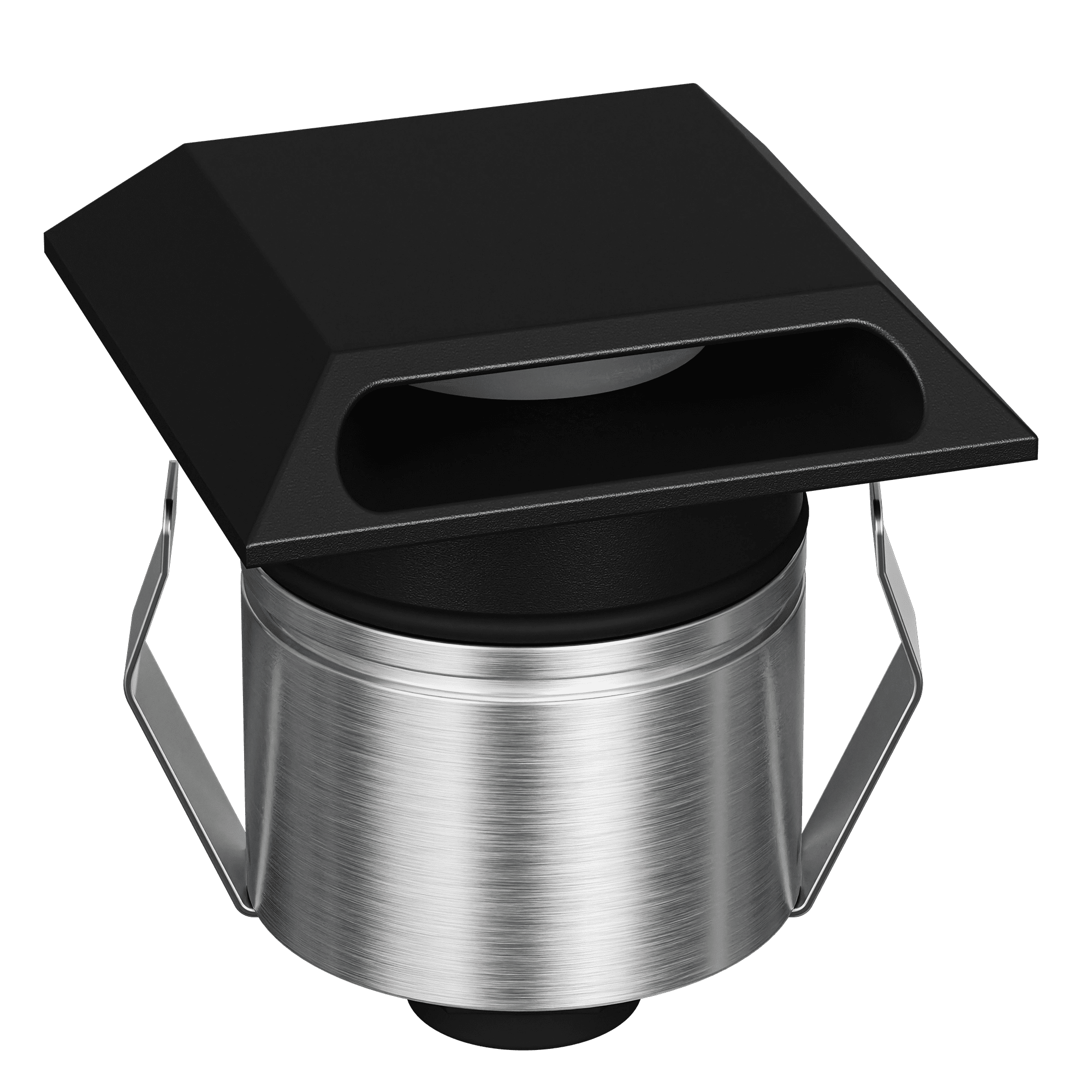

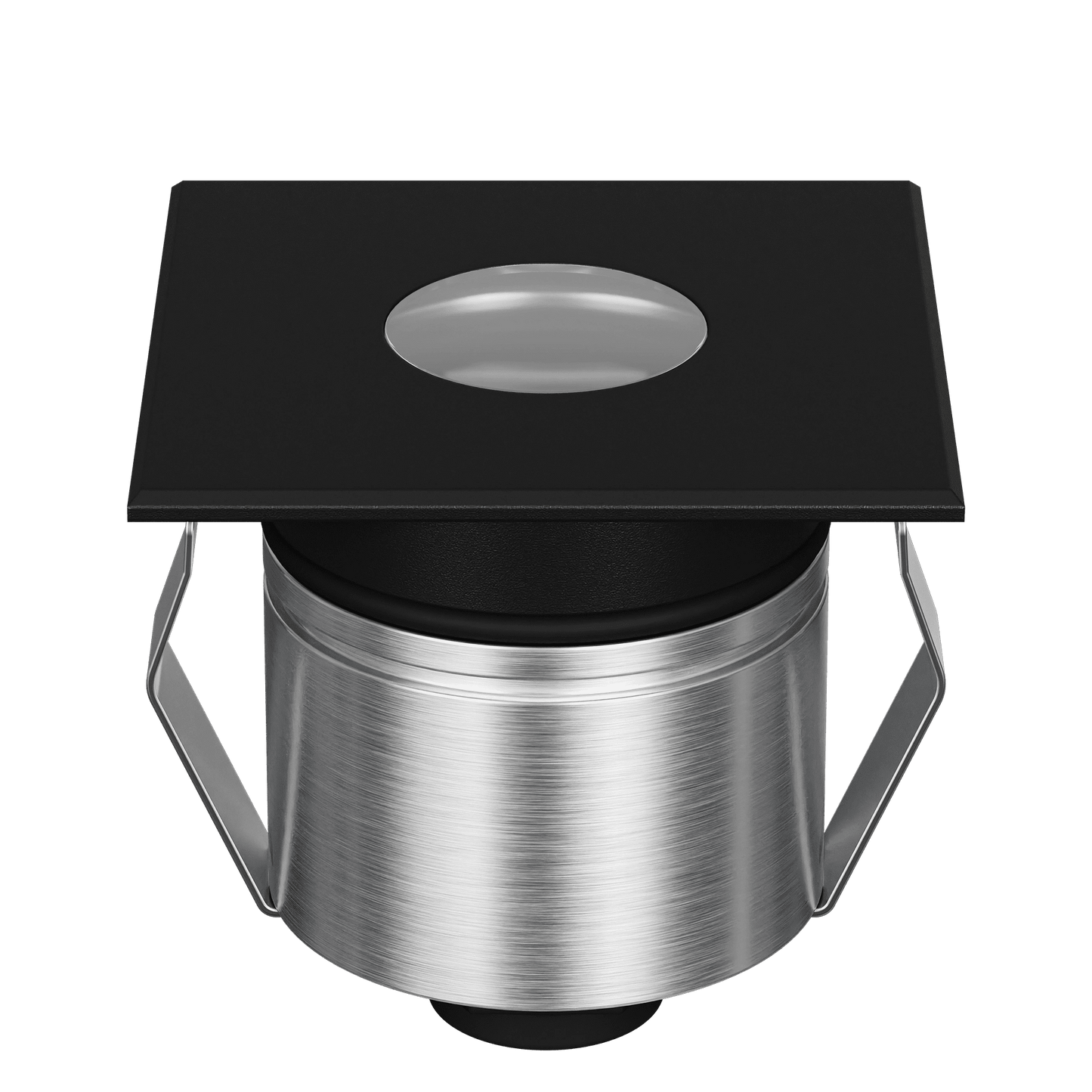

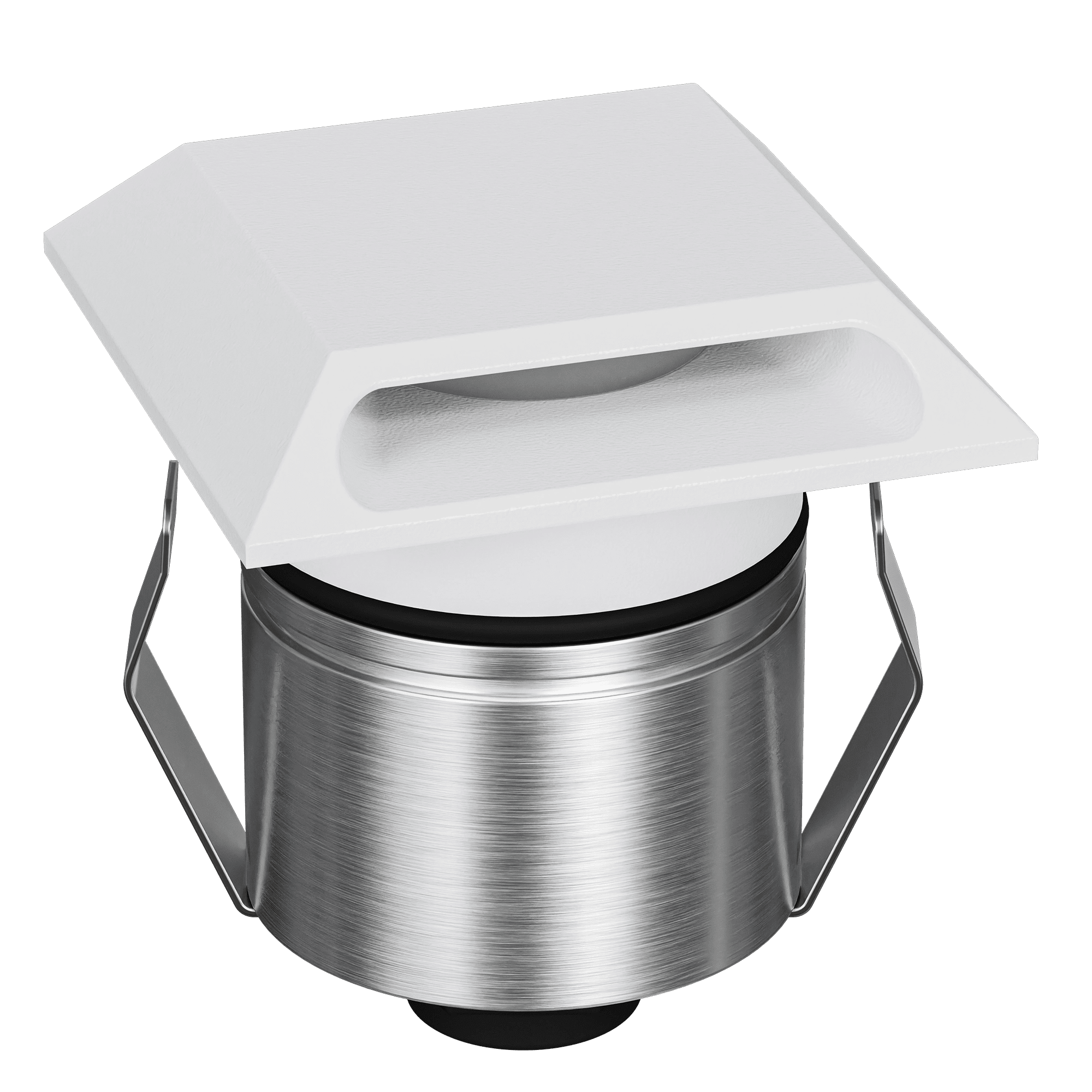

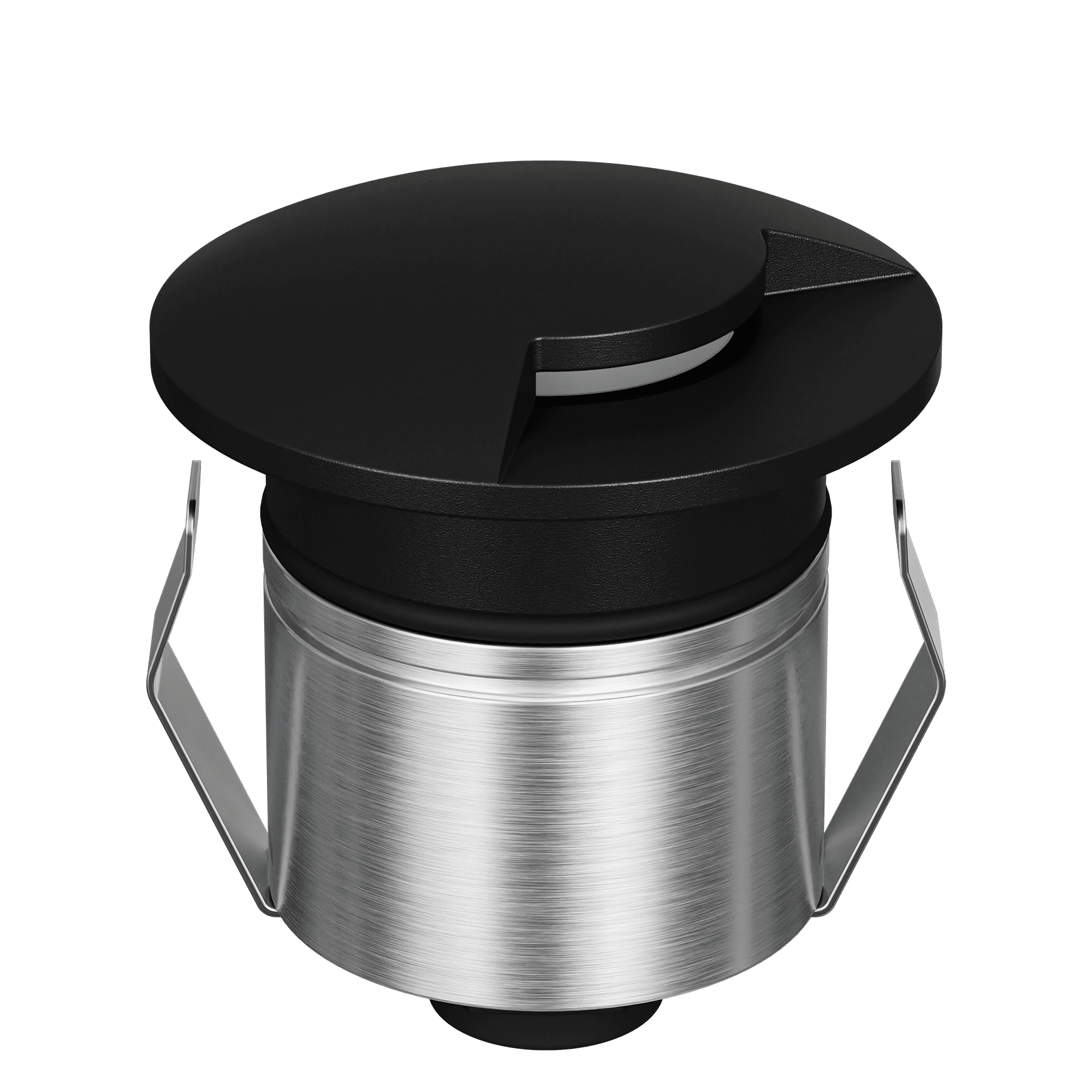

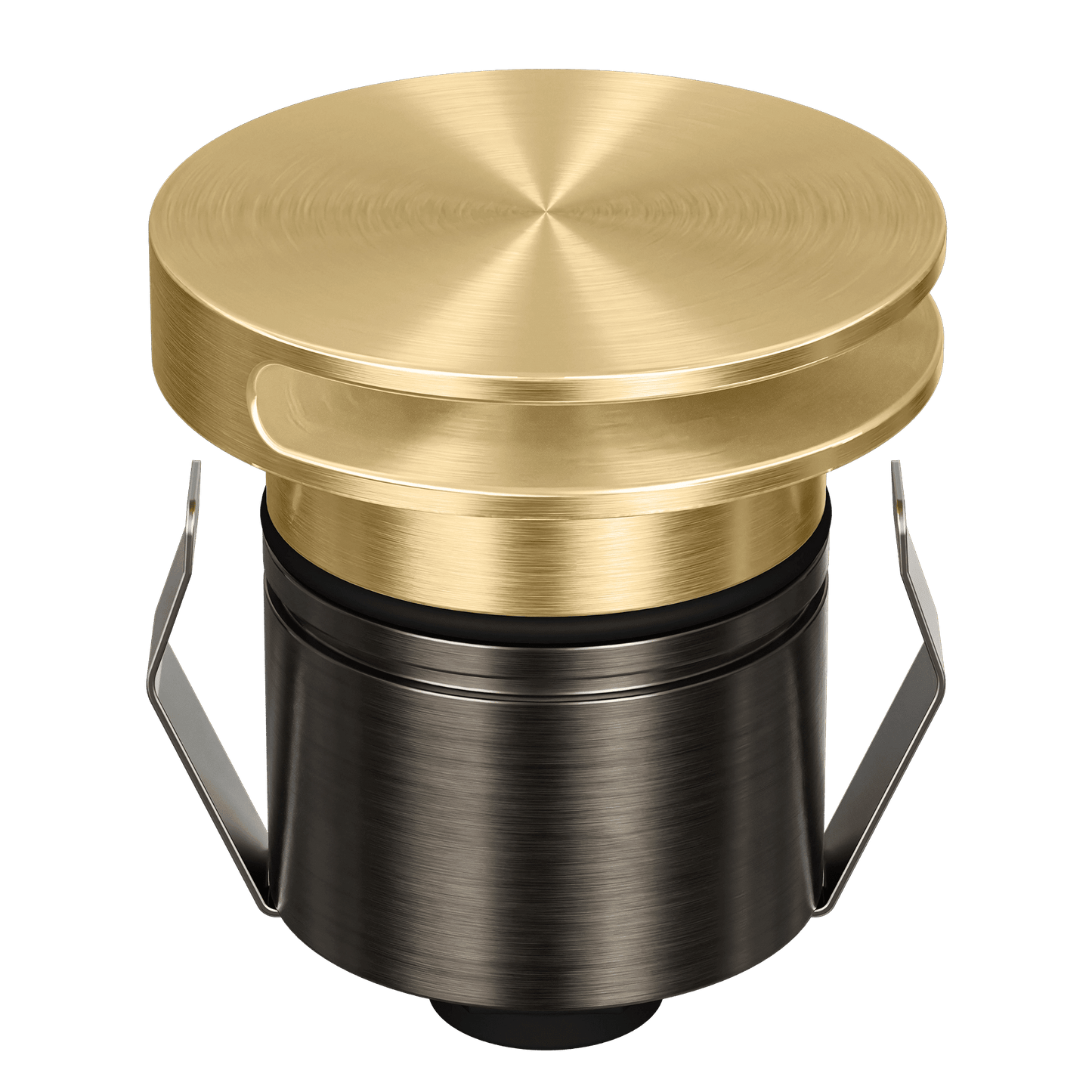

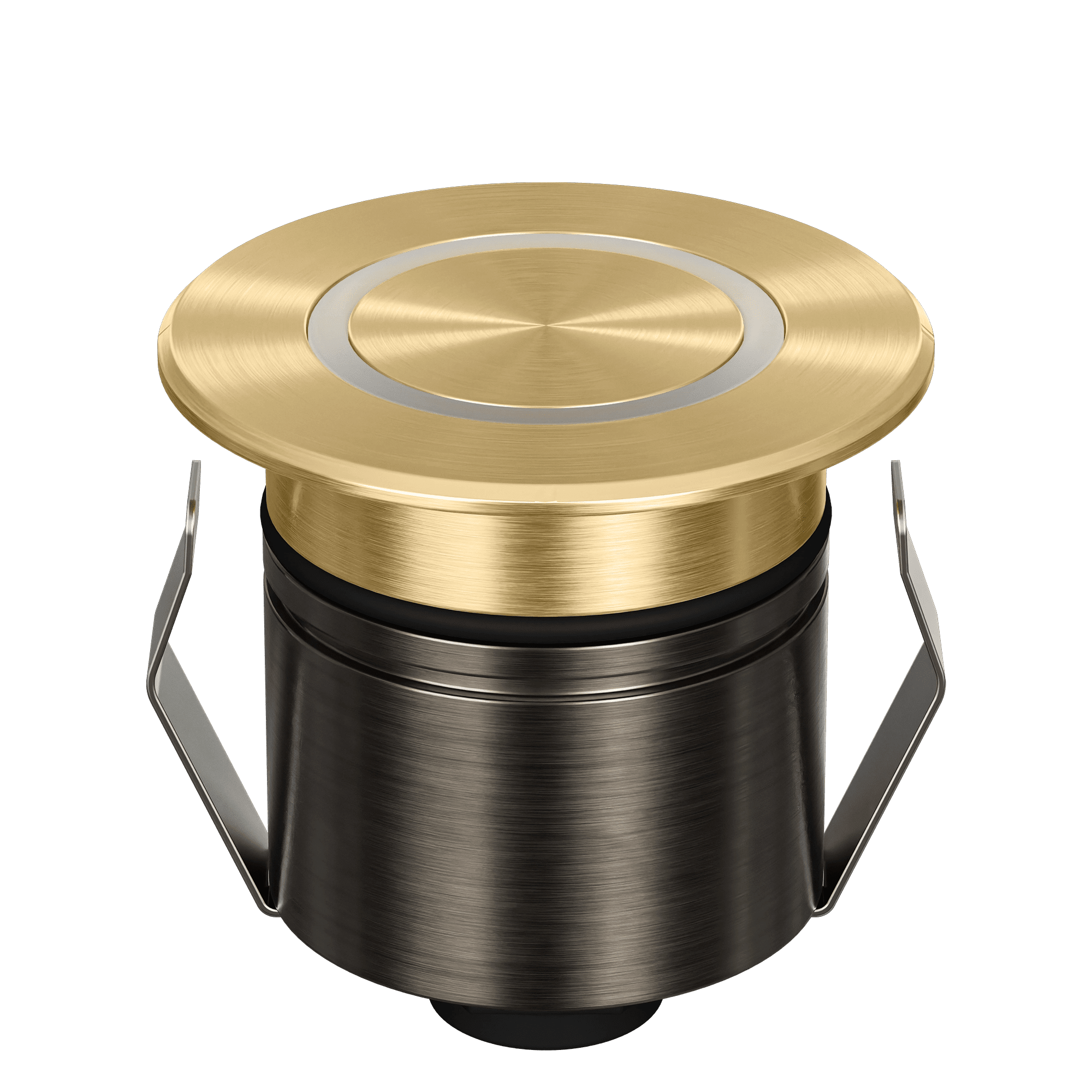

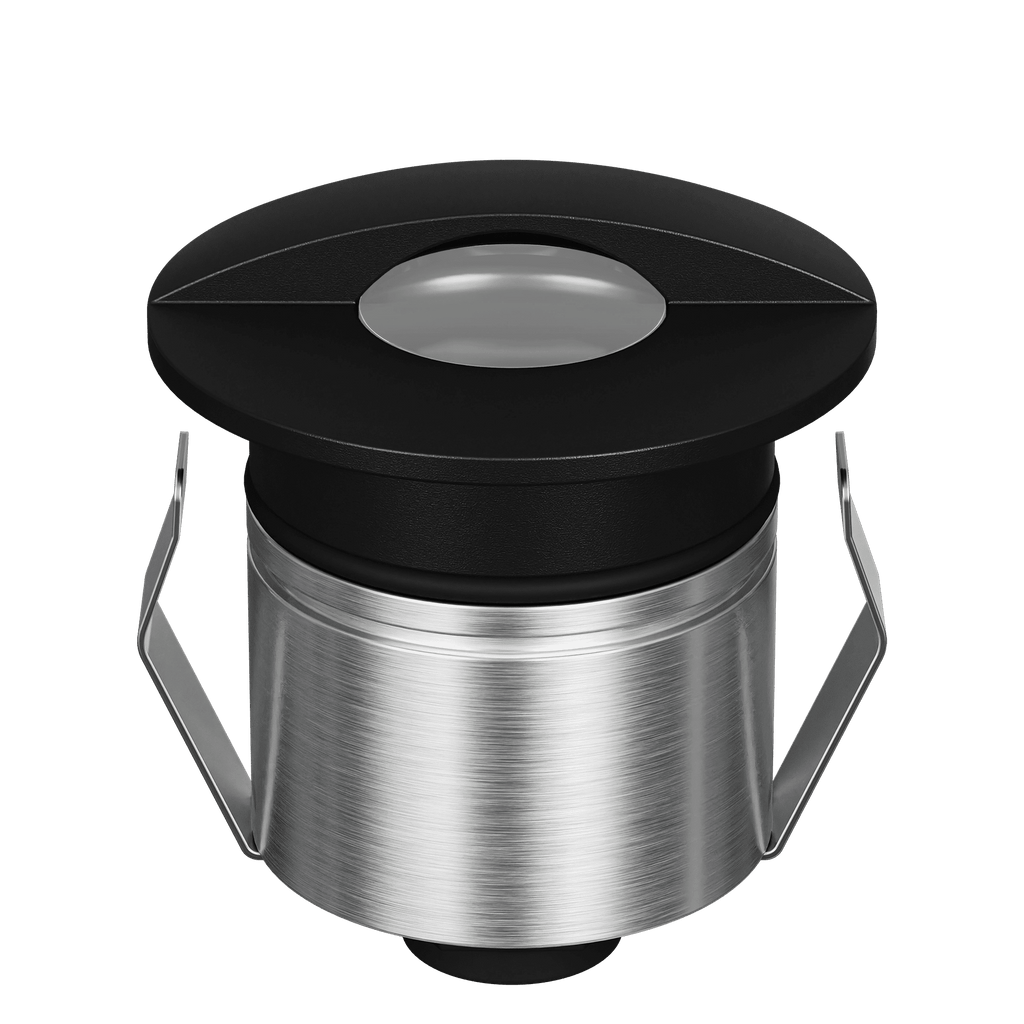

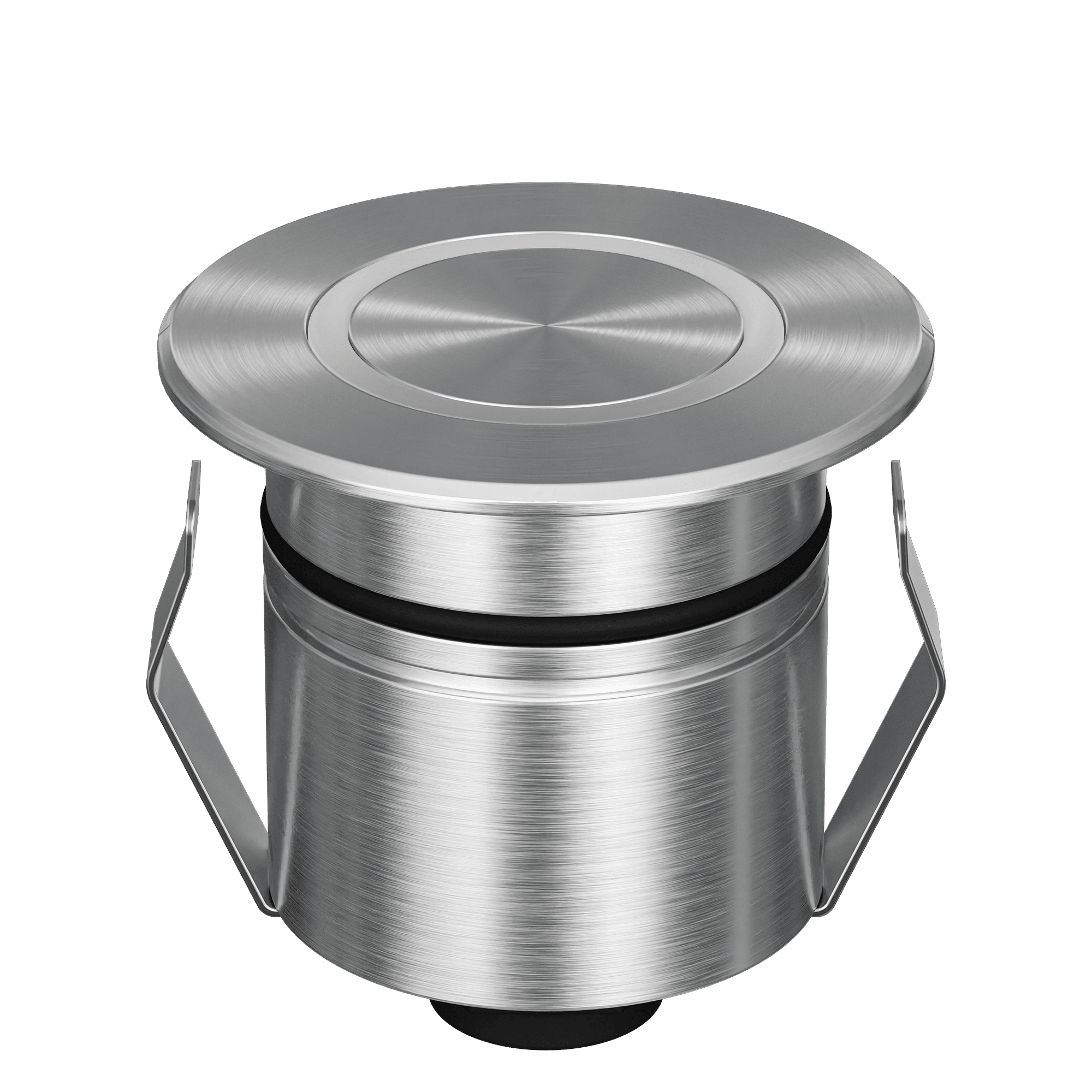

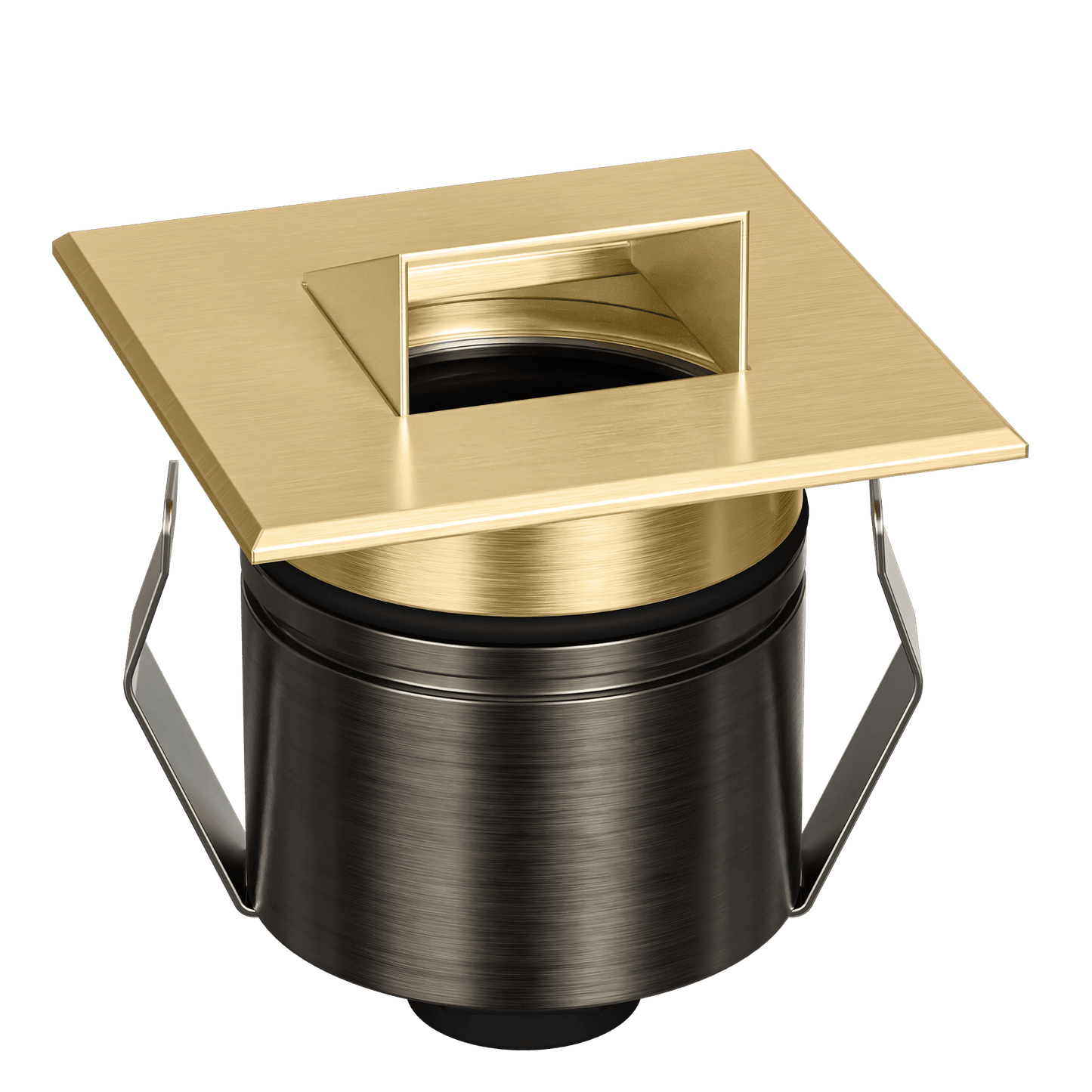

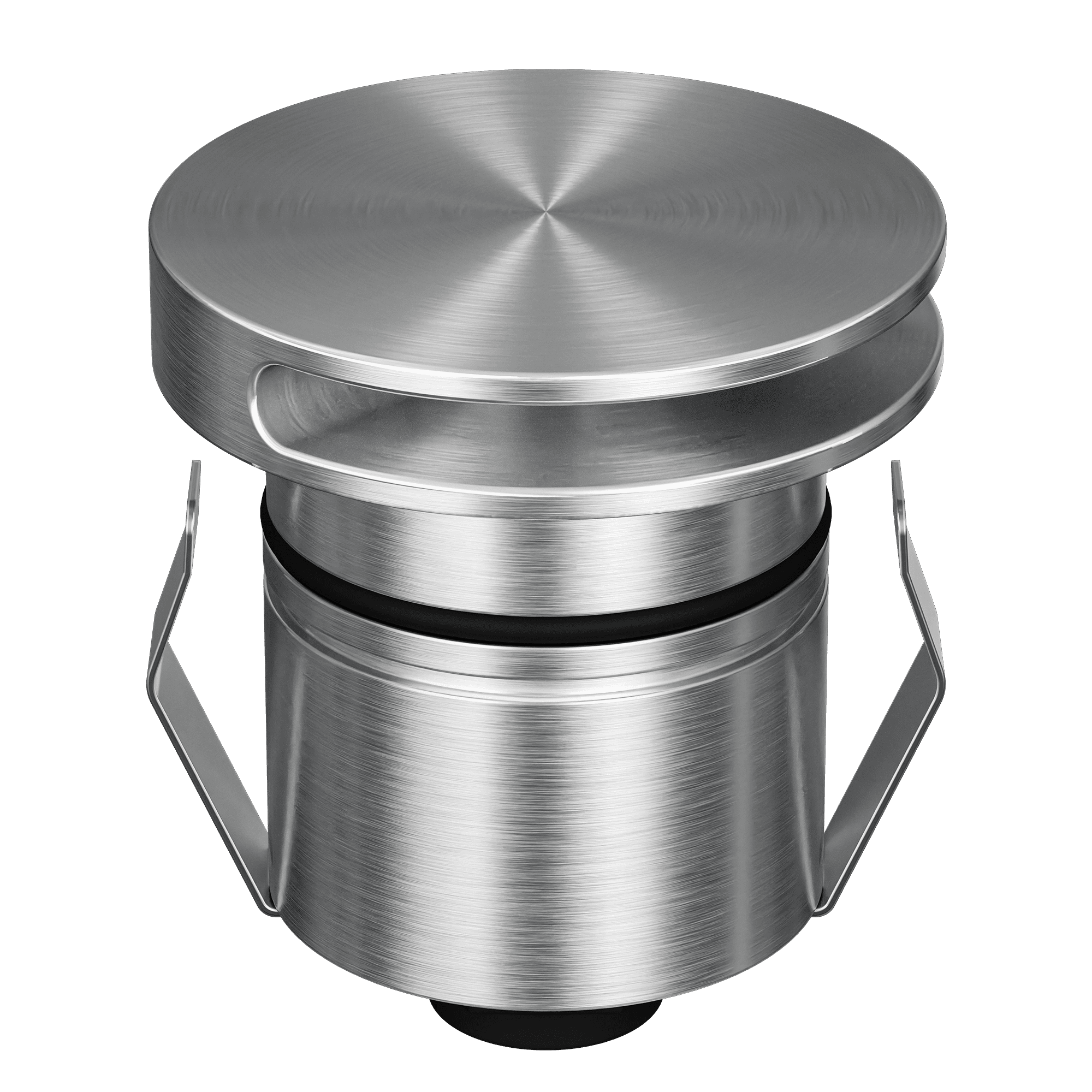

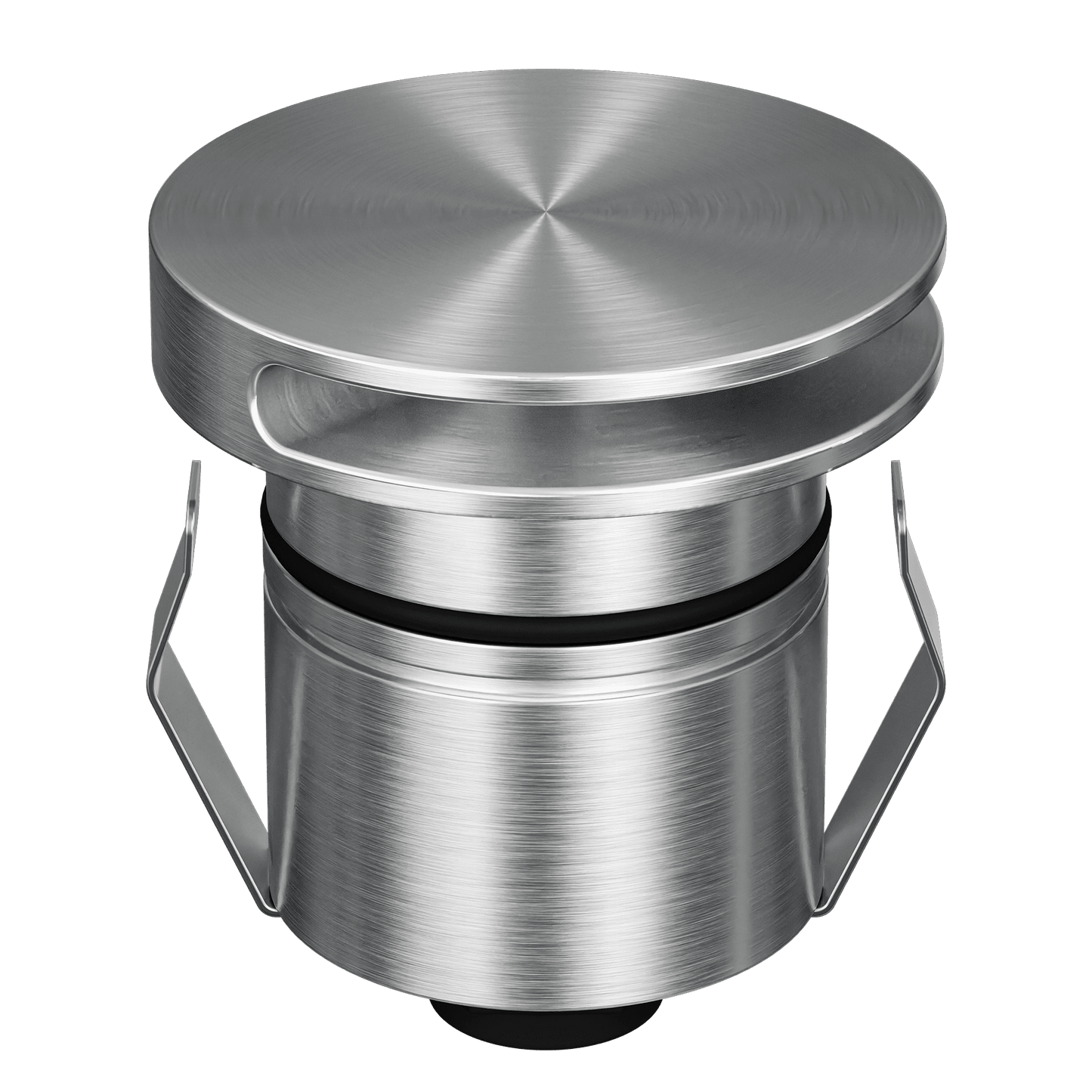

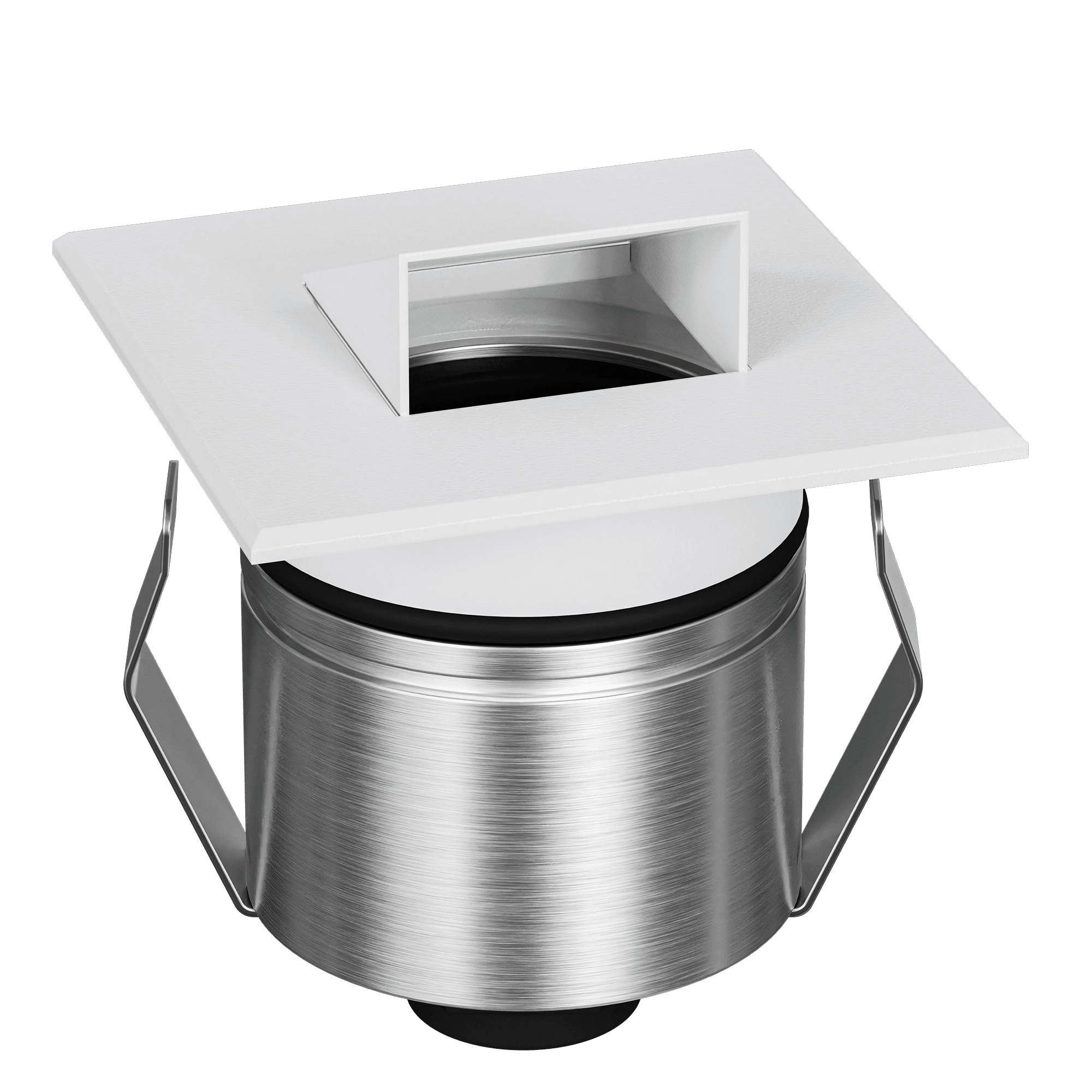

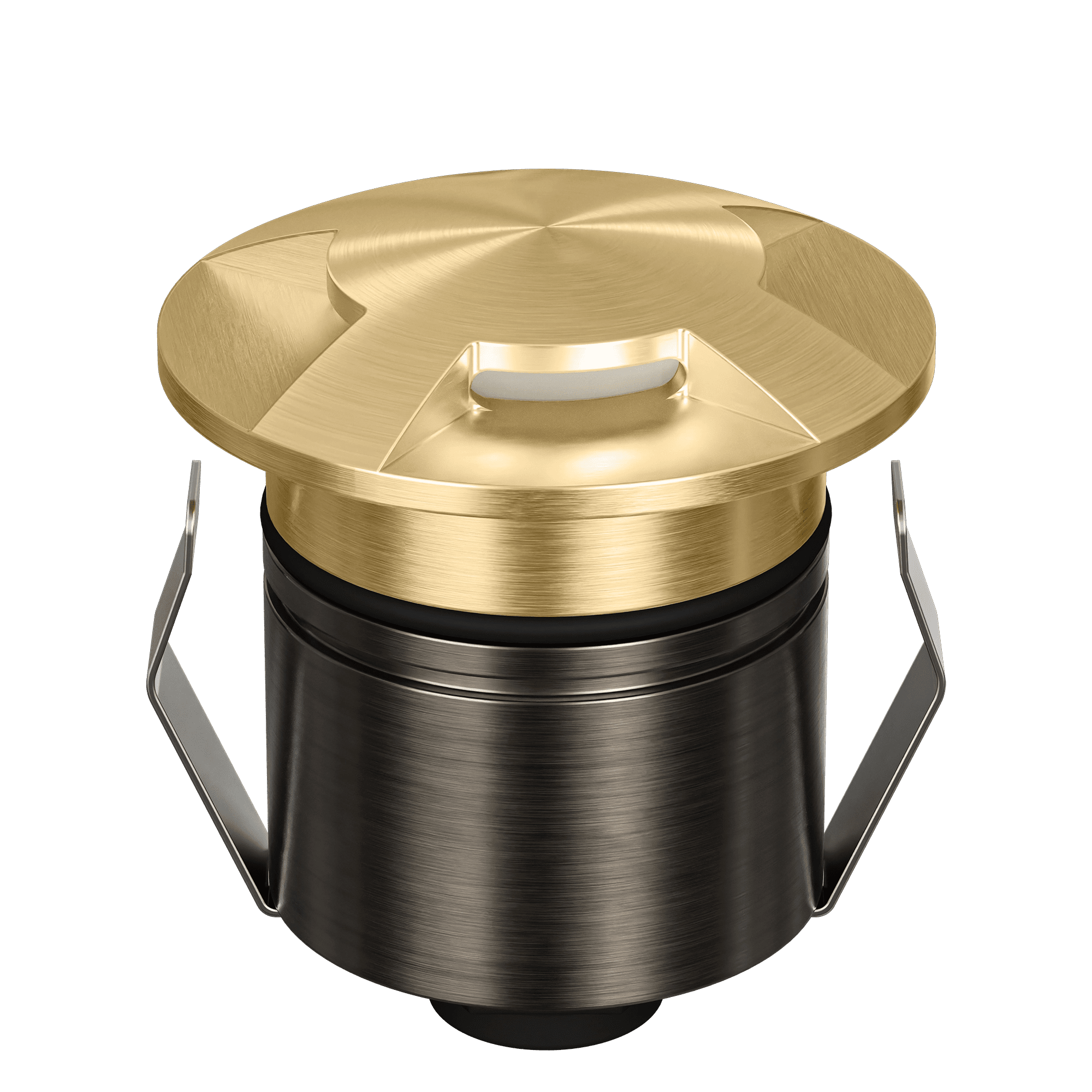

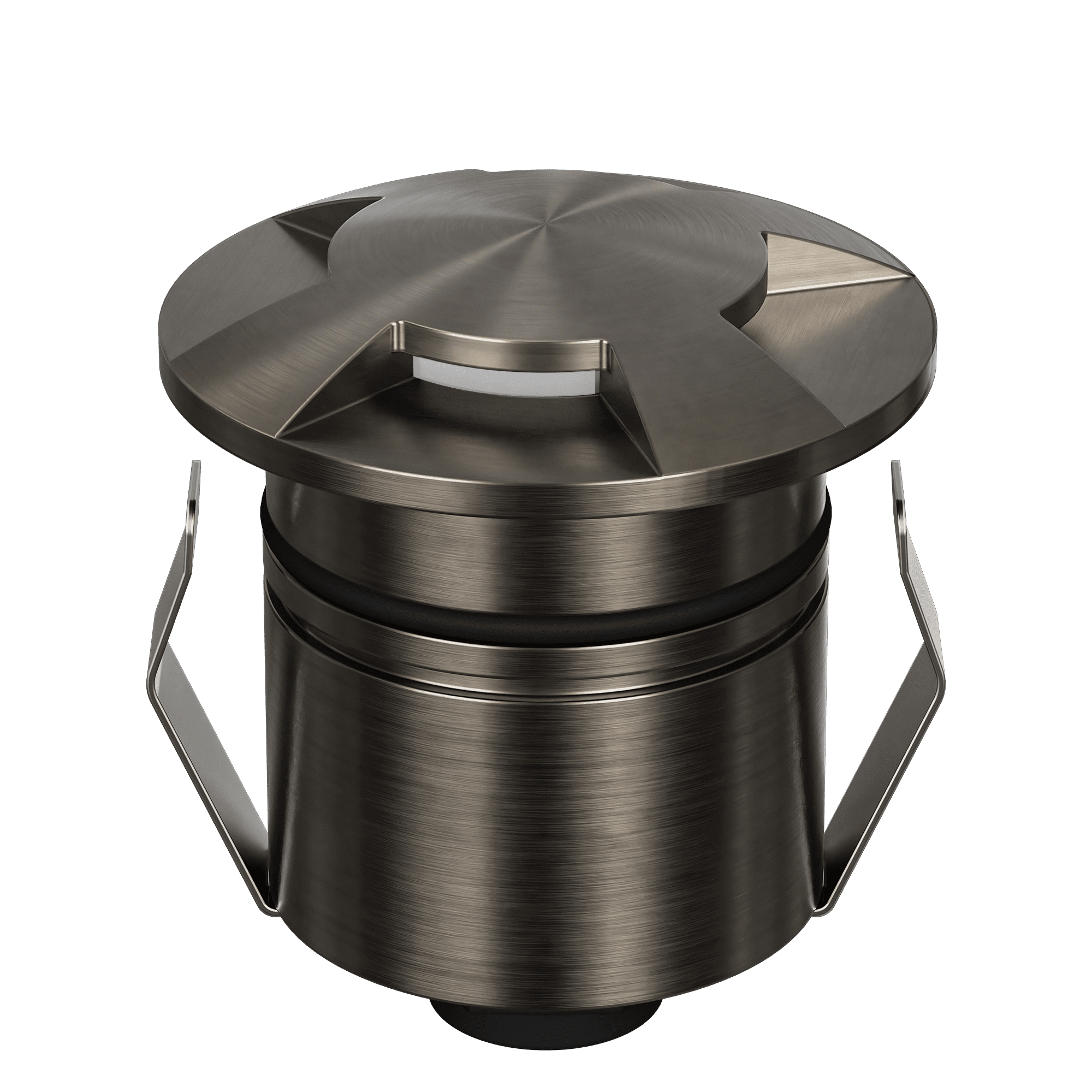

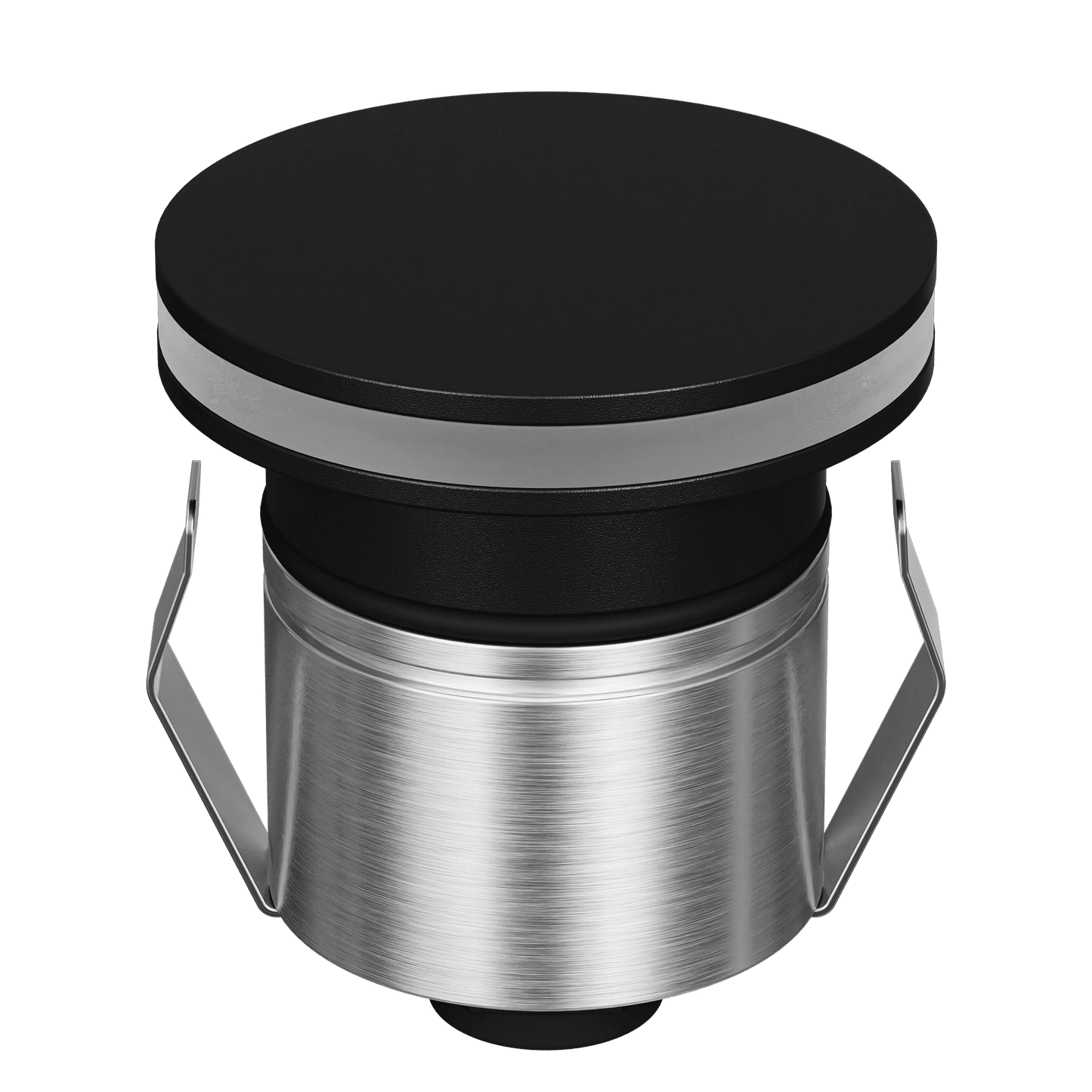

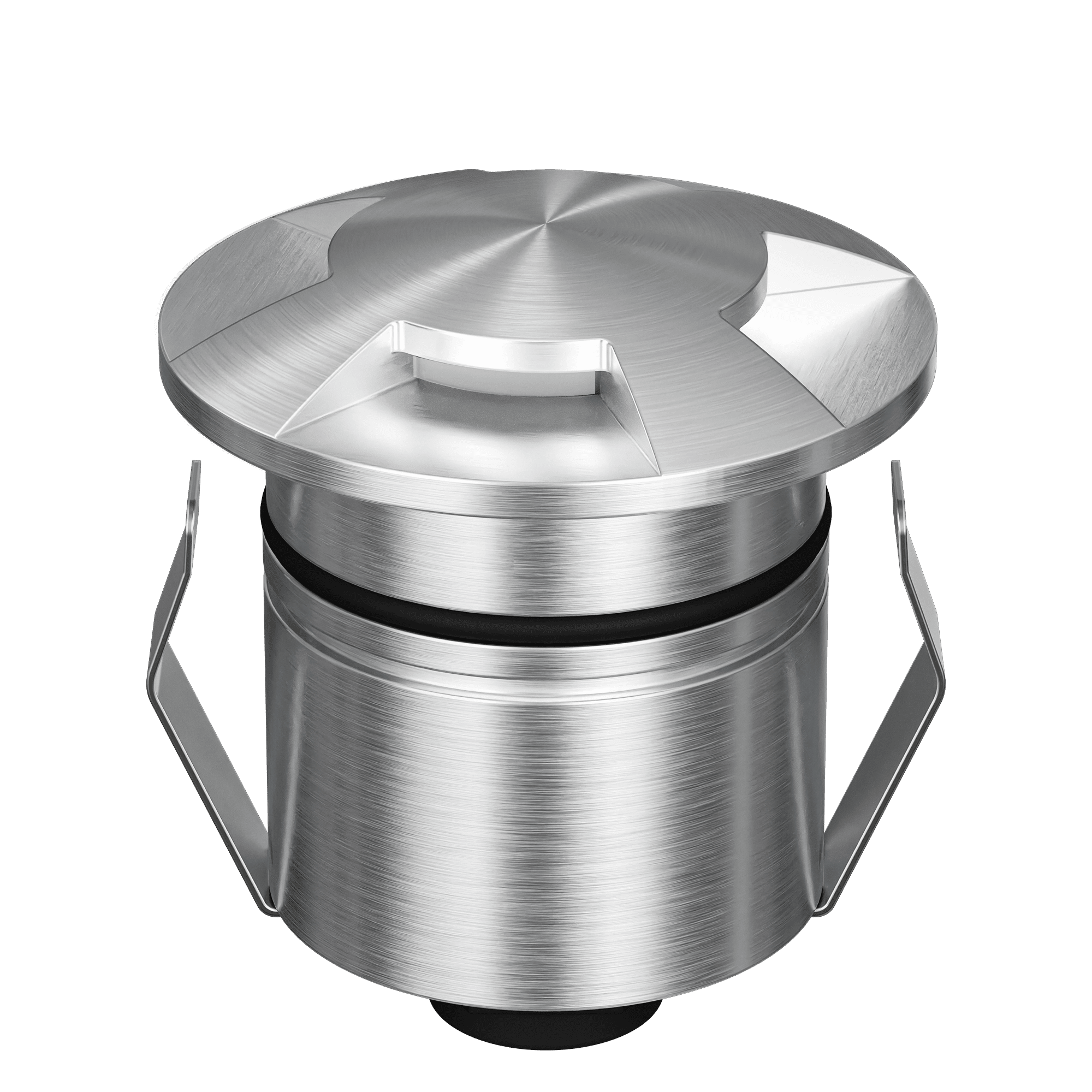

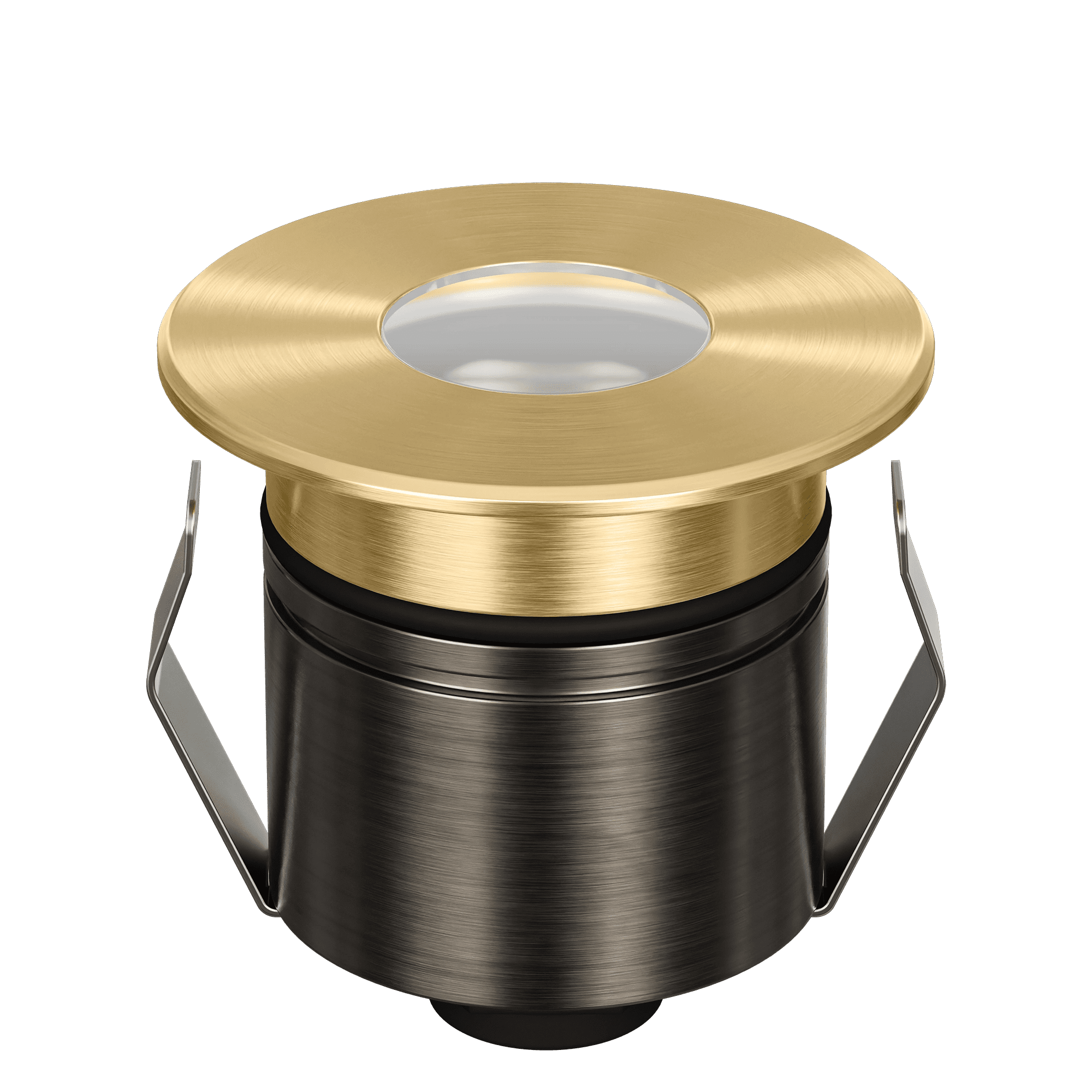

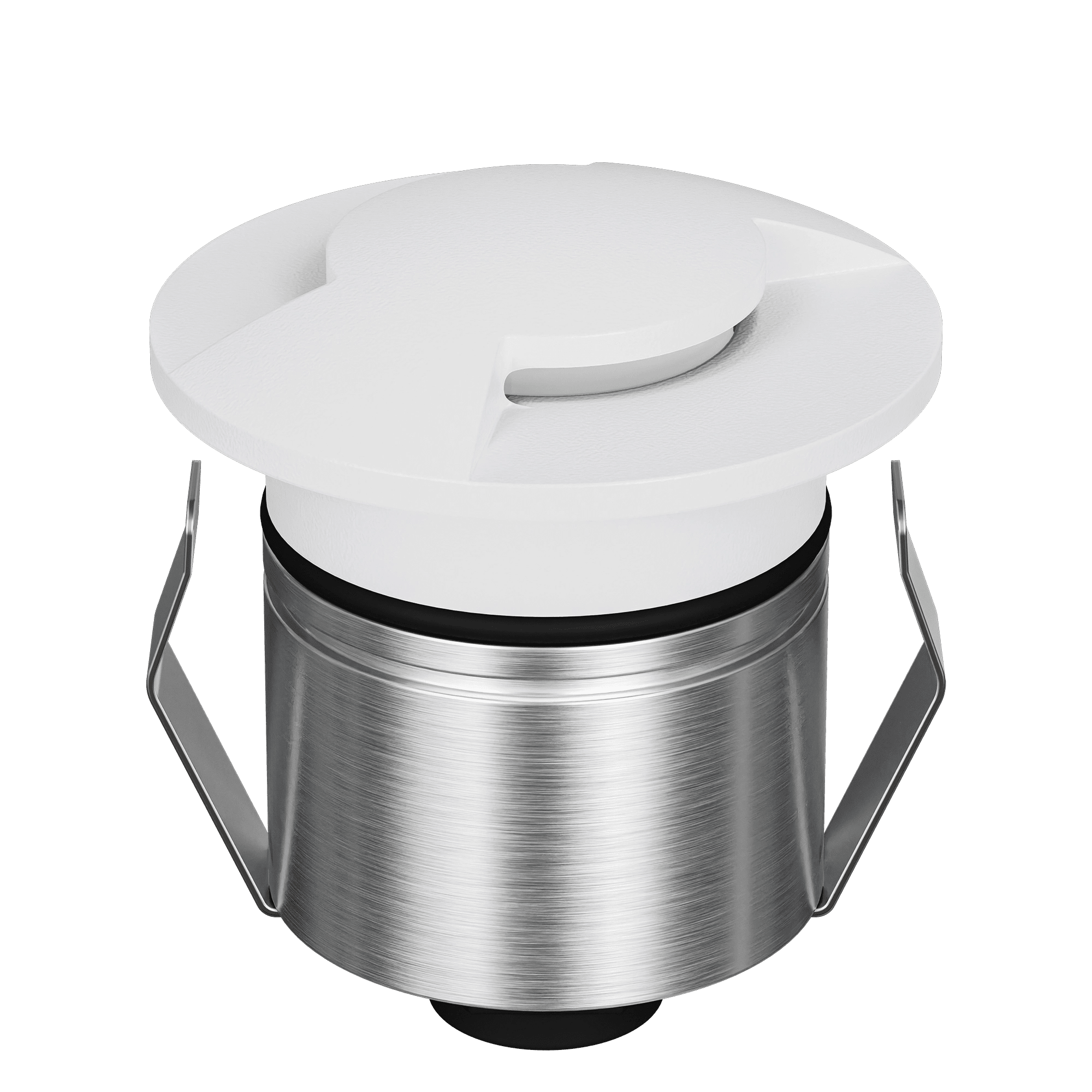

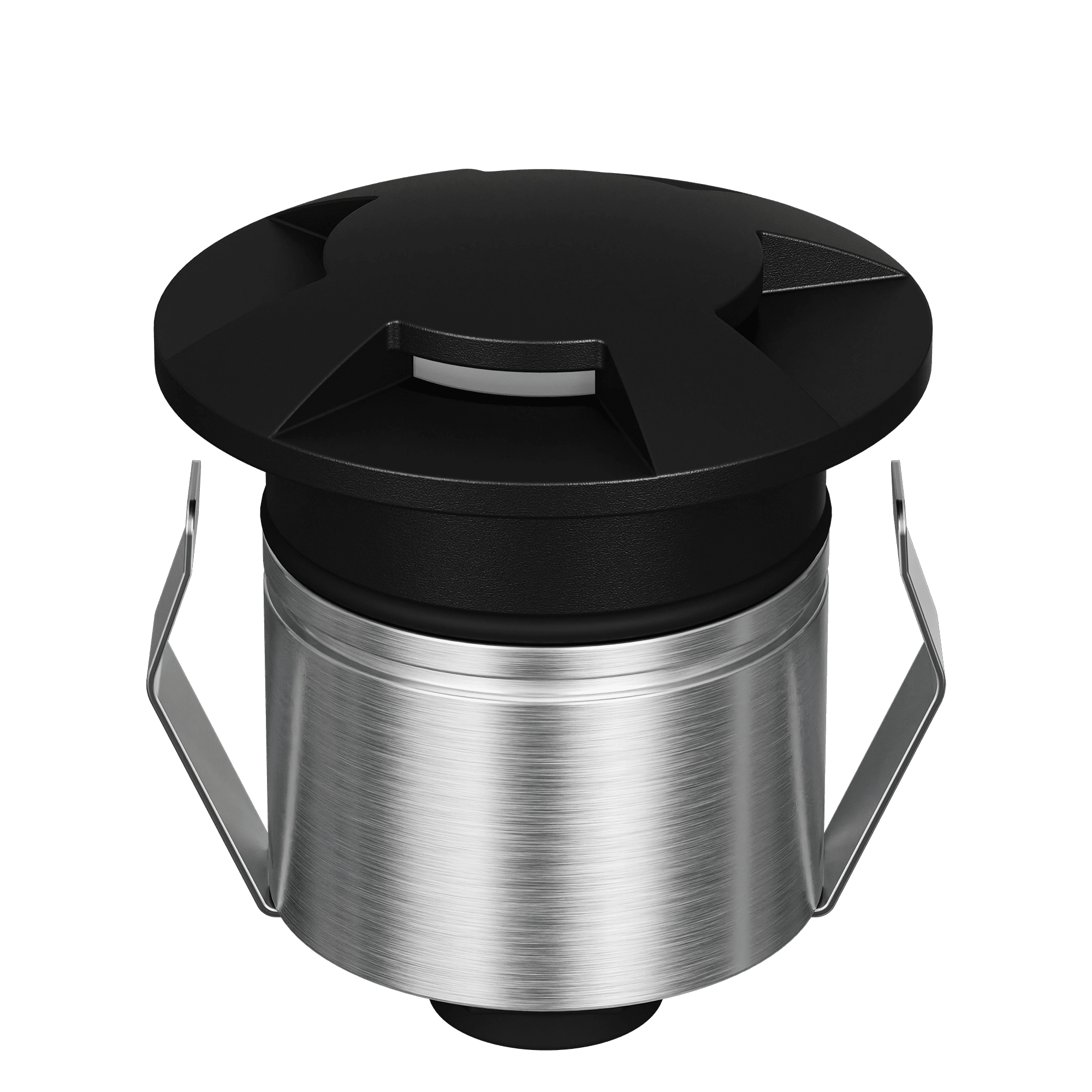

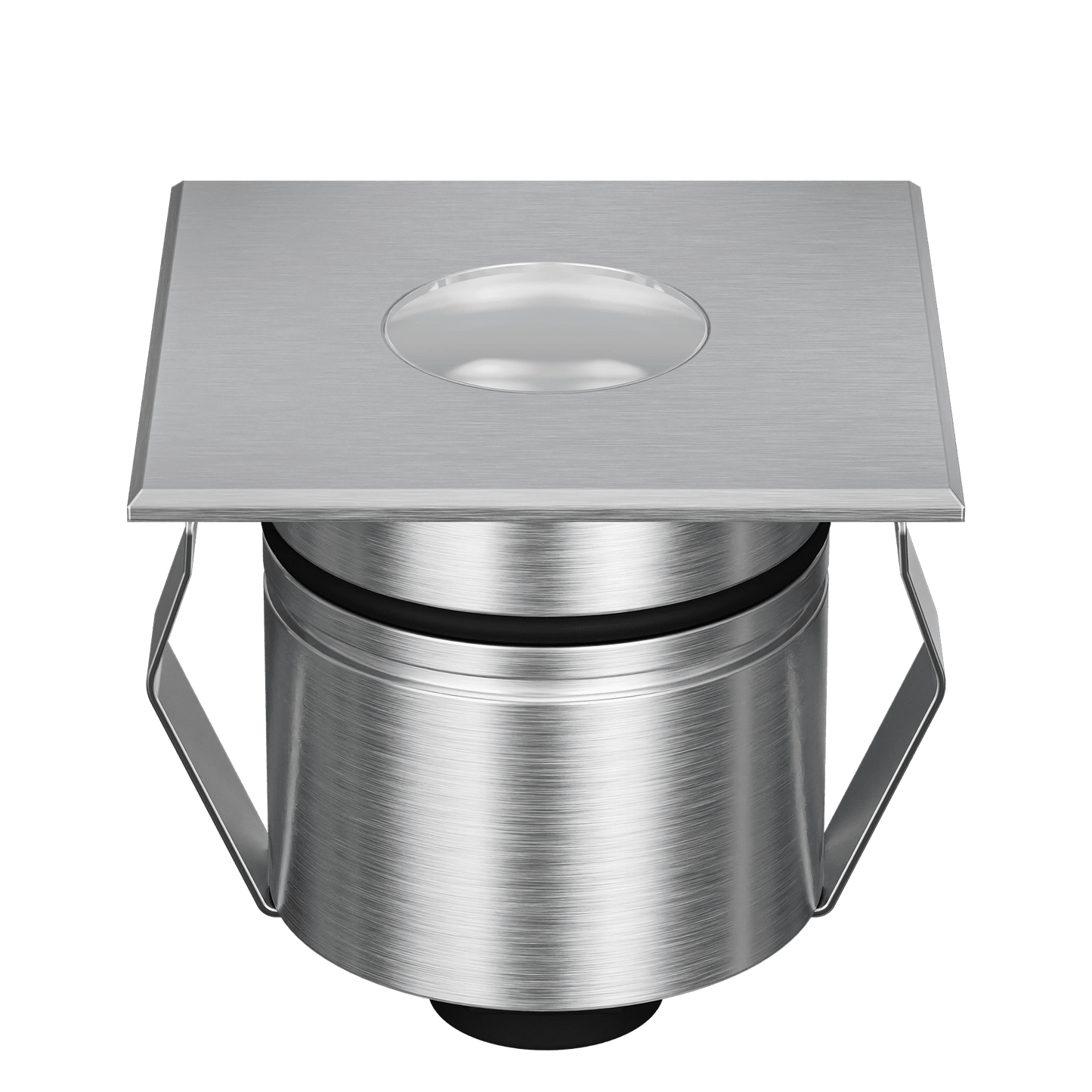

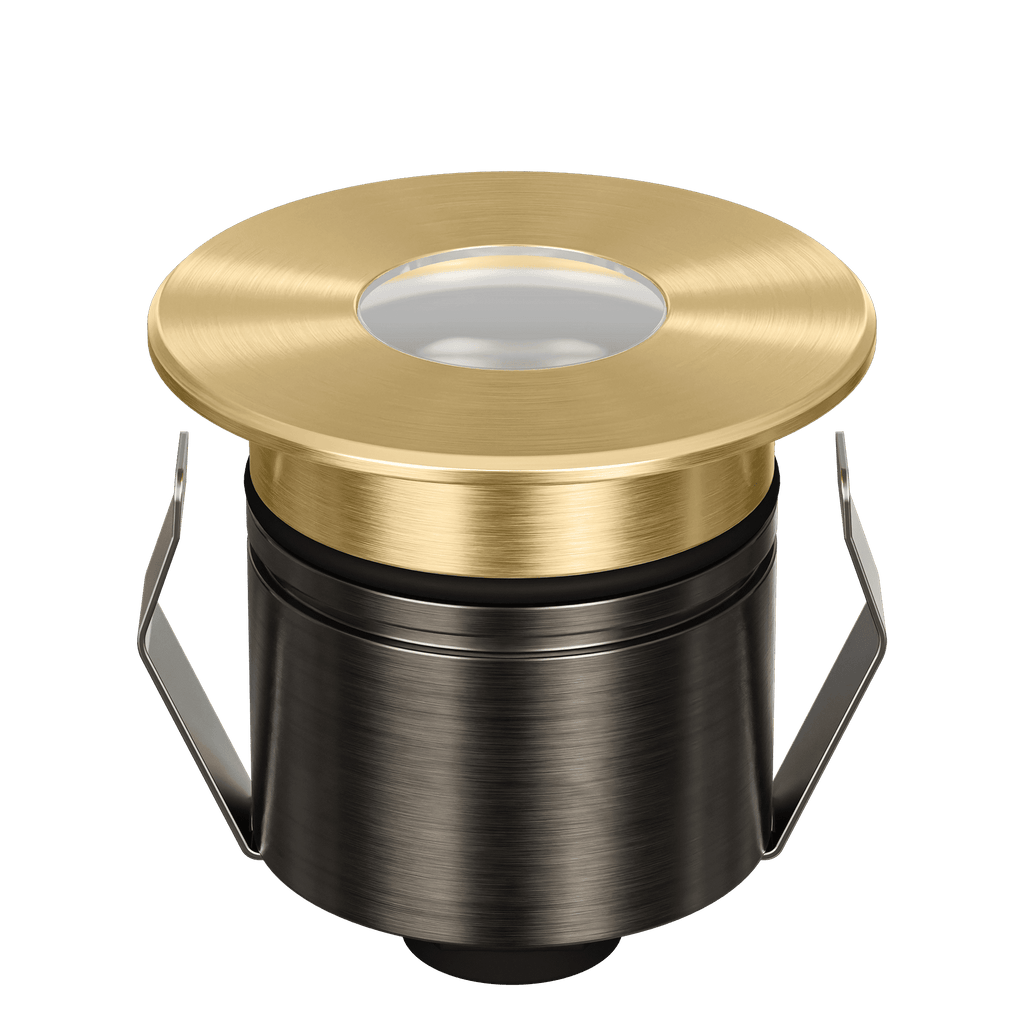

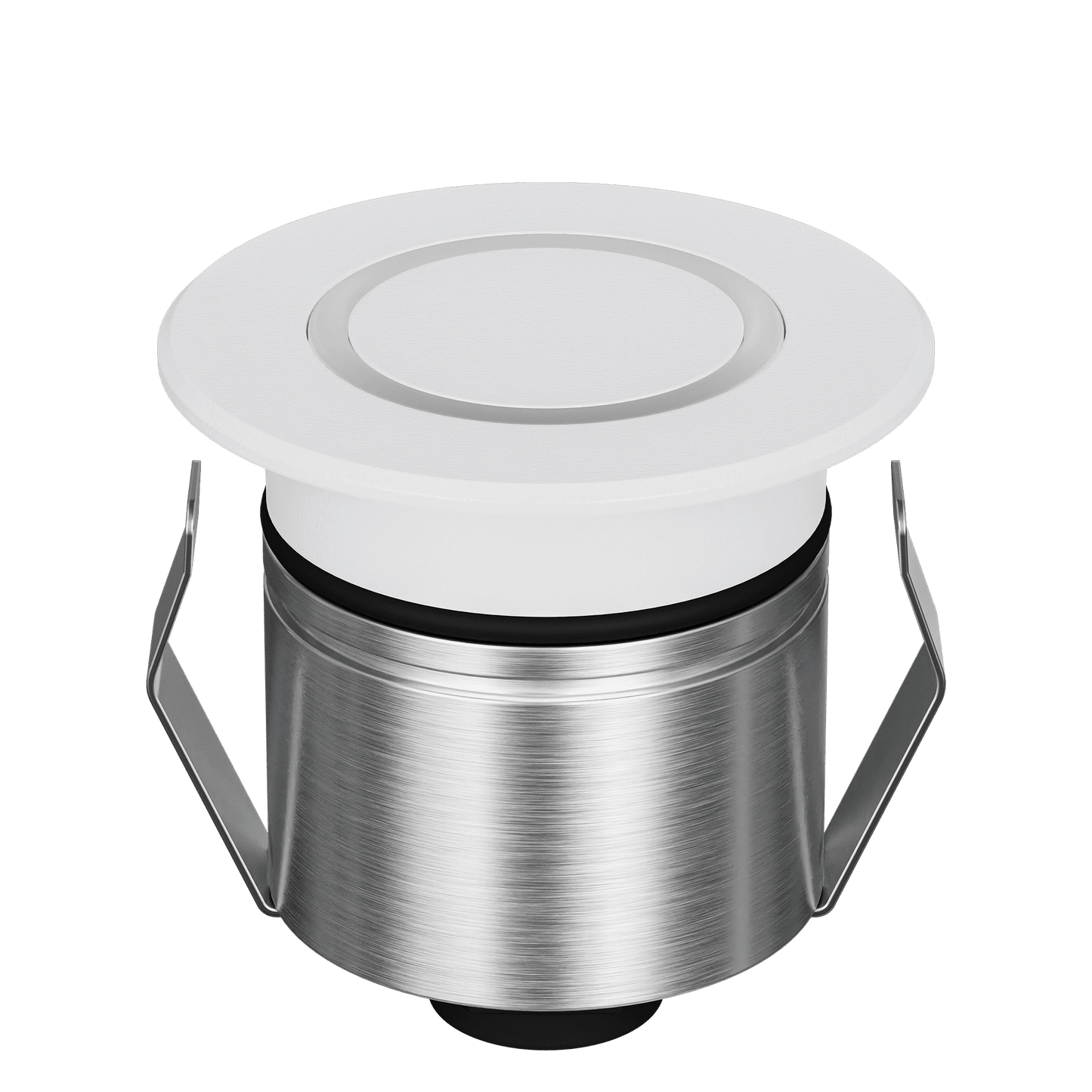

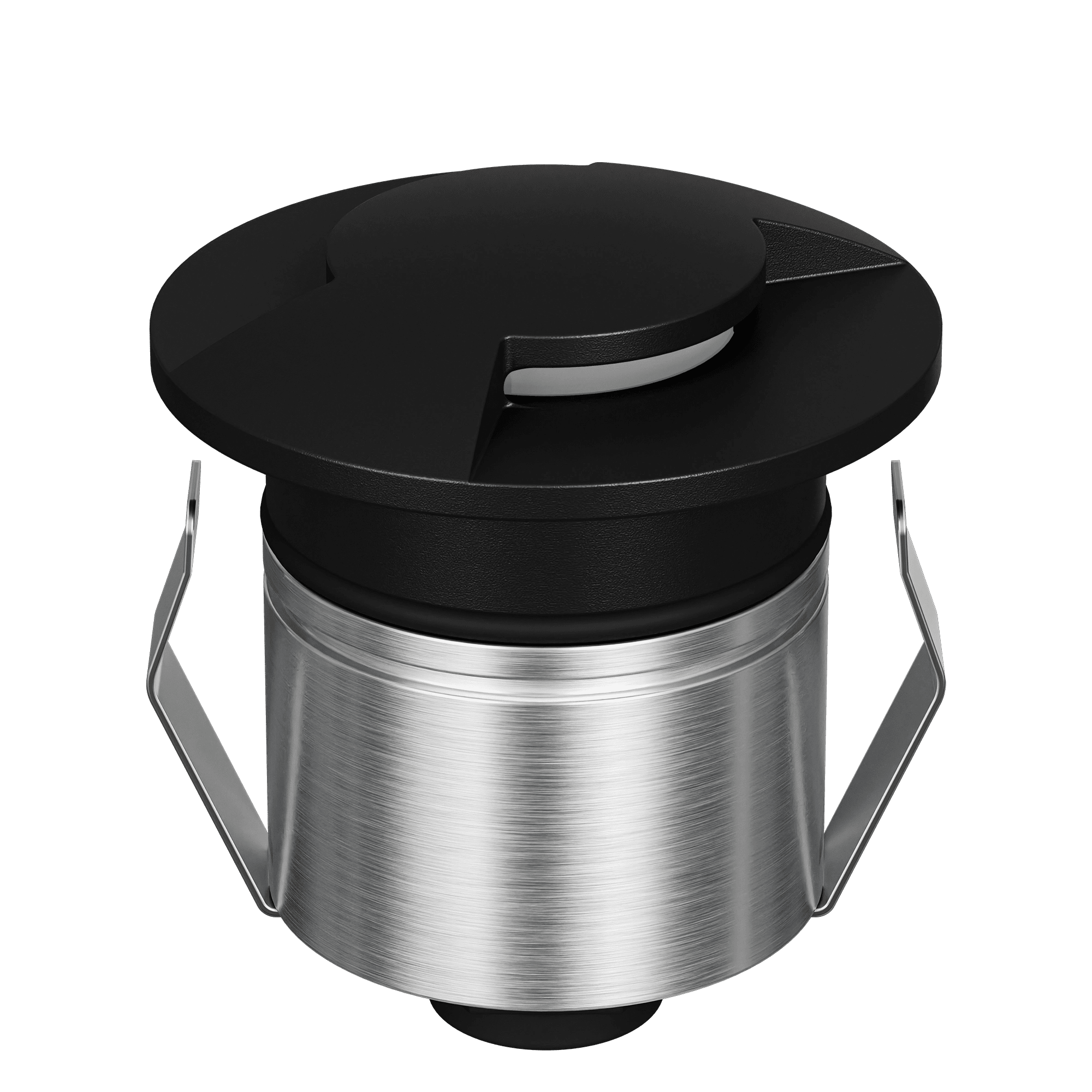

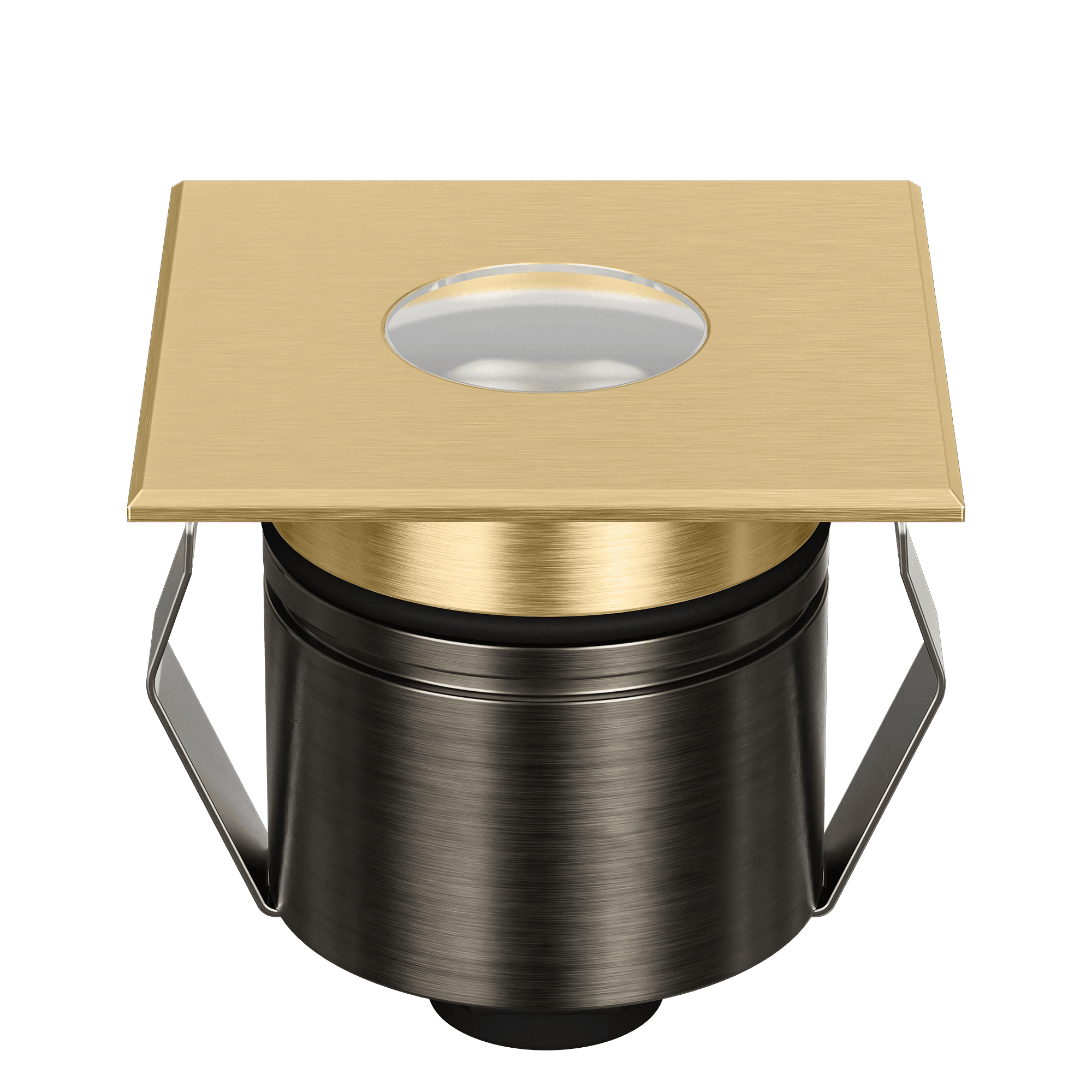

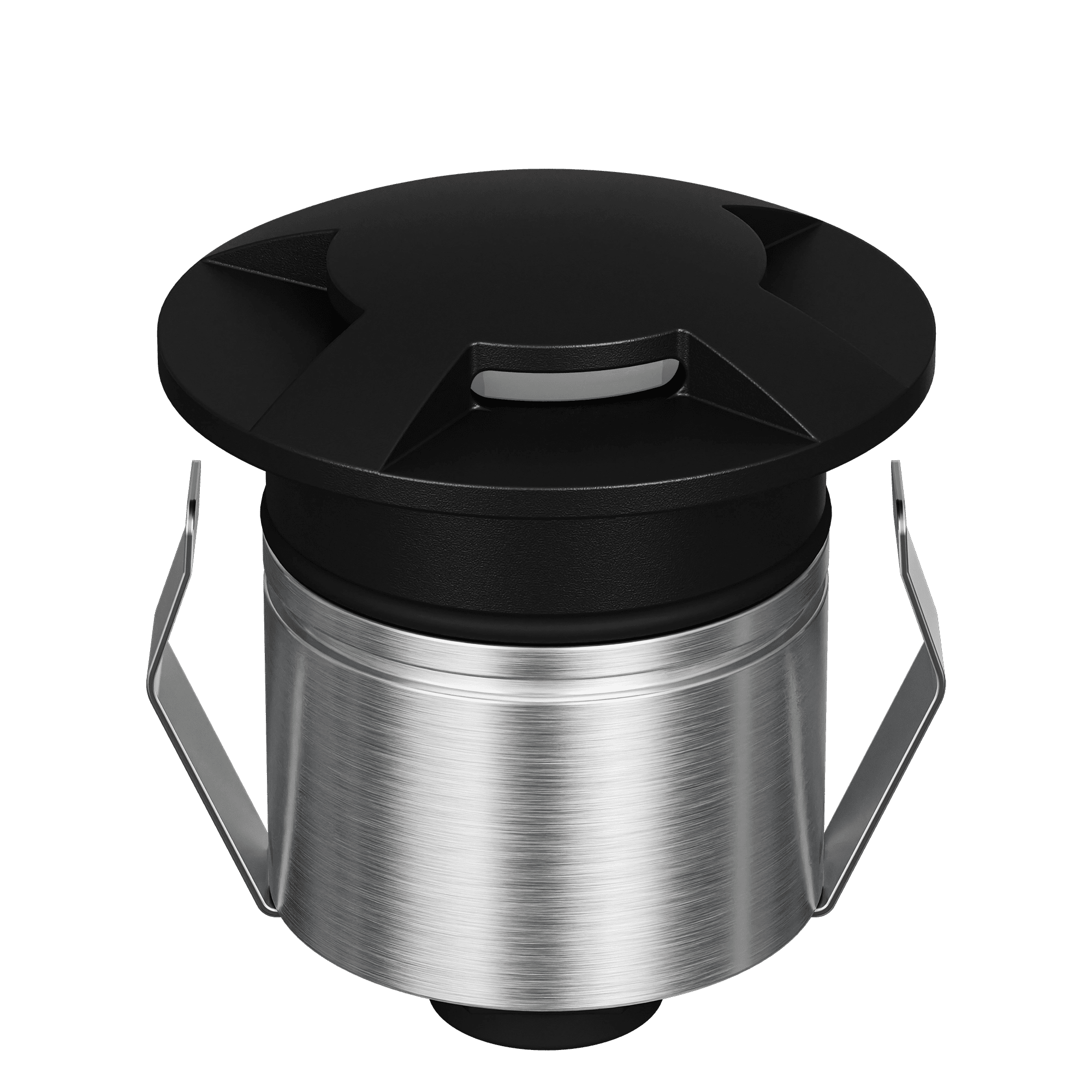

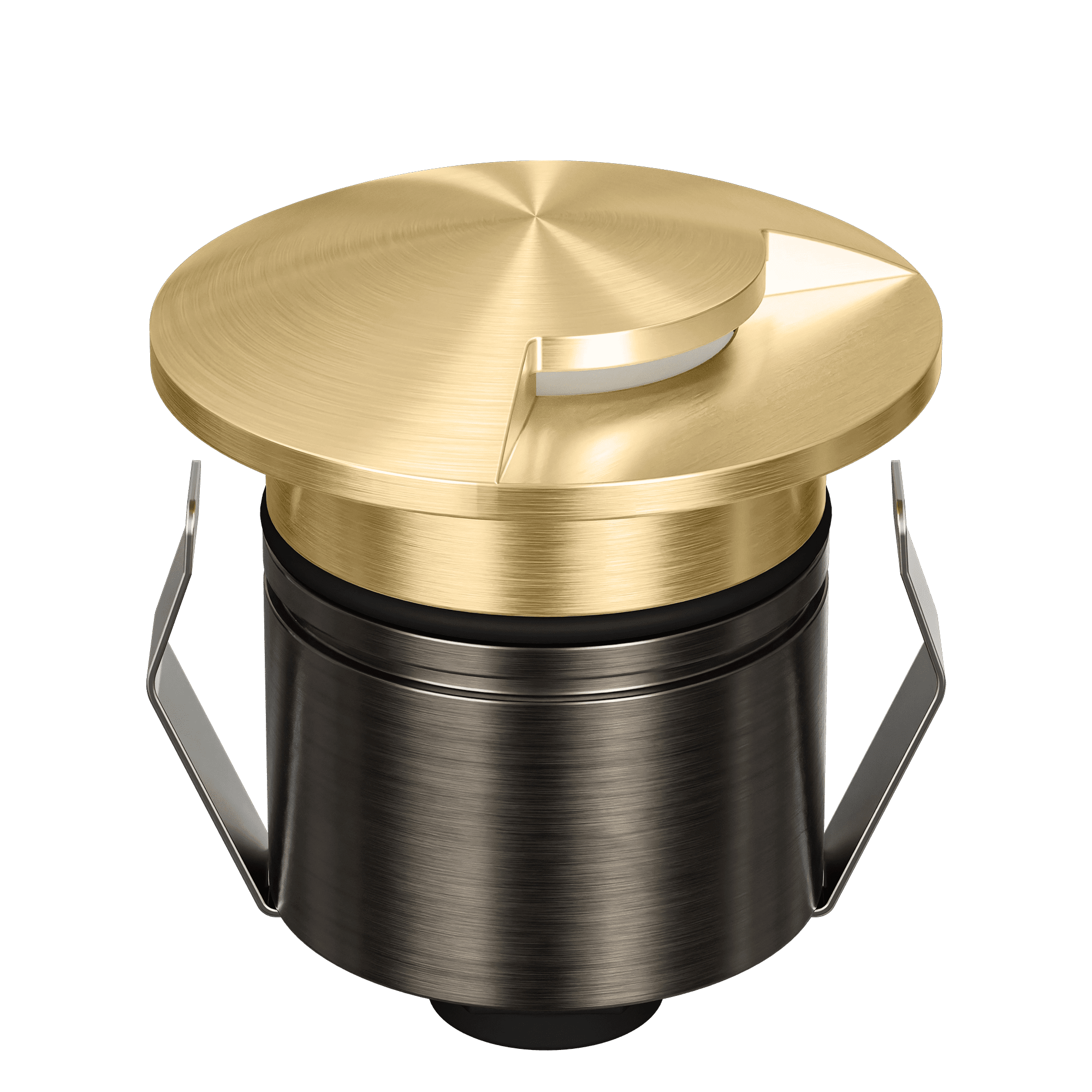

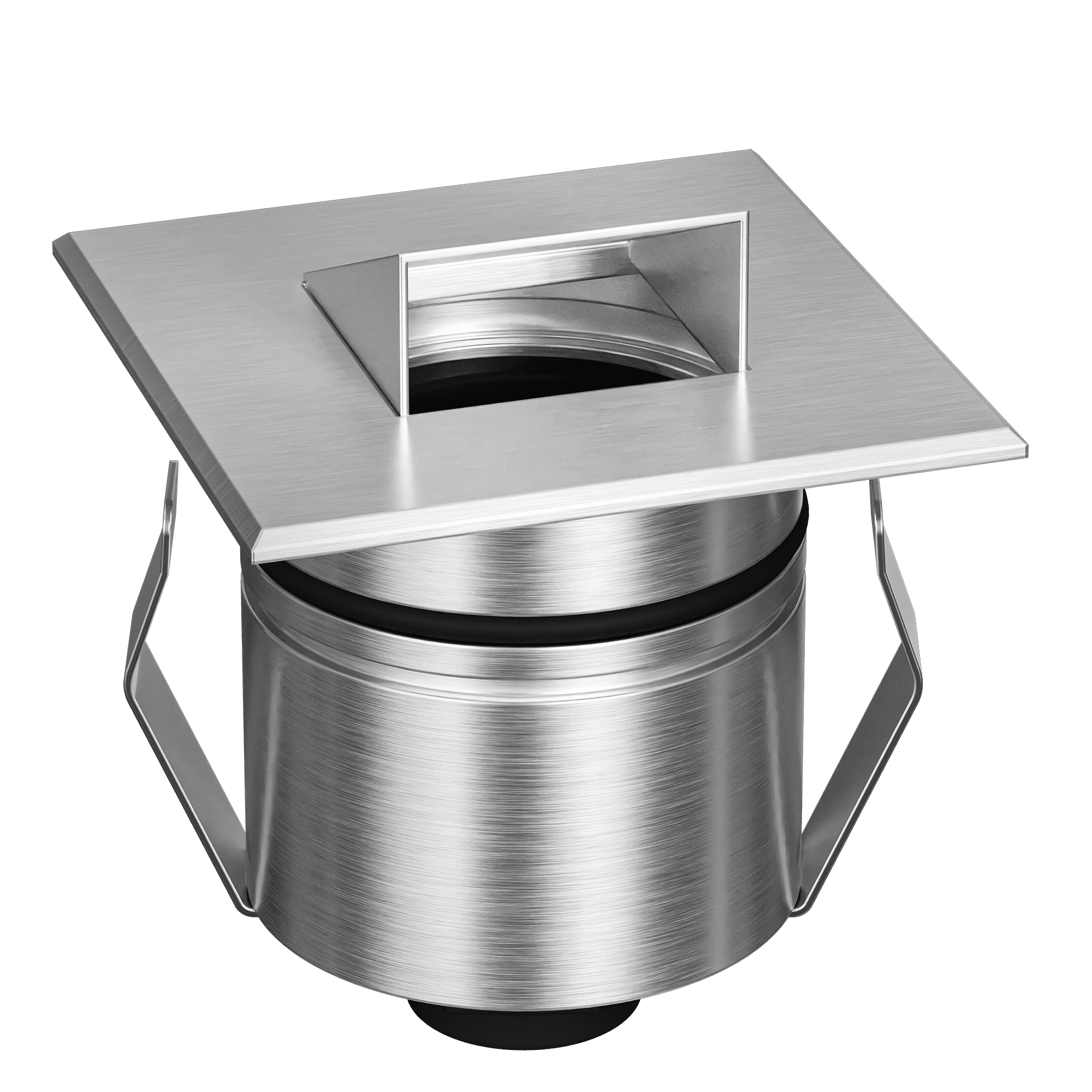

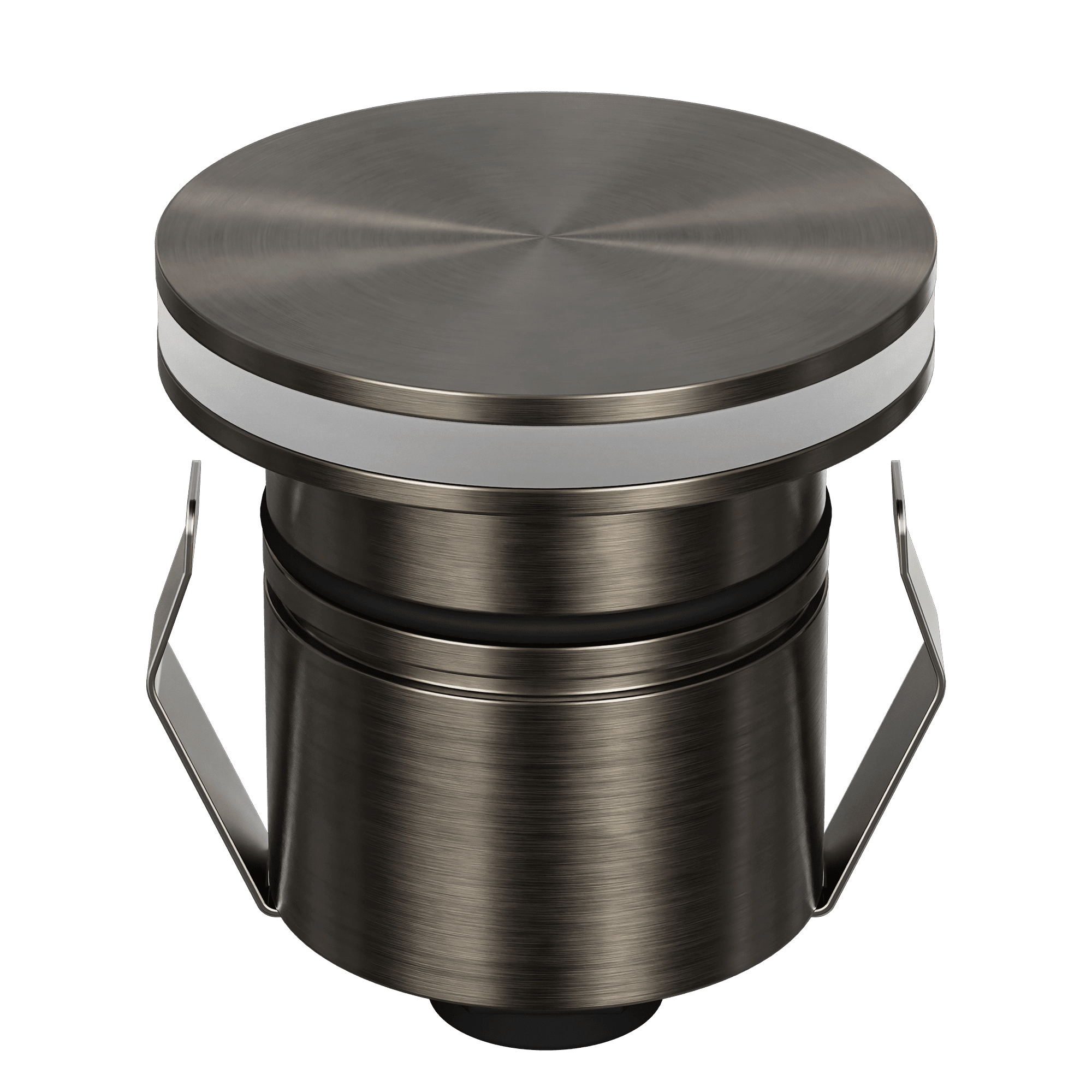

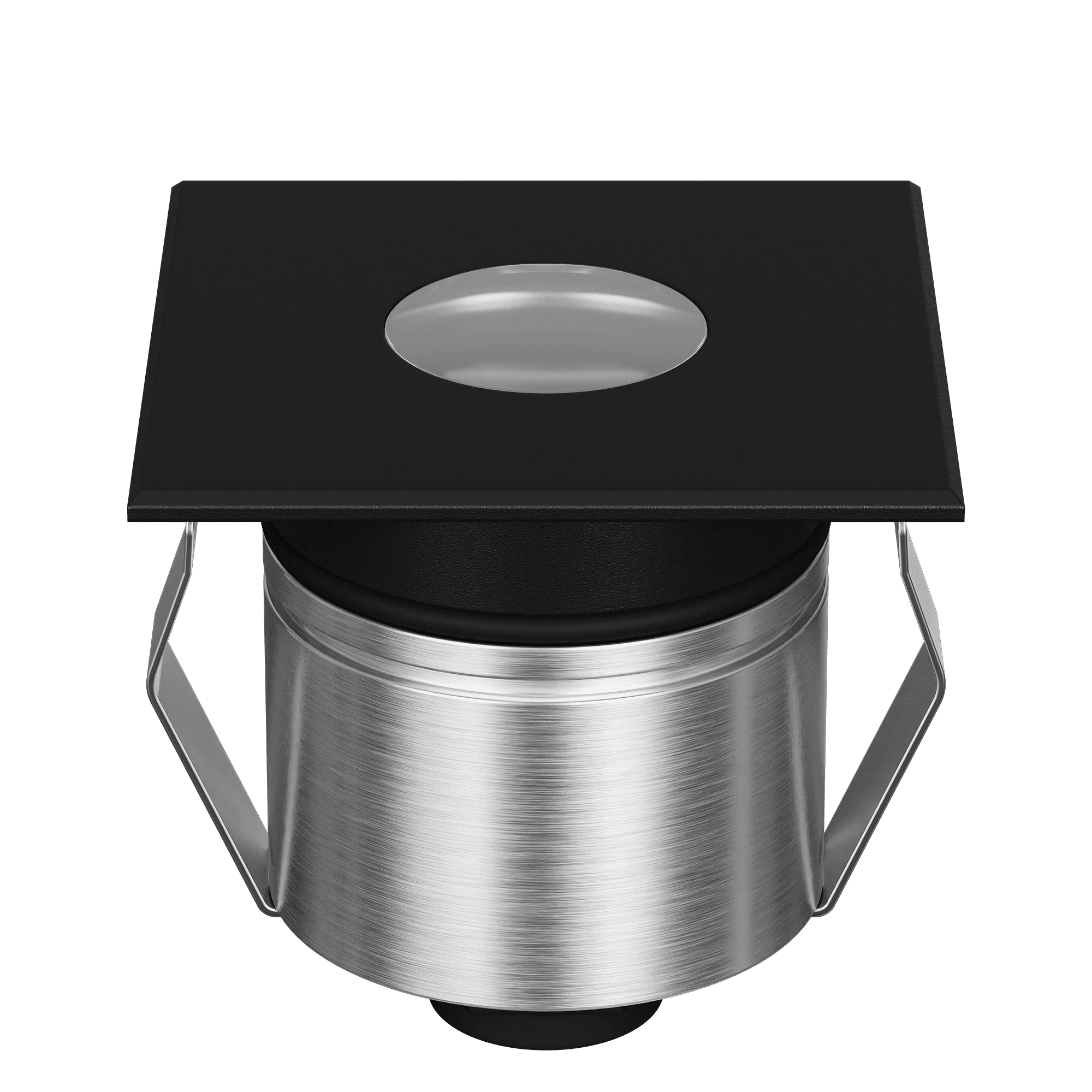

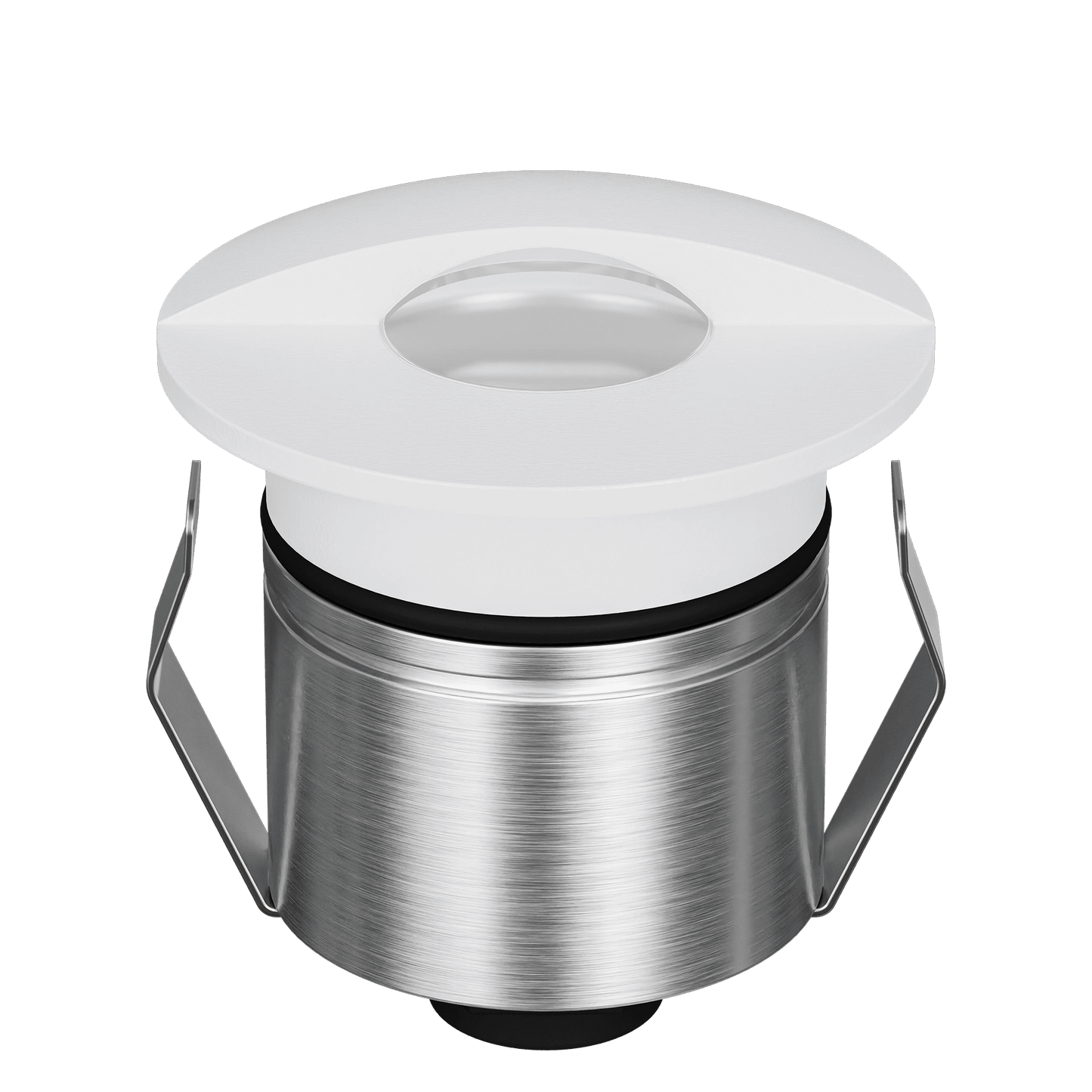

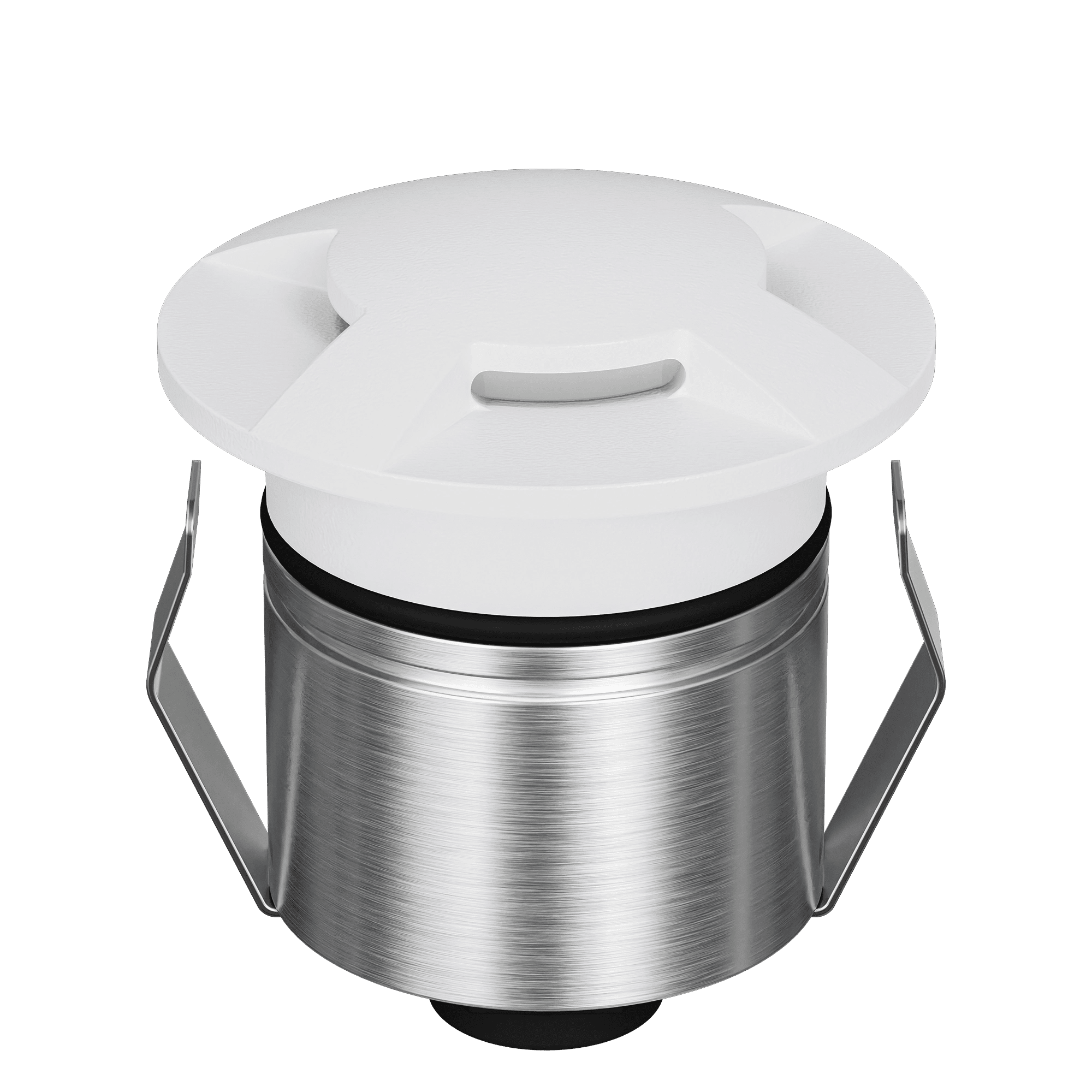

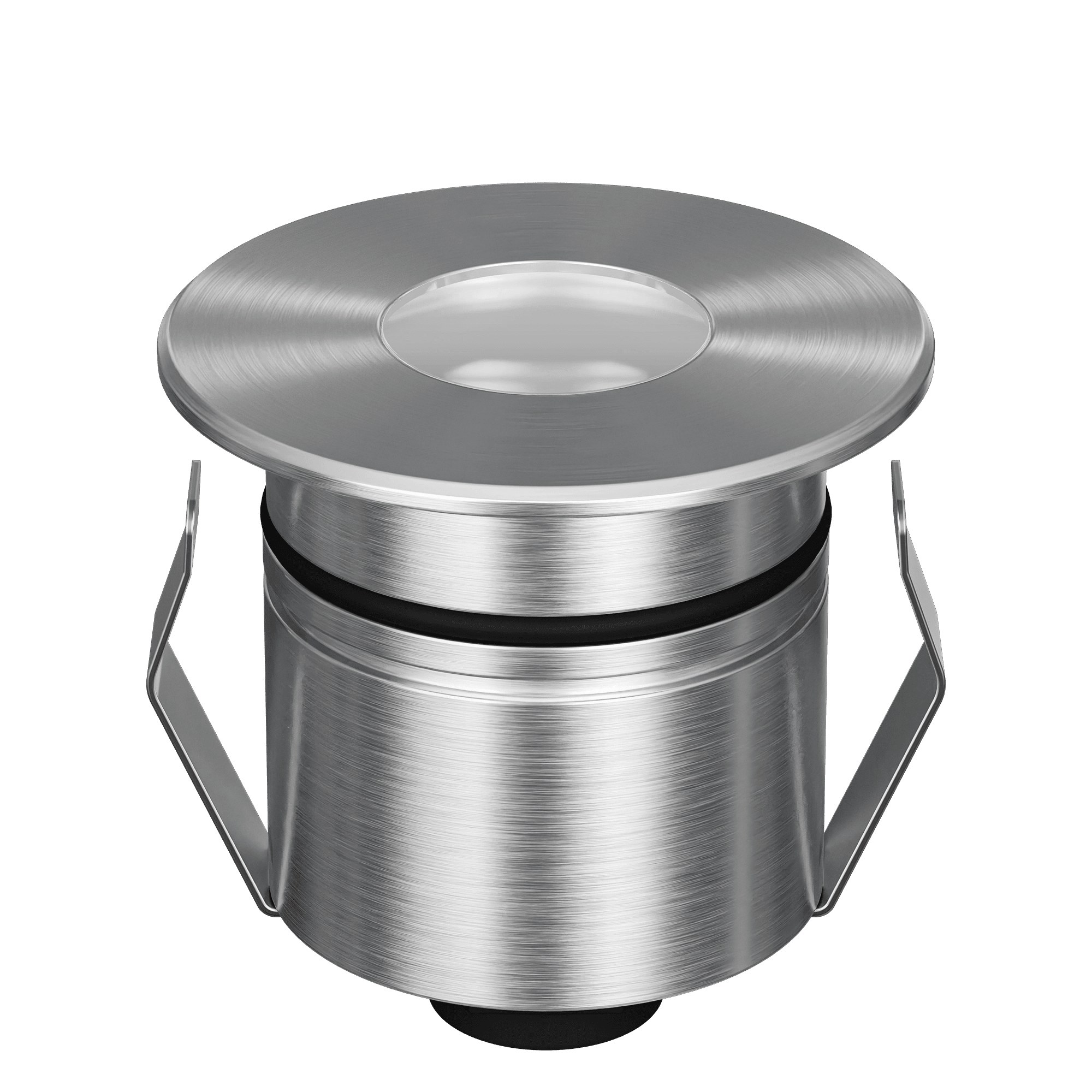

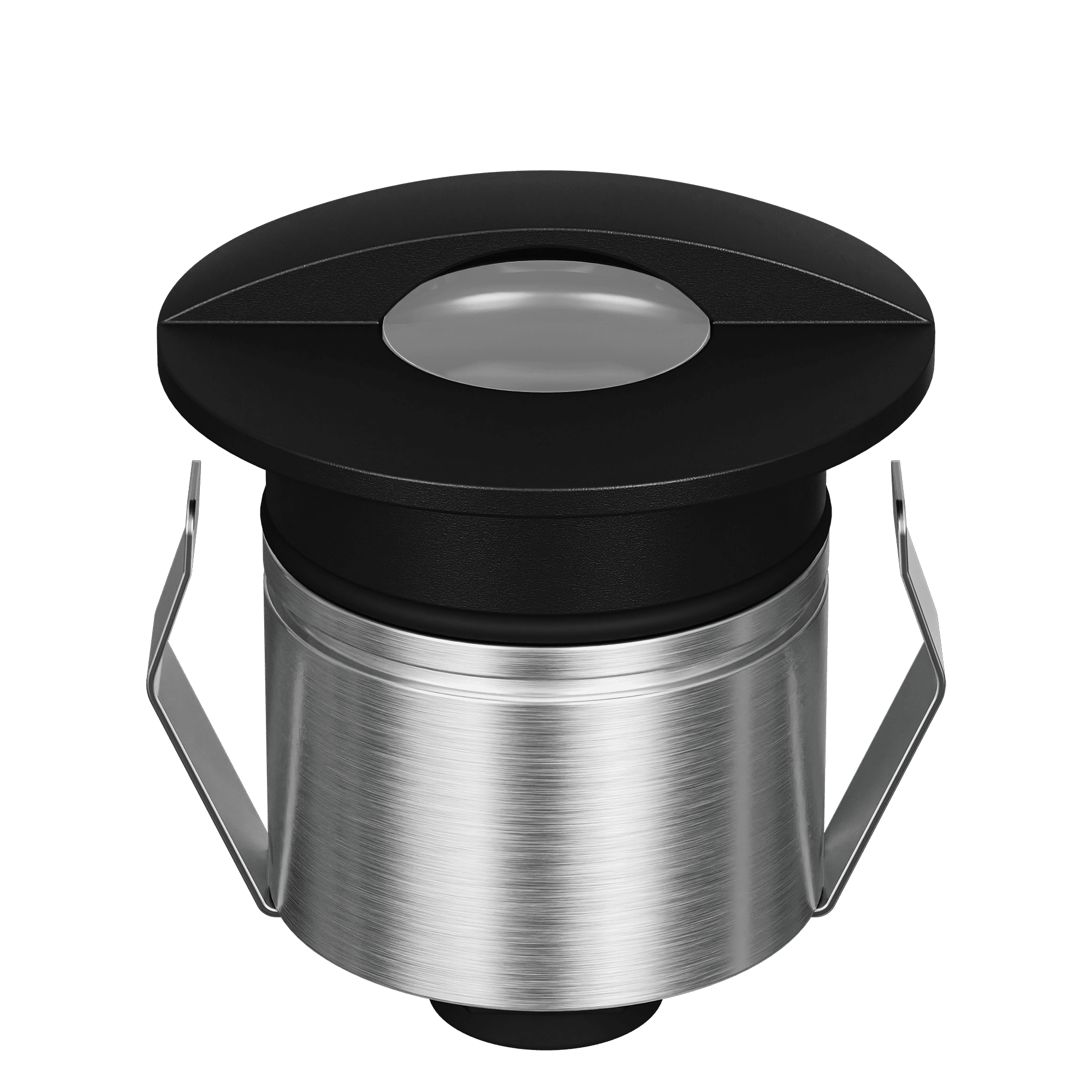

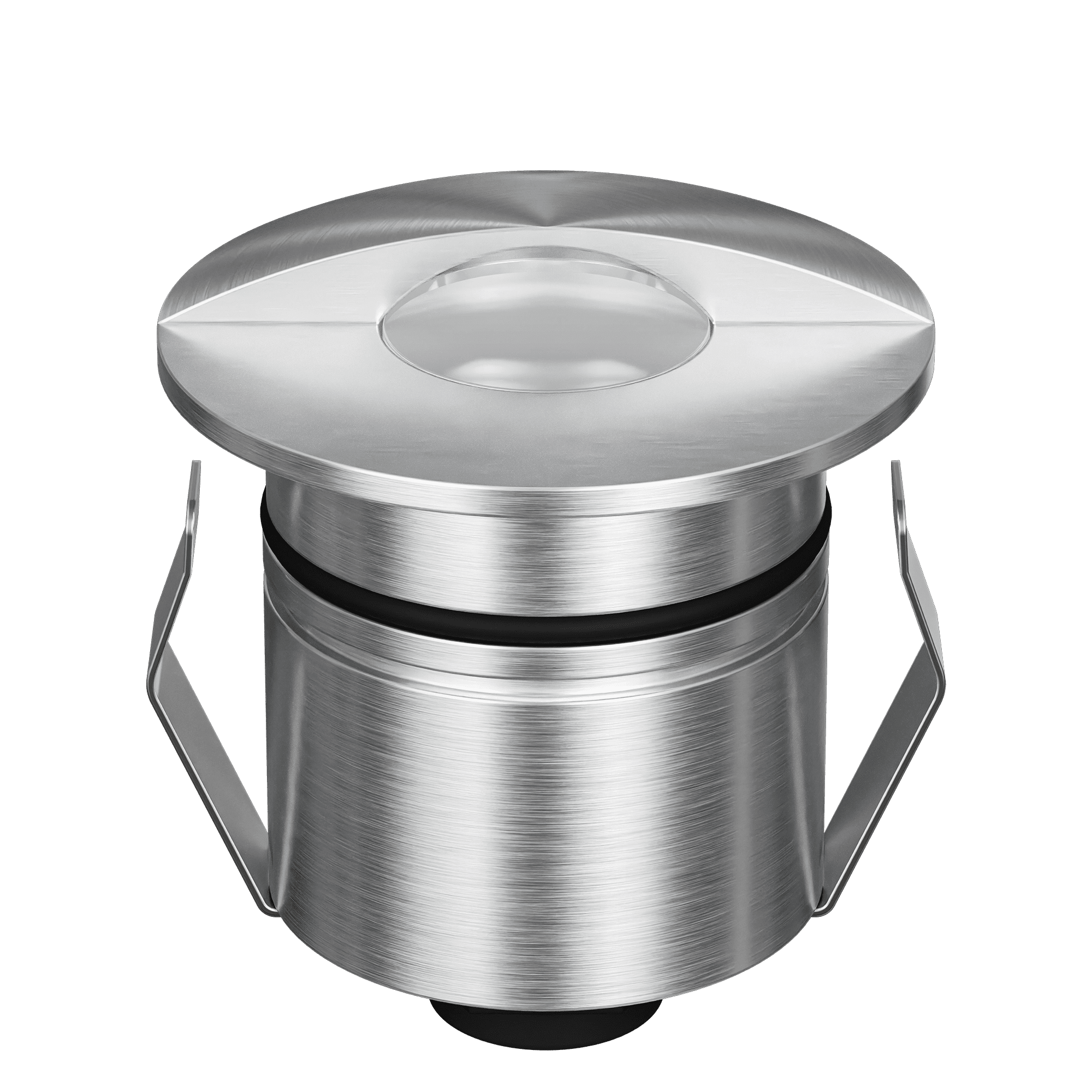

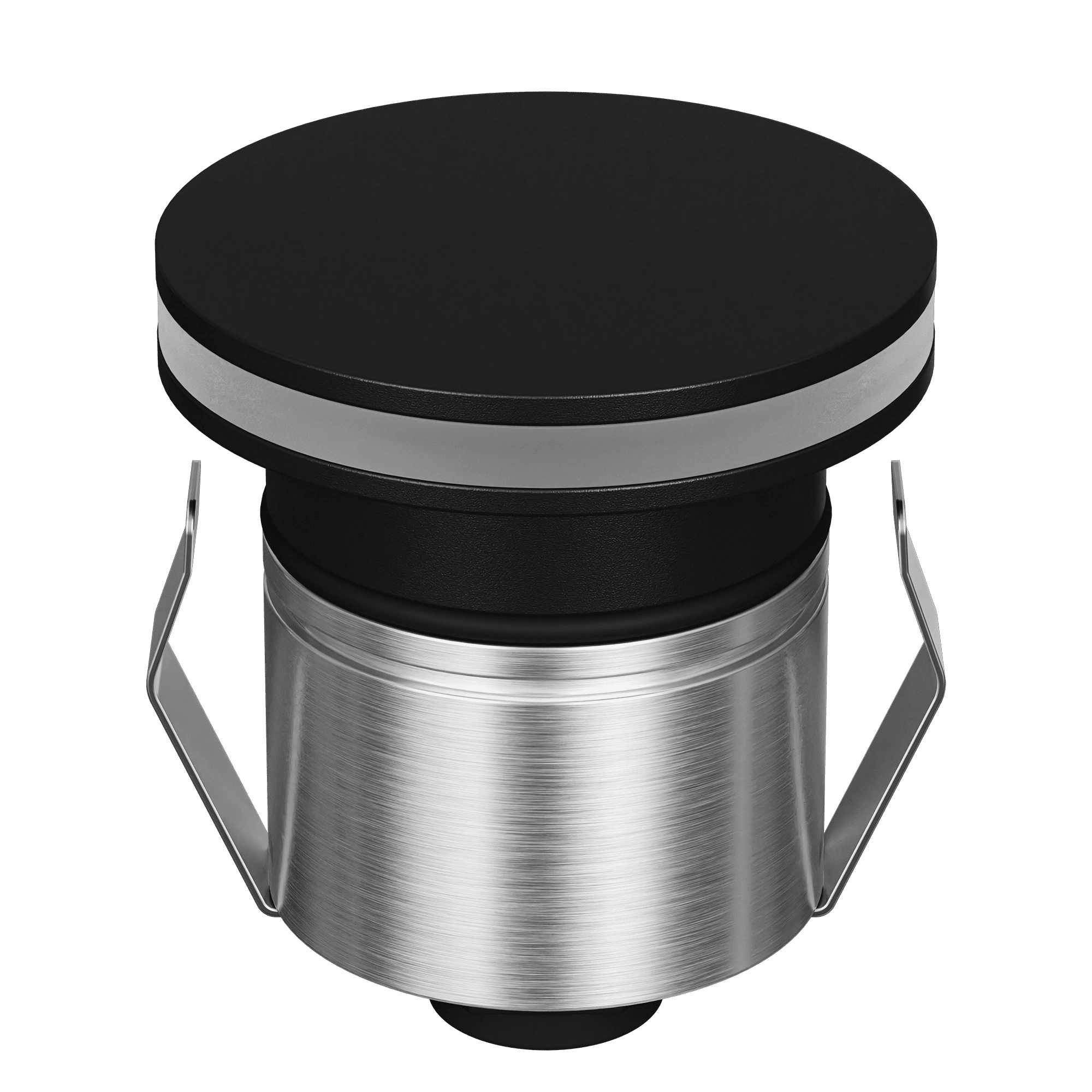

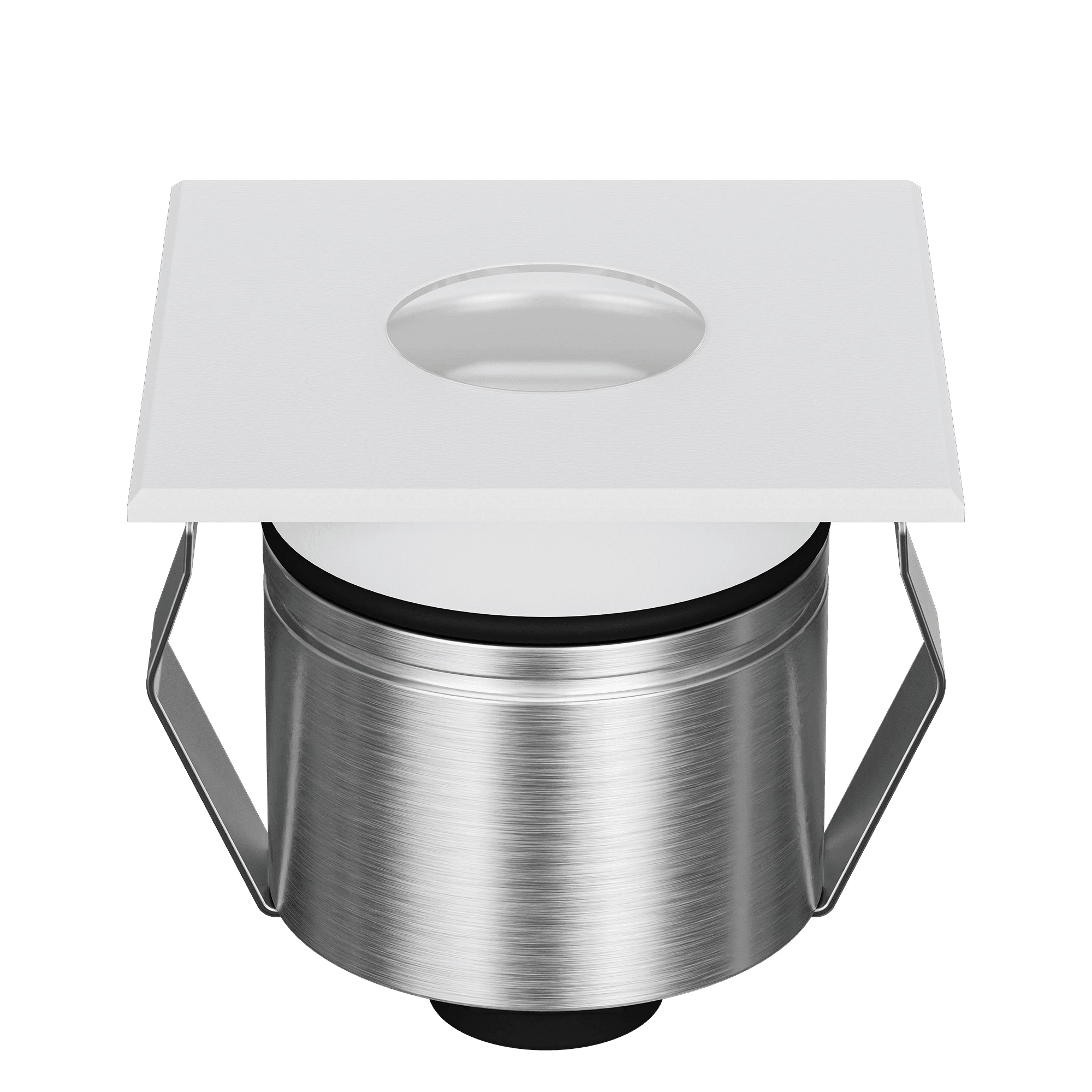

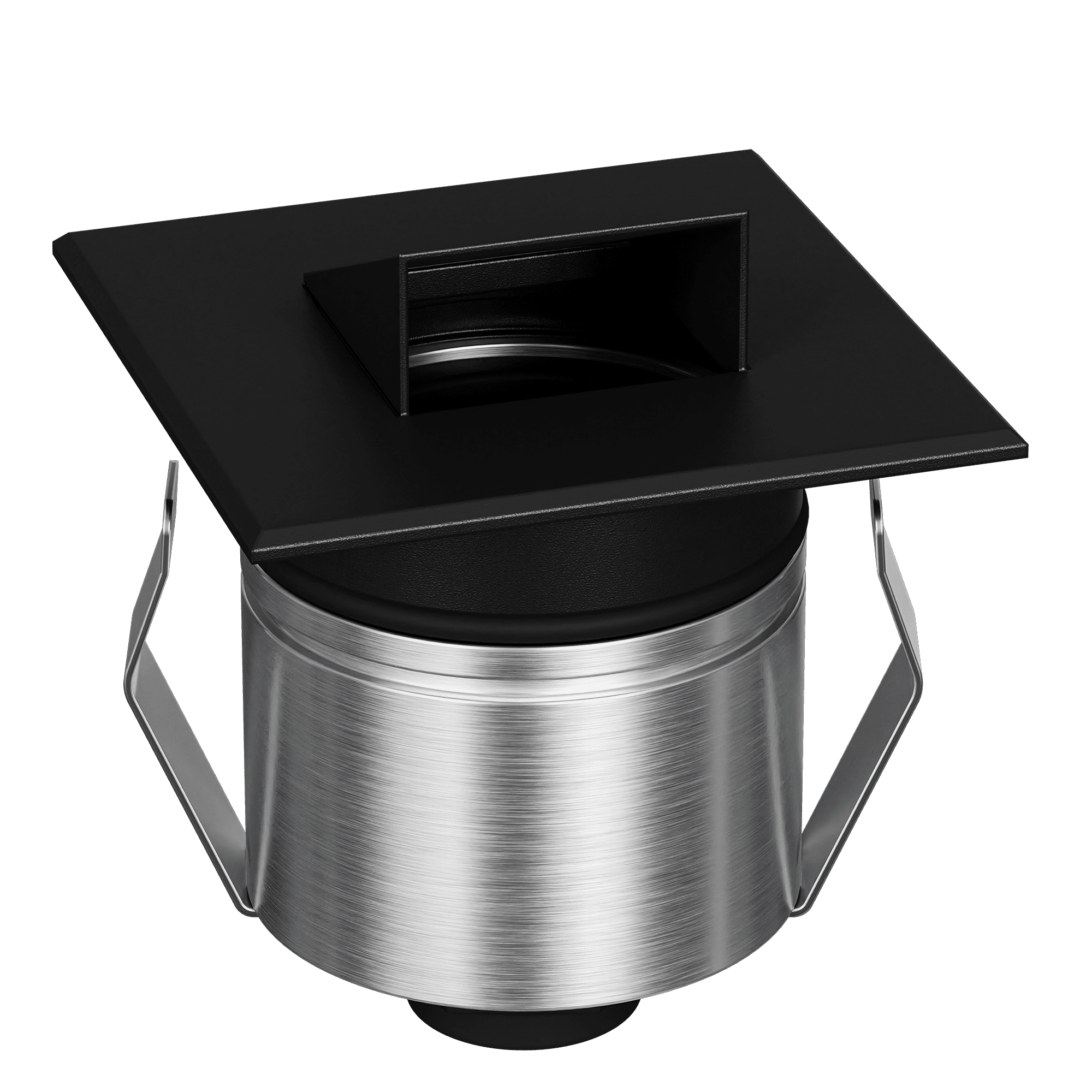

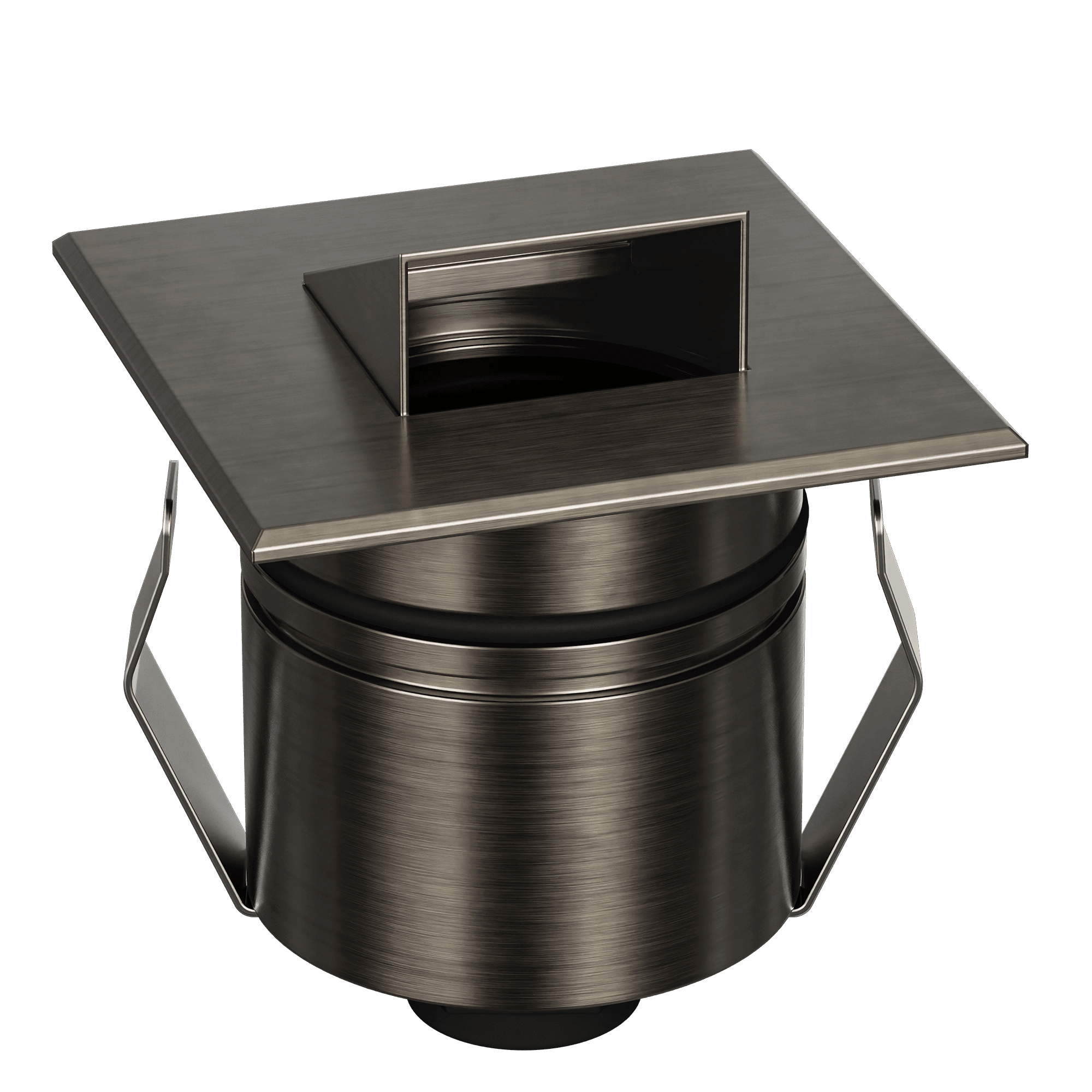

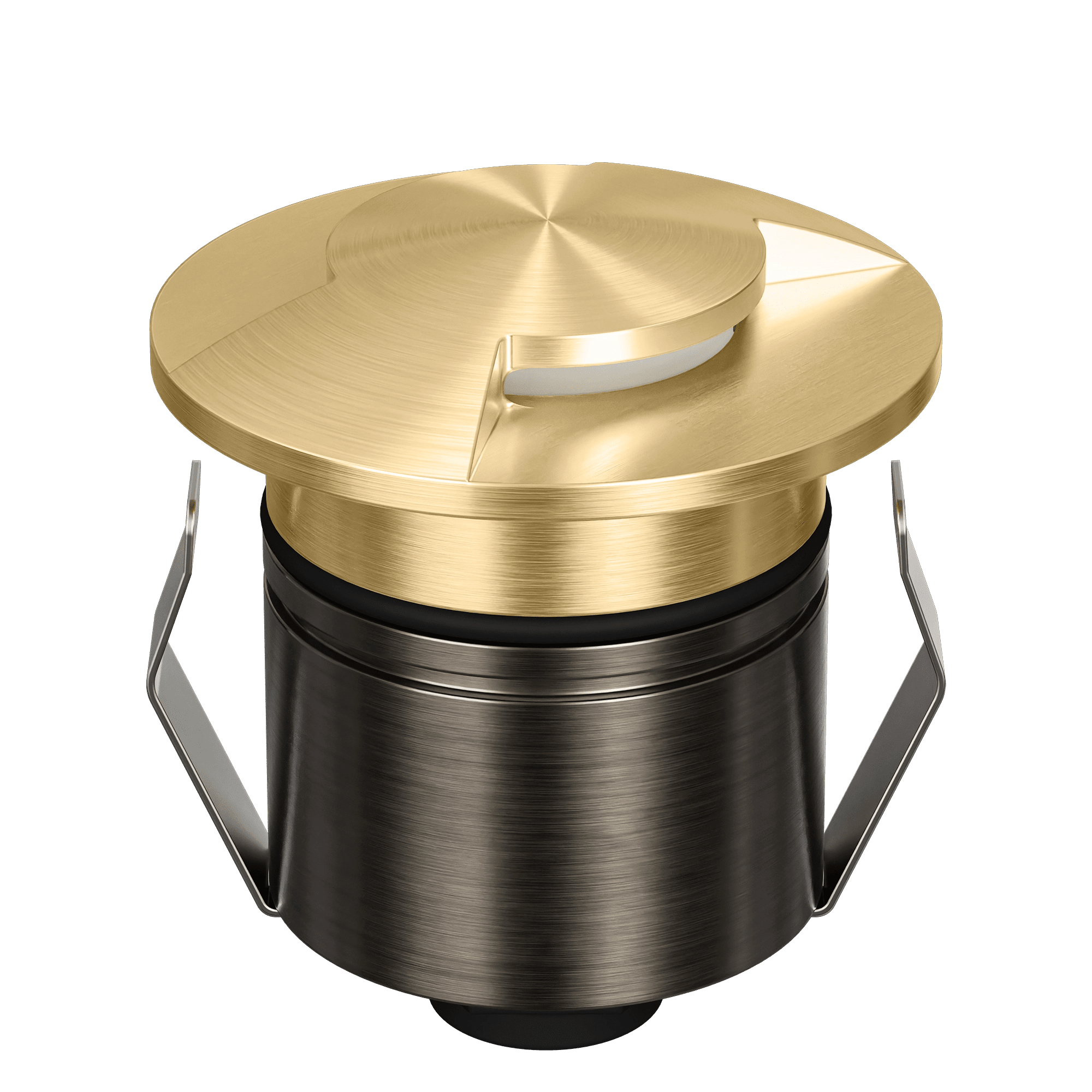

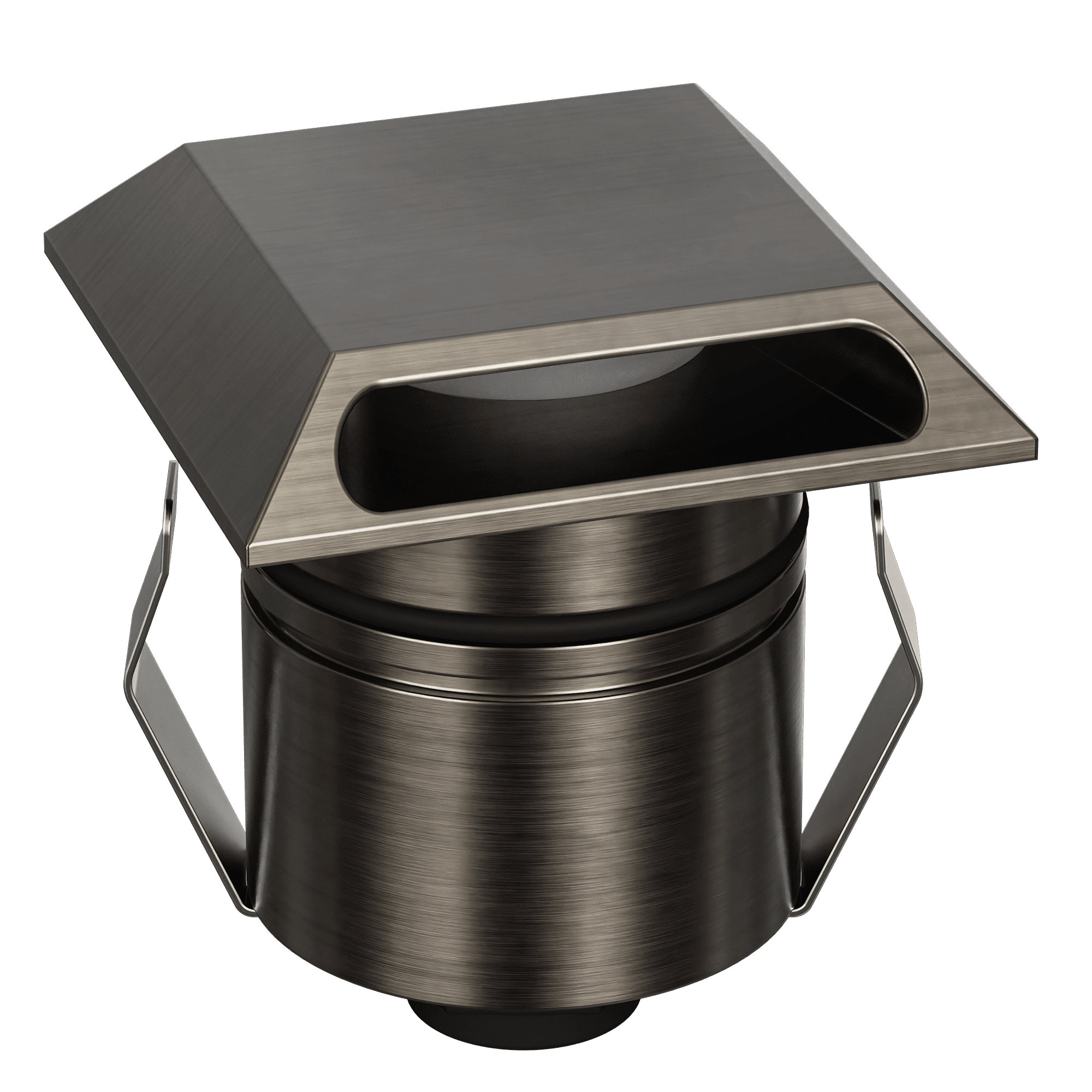

Fascia shapes: Round Open, Square Open, Round Slot, Square Slot, Square Hood, Eyelid, Halo, Ring, and multiway 1-Way, 2-Way, 3-Way & 4-Way
-
Finishes: Antique Brass, Black, White, Brushed Brass and Stainless Steel
Features
- 55mm inground light — Ø43mm cutout (without cannister)
- 2.5W RGBW LED — colour-changeable via RGBW controller
- IP67 rated — waterproof; IK10 impact rated
- Drive-over rated to 2000kg
- Built-in H2O water-stop valve
- Solid brass or stainless steel construction
- Optional accessories: beam angle lens, honeycomb and frosted diffusers
- Requires 24V DC constant voltage LED driver + RGBW controller (not included)
- 5 Year Replacement Warranty
Specifications
| Input Voltage |
12V / 24V DC (Constant Voltage) |
| Power |
2.5W LED |
| IP Rating |
IP67 |
| IK Rating |
IK10 |
| CRI |
>90 |
| Beam Angle |
19° / 36° / 60° (36° standard) |
| CCT |
3000K / 4000K / 5500K (selectable at wiring stage) |
| Lumen Output |
3000K-135lm
4000K-145lm
5500K-150lm |
| Overall Diameter |
Ø55mm |
| Depth |
54mm |
| Cutout |
Ø43mm (without cannister) / Ø48mm (with cannister) |
| Drive Over |
1500kg |
| Dimmable |
No |
| Material |
Solid Brass / Stainless Steel |
| Driver |
Requires 12V or 24V DC constant voltage LED driver (not included) |
| Warranty |
5 Year Replacement Warranty |
