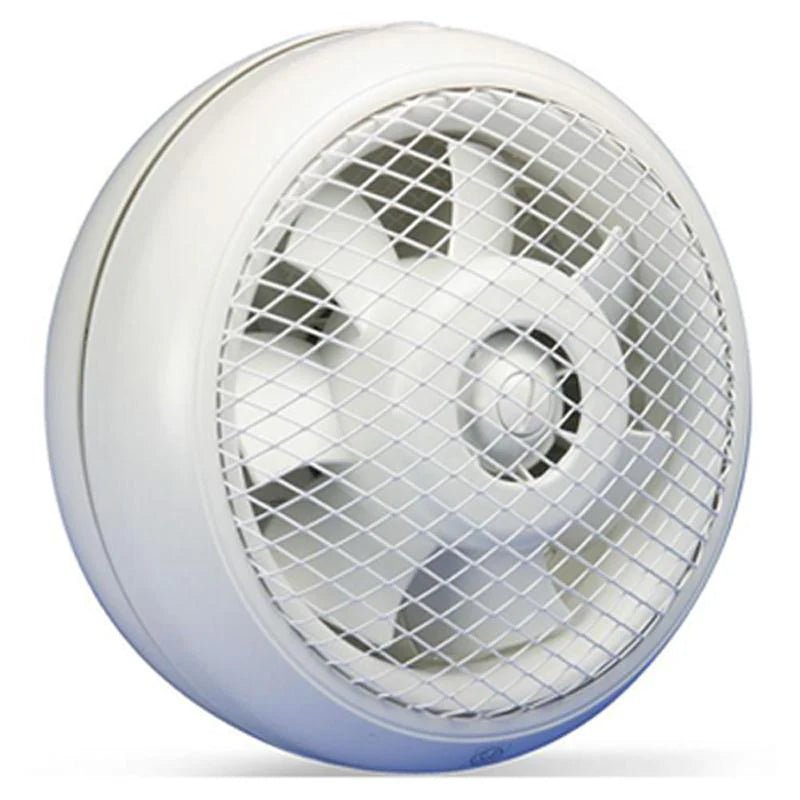

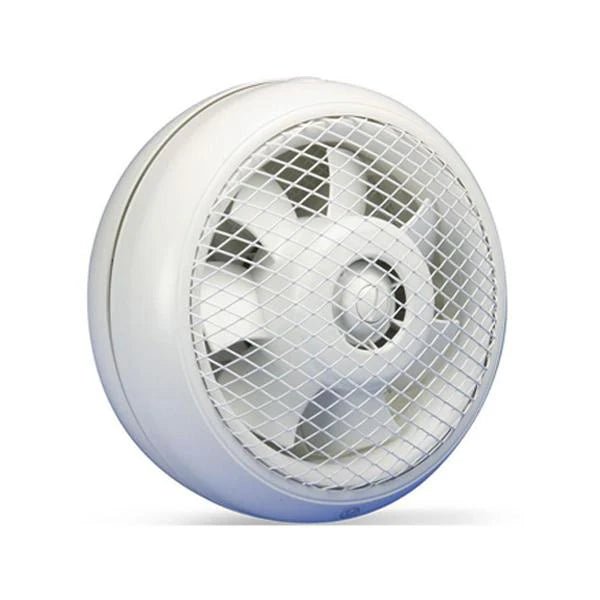

The HCM Series can be wall or window mounted. It is designed specifically for exhausting air from domestic and commercial installations such as kitchens, bathrooms, store-rooms and all types of small or confined areas.
Features:
- Available in 3 sizes for 230V supply.
- All models incorporate air operated shutters.
- Impeller blades are sickle shaped for high performance.
- Quiet operation.
- IPX4 rated.
- Weather Cap optional for protection against harsh external conditions.
- Suitable for mounting on vertical plain only.
- For wall mounting, a kit of threaded “wall rods” and sleeves can be supplied as an optional extra. Caters for walls ranging in thickness from 25 to 300mm.
Construction
- Weather and impact resistant plastic housings.
Motors
- Type-squirrel cage, capacitor run.
- Electricity supply - single-phase 230V, 50Hz.
- Bearings - sleeve.
- Class B motor, IPX4 rated.
Internal Thermal Protection
Testing
- Air flow to ISO5801:1997
- Noise to BS848:Part 2, 1985
Suggested Specification
- The wall/window fans shall be of the HCM Series as supplied by Fantech Pty Ltd and be of the model numbers shown.
Note: Must not be mounted directly above heat sources such as an oven.
Specifications
| Brand |
Fantech |
| Sku(s) |
FANHCM-150N, FANHCM-180N, FANHCM-225N |
| Product Type |
Wall Mount Fans |
| Colour |
White |

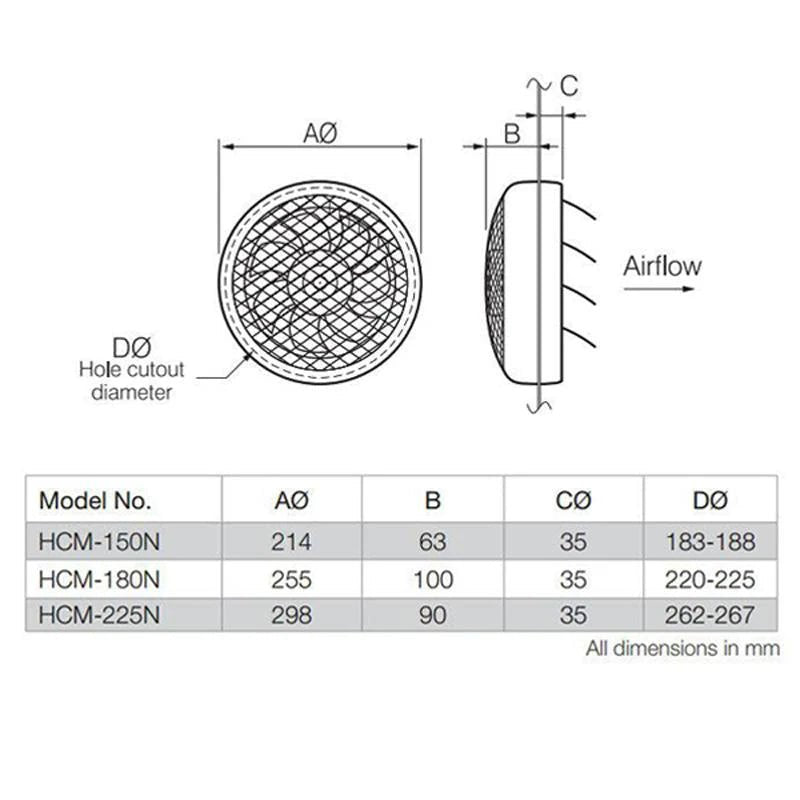

| Fan Size |
150mm,180mm, 225mm |
| Grille Size |
214mm, 255mm, 298mm |
| Depth |
63mm, 100mm, 90mm |
| Hole Cutout |
183-188mm, 220-225mm, 262-267mm |
| Extraction |
210m³/h, 380m³/h, 630m³/h |
