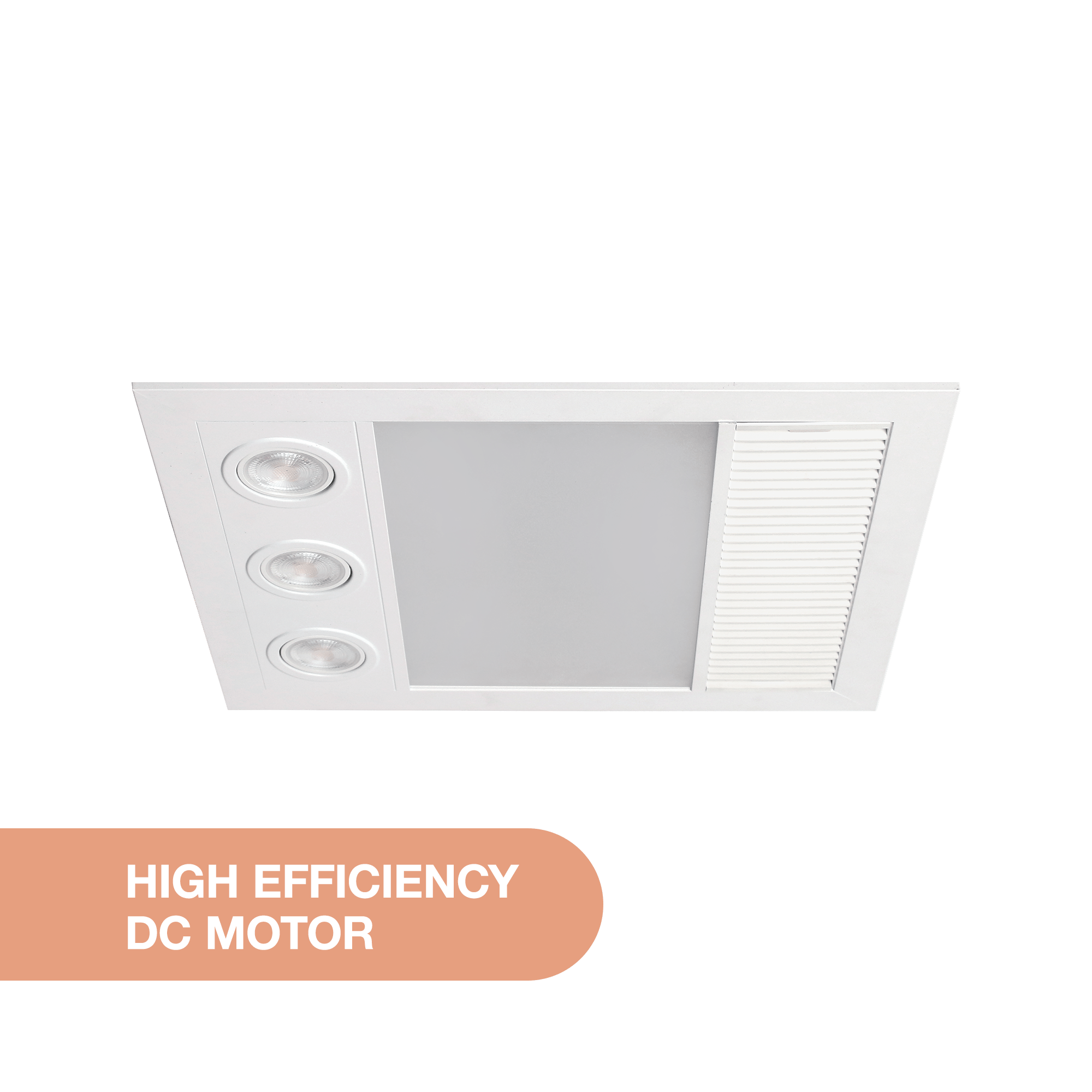

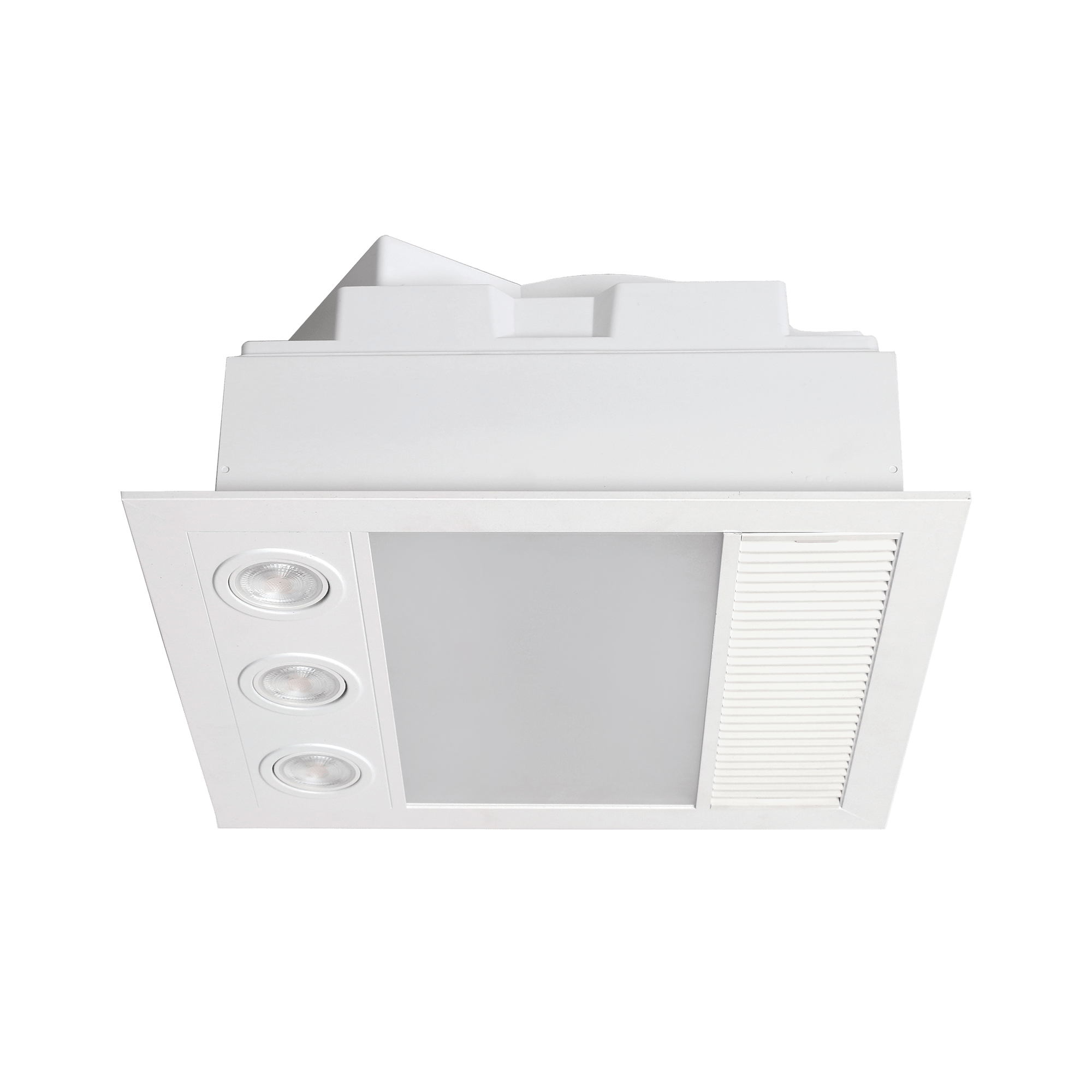

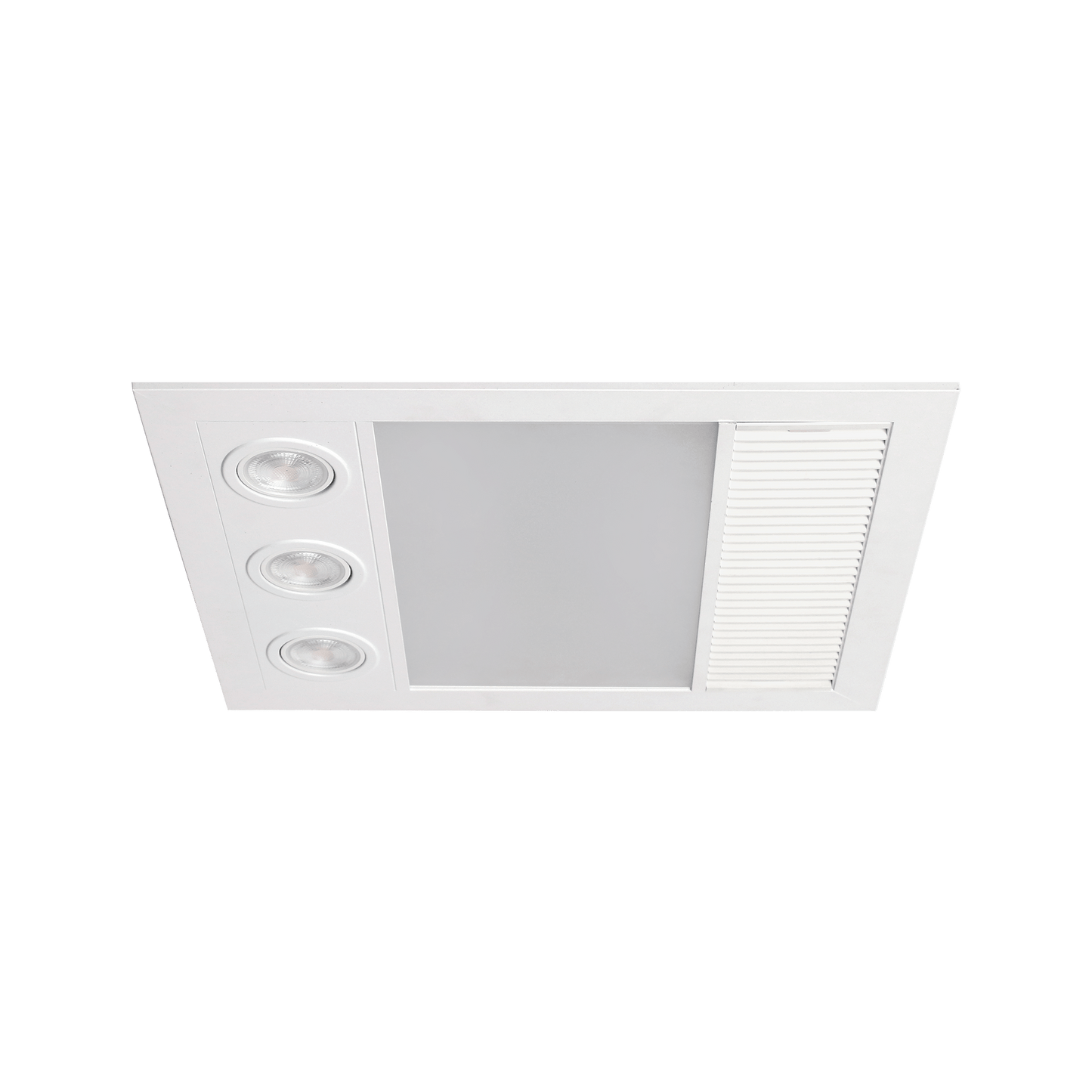

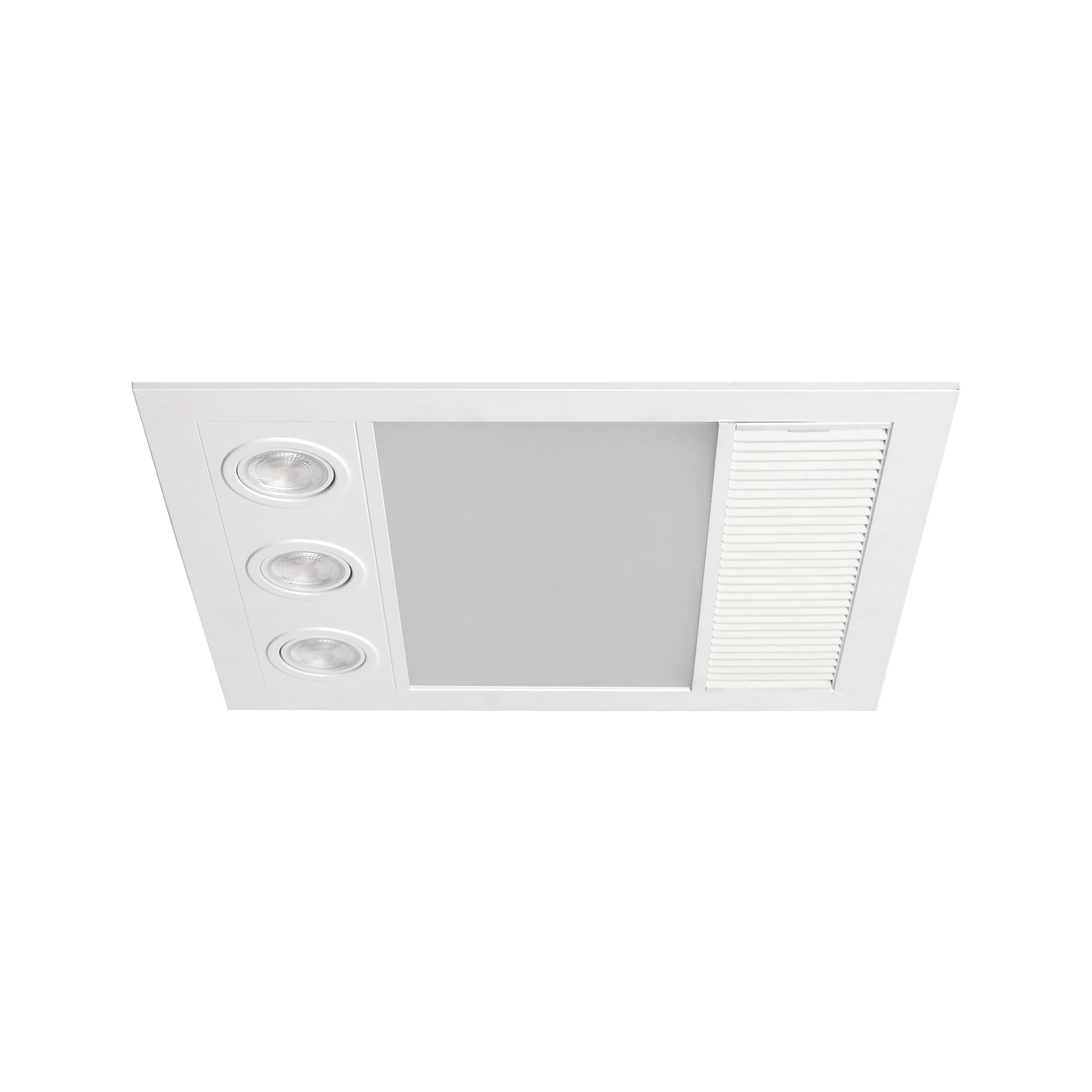

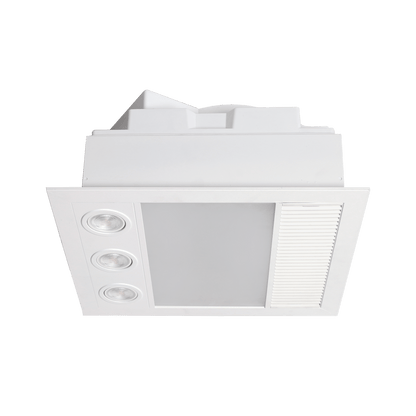

The Martec MBHMDC1000W is a compact, sleek, and low-profile 3-in-1 bathroom solution, combining efficient heating, powerful ventilation, and versatile lighting – all in one modern unit designed to suit any bathroom aesthetic.
Driven by a high-efficiency DC motor, it offers quiet operation at ≤40dB while delivering a solid 480 m³/hr air extraction rate, ideal for moisture and steam control. The integrated 1000W R7s heat tube ensures fast and effective warmth for comfort in cooler months.
This model includes three 6W GU10 LED tricolour lamps, allowing you to select between 3000K, 4000K, and 5000K colour temperatures to match your preferred bathroom ambience, with a total output of 1800 lumens.
Constructed with a durable steel housing and aluminium fascia, the unit is both functional and stylish. It’s equipped with thermal overload protection, a backdraft stopper, and IPX2 moisture protection for safe, reliable operation.
Easy to install, the MBHMDC1000W comes with a cut-out template and all necessary accessories, including a 3m duct, external grille, ducting clips, and a 3-gang wall switch. It is also compatible with the Martec MBHRKIT remote control (sold separately) for added convenience.
Key Features:
-
Sleek, low-profile design ideal for modern bathrooms
-
High-efficiency DC motor with 480 m³/hr extraction rate
-
Quiet operation (≤40dB)
-
Instant warmth from 1000W R7s heat tube (238mm)
-
3 x 6W GU10 LED lamps with selectable tricolour lighting (1800lm total)
-
Durable steel housing with aluminium fascia
-
Thermal overload protection and IPX2 rated
-
Compatible with Martec MBHRKIT remote (sold separately)
| Product Specifications |
| Ordering Code |
MBHMDC1000W |
| Colour |
Matt White |
| Air Extraction |
480 m³/hr |
| Power Wattage |
25W |
| Voltage |
220–240V 50Hz |
| Material |
Steel housing |
| Cut-out Size |
350 x 305mm |
| Decibel Rating |
≤40dB |
| IP Rating |
IPX2 |
| Heating Wattage / Type |
1000W R7s heat tube (238mm) |
| Lighting Wattage / Type |
3 x 6W GU10 LED Tricolour |
| Colour Temperature |
3000K / 4000K / 5000K |
| Lumens Output |
1800lm |
| Minimum Ceiling Depth |
230mm |
| Ducting Size |
120mm |
| Accessories Included |
1 x 3m duct
2 x ducting clips
1 x external grille
1 x 3-gang wall switch controller
1 x heat tube
3 x LED lamps |
