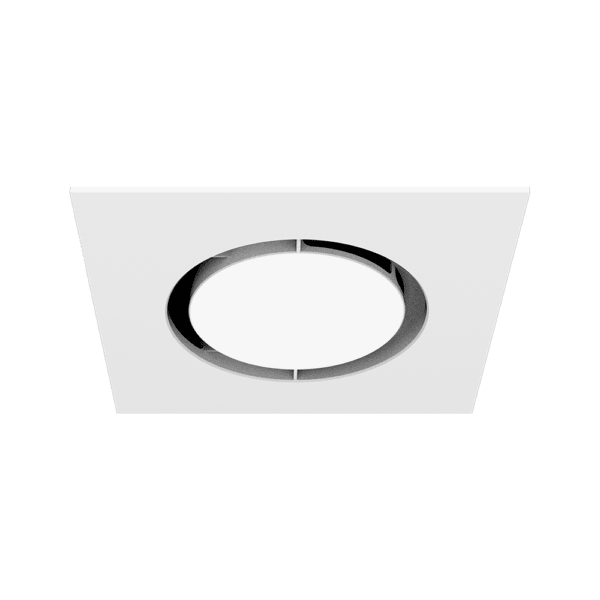

Bathroom Exhaust Fan with 20W Tricolour LED Light
Upgrade your bathroom with this sleek, low-profile exhaust fan featuring an integrated 20W tricolour LED panel light. Designed to suit a wide range of bathroom applications, it delivers efficient ventilation while providing bright, adjustable lighting.
With a flexible cut-out design, this unit is ideal for both new installations and retrofit projects. Built using durable polypropylene housing and a polycarbonate fascia, it ensures long-lasting performance in humid environments.
Key Features
- Sleek, low-profile design to suit modern bathrooms
- Integrated 20W tricolour LED panel light (adjustable colour temperature)
- Variable cut-out size for easy retro-fit installation
- Durable polypropylene (PP) housing with polycarbonate (PC) fascia
- Built-in thermal overload protection for added safety
- Efficient fan-only and cooling function
- Back draft stopper included
- Cut-out template included for easy installation
- Compatible with Martec Bathroom Remote (MBHPTKIT – sold separately)
| Colour |
Matt White |
| Air Extraction (m³/hr) |
330 m³/hr |
| Exhaust Fan Wattage |
25W |
| Voltage |
220–240V 50Hz |
| Material |
Polypropylene housing |

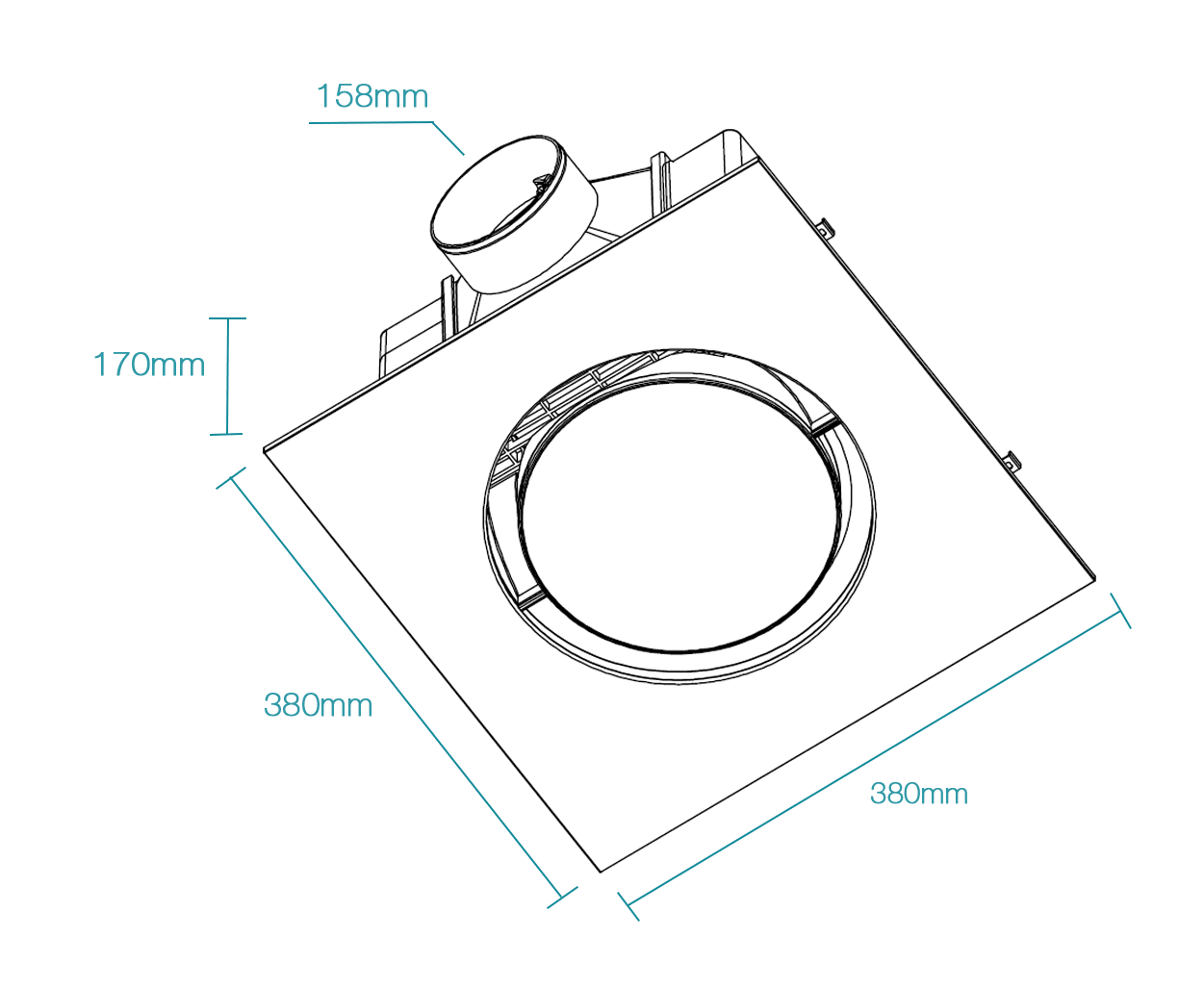

| Cut Out Size |
Variable from 330 x 330mm up to 350 x 350mm |
| Decibel Rating |
≤40dB |
| IP Rating |
IPX4 |
| Heating Wattage / Type |
2200W PTC |
| Lighting Wattage / Type |
20W LED |
| Colour Temperature |
3000K / 4000K / 5000K |
| Lumens Output |
1200lm / 1190lm / 1180lm |
| Minimum Ceiling Depth |
200mm |
| Ducting Size |
100mm |
| Accessories Included |
1x 1.5m duct, 2x ducting clips, 1x external grille, 1x 4 gang switch |
