Recessed Emergency LED Diskfire provides instant and reliable illumination in any emergency situation. Designed with long-life electronics and best-in-class energy consumption, this fixture combines safety and efficiency.
With a high ambient temperature rating of 40°C and non-maintained operation, it delivers dependable performance in any environment. Its black model option and wide area and corridor mode lenses offer flexibility.
The fast emergency switch-over feature (<0.5s) ensures immediate illumination in high-task areas. Equipped with a high-quality lithium battery (LiFePO4) and smart charger.
Prioritize safety and be prepared for emergencies with Recessed Emergency LED Diskfire.
Features
-Long life electronics-Best in class energy consumption
-High ambient temperature rating (40°C)
-Non-maintained operation
-Black model available
-Wide Area and Corridor mode snap-on lenses included
-Fast emergency switch-over (<0.5s) for high task areas
-igh Quality Lithium battery (LiFePO4) and smart charger
| Supply Voltage |
220-240V ~ 50Hz |
| Ambient Temperature |
0 –40°C |
| Classification |
2 |
| Wiring |
Soft wiring |
| IP Rating |
IP20 |
| Mounting Type |
Recessed |

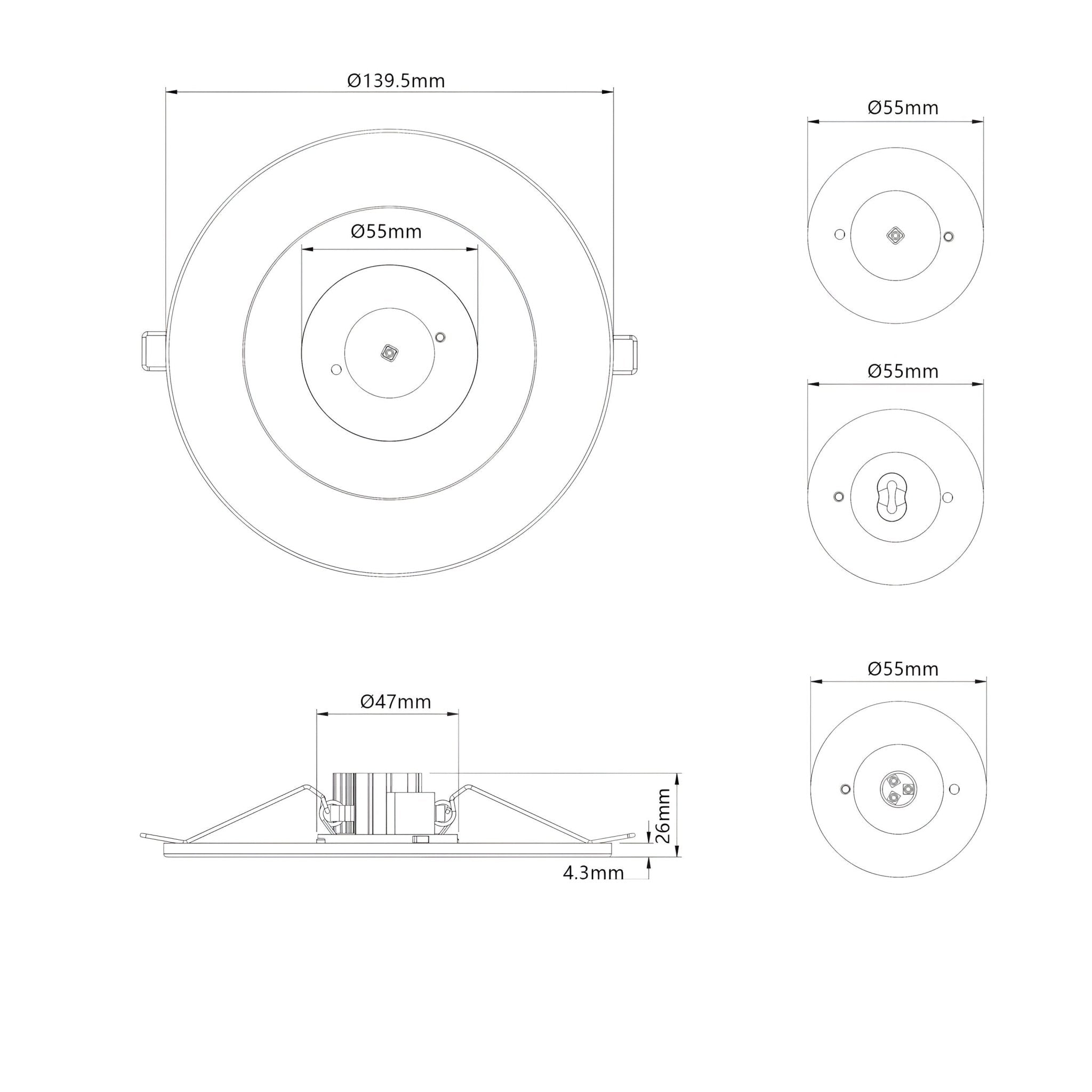

CUT-OUT
|
Ø55 mm inner / Ø139mm outer ring |
| Rated Duration |
3 hours |
| Lumens |
200lm/400 lm |
| Emergency Testing |
Standalone DALI Self test |
| Type |
LiFePO4 |
| Voltage |
6.4V |
| Code |
1500mah/3000mah |
| Type (Charger) |
Smart charge |
| Time (Charger) |
24 hours |
| Operation(Charger) |
Adjustable |
| Compliance |
|
| Standards |
IEC 60598-2-22 IEC 60598-1 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 62493 AS 2293. |
| Package |
Net weight |
Gross weight |
Quantity |
Size |
| Carton |
8.1 kg |
9kg |
20 pcs/ctn |
39x31x24.5 cm
|
